ADJ

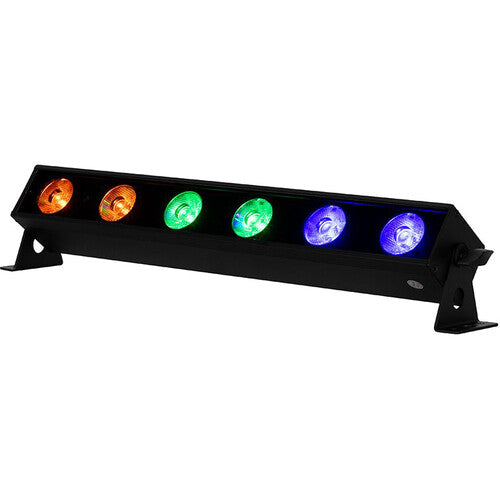

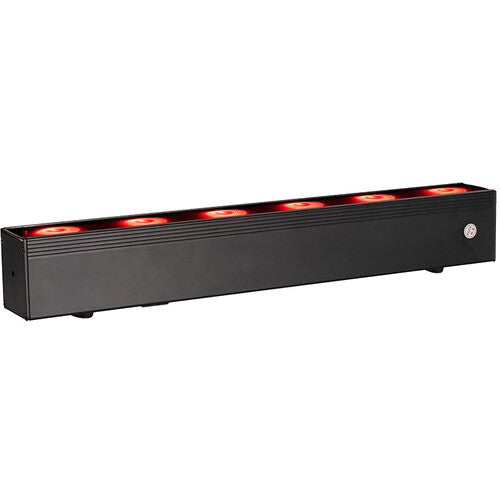

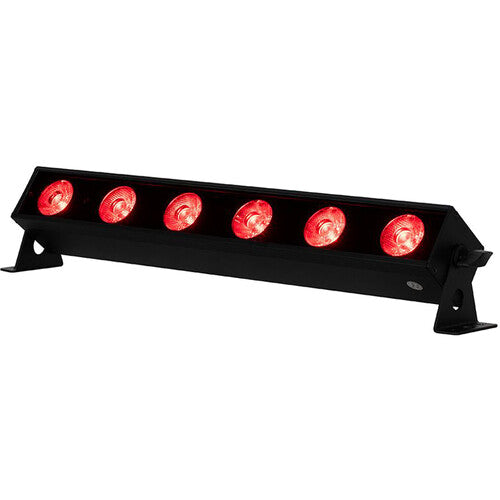

American DJ UBL6H RGBAL+UV Linear Light Bar with Diffusion Filter (6 LEDs)

$185.20

Craft captivating displays on walls, floors, and ceilings with the American DJ UBL6H, a 22.5" versatile LED linear fixture with six 20W, 6-in-1 HEX LEDs (RGBAL+UV) well suited for uplighting, downlighting, stage washing, and dancefloor illumination. The inclusion of the lime LED chip allows for a high CRI of >90, which ensures the fixture’s output will render colors accurately when used to illuminate scenery, décor, and people.

View Product Features

  • For Uplighting, Downlighting, Wash, FX
  • 6 x 20W RGBAL+UV 6-in-1 LEDs
  • 0 to 100% Dimming; 6 Modes, 4 Curves
  • 17° Beam Angle/20° with Diffusion Filter
  • 7 DMX Channel Modes
  • Smooth RGBAW+UV Color Mixing
  • 64 Built-In Color Macros
  • 5 Operational Modes
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the American DJ UBL6H RGBAL+UV Linear Light Bar with Diffusion Filter (6 LEDs)

Craft captivating displays on walls, floors, and ceilings with the American DJ UBL6H, a 22.5" versatile LED linear fixture with six 20W, 6-in-1 HEX LEDs (RGBAL+UV) well suited for uplighting, downlighting, stage washing, and dancefloor illumination. The inclusion of the lime LED chip allows for a high CRI of >90, which ensures the fixture’s output will render colors accurately when used to illuminate scenery, décor, and people.

The LEDs are arranged into three independently controllable groups of two, allowing for smooth color mixing, while creating a wide variety of hues and shades. Additionally, the fixtures can also be used to generate white light output with color temperature variable between 2300 and 9900K. For even more versatility, the UV element allows the creation of a "blacklight" effect, causing white and neon colored décor and clothing to glow when used alone. The UBL12H comes complete with an indoor locking power cord, UC-IR24 remote, and a 20° diffusion filter.

Key Features

  • For Uplighting, Downlighting, Wash, FX
  • 6 x 20W RGBAL+UV 6-in-1 LEDs
  • 0 to 100% Dimming; 6 Modes, 4 Curves
  • 17° Beam Angle/20° with Diffusion Filter
  • 7 DMX Channel Modes
  • Smooth RGBAW+UV Color Mixing
  • 64 Built-In Color Macros
  • 5 Operational Modes

American DJ UBL6H RGBAL+UV Linear Light Bar with Diffusion Filter (6 LEDs) Specs

Light
Fixture Type
Linear/Bar Light
Light Source
6x Color/UV LED - 20 W
Expected Lamp Life
50,000 Hours
Colors
Amber, Blue, Green, Lime, Red, Ultraviolet
Pixel Configuration
3x Zone
Color Temperature
2300 to 9900K
Beam Angle
17° 20° (with Filter)
Shutter / Strobe
Electronic
Dimming
Electronic, 0 to 100% with 6 Dimmer Modes
Performance
Operating Modes
Automatic, Program, Sound-Active, Static Color
Gobos
No
Refresh Rate
1.9 kHz
Control
Control Protocols
DMX512, Internal
DMX Channel Modes
7 Mode(s): 6 / 11 / 13 / 16 / 18 / 25 / 28-Channel
Display / Controls
OLED / 4-Button
Remote Control
IR Remote (with Included Equipment)
Mobile App Compatible
No
Connectivity
Inputs/Outputs

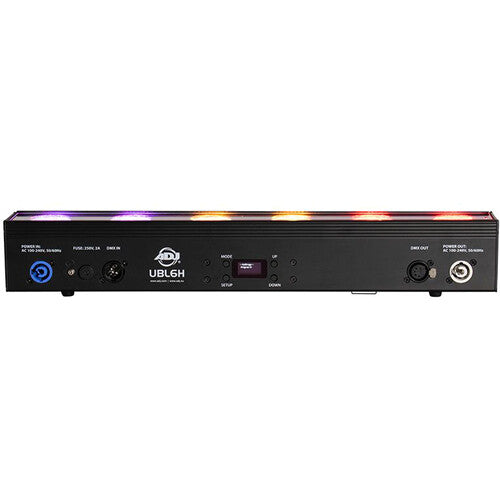

1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output
Wireless
No
Wireless Range
32.8' / 10 m (with Optional Equipment)
Power
AC Power Connector
Input: 1x powerCON Output: 1x powerCON Plug Type: NEMA 5-15 Cord Length: 6' / 1.83 m
Input Power
100 to 240 VAC, 60 / 50 Hz
Power / Current Consumption
26 W
Power Linking
26 Units at 120 VAC 50 Units at 230 VAC
Physical
Environmental Resistance
No
Mounting
Mounting Bracket
Included Accessories
1x Power Cable 1x Filter
Duty Cycle
No
Exterior Color
Black
Certifications
CE, FCC, cETLus
Dimensions
22.5 x 4.2 x 2.96" / 571.5 x 106.7 x 75.18 mm
Weight
4.4 lb / 2 kg

Key Features

  • For Uplighting, Downlighting, Wash, FX
  • 6 x 20W RGBAL+UV 6-in-1 LEDs
  • 0 to 100% Dimming; 6 Modes, 4 Curves
  • 17° Beam Angle/20° with Diffusion Filter
  • 7 DMX Channel Modes
  • Smooth RGBAW+UV Color Mixing
  • 64 Built-In Color Macros
  • 5 Operational Modes
