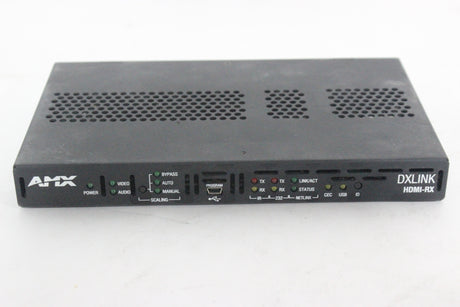

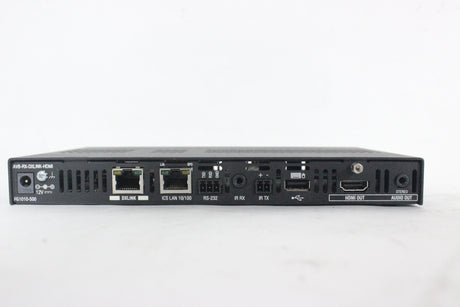

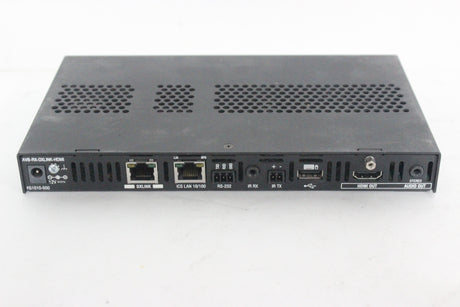

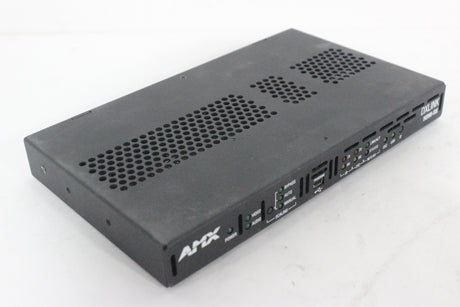

The AMX FG1010-500FX is a professional AV-over-IP receiver module designed to integrate into AMX's Enova DGX and DVX series digital media switchers. This module functions as a digital endpoint that receives high-definition audio, video, and control signals transmitted over a standard Cat6/Cat6a cable using AMX's proprietary DXLink technology. It decodes the digital stream and outputs it as a native HDMI signal, along with separate analog or digital audio and bidirectional serial/IR control signals, making it a key component in centralized AV distribution systems for boardrooms, classrooms, command centers, and hospitality environments.

The receiver supports high-bandwidth video formats, including Full HD 1080p and 4K UHD resolutions (depending on the specific model and system configuration), ensuring high-quality video presentation on displays. A primary feature of the DXLink system is its ability to transmit signals over significant distances—up to 100 meters (330 feet) on a single Cat6 cable—far exceeding the limitations of a direct HDMI cable run. This allows for flexible placement of source equipment and displays within a facility. The module also enables two-way communication, allowing the central switcher to send control commands (e.g., RS-232, IR) to the connected display or source device at the remote location and receive status feedback.

Housed in a slot-in card format for the Enova chassis, the module is part of a scalable and manageable system. It draws power directly from the enclosure and is configured and monitored through the switcher's centralized management software. By leveraging the existing network infrastructure for high-performance AV transport, this receiver module simplifies installation, reduces cable costs, and provides a reliable, high-quality solution for distributing digital media and control in professional integrated systems.
