ARRI

ARRI 536200 2000W Tungsten Softlight

$0.00

The ARRI 536200 is a high-performance 2000W tungsten softlight designed to deliver broad, even illumination ideal for professional film, television, and studio lighting. Known as the Arrisoft 2000, this fixture uses dual R7s base lamps to produce a powerful yet soft wash of light, minimizing harsh shadows. With a wide beam spread and rugged construction, it is perfectly suited for key lighting, fill lighting, or background wash in demanding production environments.

View Product Features

  • Dual-lamp design delivers a bright, even soft light output up to 2000W
  • Compatible with 120V or 240V power depending on lamp configuration
  • Wide beam angle (~73° × 71°) for excellent coverage of large areas
  • Built-in white scoop reflector enhances light distribution and softness
  • Heavy-duty housing with yoke mount and 5/8" receiver for secure rigging
  • Accepts optional accessories like color filters and diffusion frames
  • Suitable for film sets, broadcast studios, and other pro lighting setups
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

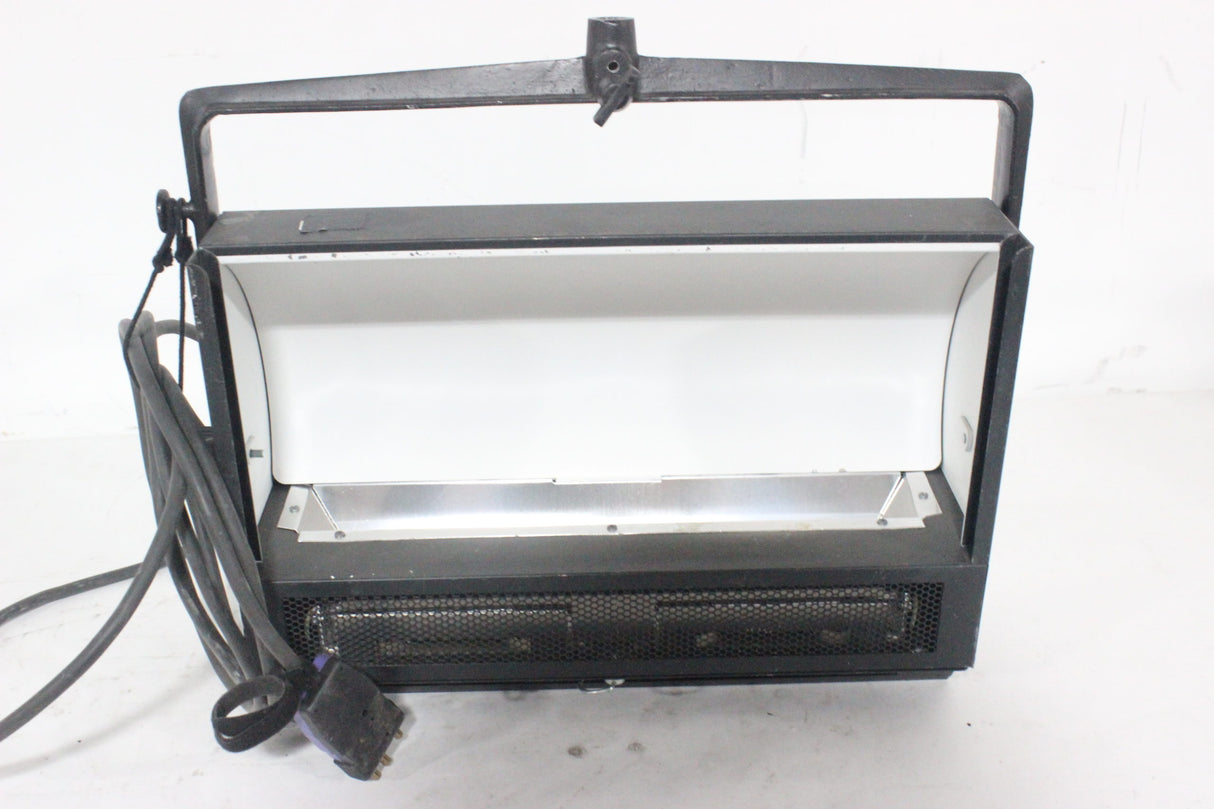

About the ARRI 536200 2000W Tungsten Softlight

The ARRI 536200 2000W Tungsten is identified as a professional-grade lighting fixture, most commonly an Arrisoft 2000 softlight used in studios and on location for high-quality, indirect illumination. Unlike a Fresnel light which produces a focused, directional beam, this model uses an internal white scoop reflector to generate a wide, soft, and even wash of light with a broad 73 x 71° beam angle. This design minimizes harsh shadows and produces a flattering, diffused light output ideal for portraiture, interviews, and general area coverage in film and television production.

The fixture is robustly constructed with a durable yoke and a male hanging mount (28mm or 1-1/8" spigot) for flexible positioning on stands or overhead rigs. It is designed for multi-voltage operation, functioning on both 120V and 240V systems simply by swapping the appropriate two 1000W lamps to match the local electrical environment. The unit is passive in its control, requiring an external dimmer system to adjust light intensity from 0 to 100%.

The 536200 model code often refers specifically to the fixture head without a power plug attached, allowing users to fit the necessary connector for their region. It is a workhorse in the industry, valued for its reliability, build quality, and ability to deliver consistent 3200K color temperature light. While highly effective for soft light applications, it is a non-focusing light source and does not accept a traditional lens system like a Fresnel.

Key Features

  • Dual-lamp design delivers a bright, even soft light output up to 2000W
  • Compatible with 120V or 240V power depending on lamp configuration
  • Wide beam angle (~73° × 71°) for excellent coverage of large areas
  • Built-in white scoop reflector enhances light distribution and softness
  • Heavy-duty housing with yoke mount and 5/8" receiver for secure rigging
  • Accepts optional accessories like color filters and diffusion frames
  • Suitable for film sets, broadcast studios, and other pro lighting setups

ARRI 536200 2000W Tungsten Softlight Specs

Lighting Performance Details
Fixture Type
Softlight, Open Face with Reflector
Max Power Consumption
2000 Watts max
Correlated Color Temperature
3200 K (Tungsten Standard)
Beam Angle
73° x 71° (Horizontal x Vertical Spread)
Dimming Capability
Yes, via external dimming system
Photometrics @ 10 ft (3m)
71 fc (Foot-candles)
Photometrics @ 15 ft (4.6m)
32 fc (Foot-candles)
Reflector Type
White scoop, internal
Lamp & Power Specifications
Voltage Range
120 V to 240 VAC
Required Lamps
2 x 1000W lamps (FEX for 230V, FEY for 120V systems)
Lamp Base (Socket)
R7S / RX7 / RSC Recessed Single Contact x2
Amperage Draw (Approx)
16.6 A (at 120V) / 9 A (at 220V)
Mechanical & Physical Metrics
Housing Material
Die-cast aluminum construction (corrosion resistant)
Mounting System
1 1/8" (28 mm) male hanging spigot mount
Yoke Design
Flat twin blade
Approximate Weight
17 lbs. (7.7 kg)
Dimensions (H x W x D)
21.75 x 21 x 7.25" (552 x 533 x 183 mm)
Aperture Size
7.7 x 9.5" (195 x 241 mm)
Cable Length
25' (7.6 m) standard cable

Key Features

  • Dual-lamp design delivers a bright, even soft light output up to 2000W
  • Compatible with 120V or 240V power depending on lamp configuration
  • Wide beam angle (~73° × 71°) for excellent coverage of large areas
  • Built-in white scoop reflector enhances light distribution and softness
  • Heavy-duty housing with yoke mount and 5/8" receiver for secure rigging
  • Accepts optional accessories like color filters and diffusion frames
  • Suitable for film sets, broadcast studios, and other pro lighting setups
