SKU: 2105-155

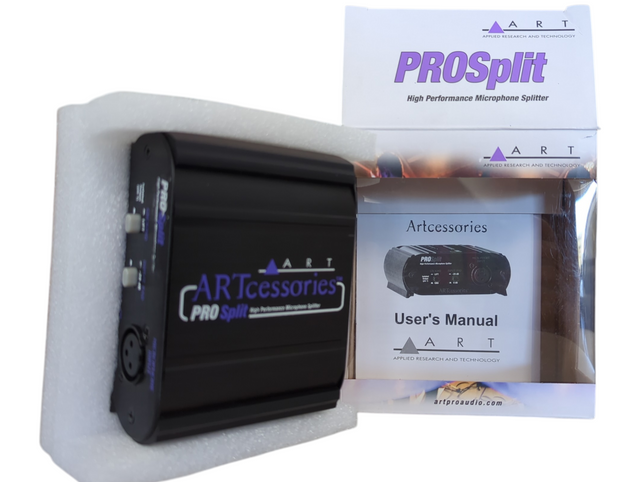

ARTcessories PROSplit High Performance Microphone Splitter in Original Box

$59.95

Items Included

ART ProSplit - Two-Way Microphone Signal Splitter

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The ProSplit lets your signal be in two places at once. It provides one direct output and one transformer-isolated output from a single input. The passive design doesnt require power, but the direct output will pass phantom power for use with active microphones. The ProSplit also features a switchable ground lift to reduce noise due to ground loops, and an input pad to accommodate line level sources. When two outputs are better than one, use the ProSplit to connect to both the front-of-house and monitor mixers, for creative parallel processing, or to record a safety track at a lower level in case of clipping. Its compact, flexible, and designed for years of reliable use. Read more

Features

2-Way Splitter
1x XLR Microphone Input
1x Direct and 1x Transformer-Isolated XLR Outputs
Direct Output Passes Phantom Power
Switchable Ground Lift and Input Pad
Passive Design - No Power Required

Business Financing Options Avaiable

View Available Financing

Features

2-Way Splitter
1x XLR Microphone Input
1x Direct and 1x Transformer-Isolated XLR Outputs
Direct Output Passes Phantom Power
Switchable Ground Lift and Input Pad
Passive Design - No Power Required

No products currently in stock

About the ARTcessories PROSplit High Performance Microphone Splitter in Original Box

The ARTcessories PROSplit High Performance Microphone Splitter is a professional passive audio splitter designed to distribute a single balanced microphone signal to two separate destinations. It provides one direct XLR output and one transformer-isolated XLR output, allowing a microphone to feed two mixing or recording systems simultaneously. The direct output is connected directly to the microphone input and passes phantom power from the primary mixer, making it suitable for condenser microphones. The transformer-isolated output electrically separates the secondary system to help prevent ground-loop noise and interference.

The PROSplit includes a switchable -29 dB input pad for accommodating higher-level signals and a ground-lift switch on the isolated output. The passive design requires no external power, making it particularly convenient for live sound, recording, broadcast, and production setups. Typical applications include sending the direct output to a front-of-house mixer while routing the isolated output to a monitor or recording mixer. It can also be used for parallel processing or creating a secondary safety recording feed.

Key Features

2-Way Splitter
1x XLR Microphone Input
1x Direct and 1x Transformer-Isolated XLR Outputs
Direct Output Passes Phantom Power
Switchable Ground Lift and Input Pad
Passive Design - No Power Required

Already own this item and want to sell it?

Click here to sell your item

ARTcessories PROSplit High Performance Microphone Splitter in Original Box Specs

Input & Outputs

Microphone Input

1 x XLR

Direct Output

1 x XLR

Transformer-Isolated Output

1 x XLR

Total Outputs

Output Configuration

1 Direct + 1 Isolated

Signal Type

Balanced Audio

Signal Distribution

Direct Output

Directly Connected to Input

Isolated Output

Transformer-Isolated

Phantom Power

Passes Through Direct Output

Isolated Output Phantom Power

Blocked

Isolation Method

Audio Transformer

Controls & Functions

Input Pad

Switchable

Input Pad Attenuation

-29 dB

Input Pad Settings

0 dB / -29 dB

Ground Lift

Switchable

Ground Switch Settings

GND / LIFT

External Power

Not Required

Operating Design

Passive

Audio Performance

Frequency Response

20 Hz–20 kHz, ±0.25 dB

Low-Frequency Roll-Off

-3 dB @ Approximately 165 Hz

Input Impedance

>1.1 kΩ @ 1 kHz

Typical Source Impedance

150 Ω

Output Impedance

<255 Ω @ 1 kHz

Typical Output Load

1 kΩ

Insertion Loss

Approximately 2 dB @ 1 kHz

Key Features

2-Way Splitter
1x XLR Microphone Input
1x Direct and 1x Transformer-Isolated XLR Outputs
Direct Output Passes Phantom Power
Switchable Ground Lift and Input Pad
Passive Design - No Power Required
