Ashly nXp1.54 Network 4ch 6kW Network Power Amplifier w/Protea DSP

Name: Ashly nXp1.54 Network 4ch 6kW Network Power Amplifier w/Protea DSP
Brand: AVGear.com
SKU: nXP1.54
Price: 4719.00 USD
Availability: InStock

$4,719.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The nXp1.54 Network Power Amplifier from Ashly Audio is the networkable version of the nX amplifier. It comes with Ethernet control, serial data control, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional network audio and digital audio capability. All these are controlled using Ashly Audio's Protea software suite. This amplifier is designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces, and convention centers. The Network Power Amplifier adds 32-bit SHARC DSP processing (with 48 kHz and 96 kHz sampling) as standard equipment for comprehensive audio processing, with built-in signal generator for test tone, and noise-masking. Plus, you get precision load impedance monitoring on each amplifier channel output. Read more

Features

2-channel high-output, lightweight amplifier with programmable output on each channel
Power saving, Energy Management System (Ashly EMS) automatic <1W sleep mode is defeatable

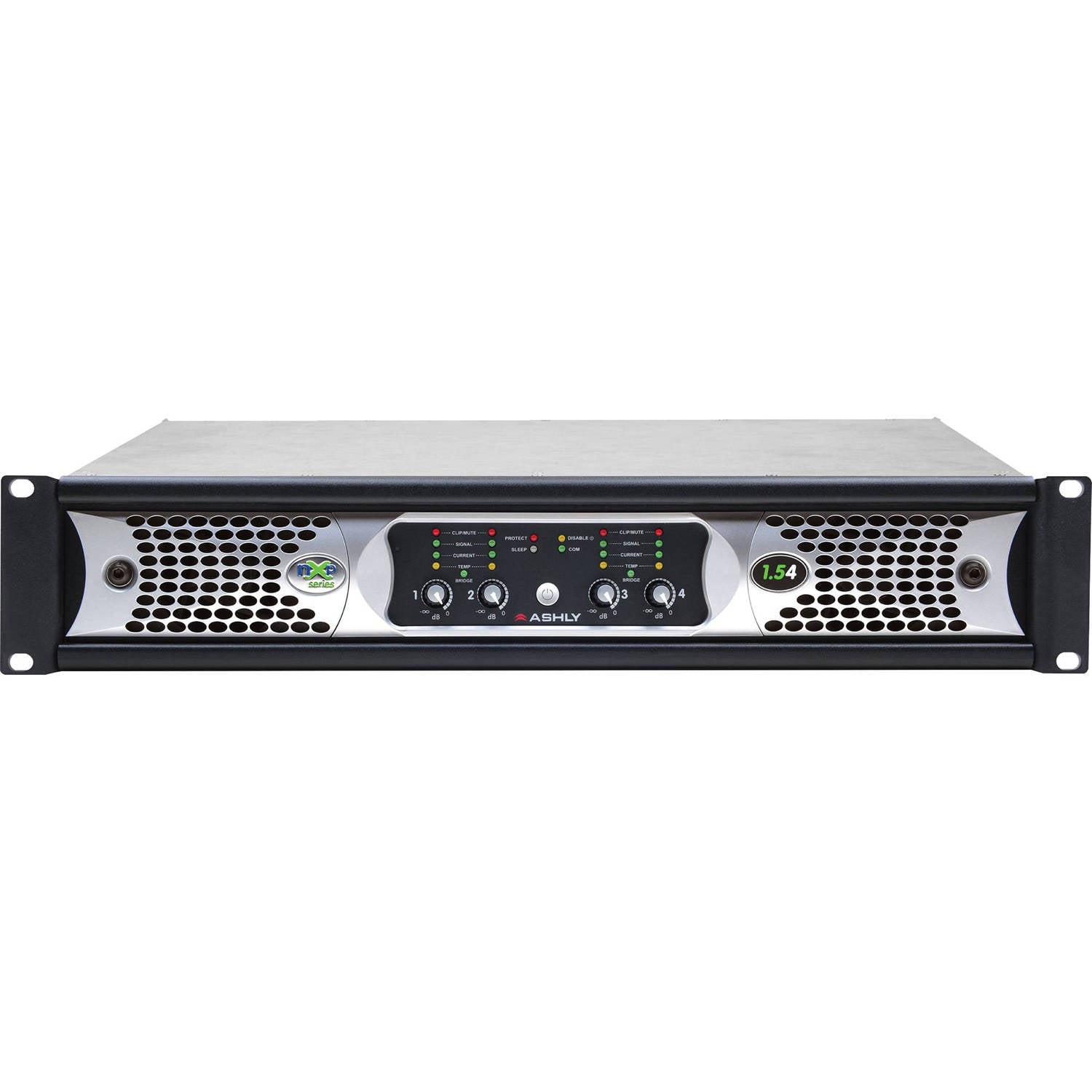

Front panel power switch and level controls can be disabled for security

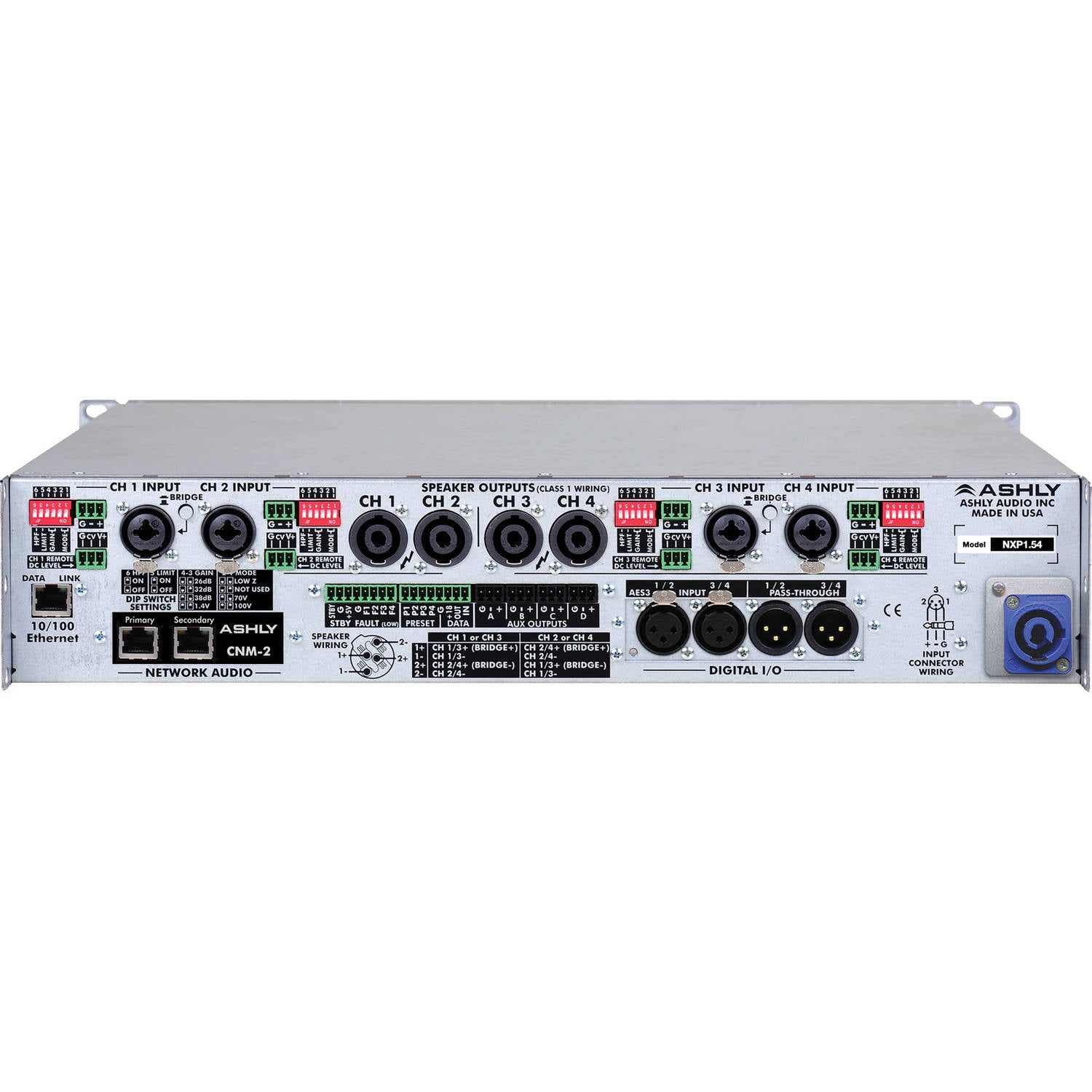

Neutrik Combo XLR: 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking loudspeaker connectors for security, safety, and reliability
Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
Remote DC level control on each input channel
Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED
Neutrik powerCON detachable AC mains connector
Switch mode power supply automatically detects 120 or 240 VAC operation
Extensive protection circuitry, continuously variable cooling fans
Multiple independent internal power supplies provide increased channel separation and reliability
Serial data port for use with Ashly remote control devices, or RS-232 converter (sold separately) for third party controllers (INA-1)
Uses Protea software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
Real-time clock with event scheduler
Instant standby mode, 30% reduction in power consumption with on/off triggered by contact closure, software control, or event scheduler
Programmable power-on delay
Preset recall via contact closure, software control, remote control, or event scheduler
Auxiliary preamplifier outputs and fault condition logic outputs
Cobranet or Dante network audio (sold separately) and AES3 digital audio input with pass-through
Ducking at mixer, peak hold indicator, in/out per filter, key engage, lock per filter, and global lock
Dynamics, gain, equalization, 2x4 or 4x4 matrix mixer, crossover, delay, metering, and signal generator functions for test and noise masking applications
Precision swept load impedance monitoring of each amplifier channel for quick and easy diagnosis of sound system problems remotely via Ethernet

Business Financing Options Avaiable

View Available Financing

Features

2-channel high-output, lightweight amplifier with programmable output on each channel
Power saving, Energy Management System (Ashly EMS) automatic <1W sleep mode is defeatable
Front panel power switch and level controls can be disabled for security
Neutrik Combo XLR: 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking loudspeaker connectors for security, safety, and reliability
Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
Remote DC level control on each input channel
Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED
Neutrik powerCON detachable AC mains connector
Switch mode power supply automatically detects 120 or 240 VAC operation
Extensive protection circuitry, continuously variable cooling fans
Multiple independent internal power supplies provide increased channel separation and reliability
Serial data port for use with Ashly remote control devices, or RS-232 converter (sold separately) for third party controllers (INA-1)
Uses Protea software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
Real-time clock with event scheduler
Instant standby mode, 30% reduction in power consumption with on/off triggered by contact closure, software control, or event scheduler
Programmable power-on delay
Preset recall via contact closure, software control, remote control, or event scheduler
Auxiliary preamplifier outputs and fault condition logic outputs
Cobranet or Dante network audio (sold separately) and AES3 digital audio input with pass-through
Ducking at mixer, peak hold indicator, in/out per filter, key engage, lock per filter, and global lock
Dynamics, gain, equalization, 2x4 or 4x4 matrix mixer, crossover, delay, metering, and signal generator functions for test and noise masking applications
Precision swept load impedance monitoring of each amplifier channel for quick and easy diagnosis of sound system problems remotely via Ethernet
