Ashly  |  SKU: NE24.24M 16X4 LOGIC

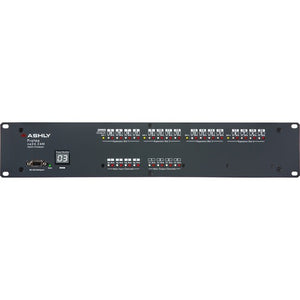

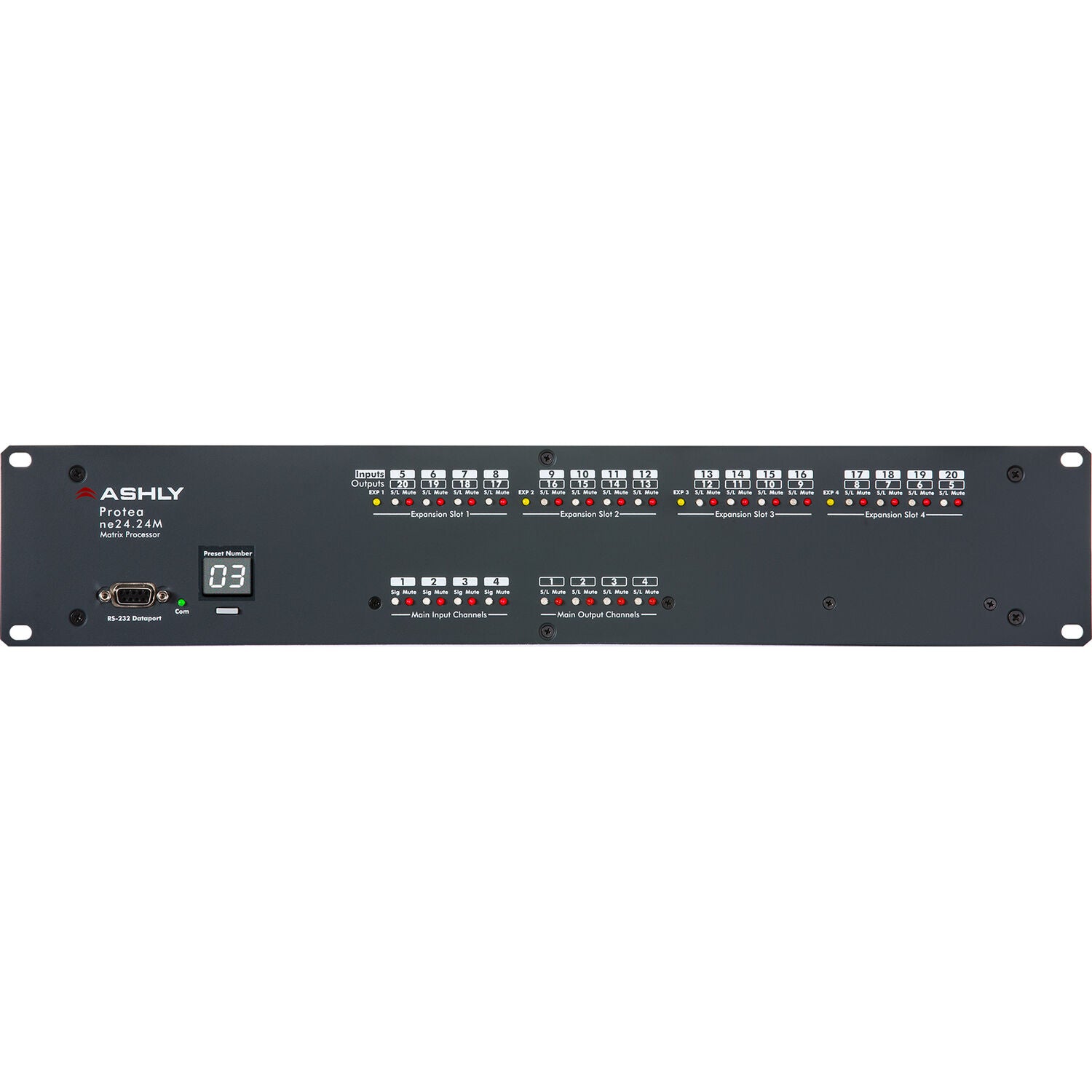

Ashly Protea ne24.24MT Matrix Digital Signal Processor with 16x4 I/O and GPO Logic Card

$3,099.00
Shipping calculated at checkout.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

The ne24.24M series is built around a 4x4 base unit, which is expanded with field-installable 4-channel input or output modules. The 16x4 Logic configuration is achieved by adding three 4-channel input cards and an optional General Purpose Output (GPO) Logic card to the expansion slots. The GPO card enables control of external relays, screens, or lights based on presets or custom logic. Configuration and control are performed via a PC using Ashly's Protea NE Software over an Ethernet or RS-232 connection. This software-centric approach, combined with multi-level security, makes the unit tamper-proof by eliminating front-panel controls. The device features a comprehensive suite of DSP functions for each channel, including equalization, delay, gates, and auto-levelers.

Features

• Modular design: Easily expanded with 4-channel I/O cards, with a maximum capacity of 24 channels.
• Integrated logic card: Includes General Purpose Outputs (GPOs) for triggering external devices.
• Extensive DSP: Features a complete suite of processing tools, including gates, duckers, auto-levelers, compressors, and comprehensive EQ filters for each channel.
• Network enabled: Standard 10/100 Ethernet and RS-232 interfaces allow for PC programming and third-party control.
• Tamper-proof security: Multi-level security and software-only control prevent unauthorized changes.
• High-quality audio: 24-bit A/D–D/A conversion with a 48 kHz sample rate.

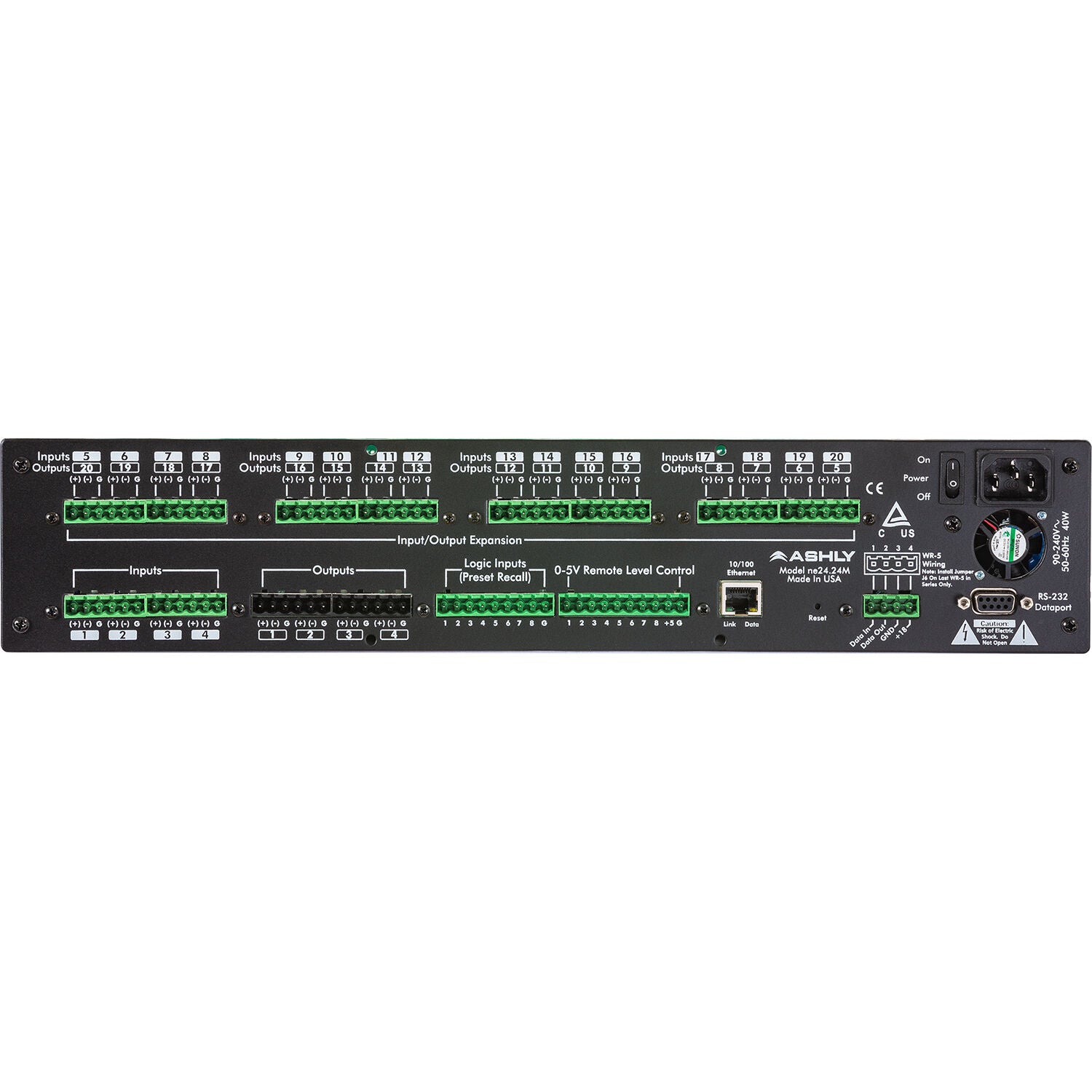

• Secure connections: All audio and logic connections use Euroblock connectors for secure, reliable wiring.

Testing Notes

In The Box

Ashly Protea ne24.24MT Matrix Digital Signal Processor with 16x4 I/O and GPO Logic Card
