Ashly | SKU: NE24.24M 4X16 LOGIC

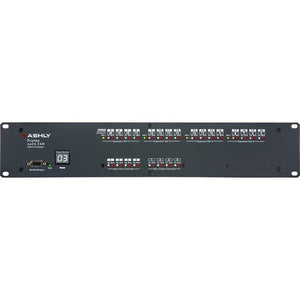

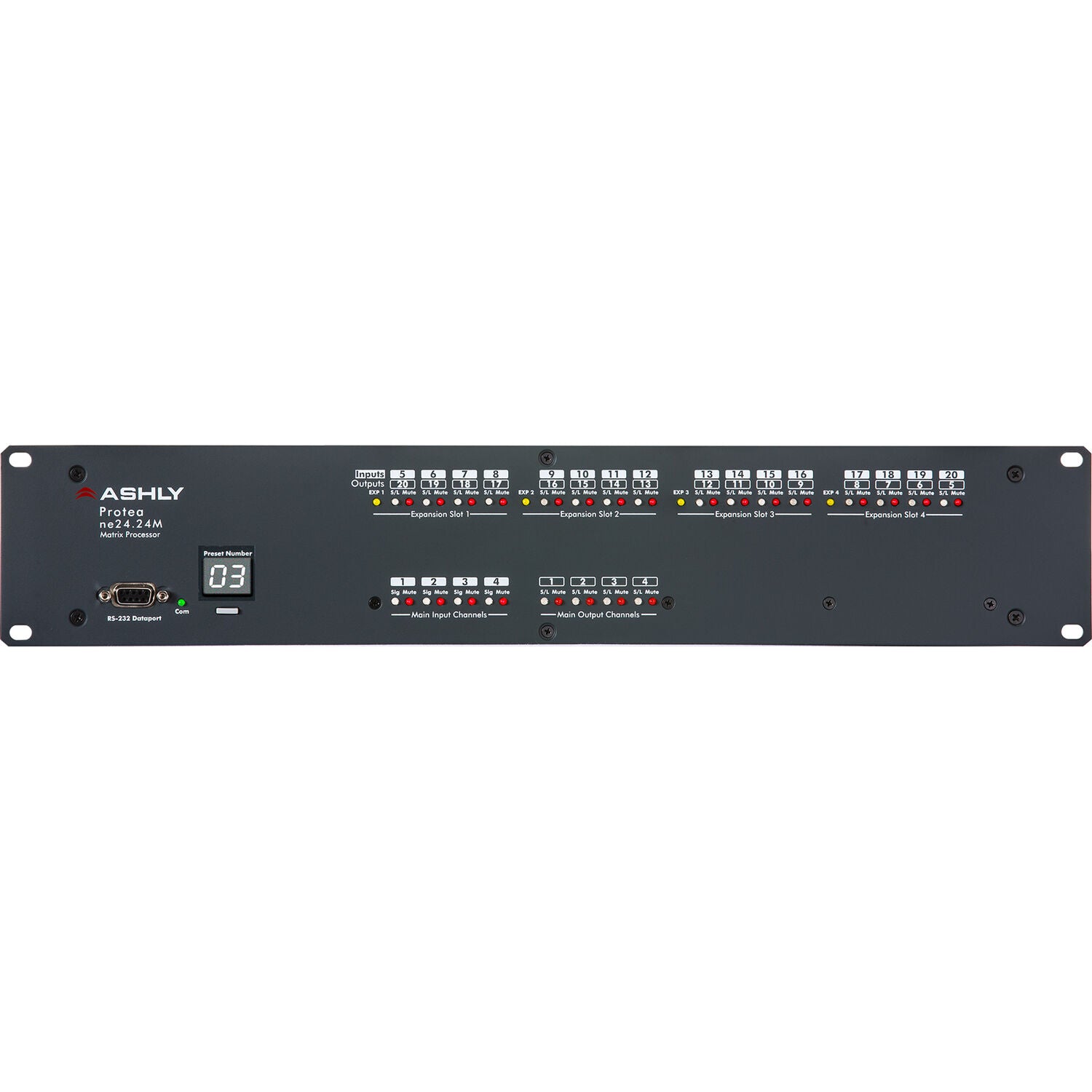

Ashly Protea ne24.24MT Matrix Digital Signal Processor with 4x16 I/O and GPO Logic Card

Name: Ashly Protea ne24.24MT Matrix Digital Signal Processor with 4x16 I/O and GPO Logic Card
Brand: AVGear.com
SKU: NE24.24M 4X16 LOGIC
Price: 3099.00 USD
Availability: InStock

$3,099.00

Shipping calculated at checkout.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

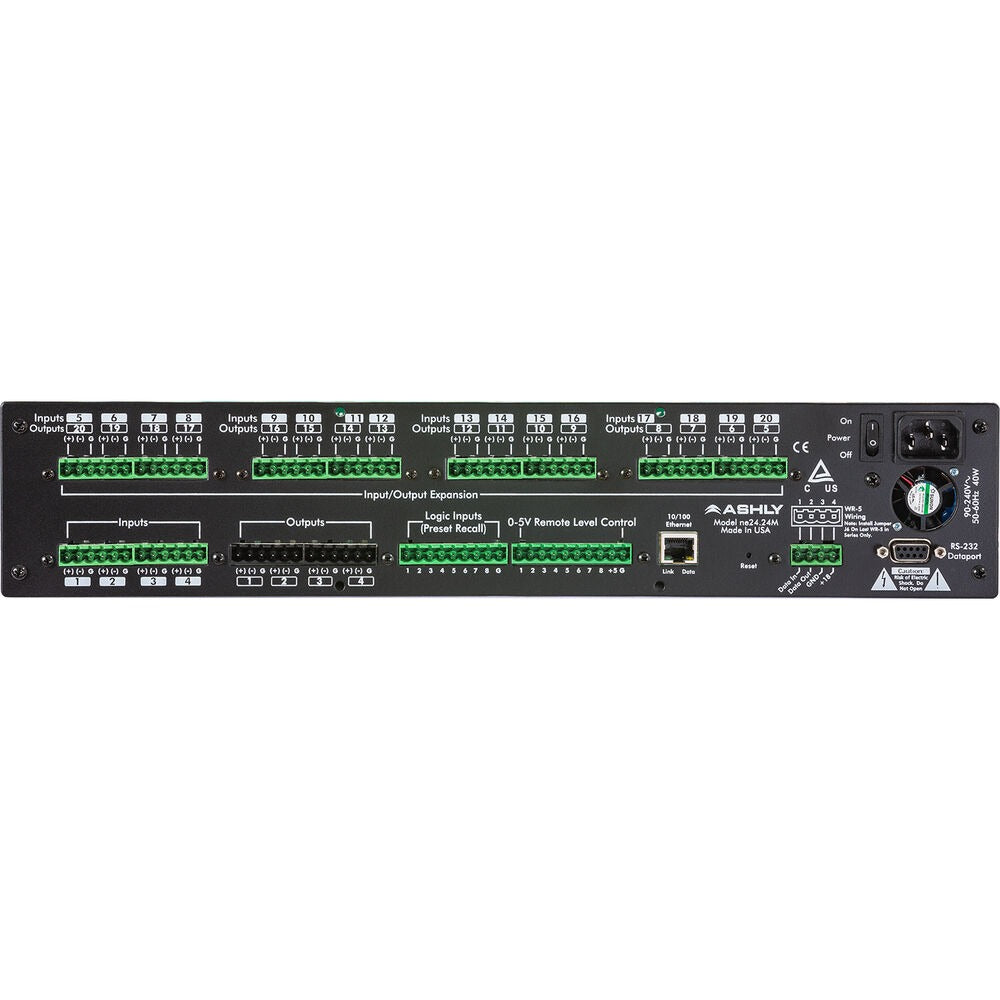

The ne24.24M series is built around a standard 4x4 base unit. The 4x16 Logic configuration is achieved by adding three 4-channel output cards and a General Purpose Output (GPO) Logic card into the expansion slots. The logic card provides programmable logic outputs to control external devices like projection screens, relays, curtains, or lights based on presets or other defined logic. All configuration and control are done via a PC running Ashly's intuitive Protea NE Software, accessible over a standard 10/100 Ethernet or RS-232 connection.

Features

• Modular and scalable: Expandable with 4-channel I/O or logic cards up to a total of 24 channels.
• Integrated logic card: Provides programmable General Purpose Outputs (GPOs) for triggering external events.
• Network enabled: Features standard 10/100 Ethernet and RS-232 interfaces for PC programming and third-party control.
• Tamper-proof security: Control is managed entirely via PC software, with multi-level security.
• High-quality audio: 24-bit A/D–D/A conversion with a 48 kHz sample rate.
• Secure connections: Uses Euroblock connectors for all audio and logic signals, ensuring secure wiring.
