NE24.24M(4X20)  |  SKU: NE24.24M(4X20)

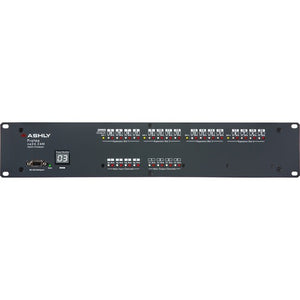

Ashly Protea ne24.24MT Matrix Digital Signal Processor with 4x20 I/O

$3,299.00
Shipping calculated at checkout.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

The ne24.24M series is built around a standard 4x4 base unit which is expanded with field-installable 4-channel input or output modules. The 4x20 configuration is achieved by adding four 4-channel output cards to the base unit's expansion slots. All programming and control are done via a PC using Ashly's intuitive Protea NE Software, accessible over a standard 10/100 Ethernet or RS-232 connection. The unit's tamper-proof design, lacking front-panel controls, and multi-level software security ensure that settings remain secure after installation.

Features

• Modular and scalable: Expandable up to 24 channels (with four 4-channel output modules for the 4x20 configuration).
• Extensive DSP: Includes comprehensive equalization, dynamics, and routing capabilities for each channel.
• Network enabled: Features a standard 10/100 Ethernet port for PC programming and network integration.

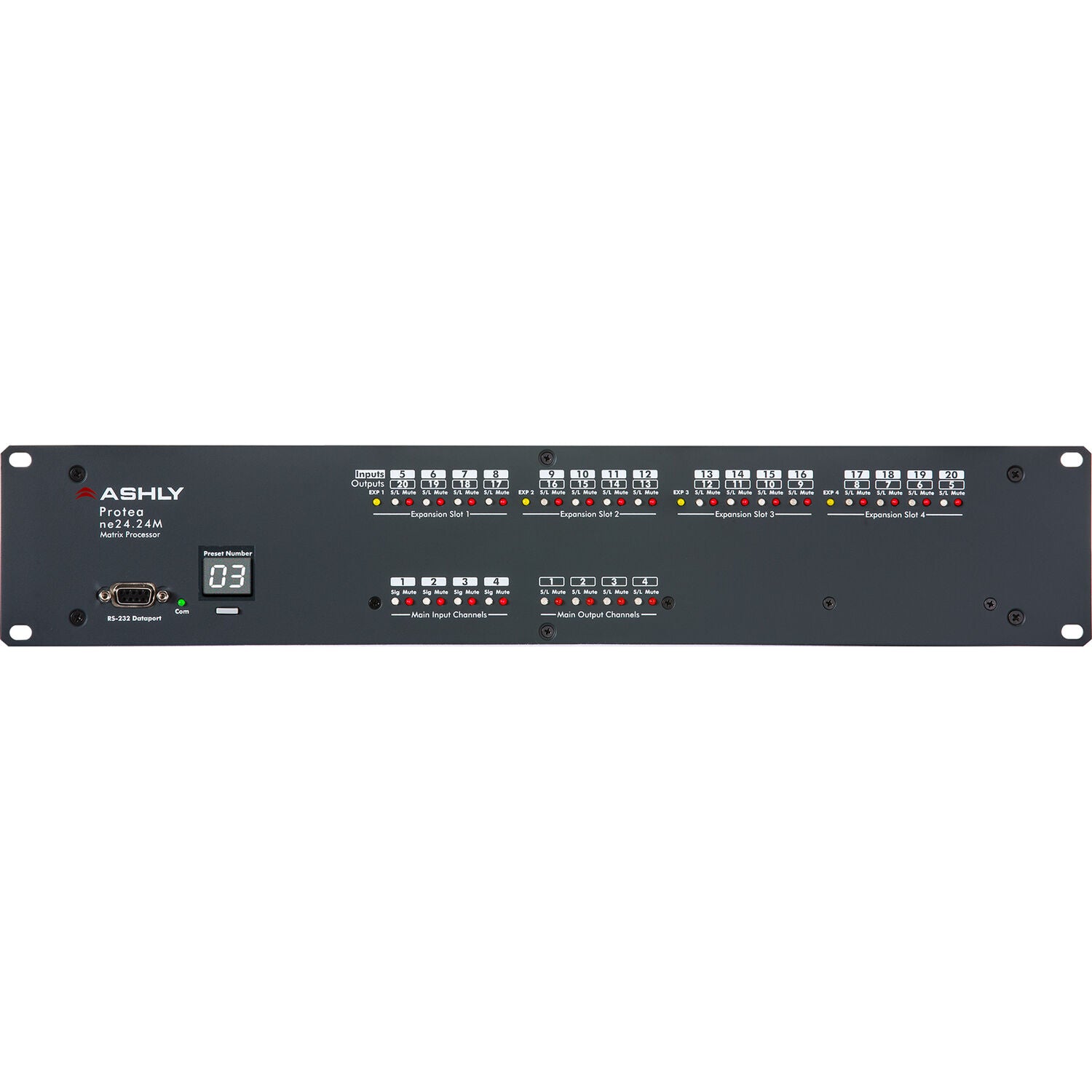

• Tamper-proof security: Control is managed entirely via PC software, with multi-level security.
• High-quality audio: 24-bit A/D–D/A conversion with a 48 kHz sample rate.

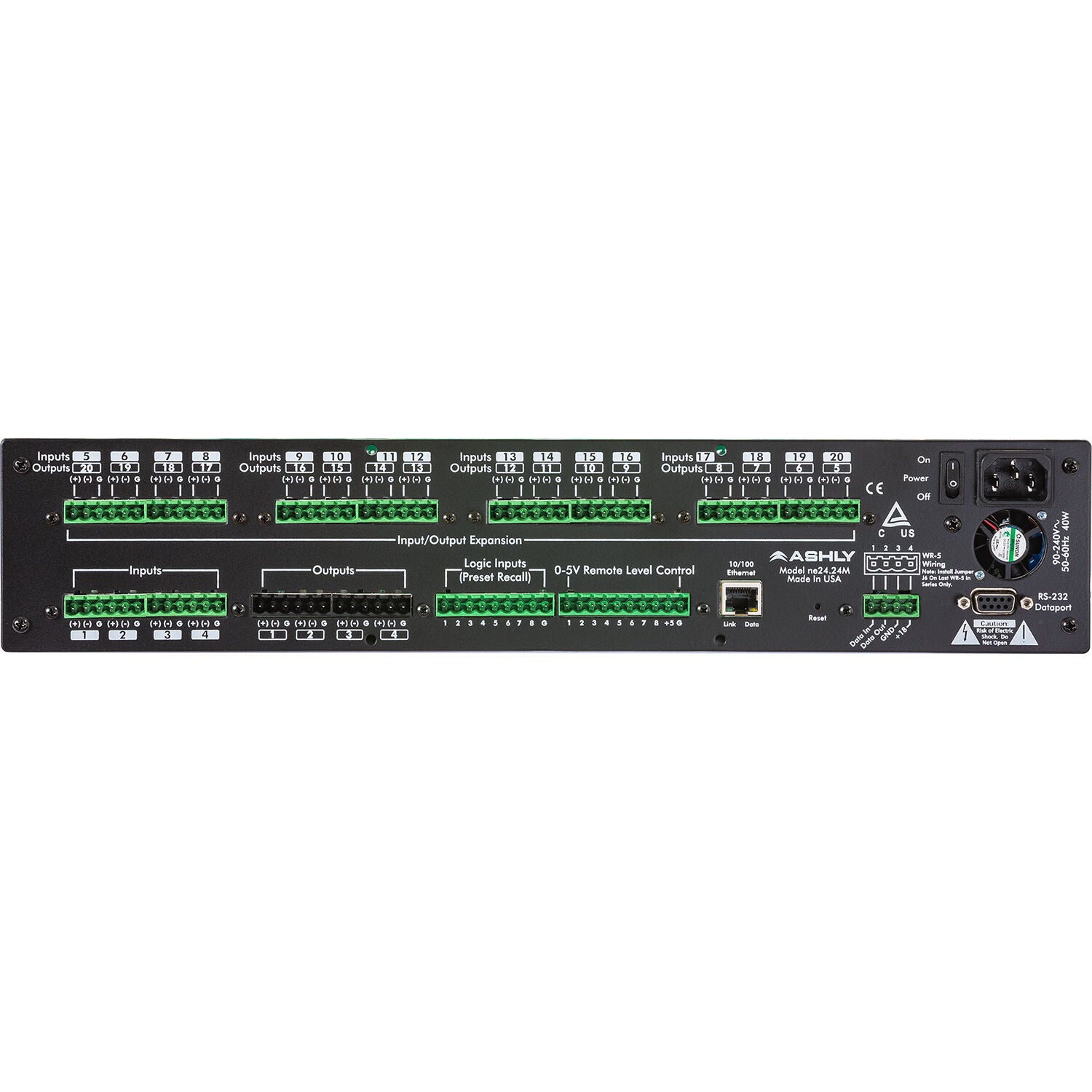

• Secure connections: All audio and control signals use Euroblock connectors for secure, reliable wiring.
• Third-party control: Compatible with a variety of external control systems via RS-232.

Testing Notes

In The Box

Ashly Protea ne24.24MT Matrix Digital Signal Processor with 4x20 I/O
