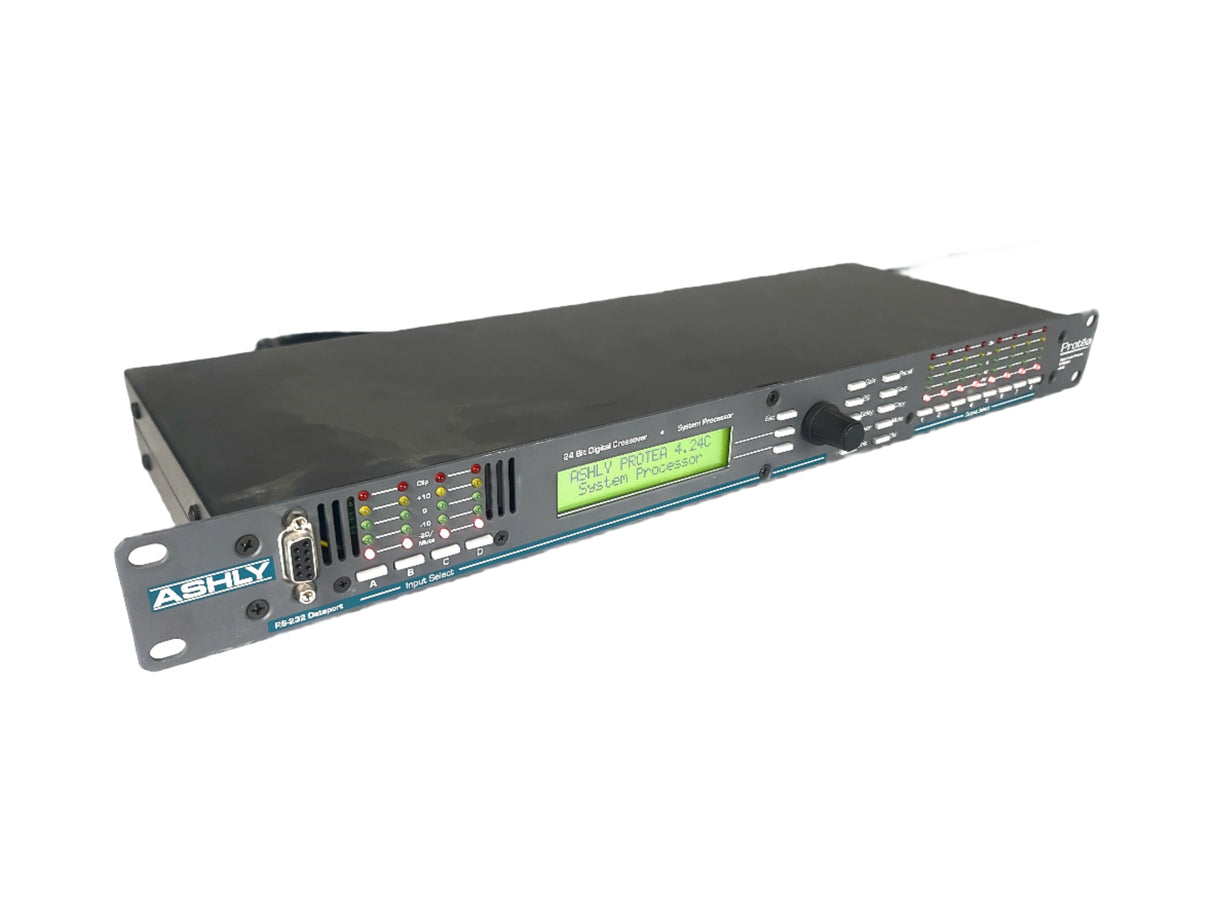

The Ashly Protea System II 4.24C is a sophisticated, software-configurable digital signal processor (DSP) designed specifically for high-performance sound reinforcement and fixed installation audio systems. This unit functions as a comprehensive system processor, integrating the critical roles of a crossover, equalizer, dynamics processor, delay, and system controller into a single, rack-mountable device. Its nomenclature, "4.24C," indicates its core input/output architecture: four inputs and twenty-four outputs, providing immense flexibility for configuring complex multi-way loudspeaker systems, managing multiple zones, or implementing detailed signal routing for advanced audio installations. Built upon Ashly's respected Protea platform, it combines robust processing power with an intuitive, computer-based graphical interface, allowing system designers to precisely tailor the audio signal to match the acoustics of the environment and the characteristics of the loudspeakers.

At the heart of the 4.24C is its precise digital processing, which includes high-resolution, 24-bit analog-to-digital and digital-to-analog conversion, along with 48-bit internal processing for mathematical accuracy. This ensures transparent sound quality with minimal noise and distortion. The processor's functionality is virtually limitless within its I/O constraints, allowing users to assign any input to any output with independent processing blocks on each path. Standard tools include parametric and graphic equalization, Butterworth and Linkwitz-Riley crossover filters with adjustable slopes, compressor/limiters with look-ahead capability, and delay lines adjustable down to sub-millisecond precision. These tools are essential for tasks such as aligning multiple speaker clusters, tuning a sound system to a room's acoustics, protecting loudspeakers from damage, and ensuring coherent, balanced audio across a venue.

Designed for reliability in permanent installations, the Protea System II 4.24C features balanced analog inputs and outputs on terminal blocks, offering secure connections for professional installations. It can be controlled and monitored via front-panel controls, RS-232, RS-485, or Ethernet, and supports third-party control systems like Crestron and AMX. The unit stores multiple preset configurations that can be recalled manually, automatically, or via external triggers, allowing a single processor to manage different operating modes for a multi-purpose venue. With its combination of extensive I/O, deep processing capabilities, and proven reliability, the Ashly Protea 4.24C serves as the central "brain" for demanding audio systems in performing arts centers, houses of worship, stadiums, and corporate auditoriums, where precise control over every aspect of the sound is required.
