The Atlona AT-HDVS-RX is a versatile HDBaseT receiver and video scaler designed to extend and convert high-definition audio-visual signals over long distances using a single Cat5e/6 cable. It receives a combined AV, control, and power signal from an HDBaseT transmitter, outputs a local HDMI signal, and simultaneously downscales the video to a second HDMI output. This dual-output capability is particularly useful in applications like conference rooms, classrooms, and digital signage, where you may need to feed both a primary high-resolution display and a secondary lower-resolution monitor or recorder.

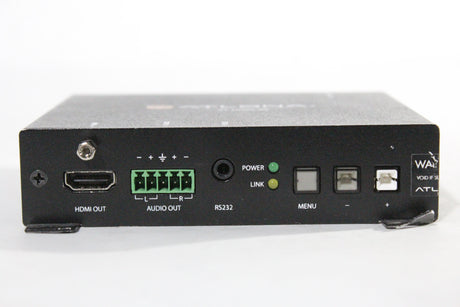

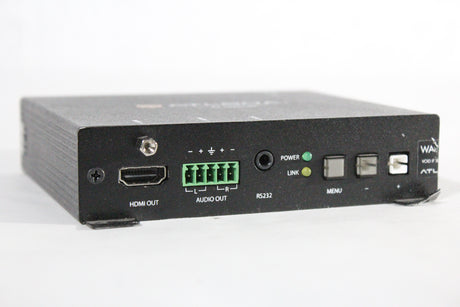

The unit excels in signal management, featuring a robust video scaler that can convert incoming video resolutions up to 4K@60Hz to match the optimal native resolution of the connected displays. This ensures compatibility and optimal image quality across different display technologies. The receiver supports embedded multi-channel audio, including high-bitrate formats like Dolby TrueHD and DTS-HD Master Audio, and can extract and output audio as both HDMI-embedded and analog stereo via a 3.5mm jack. Integrated RS-232 and IR pass-through allow for centralized system control over the same single cable used for AV.

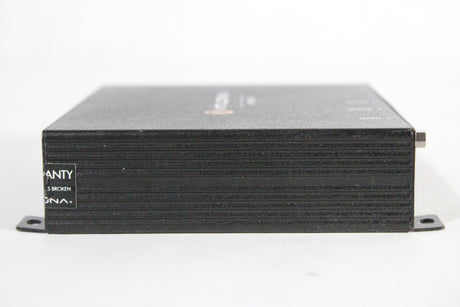

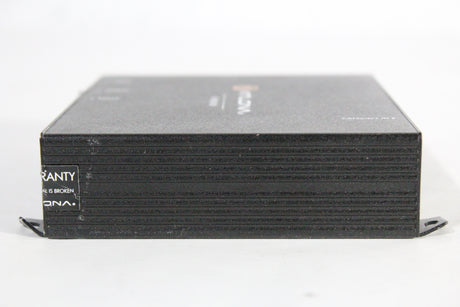

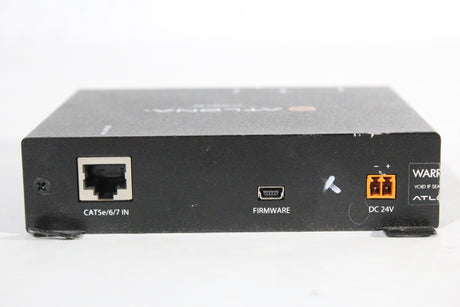

Housed in a compact, discreet enclosure, the AT-HDVS-RX is designed for easy installation behind a display or in a rack. It can be powered via Power over HDBaseT (PoH) from the transmitter, eliminating the need for a local power outlet and simplifying cable runs. With its combination of long-distance signal extension, flexible video scaling, audio de-embedding, and control integration, this receiver provides a comprehensive and reliable solution for modern AV distribution systems.
