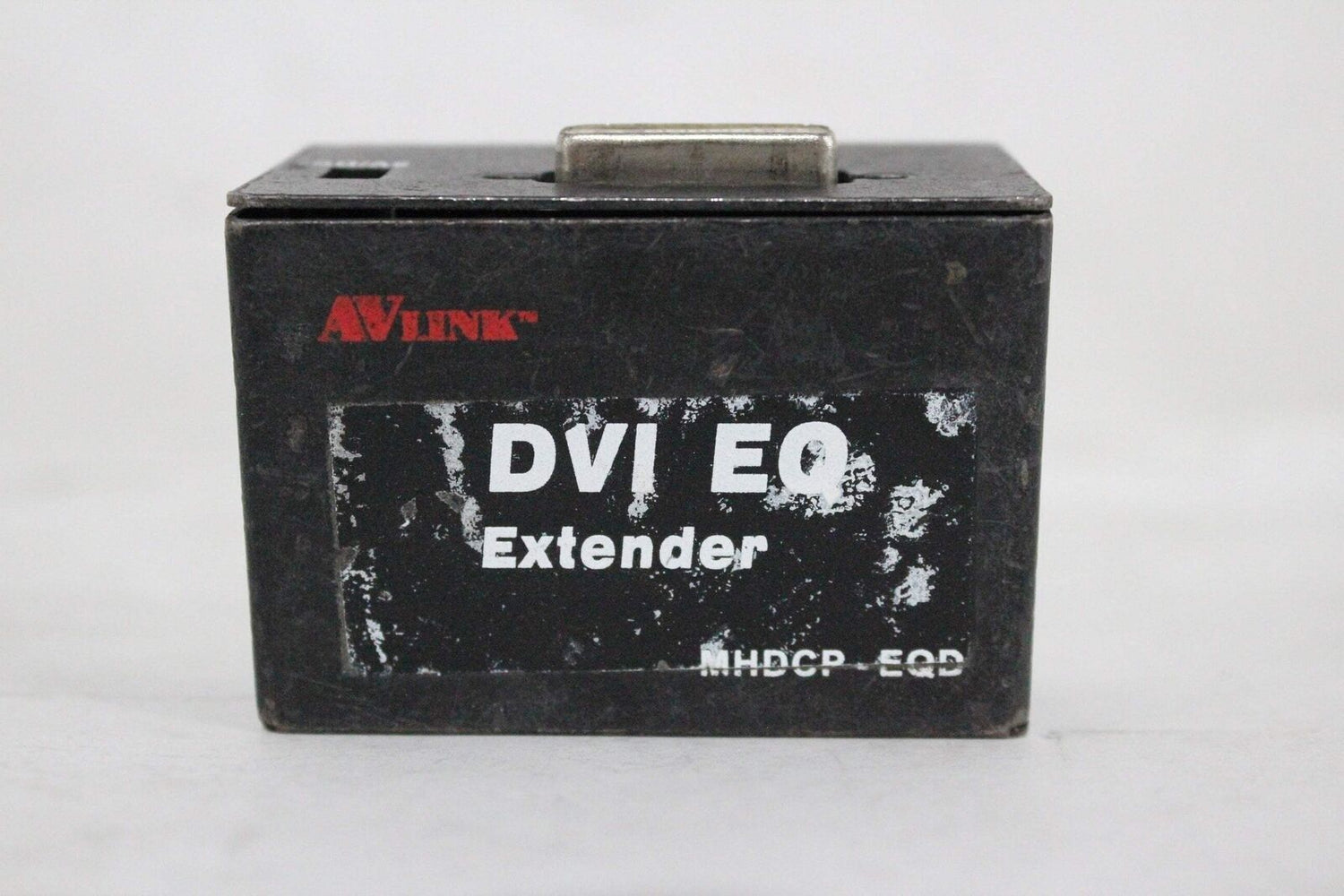

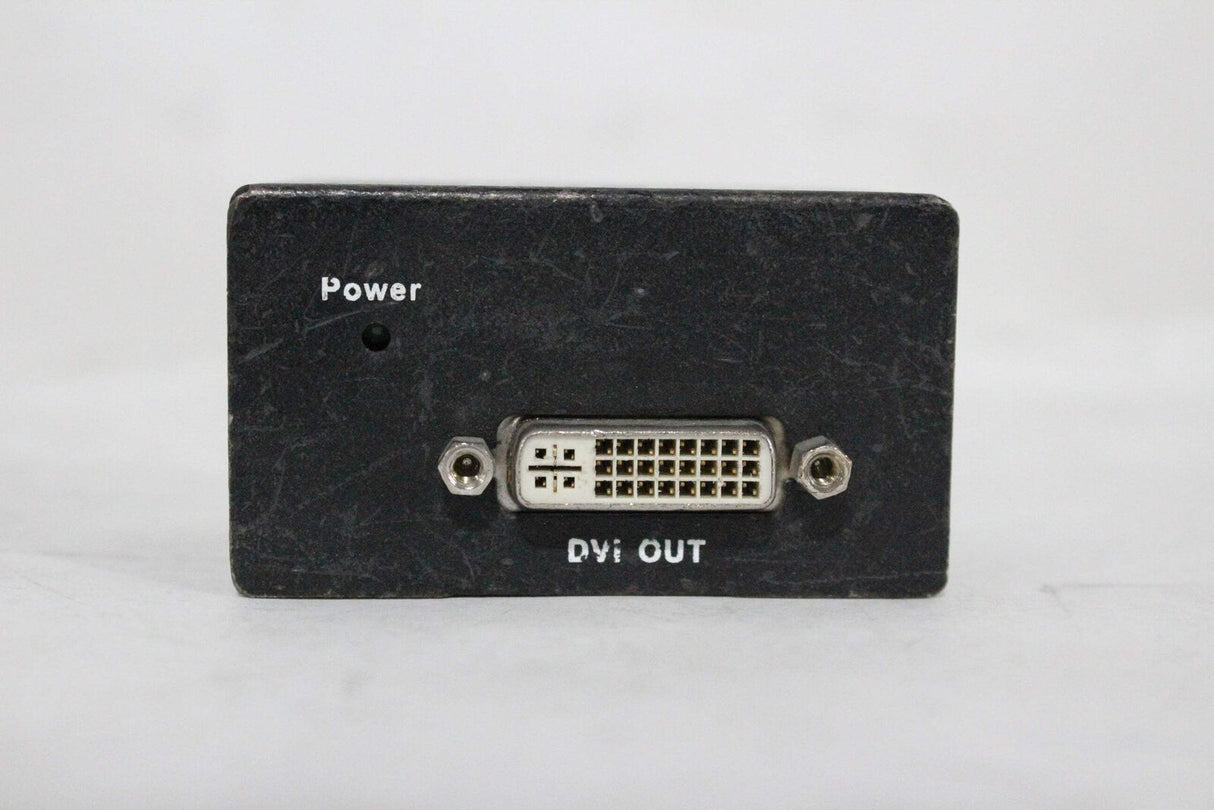

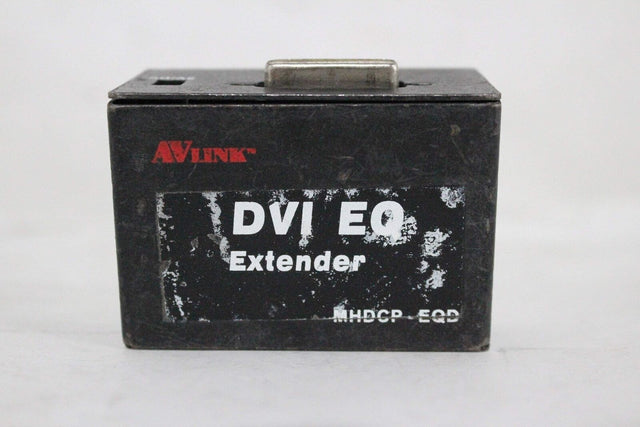

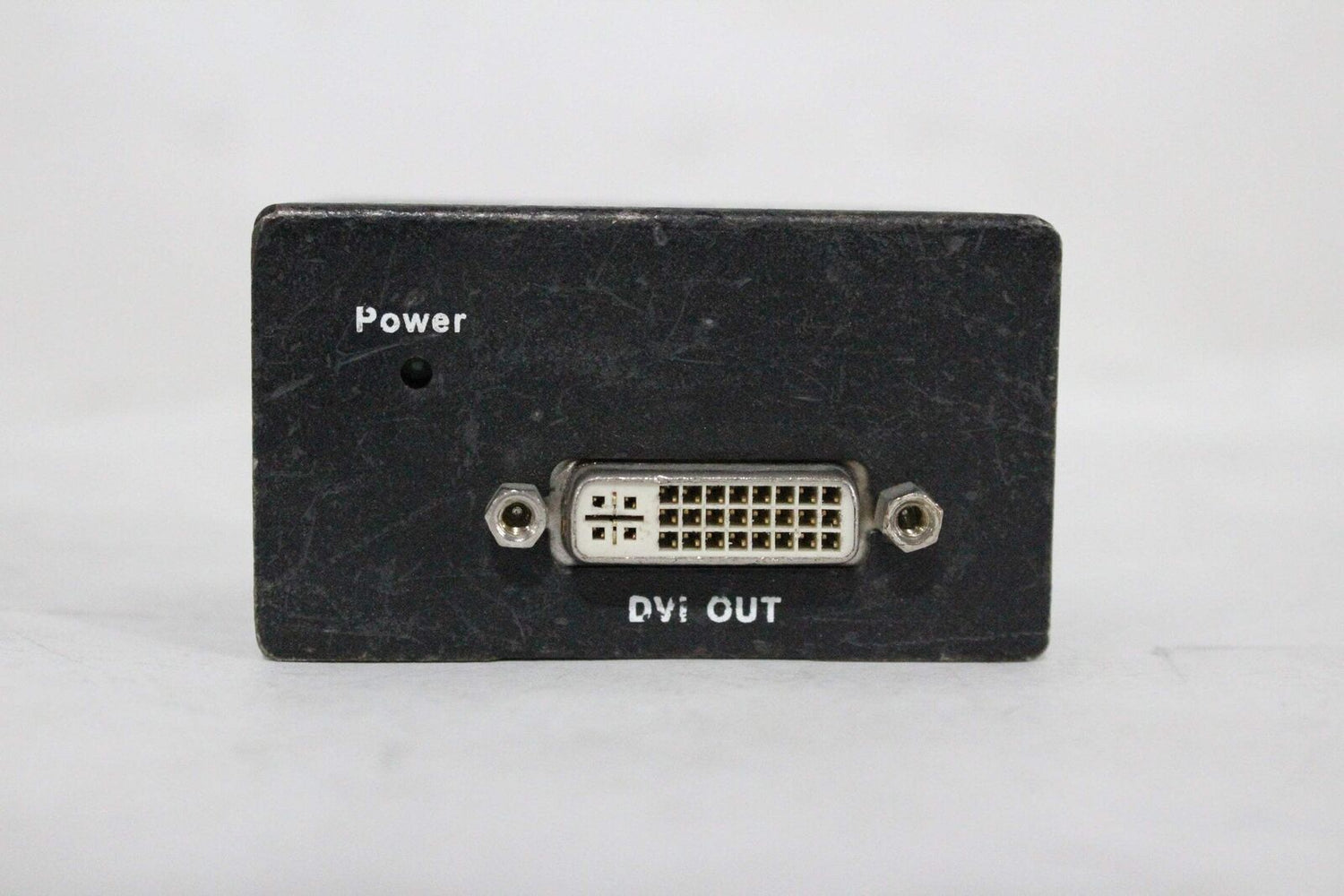

The AV Link MHDCP-EQD is a professional-grade DVI signal extender designed to transmit high-resolution DVI video, along with associated digital audio (via separate cables) and bidirectional RS-232 control signals, over long distances using standard CATx (CAT5e/6/6a) cabling. Its primary function is to overcome the severe distance limitations of standard DVI cables, which are typically reliable for only 15-20 feet before signal degradation occurs. The system consists of a local transmitter unit and a remote receiver unit. The transmitter accepts a DVI-D input (and often stereo audio via RCA or 3.5mm jacks), encodes the signal, and sends it over a single CATx cable. The receiver, located at the display, decodes the signal and outputs pristine DVI and audio, effectively extending the signal path up to 200 feet or more while maintaining pixel-for-pixel image integrity.

A key feature indicated by the "EQ" in the model name is the inclusion of built-in cable equalization. This technology actively compensates for signal loss and high-frequency attenuation that occurs over long CATx runs, ensuring the DVI signal arrives at the receiver with sufficient strength and timing to reliably sync with the display. The "HDCP" designation confirms the extender supports High-bandwidth Digital Content Protection, allowing it to legally and functionally pass encrypted content from Blu-ray players, set-top boxes, or computers to compliant displays. The bidirectional RS-232 pass-through enables users to send control commands from a central system (like a Crestron or AMX controller) back through the extender to the source device, allowing for remote power on/off, input selection, or other functions.

The value of the AV Link MHDCP-EQD lies in its ability to enable clean, reliable, and cost-effective long-distance DVI distribution in commercial installations. It is an ideal solution for digital signage, control rooms, conference rooms, and classrooms where a computer needs to be located far from the display it drives. By utilizing inexpensive, easy-to-install CATx cable instead of bulky, expensive, and length-limited DVI cables, it simplifies infrastructure and reduces installation costs. The inclusion of audio and control extension in the same package makes it a comprehensive solution for integrating source equipment into professional AV systems.
