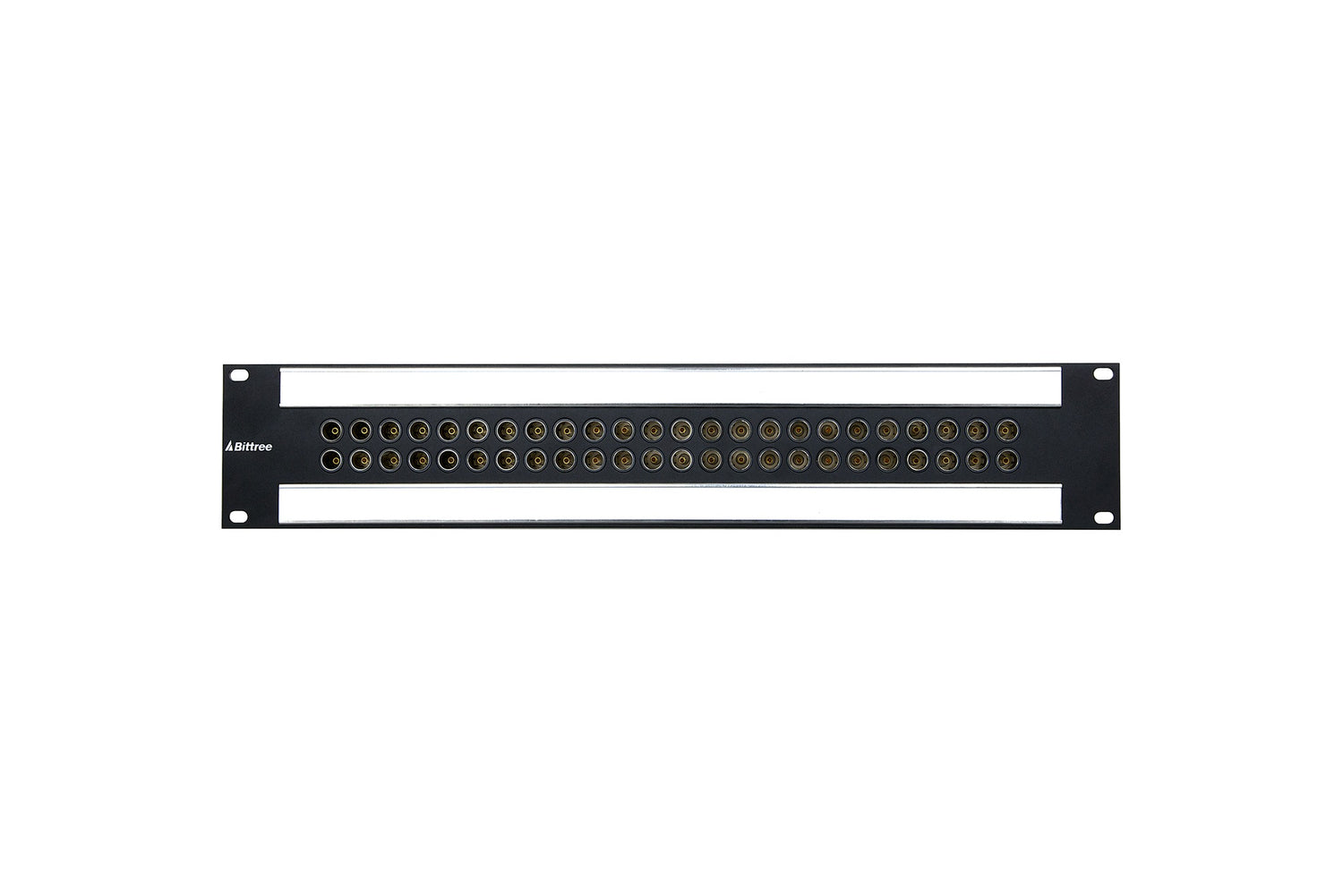

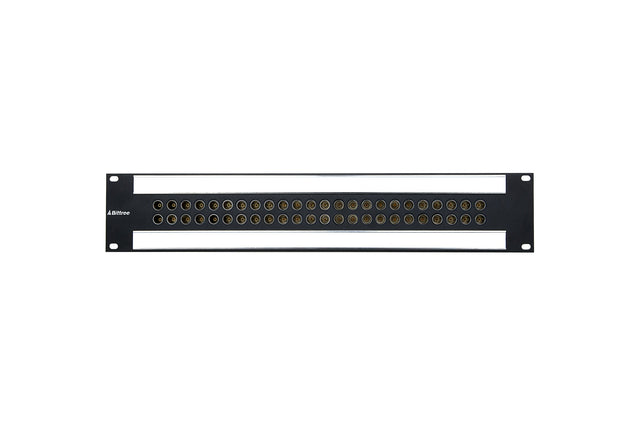

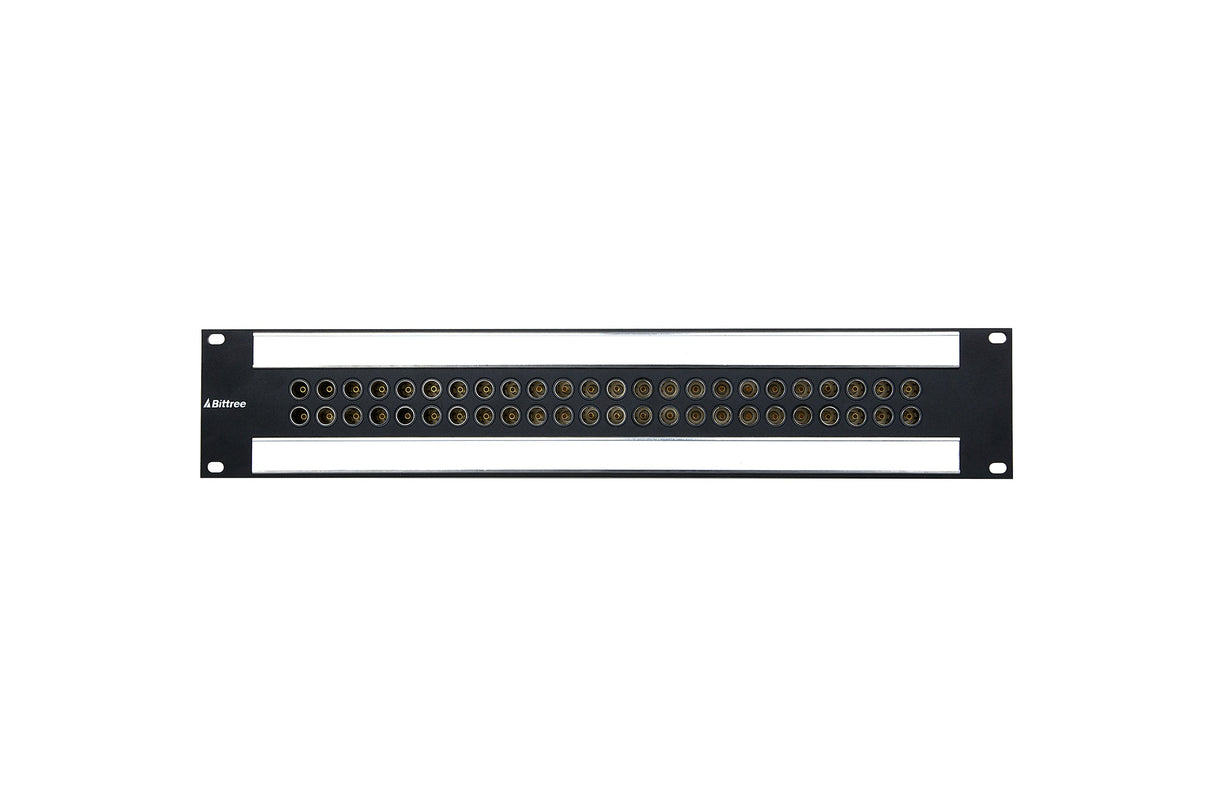

A Bittree patchbay panel is a modular, high-density connectivity interface designed to organize and streamline signal routing in professional audio, video, and broadcast facilities. These panels serve as the centralized, accessible front-end for a complex system's rear-panel connections, allowing technicians to easily reconfigure signal paths without accessing the back of equipment racks. By bringing all critical inputs and outputs to a single, neatly labeled panel, they dramatically improve workflow efficiency, facilitate troubleshooting, and enable creative patching for different production scenarios. Bittree is renowned for its robust construction and meticulous design, which prioritizes signal integrity, durability, and ease of use in demanding 24/7 operational environments.

The panels are constructed using heavy-gauge steel or aluminum chassis and feature high-quality, precision-machined connectors that provide excellent electrical contact and long-term reliability. A key aspect of Bittree's design is the modular patching field, which allows facilities to mix and connector types—such as BNC for video, XLR for audio, and optical fiber adapters—within the same rack unit. The panels support various normalization schemes, including half-normalized, full-normalized, and non-normalized (straight-through) configurations, which determine whether signals pass through to a default destination when no patch cable is inserted. Clear, customizable labeling strips above and below each row of jacks are essential for quick identification of signal sources and destinations, minimizing errors during high-pressure situations.

Installation is designed for professional integrators, with careful attention to cable management behind the panel to maintain proper bend radii and minimize crosstalk. Bittree panels are engineered to provide excellent grounding and shielding to prevent noise and interference, which is critical when handling low-level audio or high-frequency video signals. For any broadcast center, recording studio, or live production truck where signal routing flexibility and reliability are paramount, a well-implemented Bittree patchbay system forms the organized and reliable nerve center, enabling rapid reconfiguration and ensuring that the technical infrastructure supports creative and operational needs seamlessly.
