SKU: BMD-CONVMASA4K

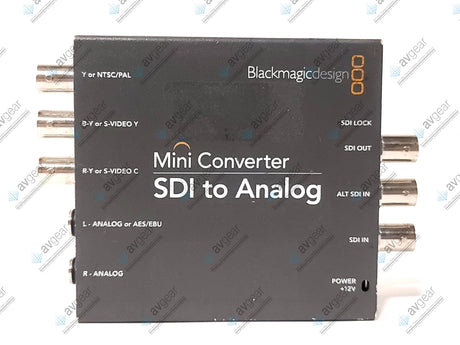

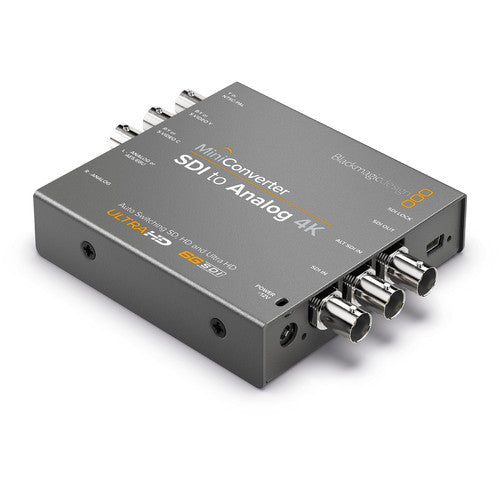

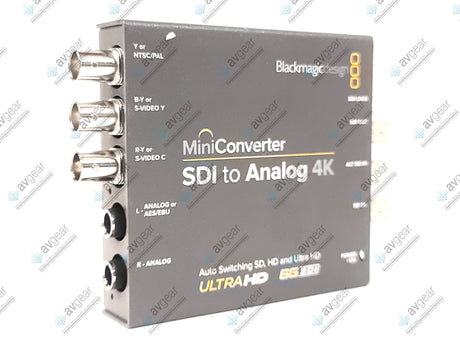

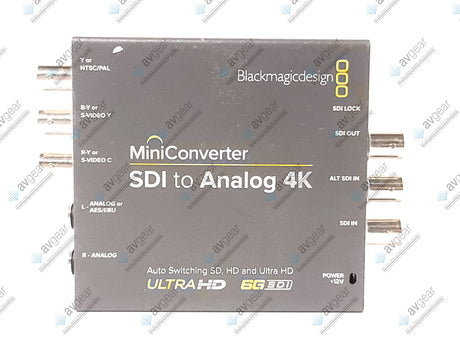

Blackmagic Design BMD-CONVMASA4K Mini Converter - SDI to Analog 4K

$405.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

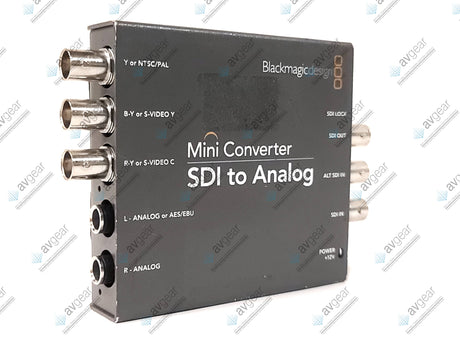

The Mini Converter SDI to Analog 4K from Blackmagic Design allows you to convert Single Link SD/HD/3G/6G-SDI to analog SD/HD component, composite, or S-Video. The down-converter lets you to connect professional SDI equipment which outputs resolutions up to Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) with SD and HD analog video monitors and other equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications. Using 6G-SDI technology, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals and automatically detects the input video format and instantly changes. A redundant SDI input is provided as an optional back up, and an SDI loop-through output is available for sending the SDI signal to an additional device. Up to 16 channels of de-embedded SDI input audio can be outputted as AES/EBU digital audio or balanced analog audio output via 1/4" output jacks. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters. Read more

Features

  • Single Link SD/HD/3G/6G-SDI Input
  • Component, Composite, & S-Video Output
  • SD, HD, UHD 4K & DCI 4K Input Signals
  • Automatic Input Signal Detection
  • Redundant SDI Input & Looped SDI Output

Business Financing Options Avaiable

View Available Financing

The Mini Converter SDI to Analog 4K from Blackmagic Design allows you to convert Single Link SD/HD/3G/6G-SDI to analog SD/HD component, composite, or S-Video. The down-converter lets you to connect professional SDI equipment which outputs resolutions up to Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) with SD and HD analog video monitors and other equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications. Using 6G-SDI technology, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals and automatically detects the input video format and instantly changes. A redundant SDI input is provided as an optional back up, and an SDI loop-through output is available for sending the SDI signal to an additional device. Up to 16 channels of de-embedded SDI input audio can be outputted as AES/EBU digital audio or balanced analog audio output via 1/4" output jacks. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters. Read more

Features

  • Single Link SD/HD/3G/6G-SDI Input
  • Component, Composite, & S-Video Output
  • SD, HD, UHD 4K & DCI 4K Input Signals
  • Automatic Input Signal Detection
  • Redundant SDI Input & Looped SDI Output

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Blackmagic Design BMD-CONVMASA4K Mini Converter - SDI to Analog 4K

The Blackmagic Design Mini Converter SDI to Analog 4K tackles a uniquely modern challenge: connecting cutting-edge, high-resolution digital video sources to legacy analog systems that remain vital in certain professional workflows. This compact device acts as a high-performance bridge, accepting a pristine 4K SDI signal and performing a high-quality down-conversion to standard-definition analog component video (YPbPr) and stereo analog audio. It's engineered for situations where the master source is a 4K camera, server, or switcher, but the monitoring, distribution, or recording path relies on trusted analog CRT monitors, analog routing infrastructure, or archival tape formats. The converter's intelligence is in its scaling engine, which meticulously resamples the ultra-high-definition image to 480i or 576i resolution, applying advanced filtering to preserve clarity and minimize aliasing artifacts, ensuring the analog output remains as true to the source detail as the legacy format allows.

Housed in the iconic, rugged Mini Converter metal casing, this unit is built for reliability in broadcast racks, mobile production trucks, and post-production suites. It operates as a zero-configuration, plug-and-play device, drawing power from its included USB cable for ultimate simplicity and portability. Beyond video, it also de-embeds the audio tracks from the SDI stream and outputs them as unbalanced analog stereo via RCA connectors. This dual conversion makes it an indispensable interoperability tool for facilities in transition, allowing them to leverage new 4K production technology while maintaining and utilizing their investment in high-quality analog infrastructure, ensuring critical monitoring and signal paths remain active without requiring a full, simultaneous system overhaul.

Key Features

  • Single Link SD/HD/3G/6G-SDI Input
  • Component, Composite, & S-Video Output
  • SD, HD, UHD 4K & DCI 4K Input Signals
  • Automatic Input Signal Detection
  • Redundant SDI Input & Looped SDI Output

Already own this item and want to sell it?

Click here to sell your item

Blackmagic Design BMD-CONVMASA4K Mini Converter - SDI to Analog 4K Specs

Core Conversion Function
Input Signal
12G-SDI (carrying up to 4Kp60 signal)
Primary Output
Analog Component Video (YPbPr) & Stereo Audio
Key Process
High-quality 4K/HD to Standard Definition down-conversion
Video Processing & Output
Analog Video Output Connectors
3 x BNC (Y, Pb, Pr)
Analog Video Standard
NTSC 480i or PAL 576i (auto-detected)
Scaling Technology
High-quality resampling with anti-aliasing filter
Audio Processing & Output
Audio Source
De-embedded from SDI input
Analog Audio Output Connectors
2 x RCA (Left & Right)
Audio Format
Unbalanced stereo analog
Physical & Operational
Housing
Durable metal casing
Form Factor
Compact, pocket-sized unit
Operation
Standalone, no software or configuration required

Key Features

  • Single Link SD/HD/3G/6G-SDI Input
  • Component, Composite, & S-Video Output
  • SD, HD, UHD 4K & DCI 4K Input Signals
  • Automatic Input Signal Detection
  • Redundant SDI Input & Looped SDI Output

Already own this item and want to sell it?

Click here to sell your item

FAQs about Blackmagic Design BMD-CONVMASA4K Mini Converter - SDI to Analog 4K

What is the Blackmagic Mini Converter SDI to Analog 4K?

It is a broadcast converter designed to convert incoming SD, HD, 3G, and 6G-SDI video signals into analog video outputs with balanced analog or digital AES/EBU audio. It allows you to connect modern digital SDI and Ultra HD sources to legacy analog monitors, video projectors, and broadcast decks.

What analog video output formats are supported?

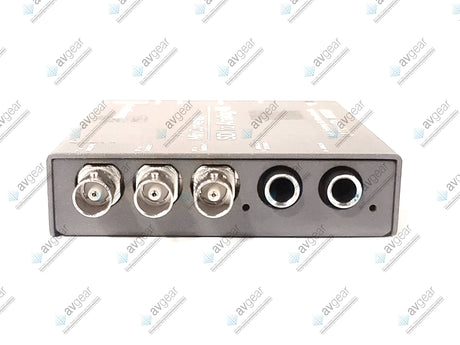

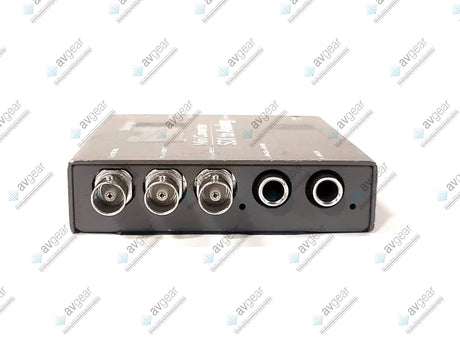

The unit features three analog BNC outputs that can be configured via DIP switches for Component (YUV or RGB), S-Video (Y/C), or Composite (NTSC/PAL) video. When set to Component mode, it can output standard-definition, high-definition, or down-converted video signals depending on the input format.

How does the converter handle Ultra HD / 4K input signals?

Because standard analog displays cannot display native 4K resolutions, the built-in hardware down-converter automatically scales Ultra HD (up to 2160p30) down to HD component or SD component/composite. This enables monitoring 4K camera feeds on affordable, legacy analog field or control-room displays.

What audio output options are available?

It provides two 1/4-inch (6.35 mm) audio jacks capable of outputting either two channels of balanced analog audio or up to four channels of digital AES/EBU audio. Audio is de-embedded directly from the incoming SDI stream with configurable channel routing.

Does it include an SDI loop-through output?

Yes, it features an active, reclocked 6G-SDI loop output that passes the original, untouched digital video feed downstream to other switchers, recorders, or digital monitors. Reclocking removes digital jitter to maintain signal integrity over long coaxial cable runs.

How are output formats and converter settings configured?

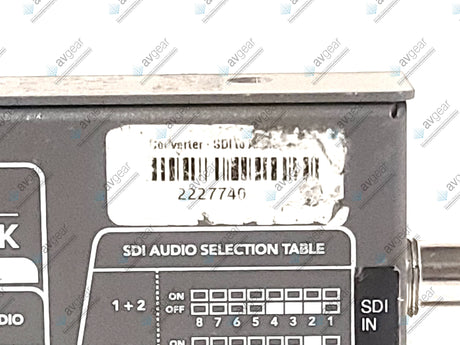

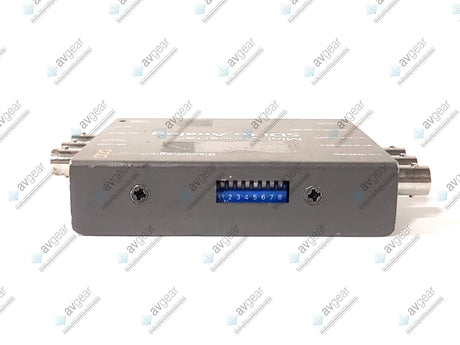

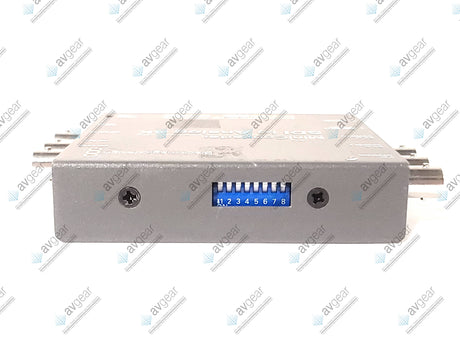

Basic output parameters (such as selecting Component vs. Composite video and audio routing) can be switched instantly using the built-in mini DIP switches on the side of the chassis. Advanced settings, aspect ratio scaling adjustments, and firmware updates are managed via USB using the Blackmagic Converters Setup software.

Does the converter require a computer connection during live use?

No, it is a fully standalone hardware device that operates independently as soon as video and power are connected. A computer connection is only necessary when performing firmware updates or configuring specific settings via the USB setup utility.

How is the unit powered?

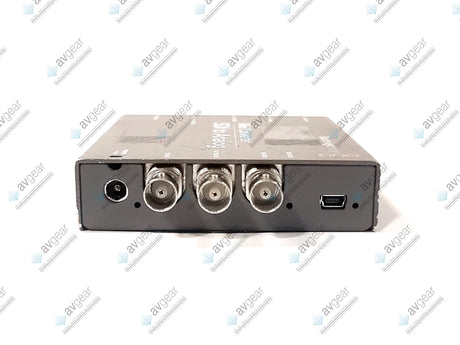

It operates on standard +12V DC power and includes an external universal power supply with interchangeable international wall socket adapters. The power port features a threaded screw-locking barrel connector to prevent accidental unplugging during live operations.
