SKU: BMD-CONVNTRM/AB/HSDI

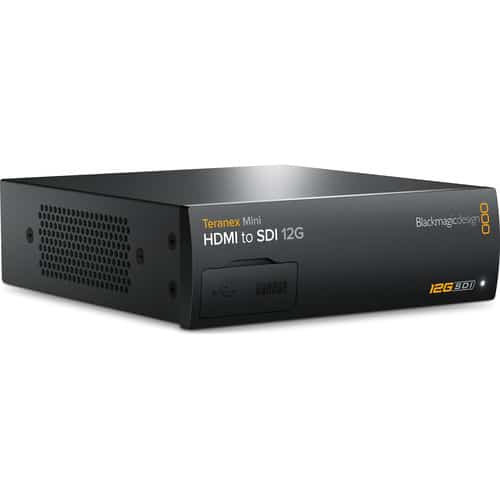

Blackmagic Design BMD-CONVNTRM/AB/HSDI Teranex Mini – HDMI to SDI 12G

$675.00

Items Included

Blackmagic Design BMD-CONVNTRM/AB/HSDI Teranex Mini – HDMI to SDI 12G

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Teranex Mini HDMI to SDI 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Connect an HDMI signal in up to Full 4K DCI 4096x2160p resolution and route it out over up to two independent 12G-SDI outputs in the same resolution. Route 4096x2160p signals approximately 70 ft using 6G-SDI cables, and run lower-resolution signals, such as 3G-SDI or HD-SDI, for much longer than standard lengths. When 12G-SDI cables will be available on the market, you'll be able to run 4K DCI 4096x2160p signals for over 250 ft. You can also connect separate audio via full-size XLR inputs that are switchable between balanced analog and AES/EBU digital audio. Read more

Features

Supports up to Full 4K DCI 4096x2160p signals on input and outputTwo independent 12G-SDI outputsRun 4096x2160p signals approximately 70 ft using 6G-SDI cablesFull-size XLR connections switchable between balanced analog and AES/EBU audioEthernet remote control and PoE portIntelligent thermal design heat dissipation effectively prevents overheatingThree units are rack-mountable in a 1U 19" rack using an optional rack trayCan be used desktop mounted or installed concealed in cable ductsBuilt-in 90-240V power supply requiring only a standard IEC power cable, sold separatelyAn array of mini switches allow instant settings changesFront panel is replaceable with an optional Smart Panel featuring controls and an LCD

Business Financing Options Avaiable

View Available Financing

Features

Supports up to Full 4K DCI 4096x2160p signals on input and outputTwo independent 12G-SDI outputsRun 4096x2160p signals approximately 70 ft using 6G-SDI cablesFull-size XLR connections switchable between balanced analog and AES/EBU audioEthernet remote control and PoE portIntelligent thermal design heat dissipation effectively prevents overheatingThree units are rack-mountable in a 1U 19" rack using an optional rack trayCan be used desktop mounted or installed concealed in cable ductsBuilt-in 90-240V power supply requiring only a standard IEC power cable, sold separatelyAn array of mini switches allow instant settings changesFront panel is replaceable with an optional Smart Panel featuring controls and an LCD

No products currently in stock

About the Blackmagic Design BMD-CONVNTRM/AB/HSDI Teranex Mini – HDMI to SDI 12G

The Blackmagic Design Teranex Mini HDMI to SDI 12G is a professional-grade format converter designed to bridge consumer/prosumer HDMI sources with professional broadcast and production infrastructure. It accepts an HDMI 2.0 input signal and converts it to a high-quality 12G-SDI output, enabling devices like gaming consoles, consumer cameras, computers, or media players to be integrated into professional SDI-based workflows found in live production trucks, broadcast studios, and post-production facilities. The "12G" capability is a key feature, allowing the converter to handle ultra-high-definition signals up to 4Kp60 (in 4:2:2) or 4Kp30 (in 4:4:4) over a single BNC cable, making it a future-proof solution for 4K HDR workflows.

Beyond simple signal conversion, this device leverages the renowned Teranex processing engine to ensure broadcast-quality results. It includes advanced features such as high-quality scaling, allowing it to intelligently convert between different resolutions (e.g., from a 1080p HDMI source to a 1080i SDI output for broadcast). A built-in frame synchronizer locks onto the incoming HDMI signal and outputs a perfectly stable, genlocked SDI signal, which is essential for eliminating glitches when switching between multiple unsynchronized sources in a live production environment. The converter also handles audio embedding, taking the HDMI audio and cleanly embedding it into the SDI output, and provides comprehensive control over output timing and format through its front-panel interface or remote software.

Housed in a compact, all-metal enclosure, the Teranex Mini HDMI to SDI 12G is built for reliability in both permanent installations and mobile use. It offers flexible powering options via the included AC adapter or through its USB-C port, and its fanless design ensures silent operation. With its combination of high-bandwidth support, advanced processing, and robust construction, this converter is an essential tool for any professional requiring a guaranteed, high-fidelity connection from HDMI sources into a standards-based SDI video system.

Key Features

Supports up to Full 4K DCI 4096x2160p signals on input and outputTwo independent 12G-SDI outputsRun 4096x2160p signals approximately 70 ft using 6G-SDI cablesFull-size XLR connections switchable between balanced analog and AES/EBU audioEthernet remote control and PoE portIntelligent thermal design heat dissipation effectively prevents overheatingThree units are rack-mountable in a 1U 19" rack using an optional rack trayCan be used desktop mounted or installed concealed in cable ductsBuilt-in 90-240V power supply requiring only a standard IEC power cable, sold separatelyAn array of mini switches allow instant settings changesFront panel is replaceable with an optional Smart Panel featuring controls and an LCD

Already own this item and want to sell it?

Click here to sell your item

Blackmagic Design BMD-CONVNTRM/AB/HSDI Teranex Mini – HDMI to SDI 12G Specs

Input & Signal Processing

Input Connector

1 x HDMI 2.0 (Type A)

Supported Input Resolutions

Up to 4Kp60, 1080p, 1080i, 720p, and standard computer resolutions

Frame Synchronization

Built-in frame lock (genlock) for stable SDI output

Scaling Engine

High-quality Teranex scaling for format and resolution conversion

Video Output

Output Connector

1 x 12G-SDI (BNC)

Output Standards

12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI

Maximum Output Resolution

4K Ultra HD (3840x2160) up to 60 fps (4:2:2)

Audio Processing

Audio Embedding

Embeds HDMI audio (LPCM) into the SDI output stream

Audio Channels

Up to 8 channels of embedded audio

Control & Configuration

Configuration Methods

Front-panel buttons and LCD screen; Ethernet (RJ45) port for remote control via Teranex Mini Software Utility

EDID Management

Full control over HDMI EDID communication with the source device

Physical & Electrical

Power Options

AC power adapter OR USB-C port for bus power

Enclosure

All-metal, fanless design

Cooling

Passive (silent operation)

Dimensions (WxDxH)

Approx. 105 x 105 x 35 mm (4.1" x 4.1" x 1.4")

Weight

Approx. 400 g (0.9 lbs)

Key Features

Supports up to Full 4K DCI 4096x2160p signals on input and outputTwo independent 12G-SDI outputsRun 4096x2160p signals approximately 70 ft using 6G-SDI cablesFull-size XLR connections switchable between balanced analog and AES/EBU audioEthernet remote control and PoE portIntelligent thermal design heat dissipation effectively prevents overheatingThree units are rack-mountable in a 1U 19" rack using an optional rack trayCan be used desktop mounted or installed concealed in cable ductsBuilt-in 90-240V power supply requiring only a standard IEC power cable, sold separatelyAn array of mini switches allow instant settings changesFront panel is replaceable with an optional Smart Panel featuring controls and an LCD
