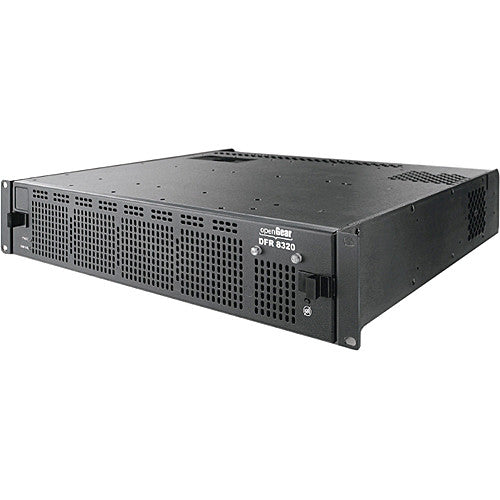

The Blackmagic Design openGear Frame with Cooling is a modular chassis system designed to house and power a variety of professional video and audio processing cards in a standardized, rack-mountable format. This frame serves as the foundational infrastructure for broadcast facilities, post-production houses, and live production trucks, allowing engineers to build a customized signal processing hub by mixing and matching cards from Blackmagic Design and other manufacturers that adhere to the openGear standard. The integrated cooling system is a critical feature, consisting of multiple, often redundant, fans that draw air across the installed cards to dissipate heat generated by continuous operation. This ensures thermal stability and long-term reliability for the sensitive electronic modules, which is paramount in 24/7 broadcast environments where equipment failure is not an option.

The frame is engineered for high density and ease of service, typically supporting a specific number of card slots (e.g., 14 slots in a 2RU frame) in a single rack unit height. It provides centralized, regulated power to all installed cards through a robust internal power supply, eliminating the need for individual power adapters for each module and significantly reducing cable clutter. The frame often includes a system controller that monitors the health of the power supply, fan speeds, and temperature, providing status information via front-panel displays or through network management software like the openGear Dashboard. This allows for remote monitoring and proactive maintenance, enhancing overall system uptime.

Designed with a sturdy metal construction, the openGear frame features secure card guides and locking mechanisms to ensure modules are properly seated and protected from vibration. The tool-less or minimal-tool design facilitates quick installation and replacement of cards, minimizing downtime during upgrades or repairs. By consolidating numerous discrete signal processing functions—such as distribution, conversion, sync generation, and audio embedding—into a single, organized, and serviceable unit, the openGear frame with cooling transforms a rack of individual devices into an integrated, professional broadcast system. It embodies the principles of scalability, reliability, and efficiency that are essential for modern broadcast infrastructure.
