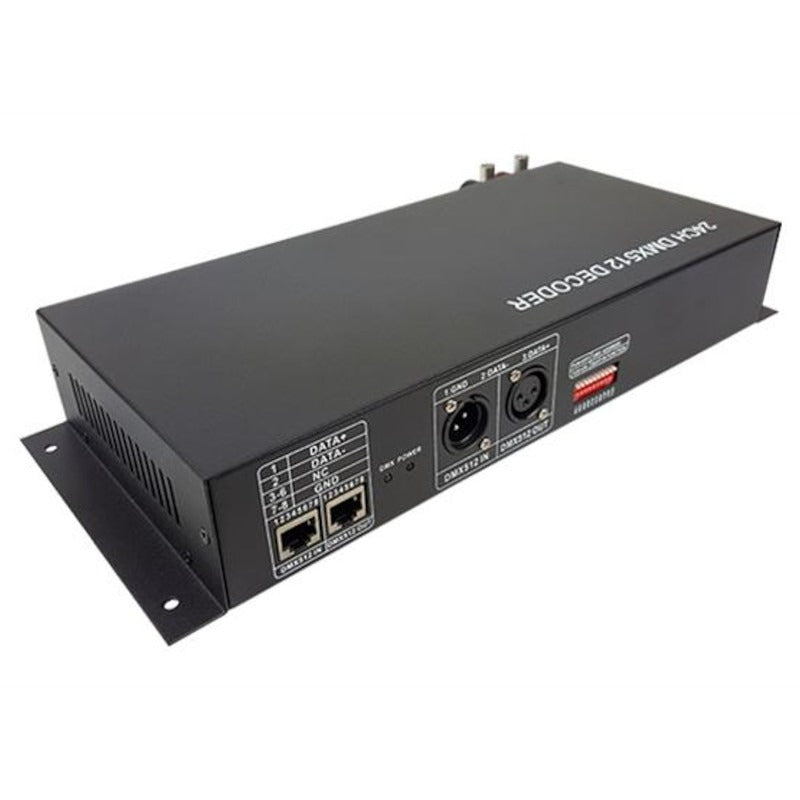

The Blizzard Komply DMX-24 is a dedicated DMX decoder and power distribution unit designed to control low-voltage, constant-voltage LED lighting products, such as flexible LED ribbons (like the Komply RGB5050), LED modules, and other 12V DC RGB fixtures. Its primary function is to translate standard DMX-512 control signals from a lighting console or controller into the Pulse Width Modulation (PWM) signals required to dim and mix the red, green, and blue channels of connected LED loads. The unit is named for its configuration: it provides 8 independent output zones, each capable of delivering both DMX control signal and 12V DC power to a separate section of LED tape or a fixture. This allows a single decoder to manage up to eight individually addressable zones from one DMX start address, greatly simplifying the control of complex LED installations.

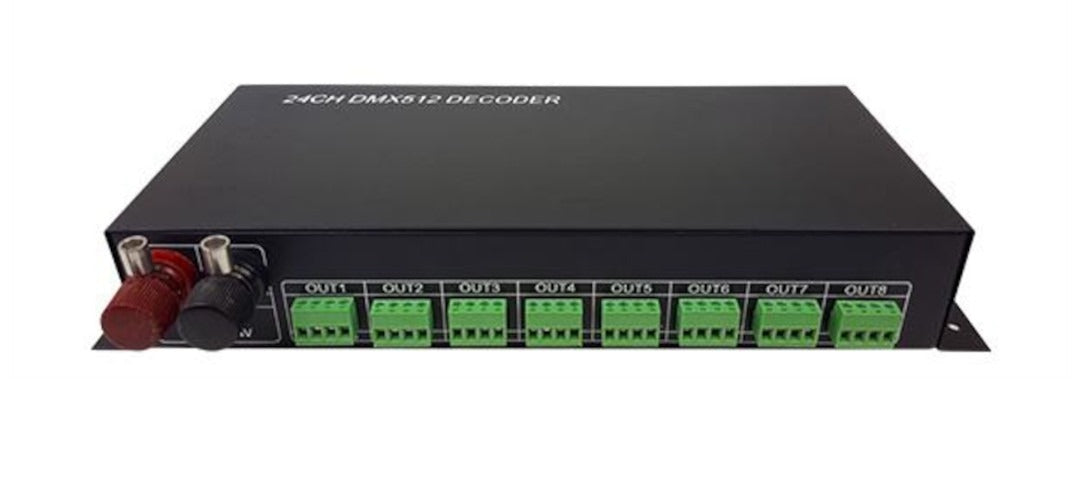

The device integrates both signal processing and power distribution into a single, compact enclosure. It accepts a standard DMX input via a 3-pin or 5-pin XLR connector and requires a separate main power input (typically 100-240V AC), which it converts to stable 12V DC for its outputs. Each of the 8 outputs consists of a terminal block or connector with four pins: positive (+12V) and separate negative connections for the red, green, and blue channels. This design provides a clean and organized solution, as it eliminates the need for multiple separate power supplies and controllers for different LED runs, reducing cable clutter and potential points of failure in architectural or permanent installations.

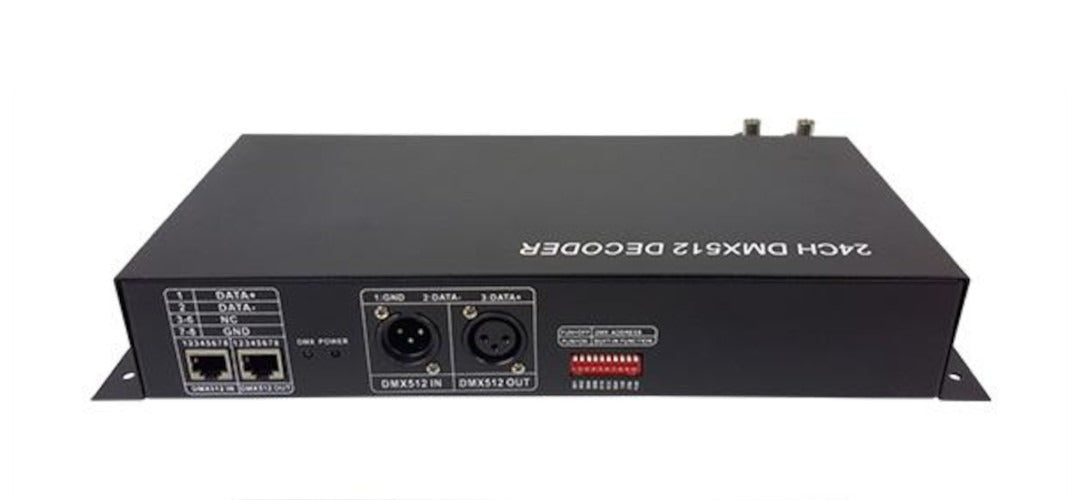

The Komply DMX-24 is engineered for reliability in professional installations. It typically features a robust metal or high-impact plastic housing, LED status indicators for power and signal, and dip switches or a digital display for setting the DMX start address. Its ability to drive significant current across its 8 outputs makes it suitable for medium to large-scale projects involving cove lighting, signage, display cases, and decorative accent lighting. By centralizing control and power distribution, this decoder provides installers and lighting designers with an efficient, scalable, and professional method for implementing dynamic, color-changing LED effects that are precisely synchronized and easily managed from a standard DMX lighting console.
