SKU: 2105-484

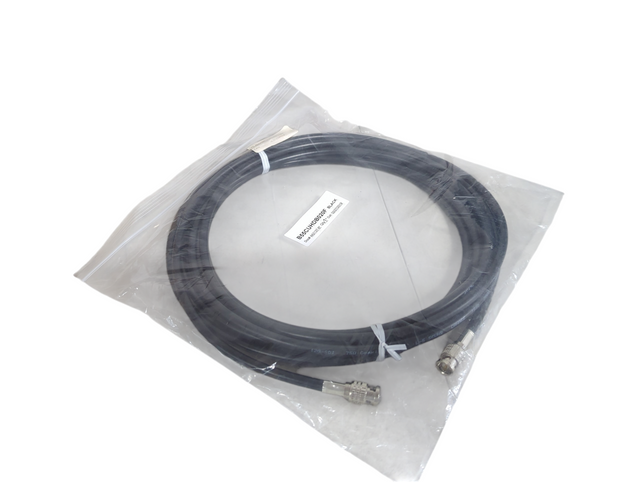

Canare 12G-SDI-020 12G-SDI 4K/UHD Low Loss Digital Video Coaxial Cable

$19.95

Items Included

Canare 12G-SDI UHD 4K Single-Channel BNC Cable (200')

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

Canare's 12G-SDI UHD 4K Single-Channel BNC Cable, 200' long, is designed for connecting 12G-SDI rated cameras and equipment and carrying a UHD 4K signal. The cable features nickel body 75-ohm connectors with gold-plated contacts and highly foamed PE insulation for optimal attenuation. It's suitable for studios, mobile trucks, and installations among virtually all other applications. Read more

Features

Connect 12G-SDI Cameras and Equipment
Nickel Body 75-Ohm Connectors
Gold-Plated Contacts
Solid annealed copper 16 AWG center conductor
Highly Foamed PE Insulation

Business Financing Options Avaiable

View Available Financing

Features

Connect 12G-SDI Cameras and Equipment
Nickel Body 75-Ohm Connectors
Gold-Plated Contacts
Solid annealed copper 16 AWG center conductor
Highly Foamed PE Insulation

No products currently in stock

About the Canare 12G-SDI-020 12G-SDI 4K/UHD Low Loss Digital Video Coaxial Cable

The Canare 12G-SDI-020 12G-SDI 4K/UHD Low Loss Digital Video Coaxial Cable is a 20-foot pre-terminated 75-ohm digital video cable designed for 12G-SDI and 4K/UHD video transmission. Canare specifies its 12G-SDI cable assemblies for professional broadcast and video applications where high-bandwidth, low-loss signal transmission is required.

The cable construction uses Canare's low-loss coaxial technology with copper foil and high-density tinned-copper braided shielding, together with highly foamed multi-layer polyethylene insulation. Canare specifically identifies its Ultra Coax family as being designed for 12G-SDI transmission.

For 12G-SDI, Canare specifies a 75-ohm characteristic impedance and identifies the 12G-SDI standard as an 11.88 Gb/s signal format. The published SMPTE-based transmission figures depend on the specific cable construction and receiving equipment, so I have not substituted a generic maximum distance for this 20-foot assembly.

Key Features

Connect 12G-SDI Cameras and Equipment
Nickel Body 75-Ohm Connectors
Gold-Plated Contacts
Solid annealed copper 16 AWG center conductor
Highly Foamed PE Insulation

Already own this item and want to sell it?

Click here to sell your item

Canare 12G-SDI-020 12G-SDI 4K/UHD Low Loss Digital Video Coaxial Cable Specs

Cable Configuration

Cable Length

20 ft (6.1 m)

Application

12G-SDI / 4K UHD Video Transmission

Cable Type

Low-Loss Digital Video Coaxial

Electrical Characteristics

Characteristic Impedance

75 Ω

12G-SDI Bit Rate

11.88 Gb/s

12G-SDI Format

4K UHD

SMPTE Standard

ST 2082-1

Cable Construction

Shielding

Copper Foil + High-Density Tinned Copper Braided Shield

Insulation

Highly Foamed Multi-Layer PE

Cable Jacket

PVC

Dielectric Strength

1000 V AC/min.

Signal Performance

12G-SDI Support

Yes

4K UHD Support

Yes

Typical 12G-SDI Cable Loss Reference

40 dB @ 6 GHz

Transmission Distance

Dependent on Cable Type and Receiving Equipment

Key Features

Connect 12G-SDI Cameras and Equipment
Nickel Body 75-Ohm Connectors
Gold-Plated Contacts
Solid annealed copper 16 AWG center conductor
Highly Foamed PE Insulation
