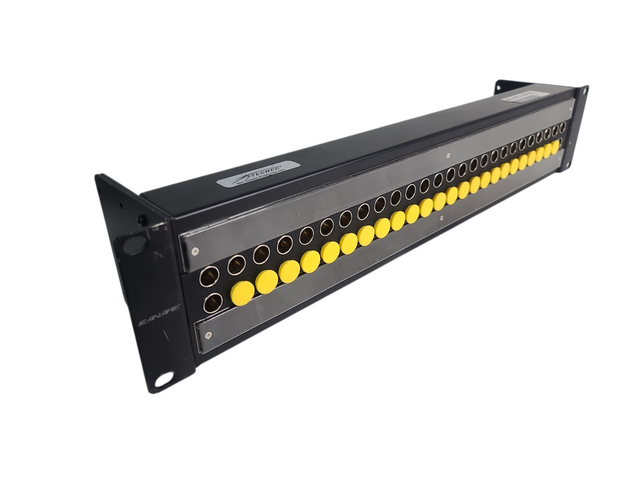

Canare 26DV-2U Digital Video Patchbay

The Canare 26DV-2U Digital Video Patchbay is a professional-grade, 75-ohm routing solution engineered specifically for demanding broadcast facilities, television studios, and video production control rooms. Housed in a standard 2RU chassis, this high-density panel features 26 loaded DVJB-W normal-through video jacks, providing a total of 52 (2x26) individual patch points. By centralizing the inputs and outputs of cameras, switchers, and recording decks into a single organized hub, the 26DV-2U allows engineers to quickly reroute video signals without needing to access the rear cabling of the equipment racks.

Designed to handle high-bandwidth digital signals flawlessly, the patchbay boasts a frequency response from DC to 3.0 GHz, making it fully compatible with uncompressed HD-SDI and 3G-SDI video formats. To ensure pristine signal integrity and minimize degradation across complex routing paths, Canare utilizes its uniquely developed rotary switches alongside beryllium copper, gold-plated center contacts. This precise engineering guarantees a return loss of at least 20dB, delivering the highly stable, artifact-free video transmission required for live broadcast and high-end post-production environments.
