Chauvet

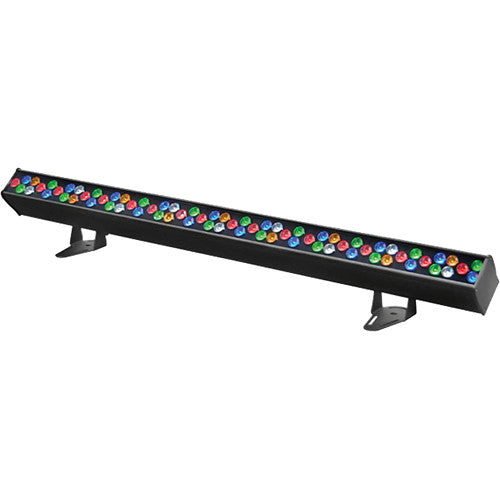

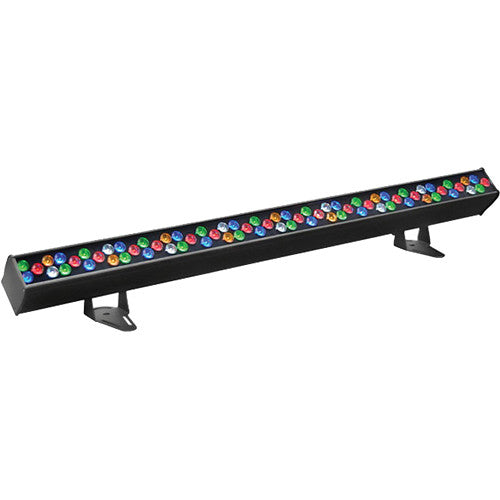

Chauvet COLORADOBATTEN72T Professional Colorado Batten 72 Tour LED Light

$0.00 -

COLORado Batten 72X is a class leading, powerful IP65 batten-style wash light powered by 72 calibrated RGBWA LEDs. The compact, tour-ready unit produces superb color rendering and a vast palette from soft pastels to saturated hues. Its 16-bit dimming capability, as well as five selectable dimming curves provides smooth fades and facilitate its incorporation into aging traditional rigs. Integrated trunnions accommodate clamps for vertical or horizontal hanging.

View Product Features

  • RGBAW LED source: 72 calibrated red, green, blue, white, and amber LEDs.
  • Superb color rendering: Vast palette from soft pastels to saturated hues.
  • Smooth dimming curves: Five selectable dimming modes for programming versatility.
  • Tour-ready construction: Rugged cast aluminum housing for durability.
  • Flicker-free operation: Safe for television and video use.
  • Versatile control options: 3-pin and 5-pin DMX input/output connections.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Chauvet COLORADOBATTEN72T Professional Colorado Batten 72 Tour LED Light

The Chauvet COLORADO Batten 72 Tour is a professional, high-output LED batten fixture designed for touring, stage, and installation applications where vibrant, consistent color washing is required. This fixture houses 72 powerful RGBW LEDs, providing a broad and intense field of color-mixed light ideal for illuminating backdrops, cycs, stages, and architectural elements. The inclusion of dedicated white LEDs (RGBW) expands the color palette to include rich pastels and pure whites, enhancing the fixture's versatility for television, theater, and live concert use. Its linear design and wide 120-degree beam angle ensure even coverage with minimal hotspots, making it effective for creating large, uniform washes of color.

Built to withstand the rigors of touring, the Batten 72 Tour features a rugged, die-cast aluminum housing with a protective front lens. It offers extensive control options via standard DMX-512 protocol, with multiple channel modes for managing color, intensity, and built-in macros or effects. The fixture includes convenient mounting points and can be used individually or linked together mechanically and electrically to form continuous lines of light. Its efficient LED engine generates substantial output while consuming less power and producing less heat than traditional battens, and it includes features like a dimming curve that is suitable for television work and a high color rendering index (CRI) for accurate color reproduction.

As a staple in modern lighting rigs, the COLORADO Batten 72 Tour provides lighting designers with a reliable and powerful tool for adding dynamic color and impactful washes to any production. Its combination of high output, color fidelity, and robust construction makes it a go-to choice for creating atmospheric looks and bold statements in professional entertainment lighting.

Key Features

  • RGBAW LED source: 72 calibrated red, green, blue, white, and amber LEDs.
  • Superb color rendering: Vast palette from soft pastels to saturated hues.
  • Smooth dimming curves: Five selectable dimming modes for programming versatility.
  • Tour-ready construction: Rugged cast aluminum housing for durability.
  • Flicker-free operation: Safe for television and video use.
  • Versatile control options: 3-pin and 5-pin DMX input/output connections.

Chauvet COLORADOBATTEN72T Professional Colorado Batten 72 Tour LED Light Specs

Light Source & Output
LED Type
72 x Quad-Color RGBW LEDs
Total LED Power
180W
White LED CCT
Variable 2,700K - 10,000K
Beam Angle
120 degrees
Max Flux Output
5,300 lumens (white, 6,500K)
Color & Control
Color Mixing
Full RGBW crossfading
Control Protocol
DMX-512 (RDM optional)
DMX Channels
5/7/11 channel modes
DMX Connectors
3-pin & 5-pin XLR In/Out
Built-in Programs
Yes, with sound activation
Physical & Electrical
Housing Material
Die-cast aluminum
Power Supply
Internal auto-ranging (100-240V AC)
Power Consumption
200W (max)
Power Connection
IEC PowerCON TRUE1 In/Out
Dimensions (LxWxH)
950 mm x 180 mm x 110 mm
Weight
8.6 kg
Environmental & Performance
CRI (Typical)
>80
Dimming
0-100% smooth, flicker-free
Operating Temperature
-10°C to 40°C
IP Rating
IP20

Key Features

  • RGBAW LED source: 72 calibrated red, green, blue, white, and amber LEDs.
  • Superb color rendering: Vast palette from soft pastels to saturated hues.
  • Smooth dimming curves: Five selectable dimming modes for programming versatility.
  • Tour-ready construction: Rugged cast aluminum housing for durability.
  • Flicker-free operation: Safe for television and video use.
  • Versatile control options: 3-pin and 5-pin DMX input/output connections.
