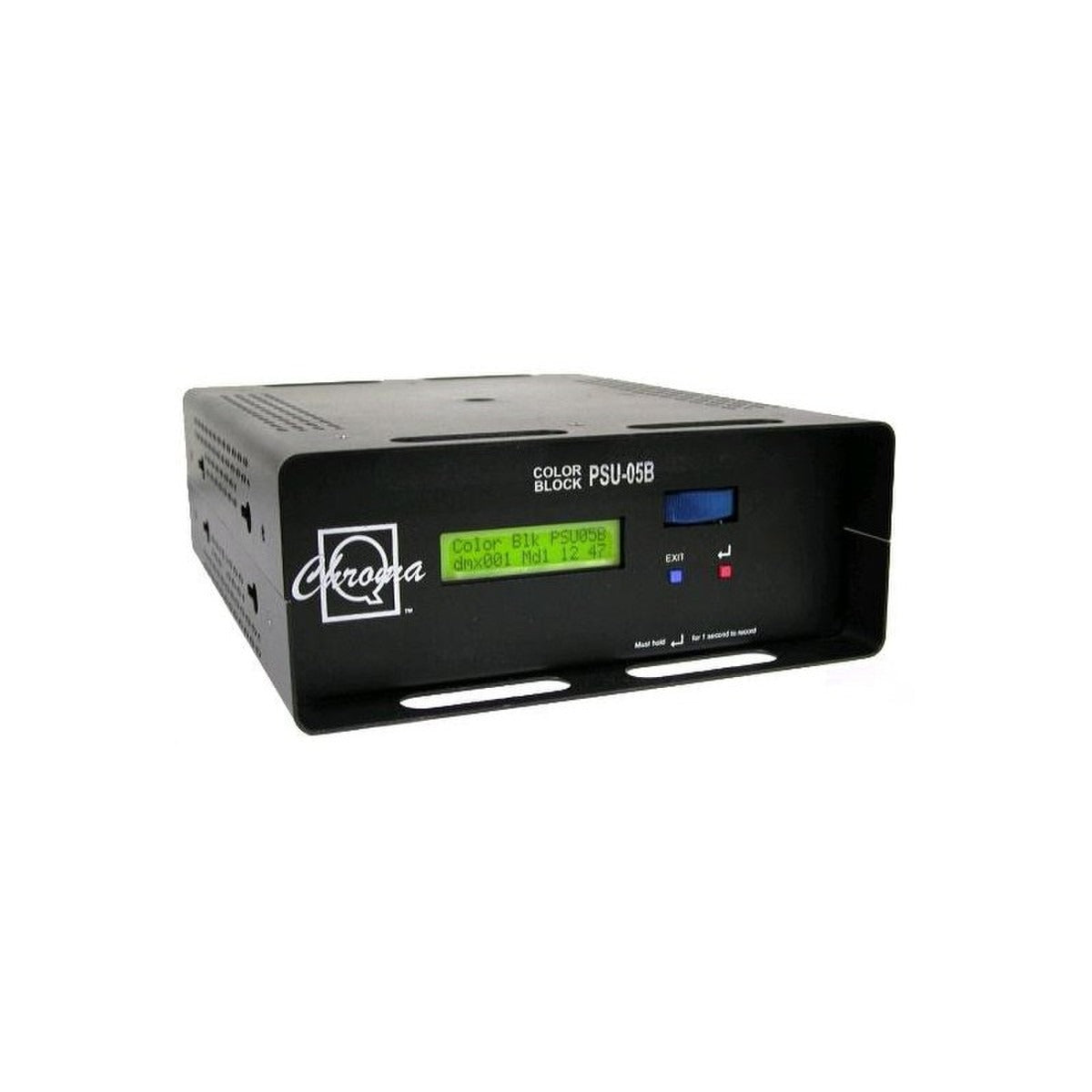

The Chroma-Q Color Block CBPSU-05B is a specialized, five-output power supply unit engineered to provide safe and reliable low-voltage DC power for Chroma-Q Color Block series LED lighting fixtures. This unit is a critical component in creating scalable and efficient LED lighting systems for entertainment, architectural, and event applications. Its primary function is to convert standard mains AC power into the regulated 24V DC required by multiple Color Block LED units, consolidating power distribution into a single, managed source. This centralized approach simplifies cable management, reduces clutter, and enhances system reliability by eliminating the need for individual power adapters for each fixture, which is particularly advantageous in installations involving numerous lights.

Designed with professional rigging and touring in mind, the PSU is housed in a robust, steel chassis that provides both physical protection and effective heat dissipation. The unit features five independent, electronically protected output circuits, each capable of delivering power to a string of Color Block fixtures up to the maximum current limit. This design includes comprehensive protection against short circuits, overloads, and over-temperature conditions, safeguarding both the power supply and the connected LED units from potential damage. The front panel clearly indicates power status and any fault conditions via LED indicators, allowing for quick visual diagnostics during setup or operation.

Installation and integration are straightforward, with the unit offering multiple mounting options including standard rack ears for secure installation in a 19-inch equipment rack. Mains input is typically via a robust IEC connector, while the DC outputs use secure, locking connectors specifically keyed for Chroma-Q fixtures to prevent incorrect mating. The CBPSU-05B exemplifies a purpose-built power solution that prioritizes safety, scalability, and ease of use, enabling lighting designers and technicians to build powerful, dependable LED arrays with clean and efficient power distribution at their core.
