SKU: 2105-679

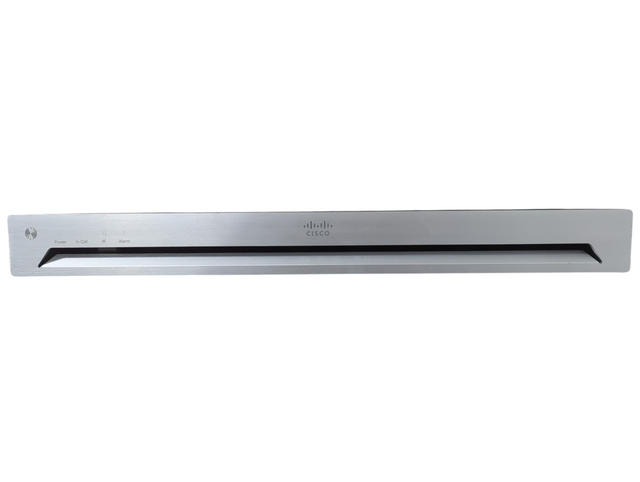

Cisco TelePresence SX80 Codec TTC6-12 Video Conferencing System

$95.00

Items Included

Cisco TelePresence SX80 Codec Unit (Model TTC6-12)
Rack Mounting Configuration Kit (Rack Ears)
AC Internal Power Device Cable

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Cisco TelePresence SX80 Codec TTC6-12 Video Conferencing System is a high-end, production-grade video collaboration engine designed for large meeting rooms, boardrooms, and custom corporate environments. Acting as the central processor for enterprise A/V networks, this rack-mountable hub manages heavy high-definition inputs and incorporates advanced media encoding layers to streamline remote business communication. Read more

Features

1RU High-Performance Hardware Architecture
HDMI, DVI-I & Composite Video Input Framework
Dual HDMI & Single DVI-I Video Displays Output
Capture up to Full HD 1080p60 Live & Content Streams
Industry-First H.265 Compression for Ultra-Low Bandwidth Network Usage
15 Audio Inputs (Including 8 Dedicated Microphone Ports)
8 Total Audio Outputs with Integrated Echo Cancellation
Three Native Ethernet RJ-45 Interfaces with Network VoIP Routing

Business Financing Options Avaiable

View Available Financing

Features

1RU High-Performance Hardware Architecture
HDMI, DVI-I & Composite Video Input Framework
Dual HDMI & Single DVI-I Video Displays Output
Capture up to Full HD 1080p60 Live & Content Streams
Industry-First H.265 Compression for Ultra-Low Bandwidth Network Usage
15 Audio Inputs (Including 8 Dedicated Microphone Ports)
8 Total Audio Outputs with Integrated Echo Cancellation
Three Native Ethernet RJ-45 Interfaces with Network VoIP Routing

No products currently in stock

About the Cisco TelePresence SX80 Codec TTC6-12 Video Conferencing System

The Cisco TelePresence SX80 Codec (TTC6-12) is a professional video collaboration codec designed for large meeting rooms, boardrooms, and customized video conferencing installations. Cisco specifies support for up to 1080p60 end-to-end HD video, H.265 video in SIP calls, three-screen configurations, and up to four simultaneous video inputs. The SX80 is designed as a flexible audio and video engine for integrated room systems.

The codec provides a broad selection of video and audio interfaces, including three HDMI video inputs, one DVI-I input, two HDMI outputs, and one DVI-I output. It supports up to eight microphones with 48 V phantom power, four balanced line-level inputs, six balanced line-level outputs, and two HDMI audio outputs.

For conferencing, the SX80 supports H.323 and SIP, embedded five-way MultiSite conferencing, dual-stream presentation through H.239/BFCP, and conference rates up to 10 Mbps. It also supports Cisco Unified Communications Manager, Cisco VCS, Cisco Webex, and standards-based third-party conferencing infrastructure.

Key Features

1RU High-Performance Hardware Architecture
HDMI, DVI-I & Composite Video Input Framework
Dual HDMI & Single DVI-I Video Displays Output
Capture up to Full HD 1080p60 Live & Content Streams
Industry-First H.265 Compression for Ultra-Low Bandwidth Network Usage
15 Audio Inputs (Including 8 Dedicated Microphone Ports)
8 Total Audio Outputs with Integrated Echo Cancellation
Three Native Ethernet RJ-45 Interfaces with Network VoIP Routing

Already own this item and want to sell it?

Click here to sell your item

Cisco TelePresence SX80 Codec TTC6-12 Video Conferencing System Specs

Video Processing

Product Type

Video Conferencing Codec

Compliance Model

TTC6-12

Maximum Video Resolution

1080p60

Video Standards

H.261, H.263, H.263+, H.264, H.265

H.265 Support

SIP

Dual-Stream Protocols

H.239 / BFCP

Embedded MultiSite

Five-Way SIP/H.323

Video Connectivity

HDMI Inputs

DVI-I Input

Composite/S-Video Input

HDMI Outputs

DVI-I Output

Maximum Simultaneous Video Inputs

4 HD Sources

Audio Architecture

Microphone Inputs

Microphone Phantom Power

48 V

Balanced Line Inputs

Balanced Line Outputs

HDMI Audio Outputs

Acoustic Echo Cancellers

Audio Mixer

8-Port

Equalizers

8 Assignable

Audio Processing

Automatic Gain Control / Noise Reduction

Lip Synchronization

Active

Network & Conferencing

H.323/SIP Point-to-Point Bandwidth

Up to 10 Mbps

MultiSite Bandwidth

Up to 10 Mbps

Protocols

H.323 / SIP

Ethernet Port

1 × 10/100/1000 Mbit RJ-45

Peripheral Ethernet Ports

2 × RJ-45

Network Authentication

802.1X

VLAN

802.1Q

QoS

802.1p

IPv6

Supported

Control & Interfaces

USB Hosts

RS-232

GPIO

Supported

Management Interfaces

Telnet / SSH / XML / SOAP

API

Full API Support

Touch Controller Support

Cisco Touch 10

Power Requirements

Power Supply

Auto-Sensing

Input Voltage

100–120 / 200–240 VAC

Frequency

50/60 Hz

Maximum Power

170 W for Codec and Main Camera

Mechanical Format

Rack Height

1RU

Rackmount

Yes

Rackmount Hardware

Included

Key Features

1RU High-Performance Hardware Architecture
HDMI, DVI-I & Composite Video Input Framework
Dual HDMI & Single DVI-I Video Displays Output
Capture up to Full HD 1080p60 Live & Content Streams
Industry-First H.265 Compression for Ultra-Low Bandwidth Network Usage
15 Audio Inputs (Including 8 Dedicated Microphone Ports)
8 Total Audio Outputs with Integrated Echo Cancellation
Three Native Ethernet RJ-45 Interfaces with Network VoIP Routing
