SKU: C2212-26

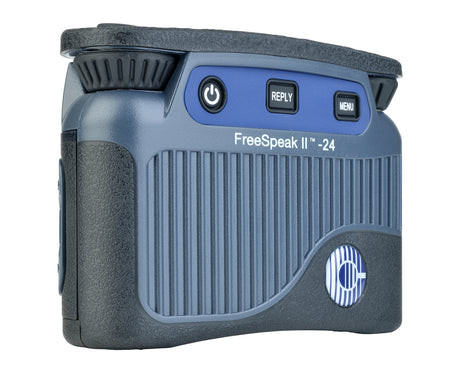

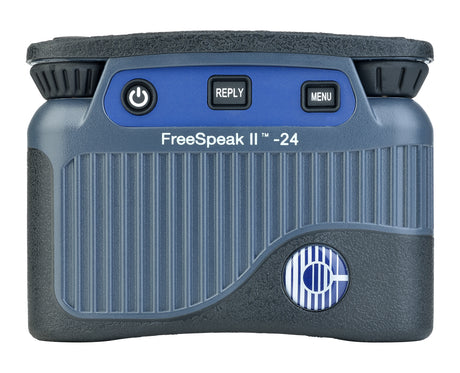

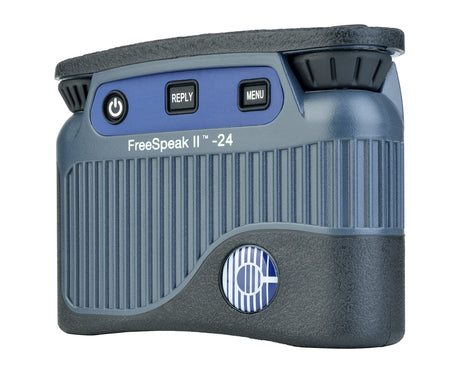

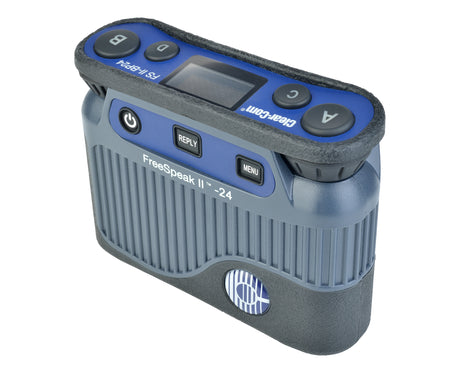

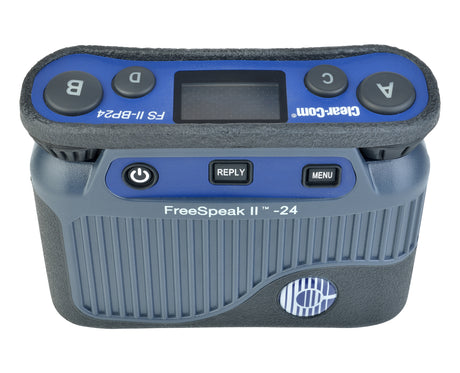

Clearcom FSII-BP24-X4 Freespeak II 24-Channel Digital Wireless Beltpack

$2,405.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Clearcom FSII-BP24-X4 is a 2.4 GHz Wireless Intercom Beltpack for the FreeSpeak II Digital Wireless Intercom System. It can connect to the FreeSpeak II base station or to Eclipse HX card frame matrices using the E-QUE-HX interface card. FSII-BP24 users can roam, seamlessly between FSII-TCVR-24 antennas over wide areas. The "Listen Again" feature allows users to replay earlier commands, eliminating the need to repeat communication or disturb productions. Read more

Features

  • Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
  • Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240m)
  • 1.9 and 2.4 GHz beltpacks operate on a single system
  • Up to 65 – 90 beltpacks on a single system
  • "Listen Again" message replay
  • Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
  • Over-the-air beltpack registration
  • 18+ hour battery life or USB port for continuous operation
  • XLR-4M headset connector
  • IP53 rating for wet and dusty conditions
  • Built-in flashlight

Business Financing Options Avaiable

View Available Financing

The Clearcom FSII-BP24-X4 is a 2.4 GHz Wireless Intercom Beltpack for the FreeSpeak II Digital Wireless Intercom System. It can connect to the FreeSpeak II base station or to Eclipse HX card frame matrices using the E-QUE-HX interface card. FSII-BP24 users can roam, seamlessly between FSII-TCVR-24 antennas over wide areas. The "Listen Again" feature allows users to replay earlier commands, eliminating the need to repeat communication or disturb productions. Read more

Features

  • Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
  • Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240m)
  • 1.9 and 2.4 GHz beltpacks operate on a single system
  • Up to 65 – 90 beltpacks on a single system
  • "Listen Again" message replay
  • Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
  • Over-the-air beltpack registration
  • 18+ hour battery life or USB port for continuous operation
  • XLR-4M headset connector
  • IP53 rating for wet and dusty conditions
  • Built-in flashlight

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Clearcom FSII-BP24-X4 Freespeak II 24-Channel Digital Wireless Beltpack

The Clearcom FSII-BP24-X4 is a 2.4 GHz Wireless Intercom Beltpack for the FreeSpeak II Digital Wireless Intercom System. It can connect to the FreeSpeak II base station or to Eclipse HX card frame matrices using the E-QUE-HX interface card. FSII-BP24 users can roam, seamlessly between FSII-TCVR-24 antennas over wide areas. The "Listen Again" feature allows users to replay earlier commands, eliminating the need to repeat communication or disturb productions.

The FSII-BP24 is IP53 rated for wet weather or dusty conditions making them ideal for outdoor productions. For better grip and protection, the beltpack has a rubberized over-mold to protect from the most rugged environments.

Key Features

  • Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
  • Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240m)
  • 1.9 and 2.4 GHz beltpacks operate on a single system
  • Up to 65 – 90 beltpacks on a single system
  • "Listen Again" message replay
  • Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
  • Over-the-air beltpack registration
  • 18+ hour battery life or USB port for continuous operation
  • XLR-4M headset connector
  • IP53 rating for wet and dusty conditions
  • Built-in flashlight

Already own this item and want to sell it?

Click here to sell your item

Clearcom FSII-BP24-X4 Freespeak II 24-Channel Digital Wireless Beltpack Specs

Frequency Spectrum
2.400-2.483MHz for EU and US cellular auto roaming technology
Modulation
GFSK, TDMA frame 10ms full and long slot
Output power
(EU) 18-22dBm, (US) 18-20dBm
Range
Typical indoor range 300ft (90m), outdoor range 800ft (240m)
Battery
Li-Ion or 3 AA alkaline cells
Battery Charging
Drop-in charger (AC60) or local USB
Battery Life
18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells

Key Features

  • Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
  • Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240m)
  • 1.9 and 2.4 GHz beltpacks operate on a single system
  • Up to 65 – 90 beltpacks on a single system
  • "Listen Again" message replay
  • Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
  • Over-the-air beltpack registration
  • 18+ hour battery life or USB port for continuous operation
  • XLR-4M headset connector
  • IP53 rating for wet and dusty conditions
  • Built-in flashlight

Already own this item and want to sell it?

Click here to sell your item

FAQs about Clearcom FSII-BP24-X4 Freespeak II 24-Channel Digital Wireless Beltpack

What is the primary function of the Clear-Com FSII-BP24-X4 Beltpack?

The FSII-BP24-X4 is a rugged, five-channel wireless beltpack operating on the 2.4GHz frequency band for the FreeSpeak II digital intercom system. It allows production crew members to communicate seamlessly across multiple intercom channels with full-duplex digital audio clarity.

What headset connector configuration does the FSII-BP24-X4 feature?

This specific model features a standard 4-pin female XLR headset connector (X4). It is compatible with a wide range of professional single-muff or dual-muff Clear-Com intercom headsets.

What wireless frequency range and coverage technology does it use?

The beltpack operates in the unlicensed 2.4GHz frequency band using DECT-based wireless technology with seamless cellular roaming. As users move across large venues, the beltpack automatically handsoff connection between FreeSpeak II antennas without audio dropouts.

How many audio channels can the user access on the beltpack?

The beltpack provides access to up to five communication channels simultaneously. Four dedicated volume/push-to-talk rotary controls and a color display allow users to easily switch, monitor, and adjust levels for different production departments.

What battery options and operating runtimes does it support?

It is powered by a rechargeable Li-Ion battery pack that delivers up to 18 hours of continuous operational runtime. In an emergency, the battery sled can also accept standard AA alkaline batteries to keep the beltpack running.

Is the FreeSpeak II 2.4GHz beltpack durable enough for harsh field use?

Yes, the beltpack features an IP65 weather- and dust-resistant enclosure over-molded with durable rubber bumpers. It is engineered to withstand drop impacts, rain, dust, and demanding indoor/outdoor broadcast environments.

Can I use 2.4GHz beltpacks alongside 1.9GHz FreeSpeak II beltpacks?

Yes, FreeSpeak II base stations and integrated matrix cards support co-existence of both 1.9GHz and 2.4GHz beltpacks on the same system. This allows production teams to expand wireless user counts by utilizing both frequency bands simultaneously.

What visual and tactile features help users operate the pack in dark environments?

The unit features a high-contrast full-color OLED screen that displays channel assignments, signal strength, and battery status. Tactile rotary encoders, programmable reply buttons, and customizable haptic (vibration) alerts enable easy operation by feel in dark venues.
