Color Kinetics

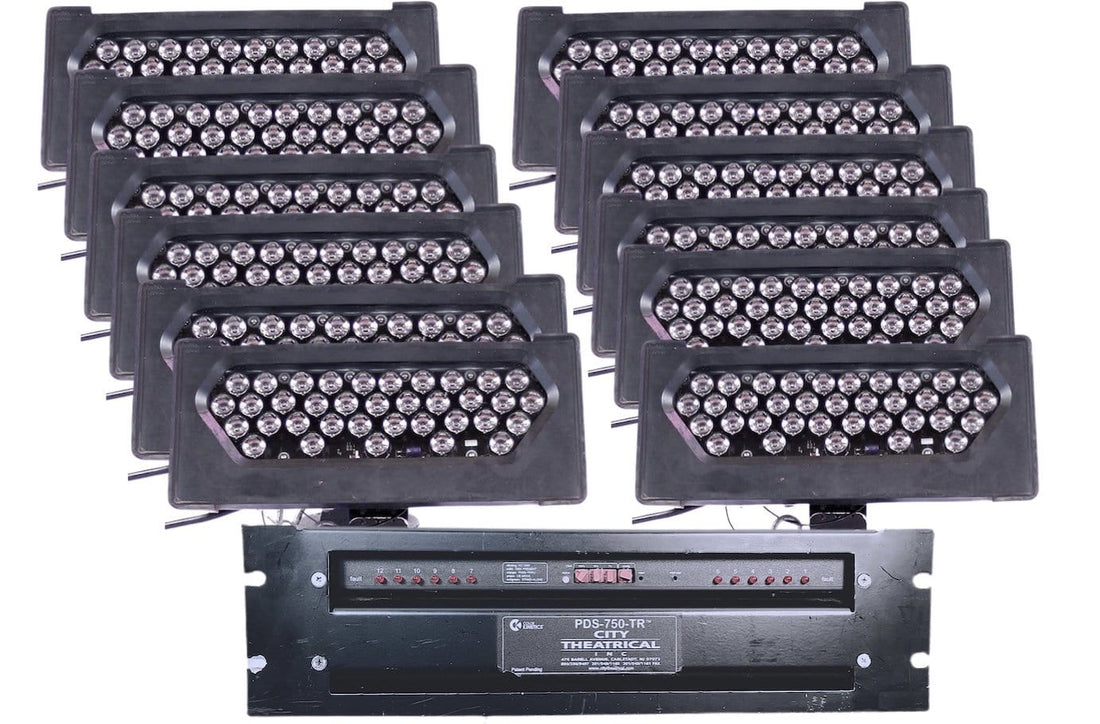

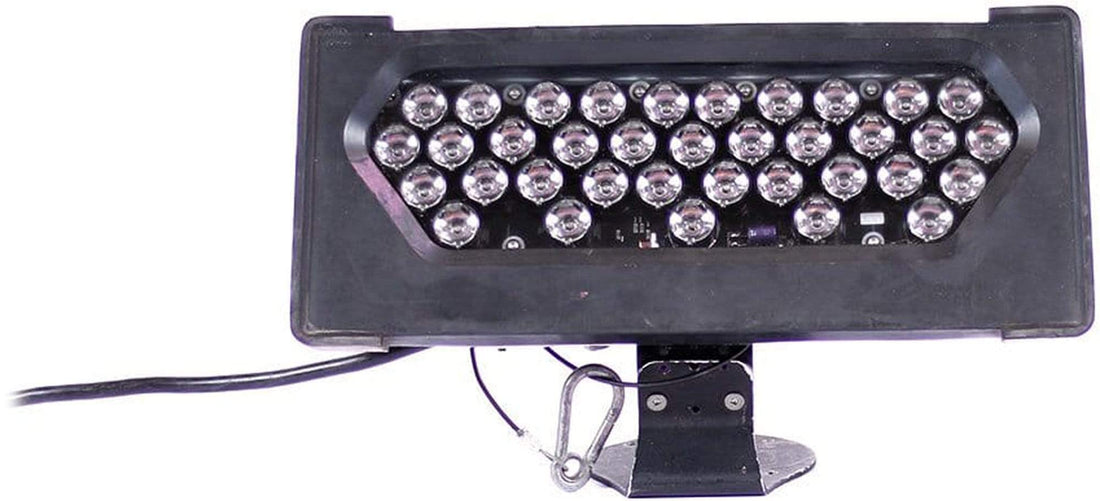

Color Kinetics ColorBlast 12 TR Blast Lights 12/Class 2 LED Light

$0.00

The Color Kinetics ColorBlast 12 TR is a rugged, DMX-controlled, full-color RGB LED wash light designed for stage, set, and touring applications. It features a pivoting bezel for interchangeable 10° clear and 23° soft-focus lenses, an elastomeric sleeve for protection, a built-in 6-foot power and data cable with an XLR connector, and is powered by a compatible 24VDC power/data supply. The "12" refers to 36 high-intensity RGB LEDs, "TR" signifies its tough, rent-friendly design for touring, and the "/Class 2" is likely a safety or electrical certification related to its power handling.

View Product Features

  • Color and Control: Produces 16.7 million colors using 24-bit additive RGB LEDs and is controllable via any DMX512 (RS485) source or compatible Color Kinetics controller, such as the iPlayer 3.
  • Durable Design: Features a die-cast aluminum housing, an elastomeric sleeve for protection from rough handling, and an industrial-grade hinge for reliable aiming.
  • Lenses: Includes a pivoting bezel for quickly switching between a 10° clear lens for long-throw spot lighting and a 23° soft-focus tempered glass lens for wash lighting.
  • Power & Data: Comes with a built-in 6-foot power and data cable and uses a 4-pin XLR connector for connection to a compatible power/data supply, such as the PDS-750 TRX or PDS-60.
  • Mounting: The mounting base is designed to accommodate standard theatrical clamps for truss and pipe mounting.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Color Kinetics ColorBlast 12 TR Blast Lights 12/Class 2 LED Light

The Color Kinetics ColorBlast 12 TR is a high-output, weatherproof LED linear wash light designed for robust architectural and entertainment lighting applications. Featuring twelve high-power LEDs in a compact housing, it delivers intense, saturated color mixing (typically RGB or similar) to illuminate building facades, landscapes, theatrical sets, and event spaces. The "TR" designation often indicates a through-wiring capability and a "Tough Rubber" overmold or a robust, rubberized housing that provides enhanced durability and impact resistance, along with an IP66 or higher ingress protection rating, making it suitable for both indoor and outdoor use in challenging environments. Its linear form factor and wide beam angle produce a smooth, even wash of color across surfaces.

The fixture is engineered for reliability and long-term performance, with an integral power supply and advanced thermal management to ensure stable operation across a wide temperature range. Control is achieved via standard DMX512 protocol, allowing for seamless integration into professional lighting control systems, and it also supports Color Kinetics' proprietary digital control protocols for large-scale, networked installations. The ColorBlast 12 TR is designed for easy mounting with multiple integral attachment points and is often used in continuous runs or arrays to create large-scale color-changing displays. Its combination of high luminous output, rich color capabilities, and rugged construction has made it a staple in architectural lighting and permanent installations.

As a versatile and powerful LED luminaire, the ColorBlast 12 TR provides lighting designers with a tool to create dynamic and vibrant environmental lighting. Its weatherproof design and consistent performance enable creative and reliable illumination for exterior buildings, bridges, theatrical backdrops, and themed environments where color and durability are paramount.

Key Features

  • Color and Control: Produces 16.7 million colors using 24-bit additive RGB LEDs and is controllable via any DMX512 (RS485) source or compatible Color Kinetics controller, such as the iPlayer 3.
  • Durable Design: Features a die-cast aluminum housing, an elastomeric sleeve for protection from rough handling, and an industrial-grade hinge for reliable aiming.
  • Lenses: Includes a pivoting bezel for quickly switching between a 10° clear lens for long-throw spot lighting and a 23° soft-focus tempered glass lens for wash lighting.
  • Power & Data: Comes with a built-in 6-foot power and data cable and uses a 4-pin XLR connector for connection to a compatible power/data supply, such as the PDS-750 TRX or PDS-60.
  • Mounting: The mounting base is designed to accommodate standard theatrical clamps for truss and pipe mounting.

Color Kinetics ColorBlast 12 TR Blast Lights 12/Class 2 LED Light Specs

Light Source & Output
LED Configuration
12 High-Power LEDs (e.g., RGB)
Total LED Power
60W
Luminous Flux
Approx. 1000 lumens (white, system dependent)
Beam Angle
40° x 60° (asymmetric, typical)
Color Mixing
Full RGB color spectrum
Electrical & Control
Input Voltage
120-277V AC, 50/60 Hz (auto-sensing)
Power Consumption
75W (max)
Control Protocol
DMX512 (3-pin XLR In/Out), Color Kinetics proprietary
DMX Channels
3, 6, or 9 (selectable)
Control Interface
DIP switches for address/personality
Physical & Environmental
Housing Material
Die-cast aluminum with rubber overmold (TR)
Dimensions (LxWxH)
457 mm x 140 mm x 102 mm
Weight
4.5 kg
Ingress Protection
IP66 (dust-tight, protected against powerful water jets)
Operating Temperature
-40°C to 55°C
Storage Temperature
-40°C to 80°C

Key Features

  • Color and Control: Produces 16.7 million colors using 24-bit additive RGB LEDs and is controllable via any DMX512 (RS485) source or compatible Color Kinetics controller, such as the iPlayer 3.
  • Durable Design: Features a die-cast aluminum housing, an elastomeric sleeve for protection from rough handling, and an industrial-grade hinge for reliable aiming.
  • Lenses: Includes a pivoting bezel for quickly switching between a 10° clear lens for long-throw spot lighting and a 23° soft-focus tempered glass lens for wash lighting.
  • Power & Data: Comes with a built-in 6-foot power and data cable and uses a 4-pin XLR connector for connection to a compatible power/data supply, such as the PDS-750 TRX or PDS-60.
  • Mounting: The mounting base is designed to accommodate standard theatrical clamps for truss and pipe mounting.
