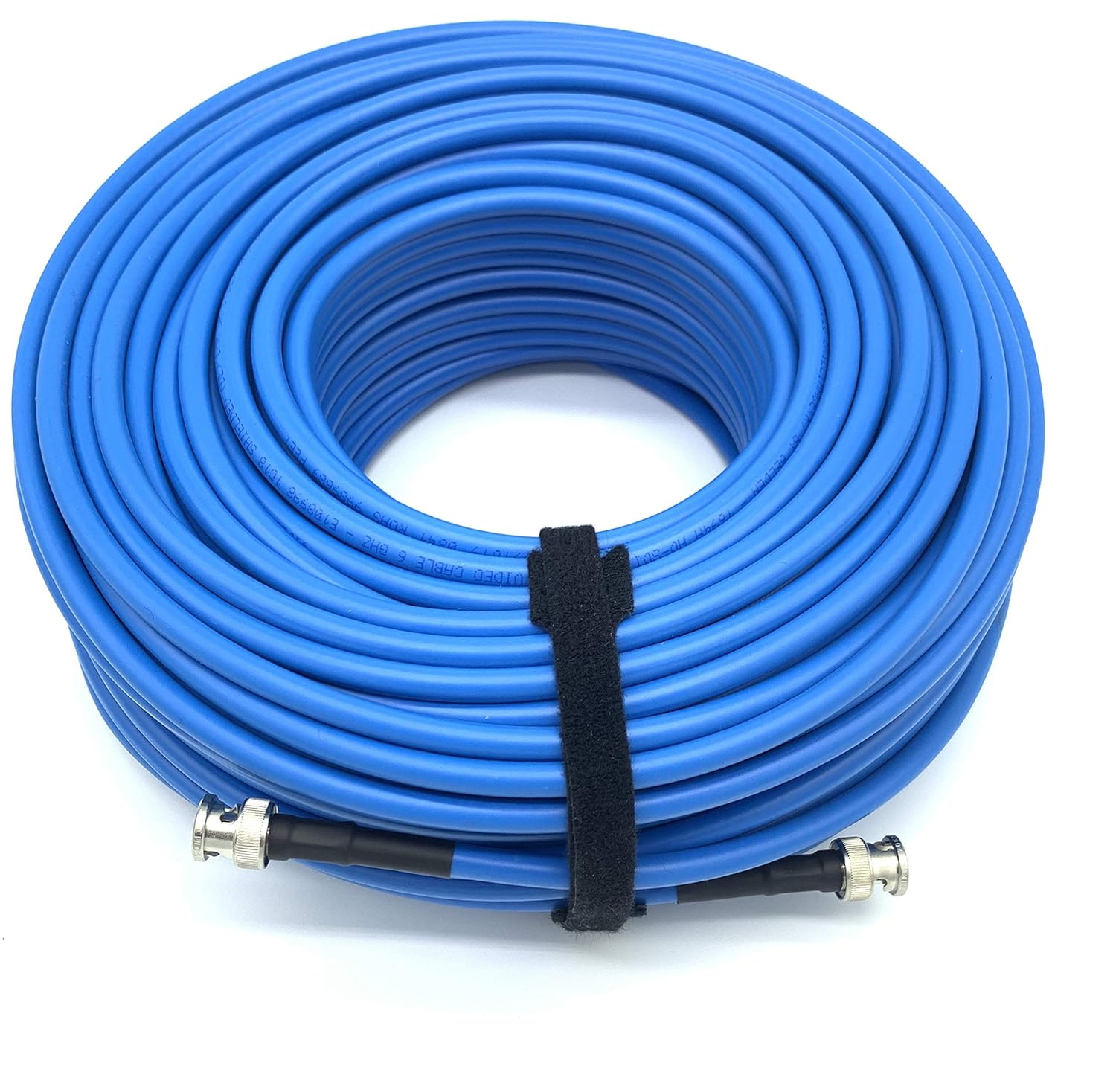

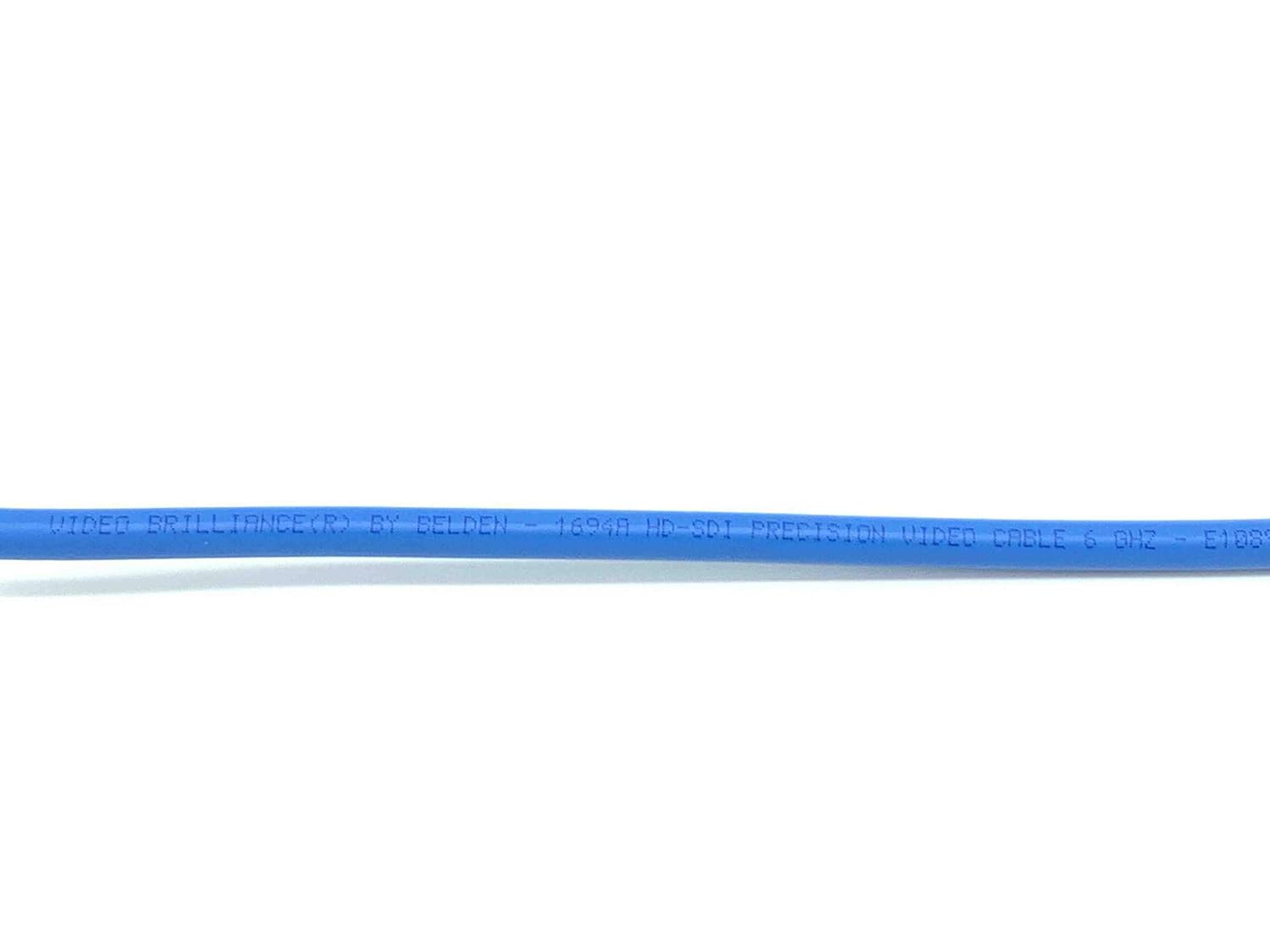

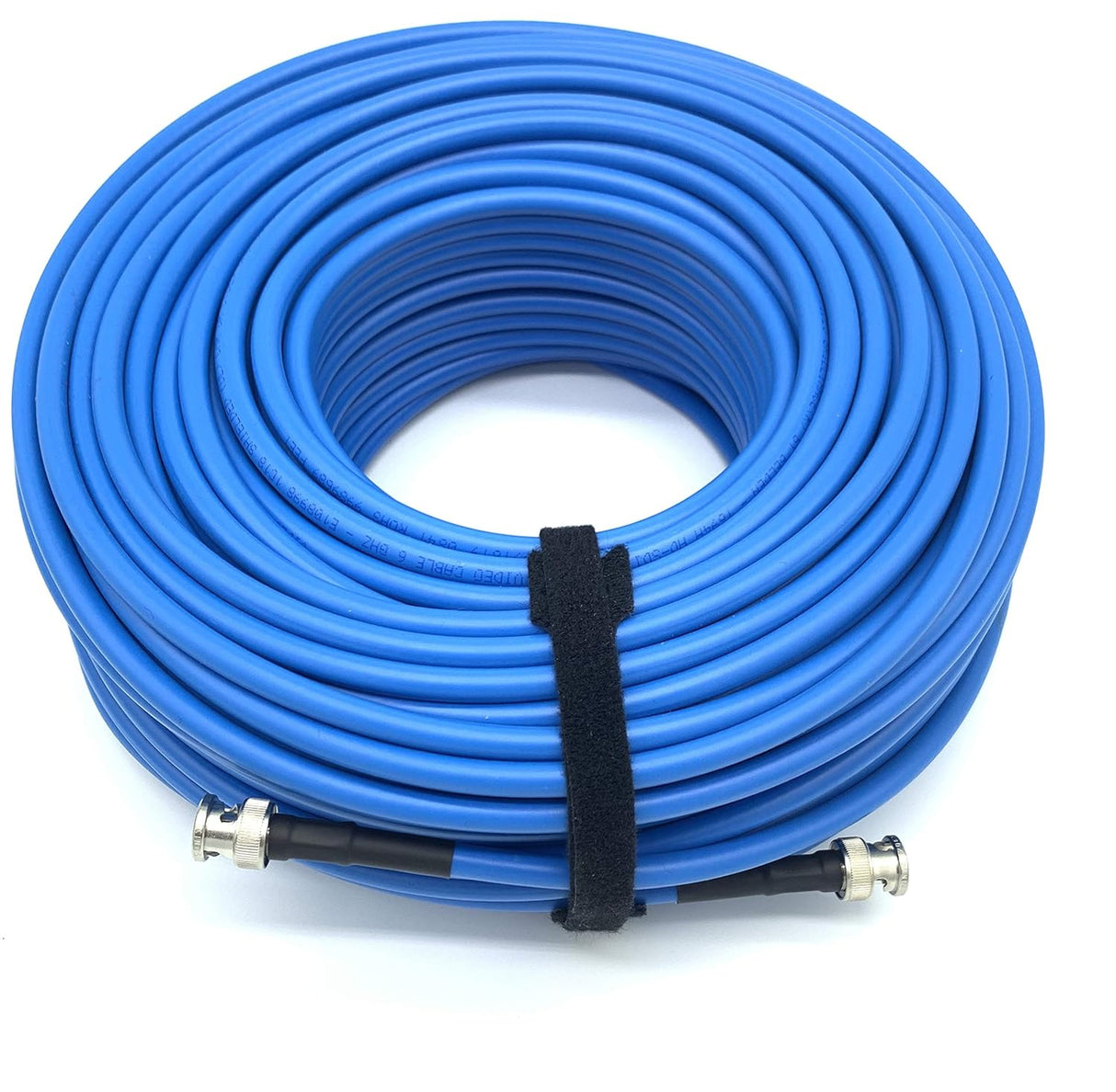

The Comprehensive Cables BBD1694 is a high-performance coaxial cable assembly built using premium Belden 1694A coaxial cable as its core component, terminated with professional BNC connectors. This cable is engineered specifically for the reliable transmission of high-definition digital video signals, particularly Serial Digital Interface (SDI) signals used in broadcast, production, and professional AV environments. The Belden 1694A cable itself is renowned for its consistent electrical characteristics and robust physical construction, featuring a solid bare copper center conductor, a foam polyethylene dielectric for low signal loss, and a dual-layer shield consisting of a high-density aluminum foil tape and a tinned copper braid. This shielding design provides exceptional protection against electromagnetic interference (EMI) and radio frequency interference (RFI), which is critical for maintaining signal integrity in electrically noisy settings such as live production trucks, studios, and installed systems with long cable runs.

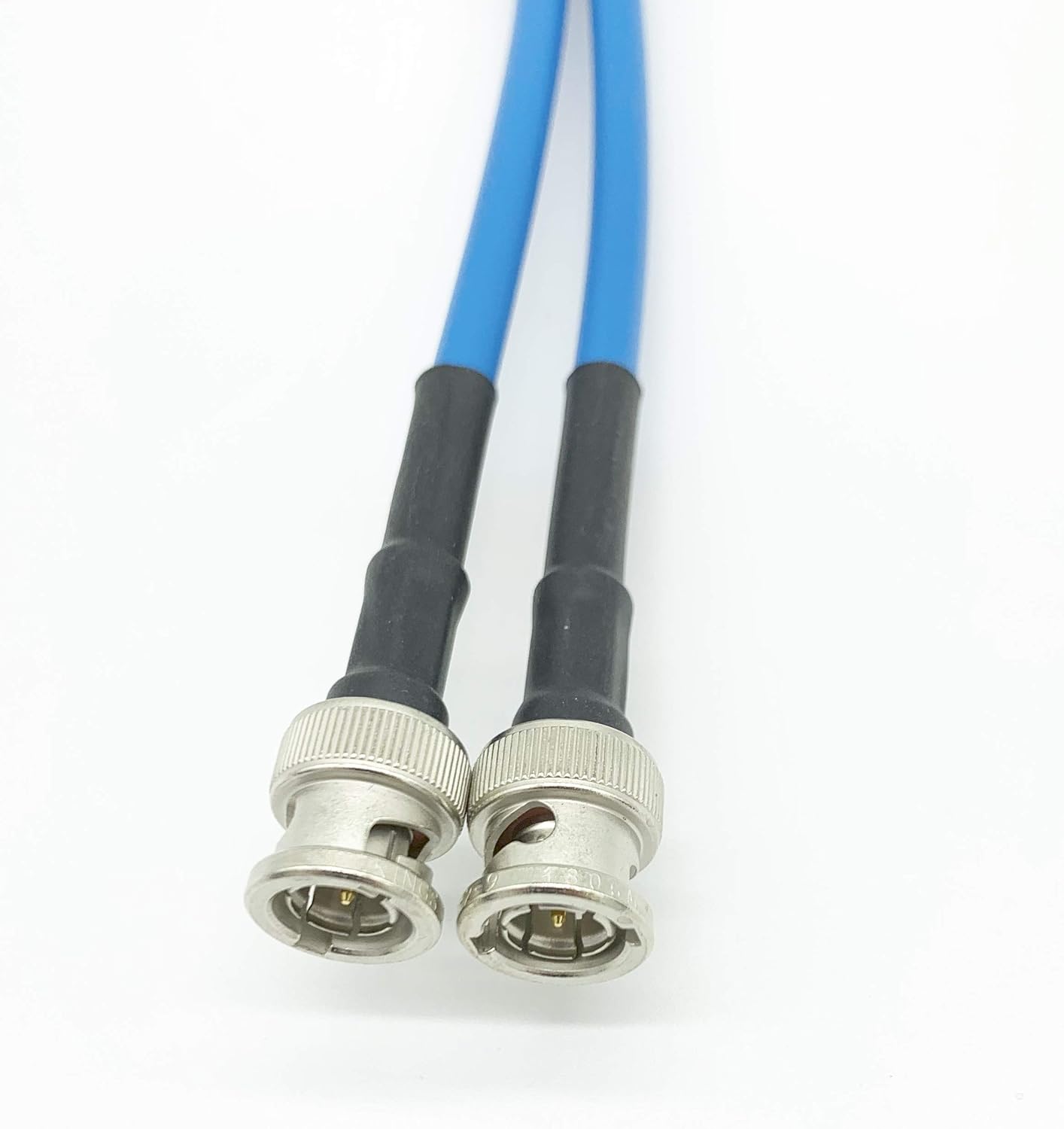

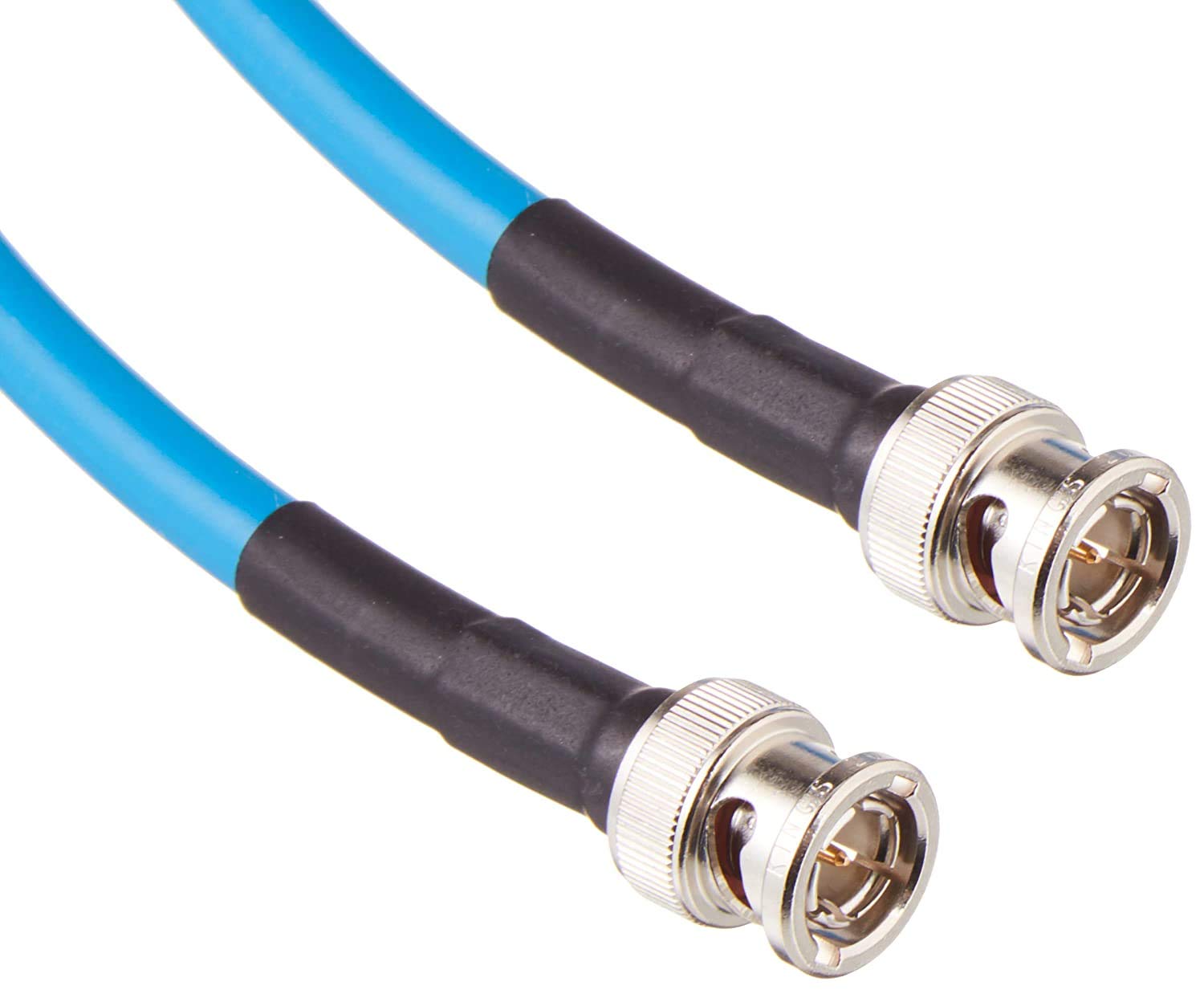

The cable assemblies are precision-terminated with 75-ohm BNC connectors that match the cable's impedance, minimizing signal reflections that can cause ghosting or dropouts. The connectors are typically crimped and soldered for a secure, gas-tight connection that ensures long-term reliability even with frequent mating and unmating. The BNC's bayonet locking mechanism provides a quick and secure connection that prevents accidental disconnection, a vital feature in live broadcast scenarios. The cable jacket is designed for durability, offering resistance to abrasion, crushing, and chemicals, making it suitable for both permanent installation and frequent use in field production.

The electrical performance of the BBD1694 cable assembly is characterized by very low attenuation (signal loss) across a broad frequency spectrum, enabling it to carry 3G-SDI, HD-SDI, and SD-SDI signals over considerable distances without requiring signal reclocking or amplification. Its phase stability and low group delay variance ensure that signal timing is preserved, which is essential for multi-camera sync and video processing. As a ready-to-use assembly, this product provides broadcast engineers, video technicians, and system integrators with a trusted, off-the-shelf solution for interconnecting cameras, routers, monitors, and other SDI-equipped devices, forming the backbone of a reliable, high-quality digital video infrastructure.
