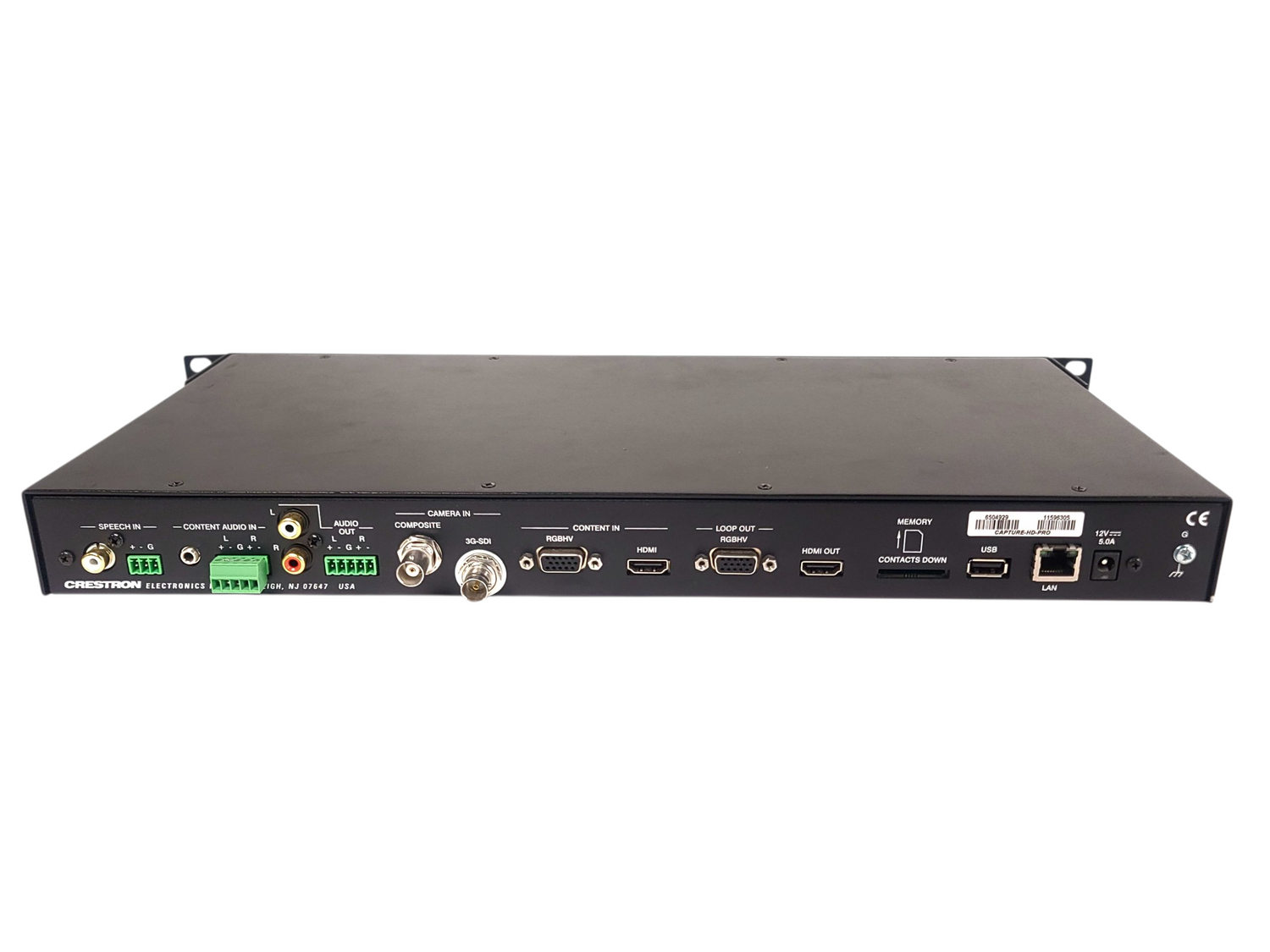

The Crestron CAPTURE-HD-PRO is a professional-grade high-definition capture recorder engineered to deliver a cost-effective and high-performance solution for capturing lectures, presentations, training sessions, and medical procedures. This advanced media processing engine records complete AV presentations in full-motion HD 1080p or 720p using high-quality H.264 format, then uploads the content to a network server for publishing or enables live streaming over IP networks. The CAPTURE-HD-PRO model adds a professional 3G-SDI input to support HD digital cameras with SDI, HD-SDI, or 3G-SDI output, alongside HDMI and RGBHV inputs for presentation sources and a composite video input for an additional camera.

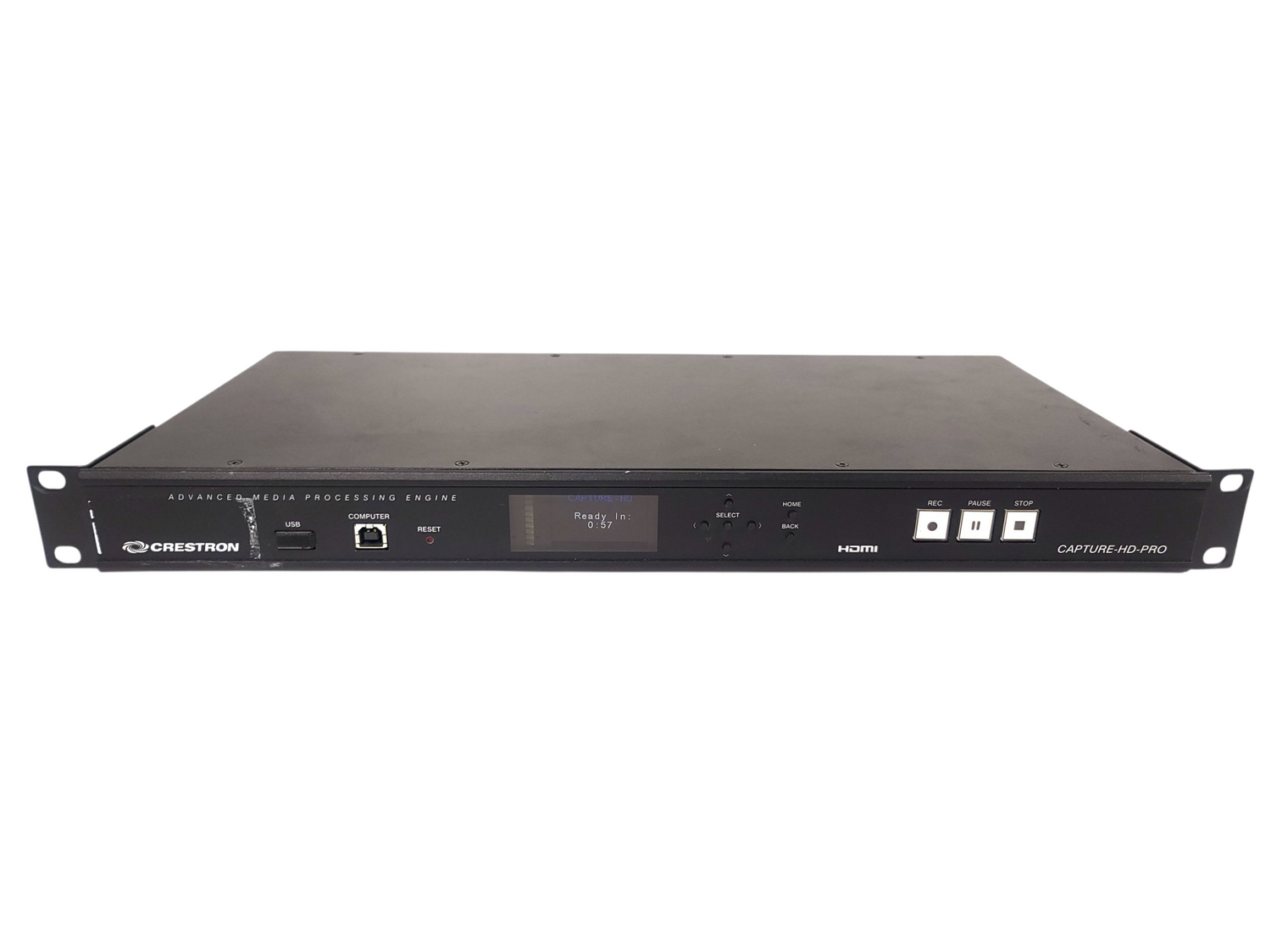

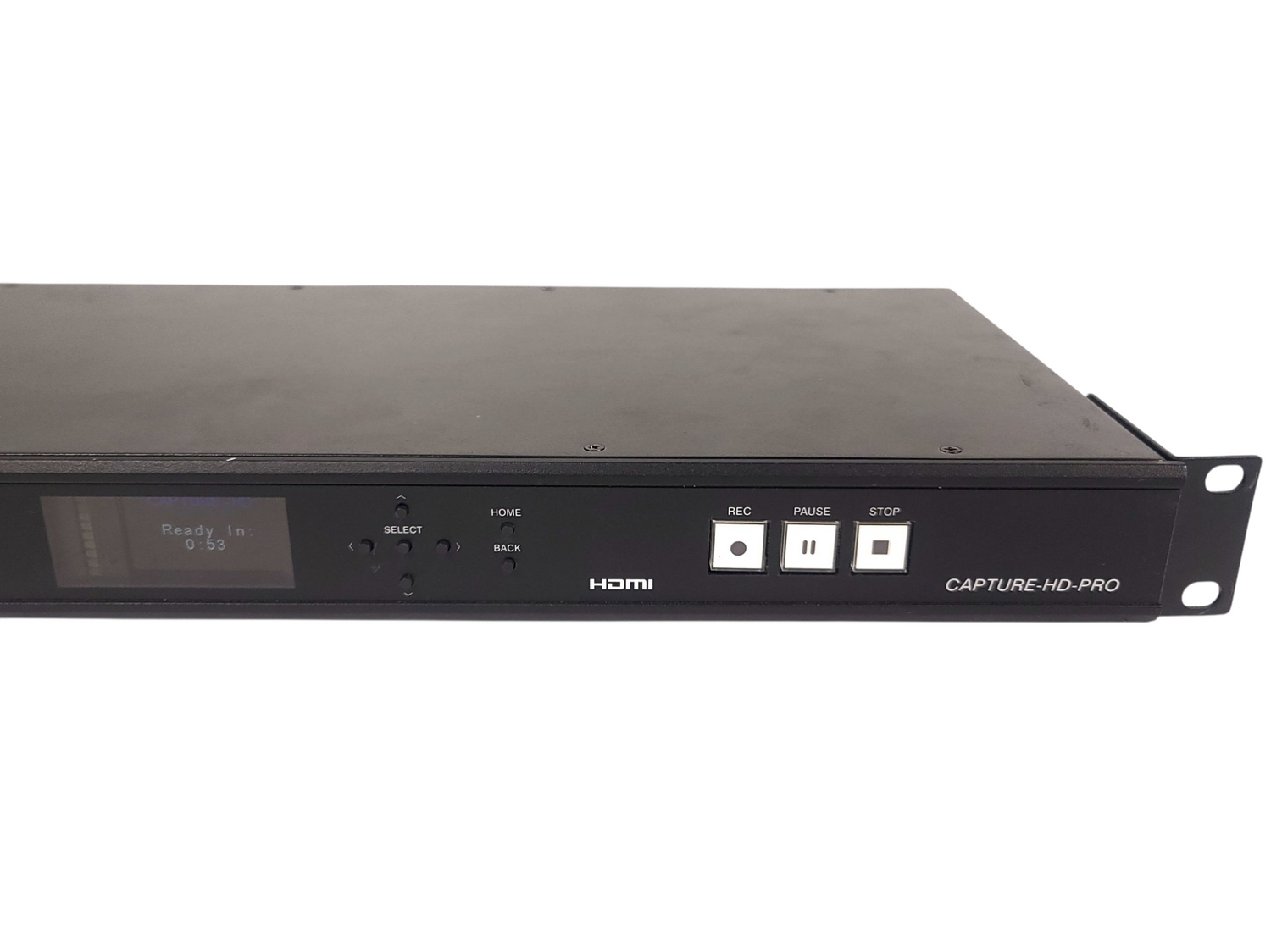

Designed for easy integration in classrooms, lecture halls, boardrooms, and training labs, this 1U rack-mountable unit features intuitive front-panel controls with color-coded buttons for start, pause, and stop functions, plus a full-color LCD screen for setup and feedback. The built-in scaling ensures compatibility with a full range of signals, while local HDMI and analog audio outputs allow for confidence monitoring or presentation pass-through. Gigabit Ethernet enables high-speed file transfers, and captured content can be stored locally on SDHC memory cards or USB drives before network upload. Integration with Crestron software provides a complete workflow engine for scheduling, management, and publishing across campus or enterprise facilities.
