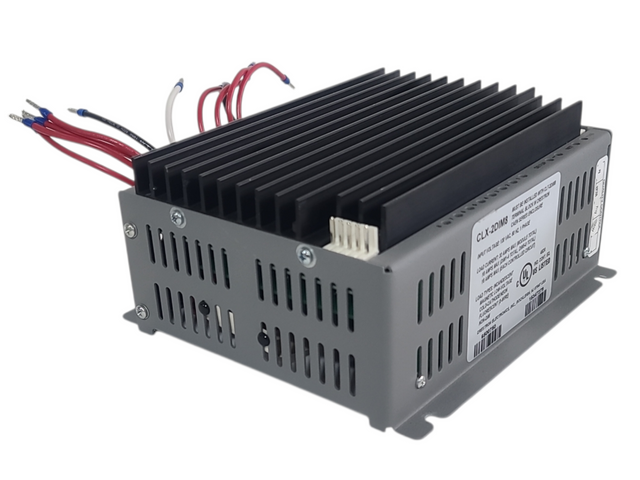

The Crestron CLX-2DIM8 is a professional 8-channel dimmer module designed as an integral component of a complete Crestron centralized lighting control system for residential and commercial environments. This module installs in a CAEN or CAEN-MLO wall mount automation enclosure and provides eight channels of dimming for a variety of lighting load types including incandescent, magnetic low-voltage, neon or cold cathode, and 2-wire dimmable fluorescent loads. The dual feed capability provides two independent four-channel dimmers in a single module space, with each channel rated for substantial power when fed from two separate 20 amp feeds. Engineered for superior performance and reliability, the CLX-2DIM8 employs forward phase leading edge dimming to handle inductive load types effectively. A key feature for safety and maintenance is the inclusion of air-gap relays on every channel output, allowing individual circuits to be serviced without disabling the entire module. Low-maintenance convection cooling with oversized heat sinks ensures quiet, trouble-free operation with no mechanical components to wear out. An override feature allows each channel to be set to a preset state, which can be activated globally via a simple contact closure if Cresnet communications are ever disrupted, ensuring lights can always be controlled. Read more

Features
