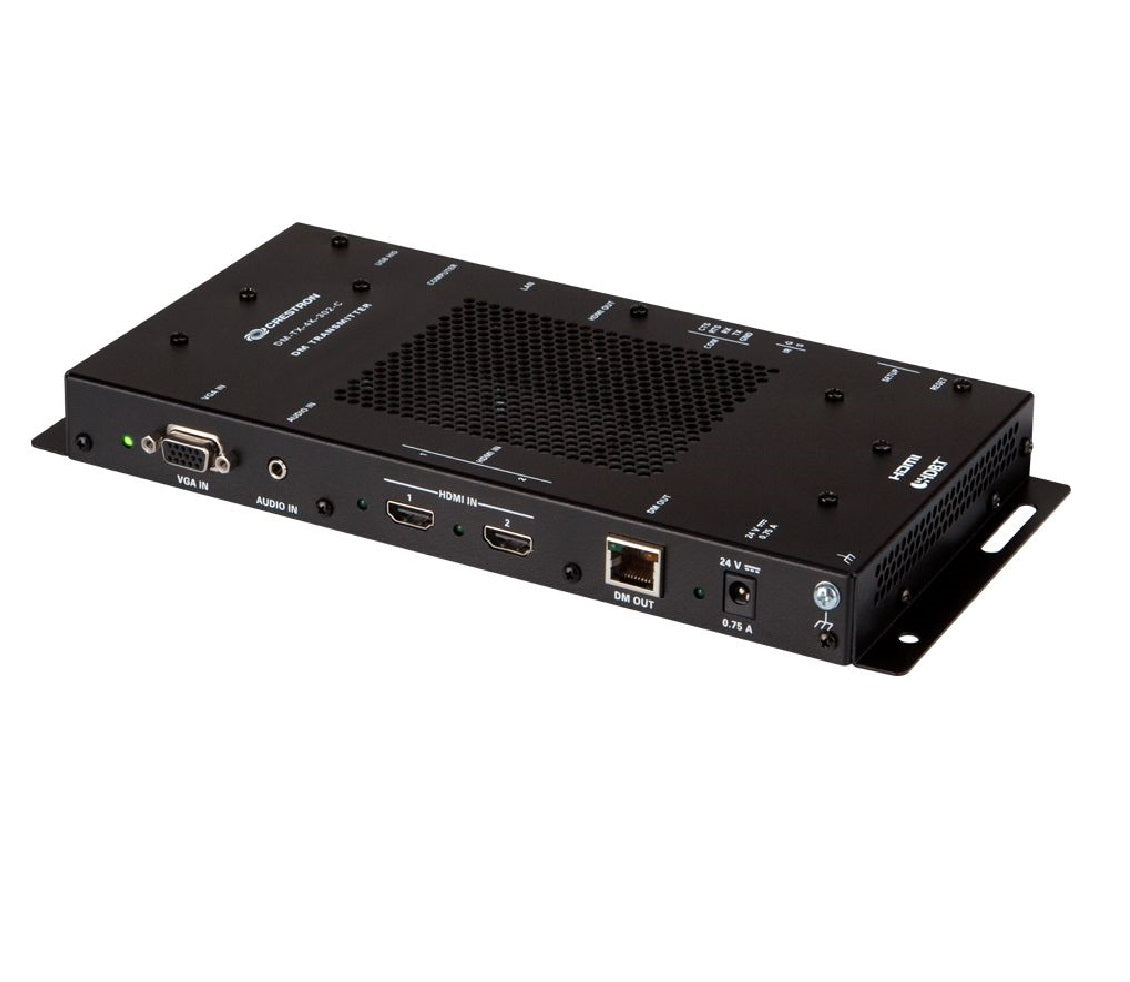

Crestron DM-TX-4K-302-C 4K DigitalMedia 8G+ Transmitter 302

$0.00

Items Included

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Crestron DM-TX-4K-302-C (6507319) is a high-performance, enterprise-grade AV transmitter and automatic media switcher. It is engineered to sit locally at a conference table, podium, or credenza to interface legacy and modern user devices with a centralized DigitalMedia system. It ingests 4K HDMI, analog VGA, and stereo audio sources, converting them into a single, long-distance DM 8G+ twisted-pair cable run. It features intelligent auto-switching that activates the moment a user plugs in their device, making it an ideal choice for corporate boardrooms, university lecture halls, and high-end training facilities. Read more

Features

  • HDBaseT Certified: Connects natively to standard HDBaseT receivers and display matrices.
  • HDBaseT Certified: Connects natively to standard HDBaseT receivers and display matrices.
  • Dual HDMI Inputs: Supports up to two modern digital high-definition video sources at the table.
  • Legacy VGA Input: Combines a standard analog RGB/VGA port with a 3.5mm stereo mini-phone jack.
  • Legacy VGA Input: Combines a standard analog RGB/VGA port with a 3.5mm stereo mini-phone jack.

Business Financing Options Avaiable

View Available Financing

The Crestron DM-TX-4K-302-C (6507319) is a high-performance, enterprise-grade AV transmitter and automatic media switcher. It is engineered to sit locally at a conference table, podium, or credenza to interface legacy and modern user devices with a centralized DigitalMedia system. It ingests 4K HDMI, analog VGA, and stereo audio sources, converting them into a single, long-distance DM 8G+ twisted-pair cable run. It features intelligent auto-switching that activates the moment a user plugs in their device, making it an ideal choice for corporate boardrooms, university lecture halls, and high-end training facilities. Read more

Features

  • HDBaseT Certified: Connects natively to standard HDBaseT receivers and display matrices.
  • HDBaseT Certified: Connects natively to standard HDBaseT receivers and display matrices.
  • Dual HDMI Inputs: Supports up to two modern digital high-definition video sources at the table.
  • Legacy VGA Input: Combines a standard analog RGB/VGA port with a 3.5mm stereo mini-phone jack.
  • Legacy VGA Input: Combines a standard analog RGB/VGA port with a 3.5mm stereo mini-phone jack.

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Crestron DM-TX-4K-302-C 4K DigitalMedia 8G+ Transmitter 302

Provides a remote input connection for 4K HDMI® and VGA sources as part of a complete DigitalMedia™ System. Connects to the DM 8G+® input of a DM® Switcher or Receiver via a single CATx cable. Includes USB HID device and host ports. Compatible with HDBaseT® technology and Crestron Connect It™ cable caddy.

Key Features

  • HDBaseT Certified: Connects natively to standard HDBaseT receivers and display matrices.
  • HDBaseT Certified: Connects natively to standard HDBaseT receivers and display matrices.
  • Dual HDMI Inputs: Supports up to two modern digital high-definition video sources at the table.
  • Legacy VGA Input: Combines a standard analog RGB/VGA port with a 3.5mm stereo mini-phone jack.
  • Legacy VGA Input: Combines a standard analog RGB/VGA port with a 3.5mm stereo mini-phone jack.

Already own this item and want to sell it?

Click here to sell your item

Crestron DM-TX-4K-302-C 4K DigitalMedia 8G+ Transmitter 302 Specs

Switcher
3x1 manual or auto-switching, Crestron QuickSwitch HD technology
Input Signal Types
HDMI w/Deep Color, 3D, & 4K (DVI & Dual-Mode DisplayPort™ compatible); VGA/RGB (RGBHV, RGBS, RGsB); component (YPbPr); S-Video (Y/C); composite (NTSC, PAL)
Output Signal Types
DM 8G+ & HDBaseT w/HDR10, Deep Color, 3D, & 4K; HDMI w/Deep Color, 3D, & 4K (DVI compatible)
Switcher
3x1 with auto-detecting digital/analog inputs and analog audio breakaway
Input Signal Types
HDMI (Dual-Mode DisplayPort compatible), analog stereo
Output Signal Types
DM 8G+ & HDBaseT, HDMI
Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio™,LPCM up to 8 channels
Analog Formats
Stereo 2-channel
Analog-To-Digital Conversion
24-bit 48 kHz
Analog Input Level Compensation
±10.0 dB
Analog Performance
Frequency Response: 20 Hz to 20 kHz ±0.5 dB
S/N Ratio
>90 dB, 20 Hz to 20 kHz A-weighted
THD+N
<0.05% @ 1 kHz
Stereo Separation
>90 dB
Ethernet
10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP
USB
Supports signal extension of USB HID class devices, supports a TT-100 series cable caddy 8 supports computer console (for setup)
RS-232
2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system)
IR/Serial
1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 V) up to 19.2k baud (via control system)
DigitalMedia
DM 8G+, HDCP 2.2, EDID, CEC, PoDM +, Ethernet
HDBaseT
HDCP 2.2, EDID, RS-232, PoE+, Ethernet
HDMI
HDCP 2.2, EDID, CEC
VGA IN
(1) HD15, female; Analog VGA/RGB/video input; Signal Types: VGA, RGB, component, S-Video, or composite; Formats: RGBHV, RGBS, RGsB, YPbPr, Y/C, NTSC, PAL; Input Levels: 0.5 to 1.5 Vp-p with built-in DC restoration; Input Impedance: 75 Ohms; Sync Input Type: Autodetect RGBHV, RGBS, RGsB, YPbPr, Y/C, composite;
Sync Input Level: 3 to 5 Vp-p; Sync Input Impedance: 510 Ohms
AUDIO IN
(1) 3.5 mm TRS mini phone jack; Unbalanced stereo line-level audio input; Input Level: 2 Vrms maximum;
Input Impedance: 10k Ohms
HDMI IN 1 – 2
(2) 19-pin HDMI Type A, female; HDMI digital video/audio inputs; (DVI & Dual-Mode DisplayPort compatible)
DM OUT
(1) 8-pin shielded RJ-45, female; DM 8G+ output, HDBaseT compliant; PoDM+ PD port (HDBaseT PoE+ compatible); Connects to the DM 8G+ input of a DM switcher, receiver, or other DM device, or to a HDBaseT device, via CAT5e or Crestron DM‑CBL‑8G cable, or Crestron DM‑CBL‑ULTRA cable 1
24VDC 0.75A
(1) 2.1 x 5.5 mm DC power connector; 24 VDC power input; PW‑2407WU, optional power pack (sold separately)
Ground
(1) 6-32 screw; Chassis ground lug
USB HID
(1) USB Type A, female; SB 2.0 host port for connection of a mouse/keyboard or other USB HID-compliant device (USB signal extension & routing), or for connection of a Crestron TT-100 series device (Crestron Connect It)
COMPUTER
(1) USB Type B, female; USB 2.0 device port for computer console (setup), or for connection to a computer or other USB HID-compliant host (USB signal extension & routing)
LAN
(1) 8-pin RJ-45, female; 10Base-T/100Base-TX Ethernet port
HDMI OUT
(1) 19-pin HDMI Type A, female; HDMI digital video/audio output (DVI compatible)
COM
(1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud, hardware and software handshaking support
IR
(1) 2-pin 3.5 mm detachable terminal block; IR/Serial port;
IR output up to 1.1 MHz; 1-way serial TTL/RS-232 (0-5 V) up to 19200 baud
VGA IN
(1) Green LED, indicates video signal presence at the VGA input
HDMI IN 1 – 2
(2) Green LEDs, each indicates HDMI signal presence at the corresponding HDMI input
DM OUT
(2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence
24 VDC
(1) Green LED, indicates operating power supplied via PoDM+, HDBaseT PoE+, or the optional PW‑2407WU power pack (sold separately)
LAN
(2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
HDMI OUT
(1) Green LED, indicates HDMI signal presence at the HDMI output
SETUP
(1) Red LED and (1) recessed pushbutton for Ethernet setup
RESET
(1) Recessed pushbutton for hardware reset

Key Features

  • HDBaseT Certified: Connects natively to standard HDBaseT receivers and display matrices.
  • HDBaseT Certified: Connects natively to standard HDBaseT receivers and display matrices.
  • Dual HDMI Inputs: Supports up to two modern digital high-definition video sources at the table.
  • Legacy VGA Input: Combines a standard analog RGB/VGA port with a 3.5mm stereo mini-phone jack.
  • Legacy VGA Input: Combines a standard analog RGB/VGA port with a 3.5mm stereo mini-phone jack.
