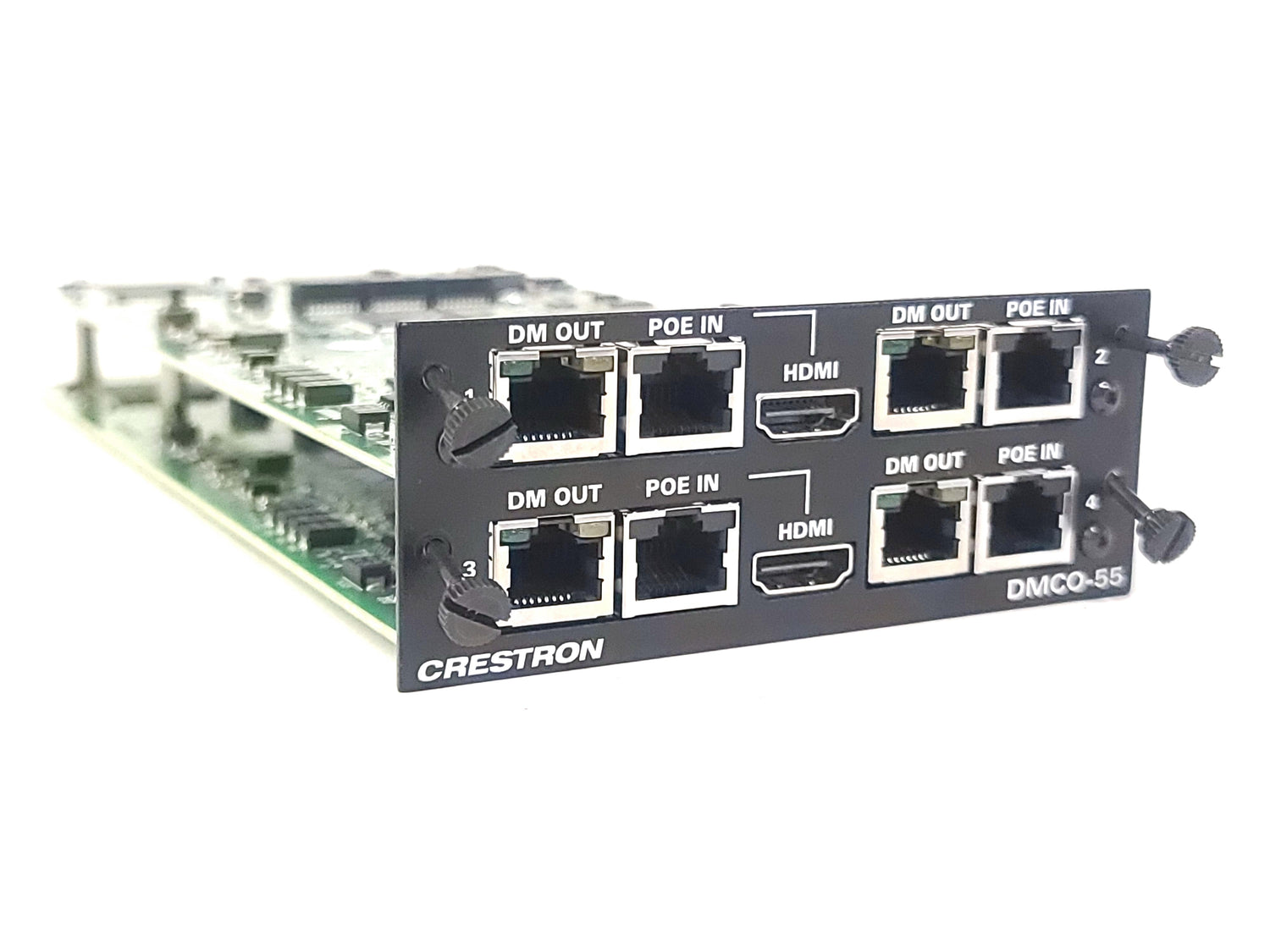

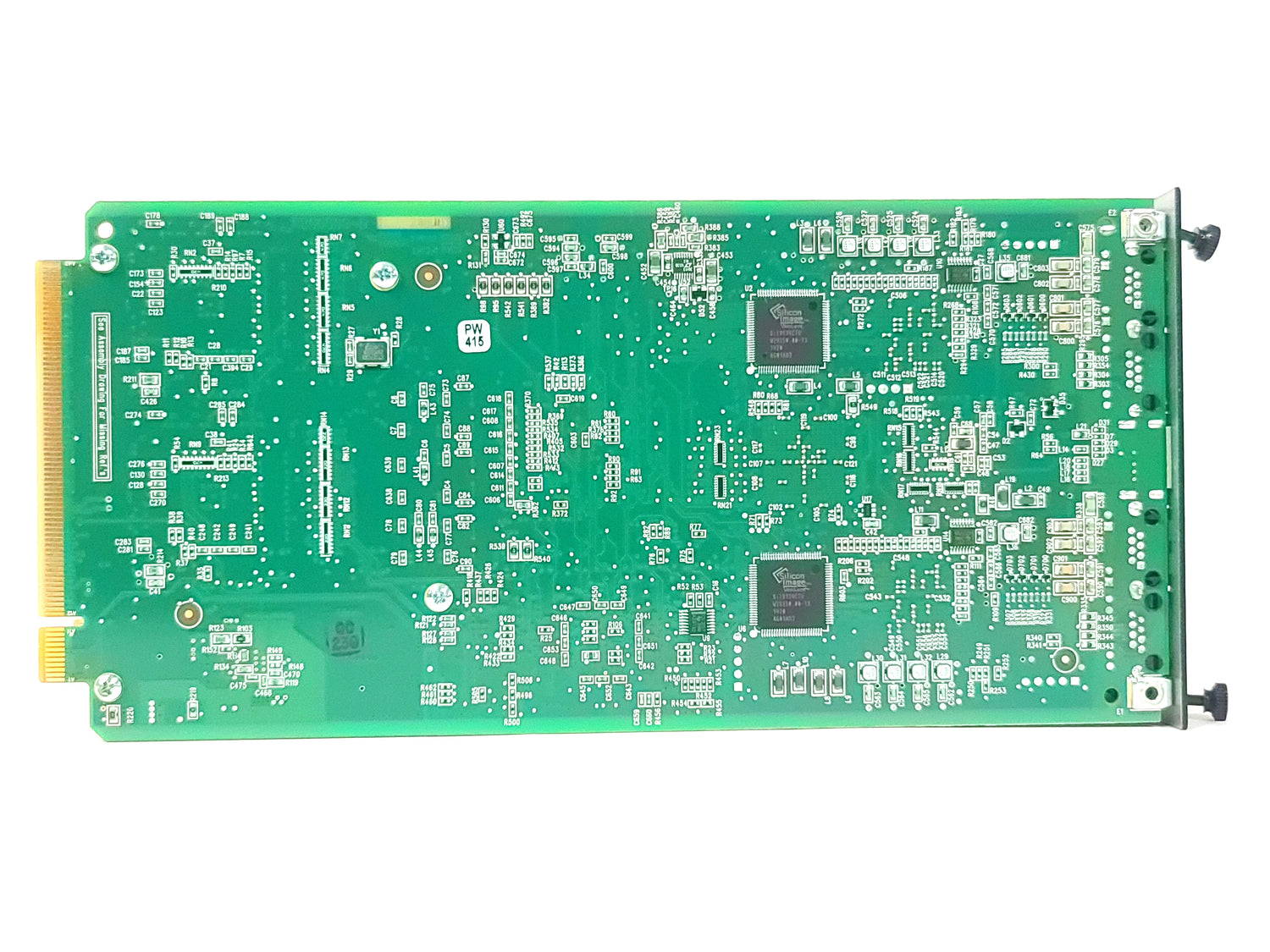

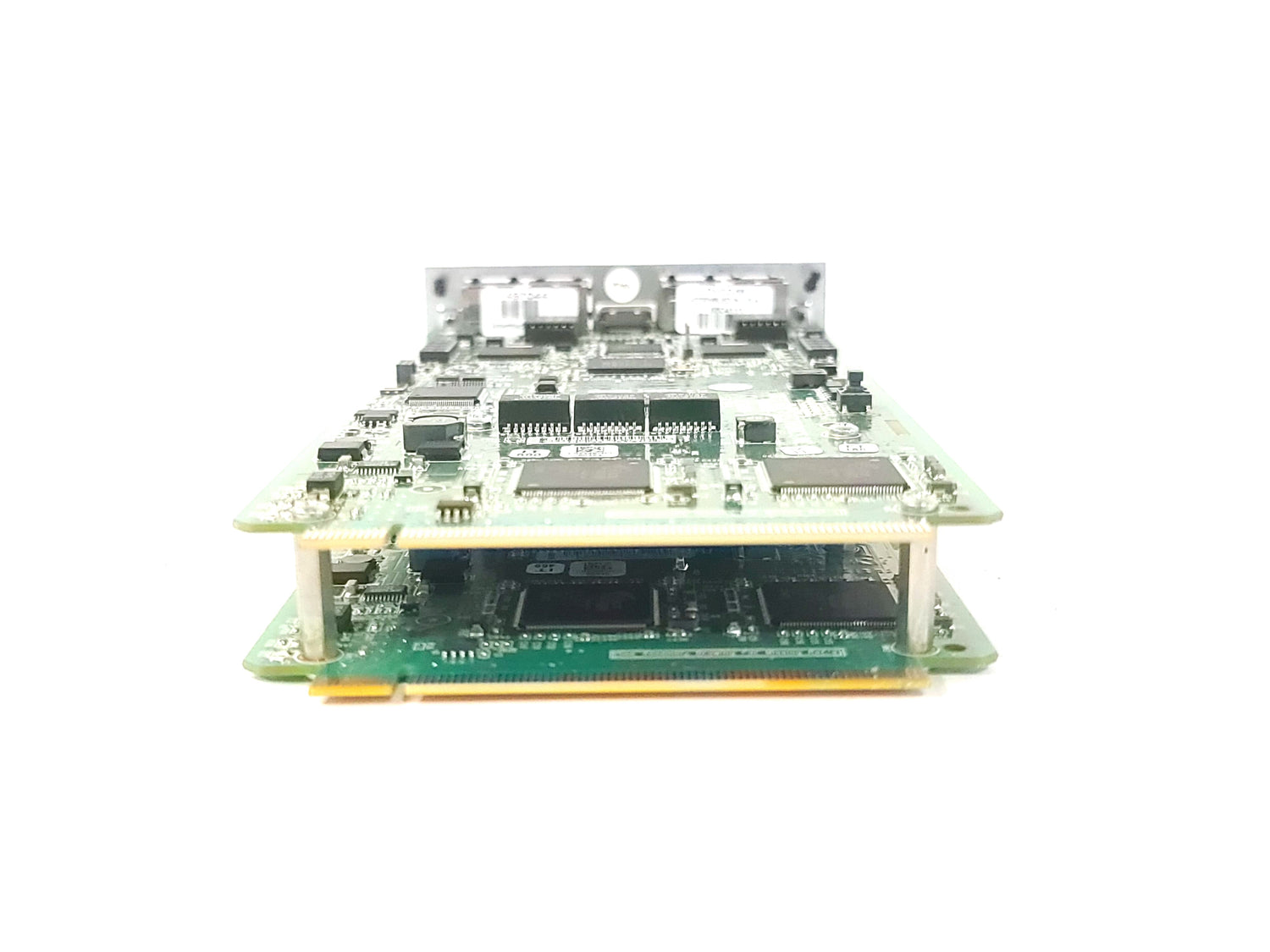

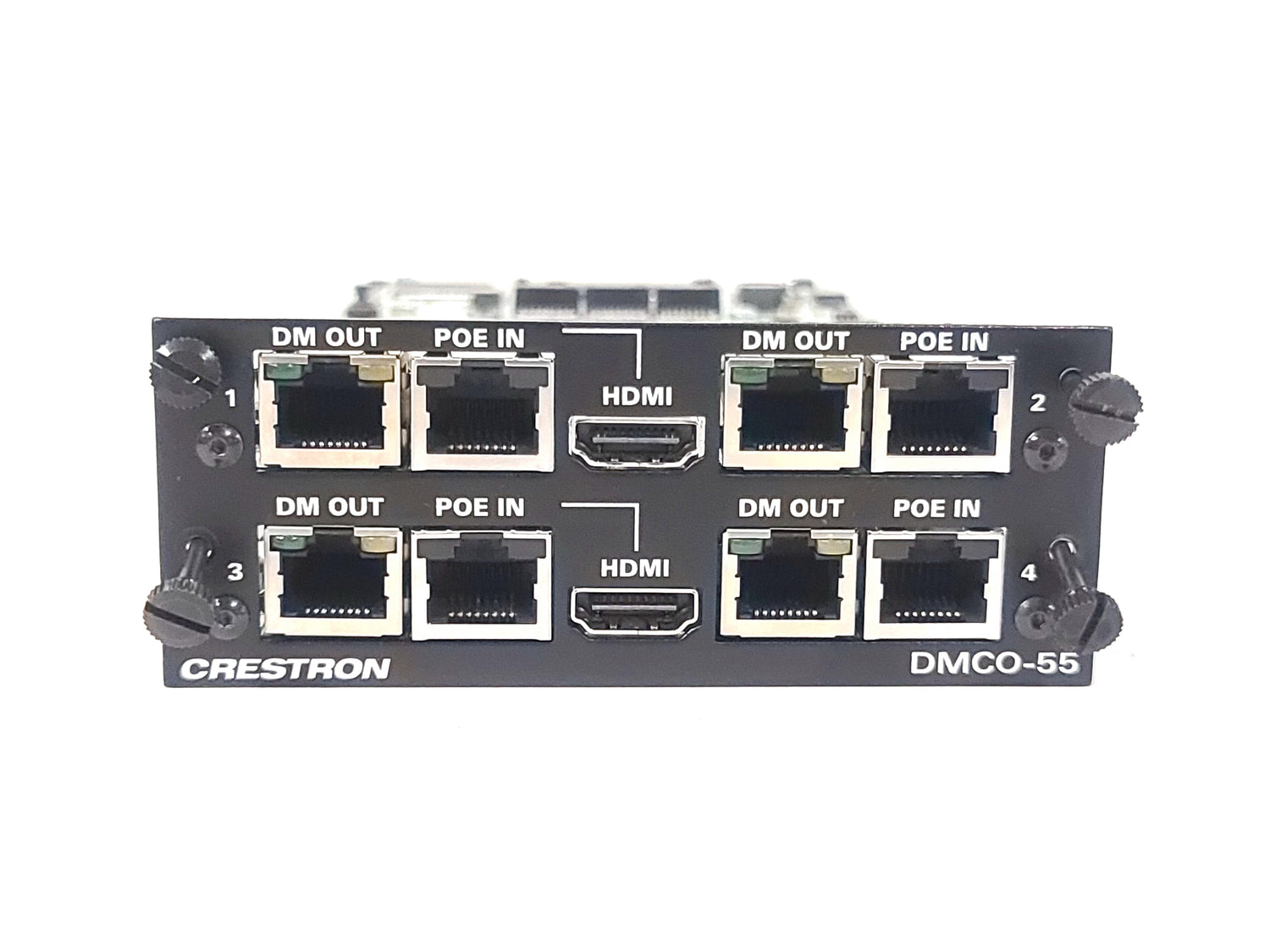

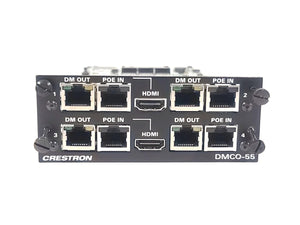

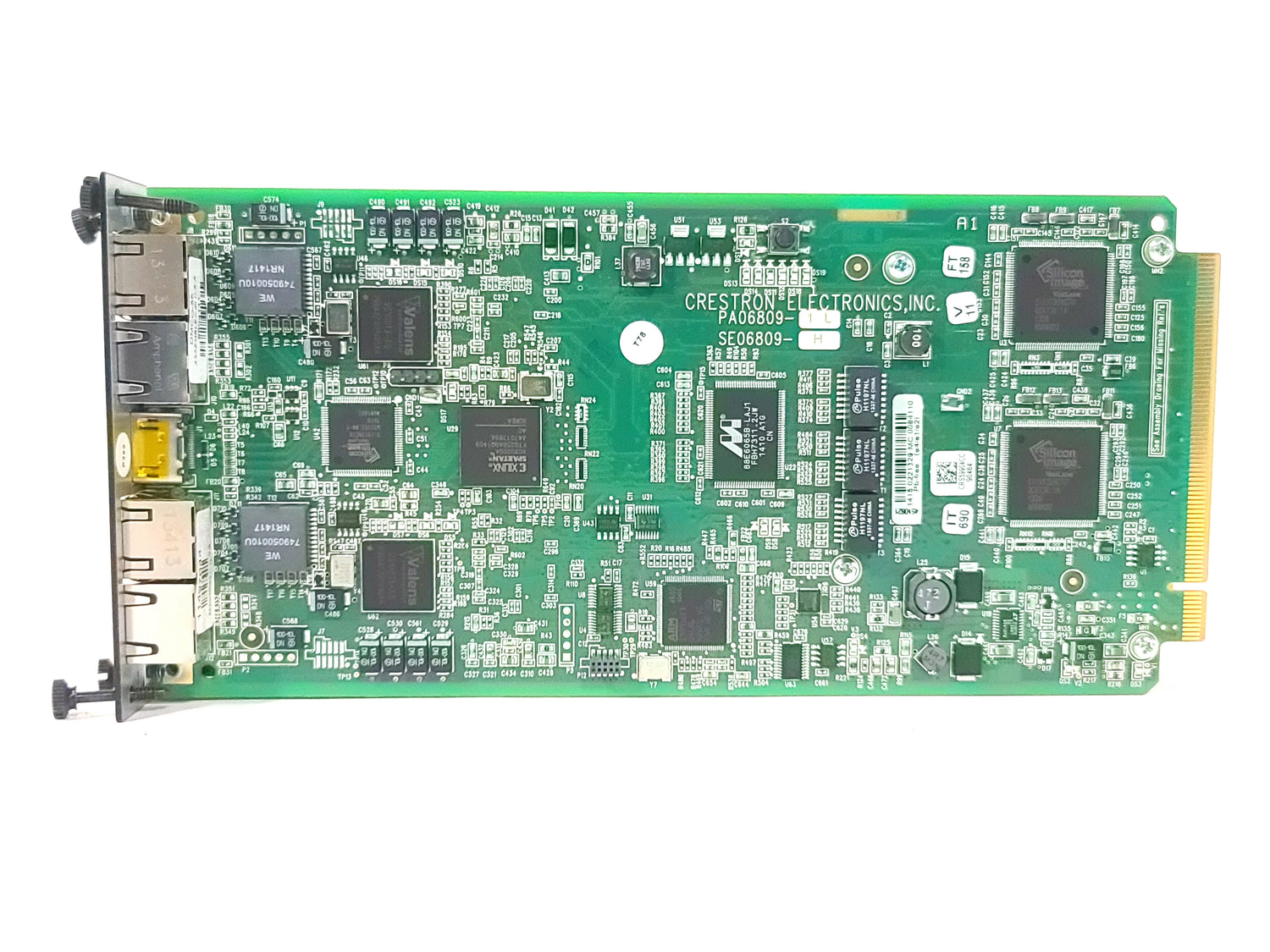

Crestron DMCO-55 4 DM 8G+ w/2 HDMI Output Card

The Crestron DMCO-55 is a specialized output module card designed for the Crestron DigitalMedia modular matrix switcher chassis (such as the DM-MD Series). This card provides four independent DM (DigitalMedia) 8G+ outputs and two additional dedicated HDMI outputs, expanding the connectivity and distribution capabilities of the matrix system. The DM 8G+ outputs utilize Crestron's proprietary high-bandwidth DigitalMedia protocol to transmit audio, video, control, and Ethernet signals over a single CAT cable (up to 330 ft/100m) to compatible DM receivers. The two HDMI outputs provide direct local connections for displays or other HDMI-equipped devices near the matrix chassis, offering convenient point-to-point connectivity without requiring a separate DM receiver.

This module is engineered for integration into complex professional AV systems in corporate, education, government, and hospitality environments. By populating a modular chassis with cards like the DMCO-55, system designers can create a customized matrix switcher with the exact input and output configuration required for the project. The card supports high-resolution video formats, including 4K at 60Hz with 4:4:4 chroma subsampling, and features advanced signal processing capabilities managed by the chassis's central controller. It represents a flexible, high-performance building block for constructing scalable and future-proof AV distribution networks where sources need to be routed to multiple display destinations simultaneously.
