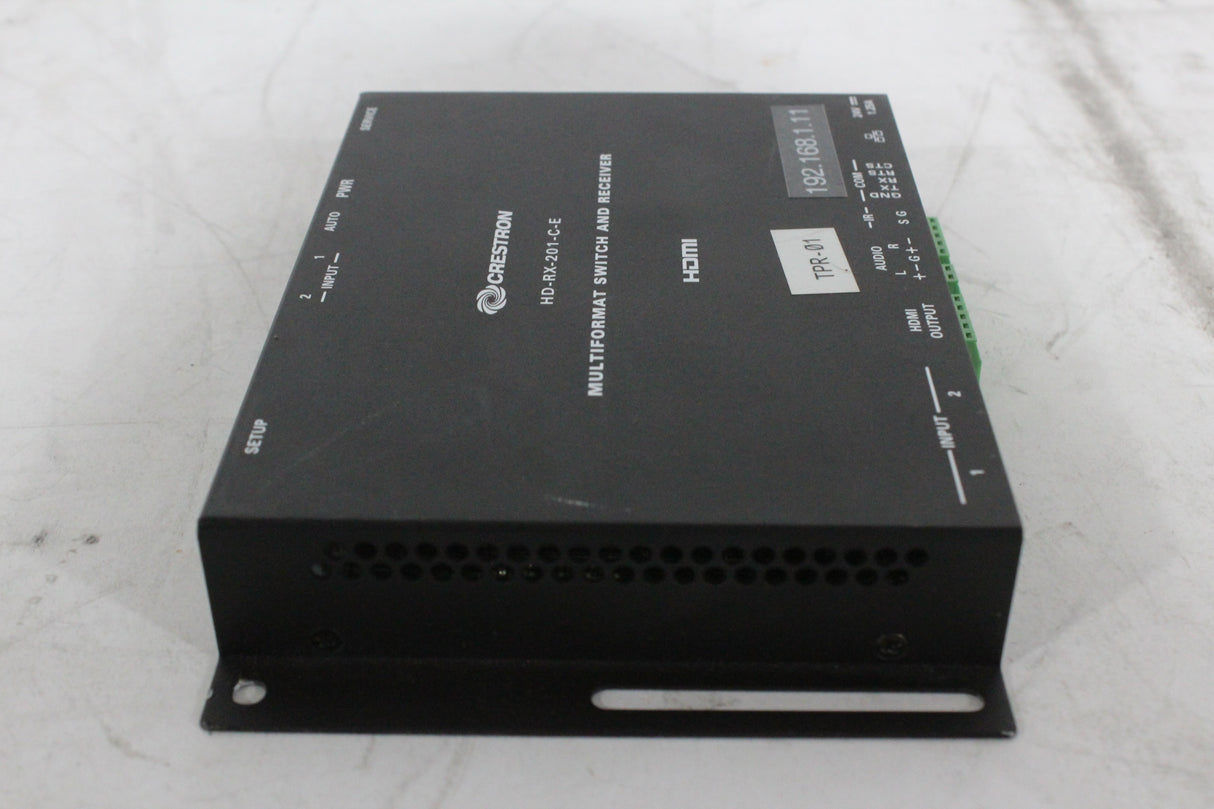

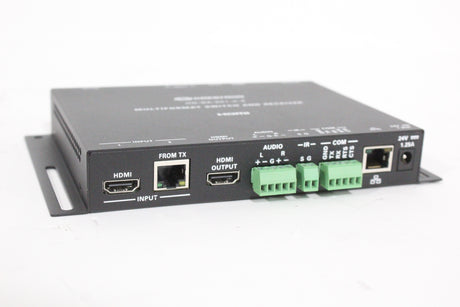

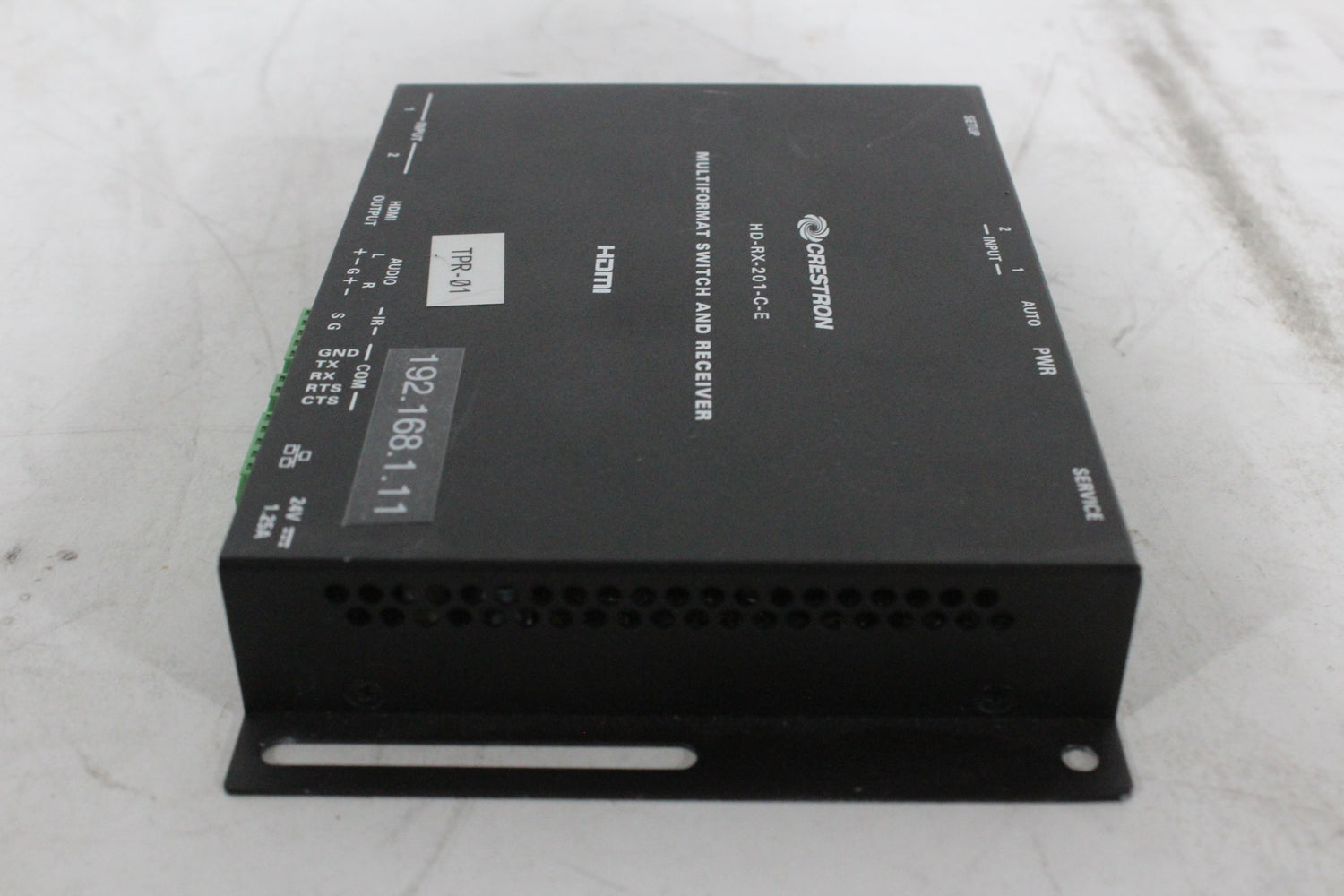

Crestron HD-RX-201-C-E HDMI Over CAT Multiformat Switch and Receiver

The Crestron HD-RX-201-C-E is a highly integrated, surface-mountable receiver and switcher unit designed for streamlined installation in modern commercial audiovisual environments. It functions as a central interface point in a room, consolidating the connection of multiple local source devices and outputting both a high-definition audiovisual signal and bidirectional control data to a display via a single cable. Its compact, low-profile enclosure is engineered for discreet mounting directly behind a flat-panel display, under a table, or within a podium, eliminating the need for a separate equipment rack in small to medium-sized conference rooms, classrooms, or huddle spaces. This design philosophy supports a clean, professional aesthetic by minimizing visible hardware and cable clutter at the presentation area.

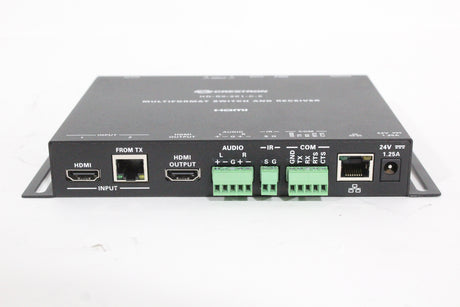

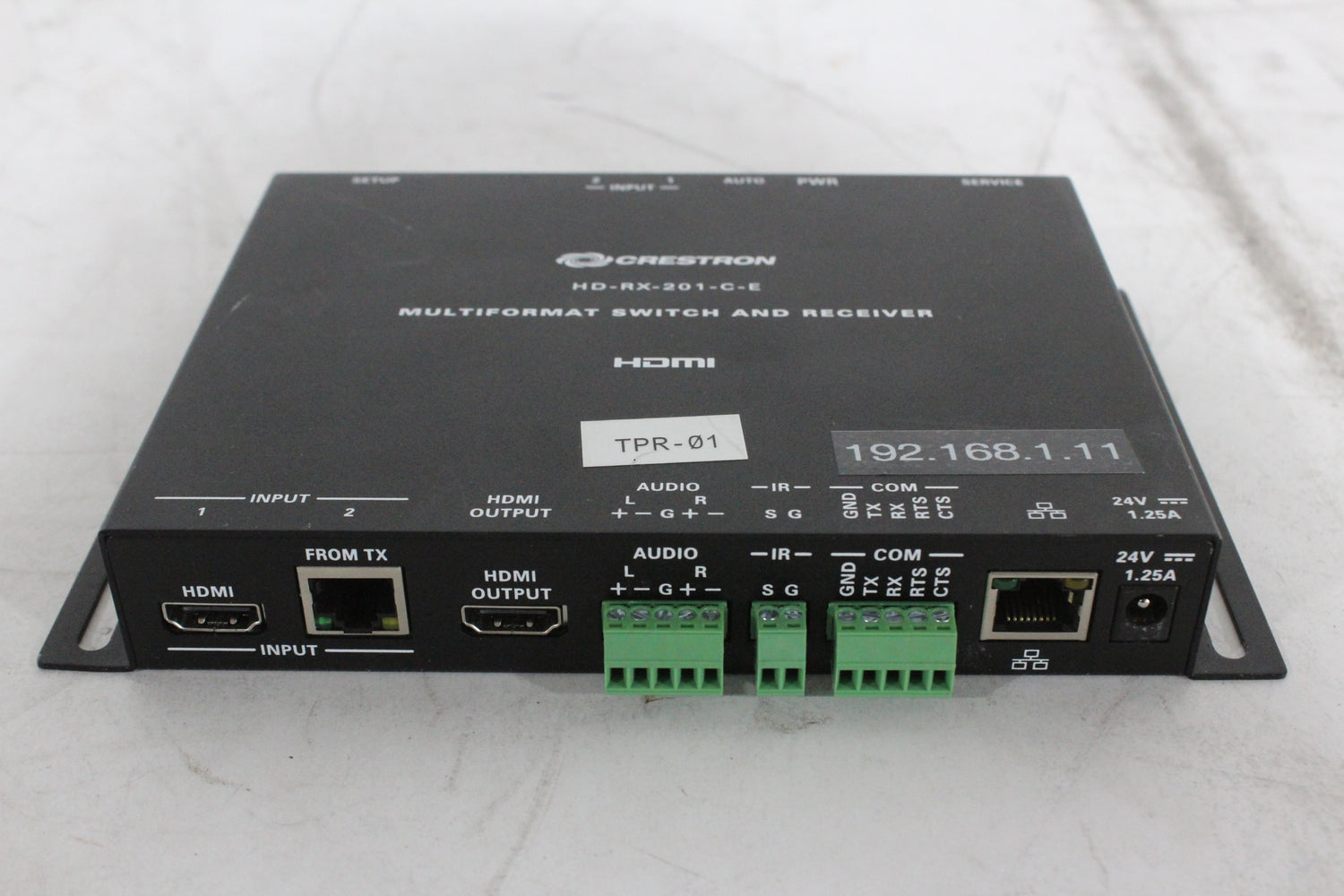

The device operates as both a receiver for the Crestron DigitalMedia transmission system and a local multi-format switcher. It can accept a direct, long-haul signal from a central DM transmitter over a single CATx cable, but its standout feature is the inclusion of local HDMI and VGA inputs with associated analog audio connections. This allows users to connect a laptop, media player, or other device directly at the display location. The integrated switching logic enables seamless selection between the incoming DM stream and the local sources. The unit then outputs a pristine digital video signal via HDMI to the display, while also embedding and extracting Ethernet and serial control signals over the same infrastructure, allowing for remote management of the display and connected sources.

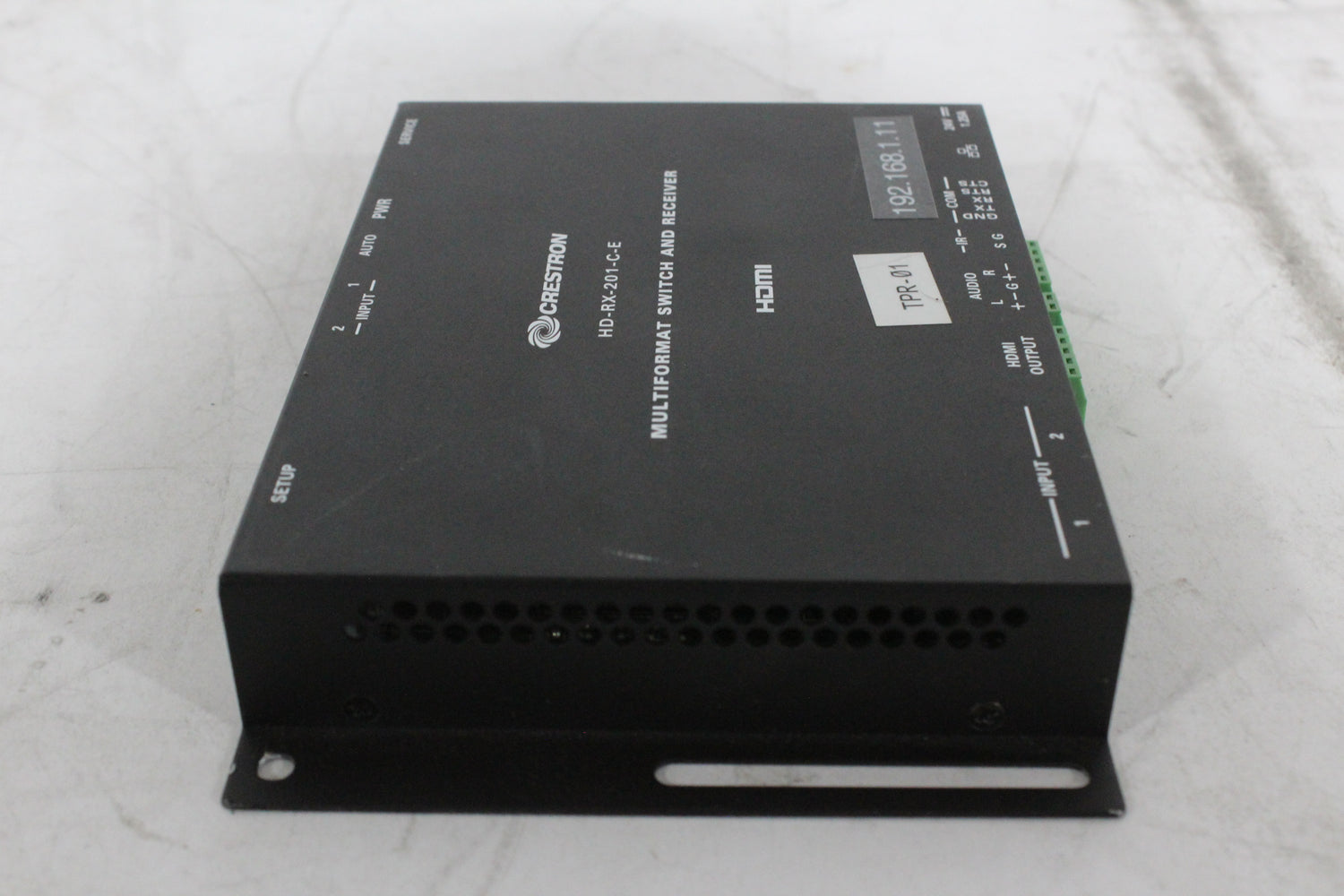

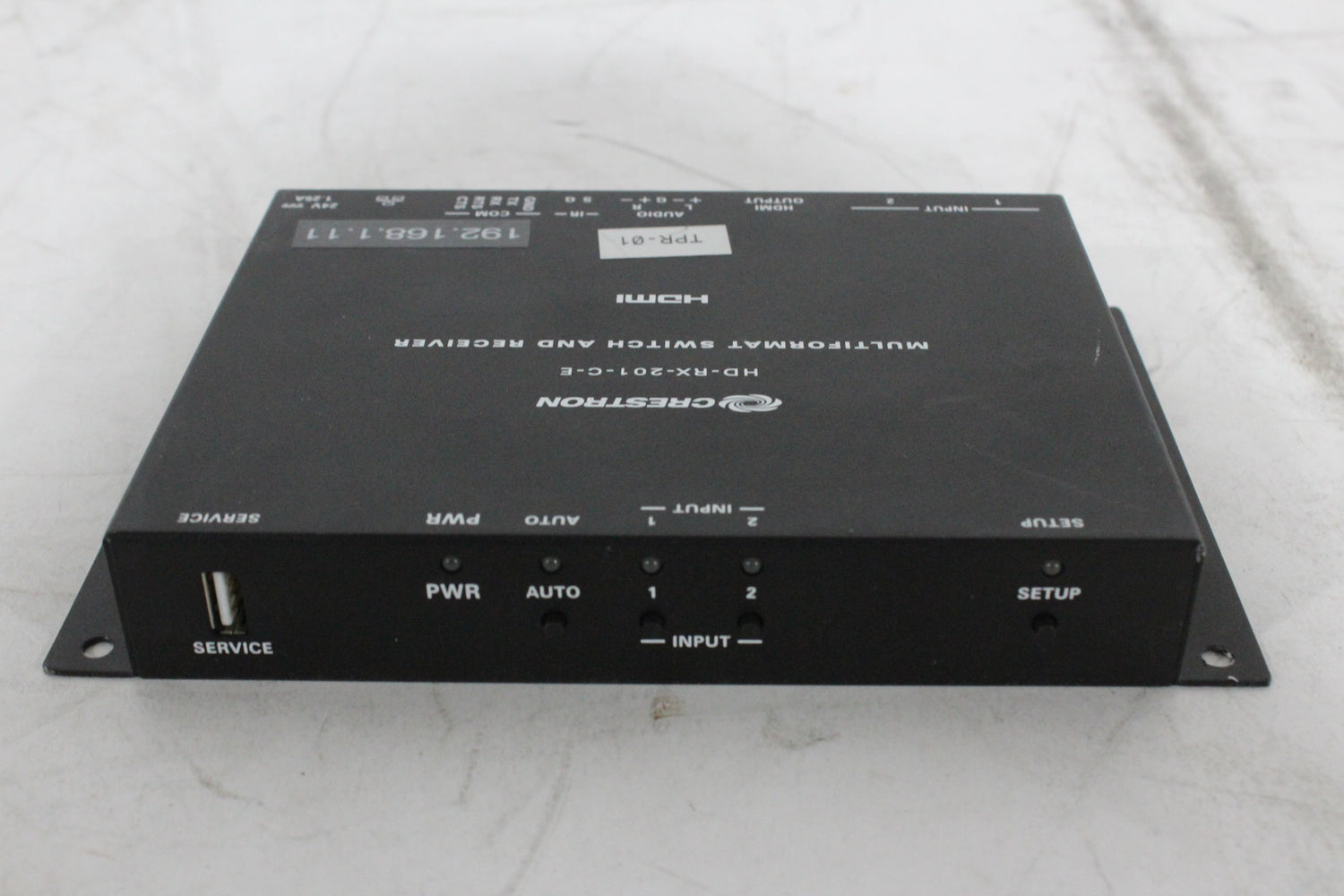

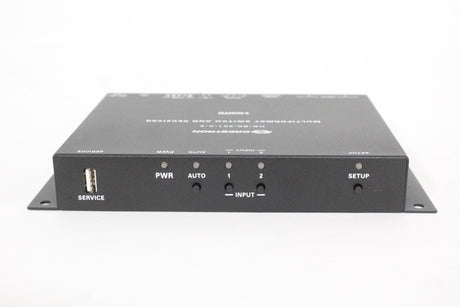

Control and configuration are handled through Crestron's suite of software tools, enabling integrators to set EDID preferences, rename inputs, and integrate the unit into a larger Crestron control system. The HD-RX-201-C-E also features a front-panel button for manual input selection and status LEDs for operational feedback. By combining a DM receiver, local switcher, and control processor into one surface-mountable device, it significantly simplifies system design, reduces installation time and cost, and provides a flexible, future-ready solution for bringing high-quality digital content from any source to a screen with integrated control and management.
