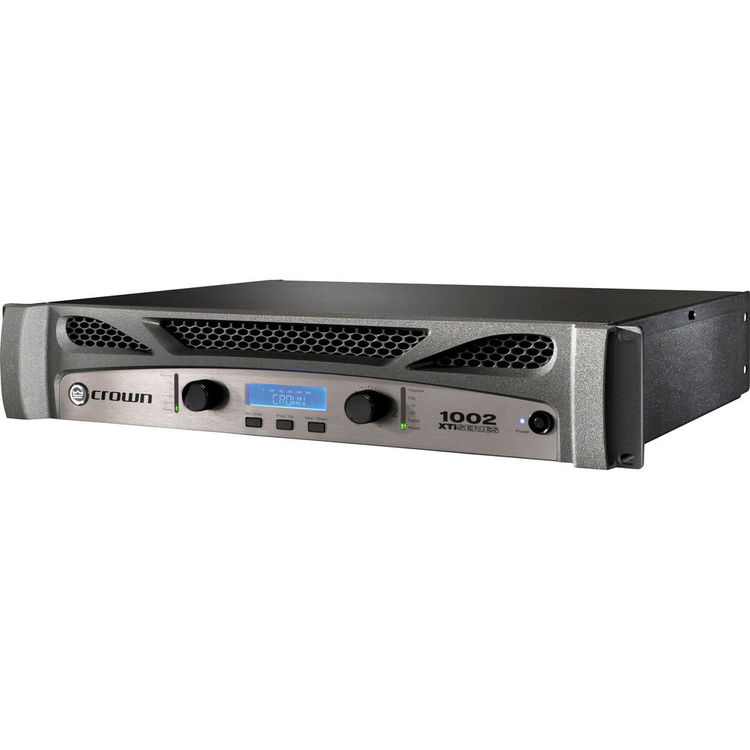

Crown XTi1002 XTi 2 Series 1.4kW Amplifier with DSP

The Crown XTi1002 is a feature-rich, two-channel power amplifier that integrates substantial output power with a comprehensive suite of onboard digital signal processing, making it a highly versatile solution for both portable and installed sound applications. As part of the XTi 2 Series, it delivers up to 1.4 kilowatts of peak power, utilizing Crown's efficient DriveCore amplifier technology to provide robust, clean amplification in a relatively lightweight and compact chassis. This amplifier is particularly distinguished by its integrated DSP, which moves critical system tuning and loudspeaker management directly into the amplifier itself. The processing suite includes parametric and graphic equalization, adjustable crossover filters with multiple slope options, precise output delay for system time alignment, and advanced limiting functions. This integrated approach allows sound engineers to configure and optimize the entire signal chain for the connected loudspeakers without the need for external processors, streamlining system design and setup.

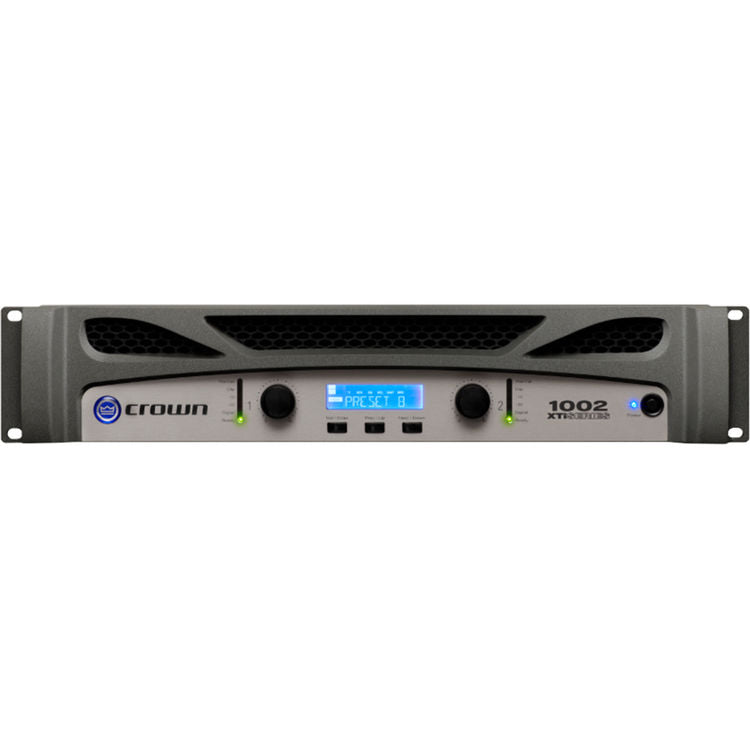

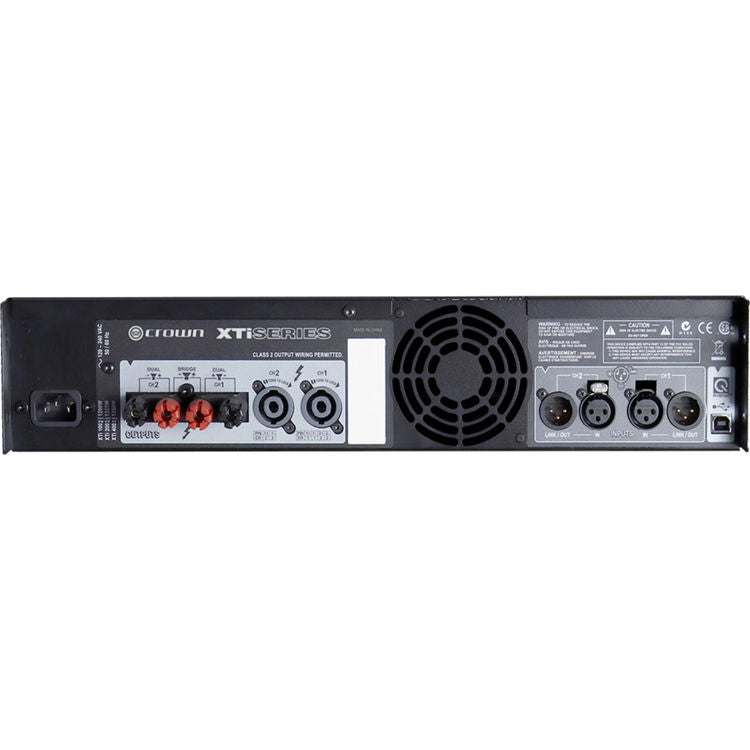

User interaction with the XTi1002 is facilitated through a vibrant color LCD screen and a straightforward navigation wheel on the front panel, providing intuitive access to all amplifier and DSP parameters. For more complex system design, Crown's dedicated system control software enables detailed configuration, preset management, and real-time monitoring from a connected computer. The amplifier supports flexible input and output routing, with each channel independently configurable. Its connectivity includes balanced XLR and 1/4-inch TRS inputs, as well as both SpeakON and binding post output connectors, ensuring compatibility with a wide range of professional audio equipment. This combination of accessible controls and deep configurability makes it suitable for a broad user base, from live sound engineers to fixed installation contractors.

Built for reliability in demanding environments, the XTi1002 features a rugged steel chassis with a temperature-controlled, variable-speed cooling fan that balances effective thermal management with quiet operation. Its design prioritizes both performance and protection, incorporating safeguards against clipping, short circuits, DC offset, and overheating. The Crown XTi1002 successfully bridges the gap between a traditional power amplifier and a fully featured system processor, offering a powerful, all-in-one amplification solution that is well-suited for applications such as live sound reinforcement, houses of worship, performance venues, and complex installed systems where precise control over the audio signal is required.
