SKU: C2053-76

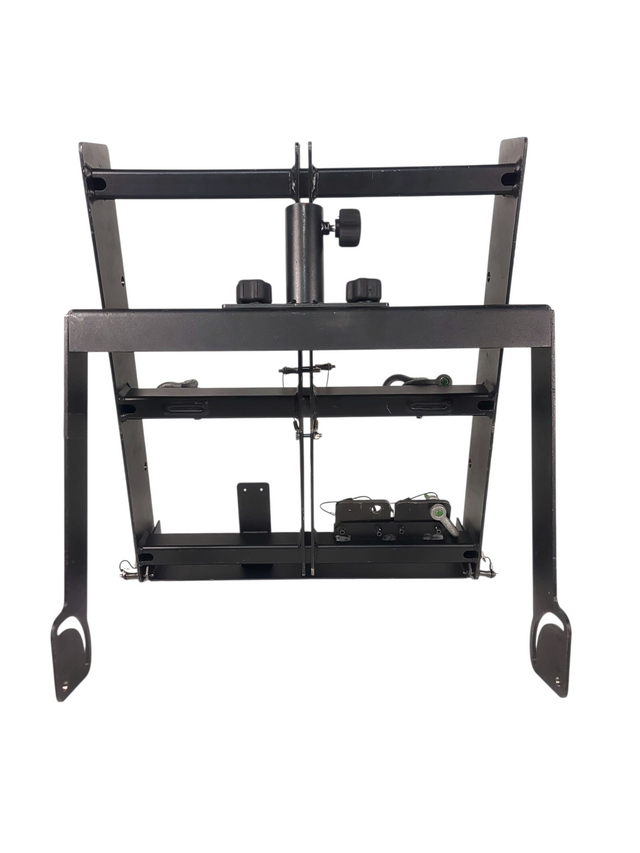

D&B T Flying Frame w/ Fly Bar & Speaker Stand

Name: D&B T Flying Frame w/ Fly Bar & Speaker Stand
Brand: AVGear.com
SKU: C2053-76
Price: 999.00 USD
Availability: InStock

$999.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The D&B T Flying Frame provides a versatile rigging foundation for T-Series loudspeaker arrays, accommodating both flown and ground-stacked configurations. This complete assembly includes the flying frame, fly bar, and speaker stand, giving audio professionals the flexibility to deploy systems quickly across a range of venue types—from temporary stages to permanent installations. Each component is precision-engineered to integrate seamlessly with D&B's array hardware. The flying frame and fly bar enable secure suspension for overhead arrays, while the speaker stand provides stable ground support when flown configurations are not practical. Built to withstand the demands of touring and rental inventory, this system delivers consistent performance with simplified setup logistics. For sound engineers and system integrators requiring adaptable rigging solutions for D&B loudspeakers, this combination provides the safety, durability, and operational flexibility essential to professional sound reinforcement. Read more

Features

Flying frame supports flown and ground-stacked configurations
Fly bar enables secure overhead array suspension
Speaker stand provides stable ground-based deployment
Precision-engineered for D&B T-Series loudspeakers
Rugged construction withstands touring demands
Versatile rigging adapts to diverse venue requirements

Business Financing Options Avaiable

View Available Financing

Features

Flying frame supports flown and ground-stacked configurations
Fly bar enables secure overhead array suspension
Speaker stand provides stable ground-based deployment
Precision-engineered for D&B T-Series loudspeakers
Rugged construction withstands touring demands
Versatile rigging adapts to diverse venue requirements

No products currently in stock

About the D&B T Flying Frame w/ Fly Bar & Speaker Stand

The d&b audiotechnik T Flying Frame (Z5370) is a professional-grade, structural rigging hardware component engineered to suspend T-Series loudspeaker arrays safely. This heavy-duty frame serves as the primary load-bearing foundation for flying vertical line arrays consisting of T10 mid/high cabinets and T-SUB subwoofers. By utilizing a center bar array with precision-spaced frontpick and rearpick connection holes, rigging technicians can achieve accurate vertical tilt aiming and lock in any desired splay angle configuration. This frame ensures complete mechanical security on indoor theater grids, outdoor festival trusses, and commercial corporate event stages.

Constructed from premium, high-tensile structural steel with a scratch-resistant black finish, the T Flying Frame maintains a lightweight footprint of only 12 kg while supporting substantial payload weights. It is rated to fly up to 10 standard T10 cabinets under normal vertical loads, or longer array configurations reaching a total system weight of up to 250 kg when optimized using d&b ArrayCalc software. The frame comes equipped with dual integrated safety points fitted with 1-ton shackles to accommodate secondary safety wire drop links, ensuring standard compliance and maximum acoustic structural performance on demanding live sound stages.

Key Features

Flying frame supports flown and ground-stacked configurations
Fly bar enables secure overhead array suspension
Speaker stand provides stable ground-based deployment
Precision-engineered for D&B T-Series loudspeakers
Rugged construction withstands touring demands
Versatile rigging adapts to diverse venue requirements

Already own this item and want to sell it?

Click here to sell your item

D&B T Flying Frame w/ Fly Bar & Speaker Stand Specs

Maximum Cabinet Capacity

Suspends up to 10 x T10 loudspeakers in standard line array configuration.

Maximum Safe Working Load (SWL)

Rated for a total system weight up to 250 kg (551 lbs), contingent on verification via d&b ArrayCalc software.

Standard Array Configuration

Optimally flown with up to 4 x T10 mid/high cabinets and 2 x T-SUB line array elements.

Total Assembly Weight

12 kg (26.4 lbs) including all standard structural rigging and connection components.

Material Build

High-tensile structural steel coated in a scratch-resistant, impact-absorbing black outdoor finish.

Splay Angle Range

Mechanical adjustments accommodate vertical cabinet angles ranging from 0° to 15°.

Primary Suspension Attachment

Central spine bar optimized with indexed frontpick and rearpick connection points.

Secondary Safety System

Built-in array featuring 2x safety points pre-fitted with 1-ton shackles to accept backup steel safety wires or safety chain configurations.

Telemetry Compatibility

Top-mounted plate integrated with four M4 threaded inserts to mount inclinometers or alignment tools (such as the Teqsas LAP-TEQ layout tool).

Load Adapters

2x d&b Z5160 Q-Series Load Adapters.

Locking Pins

Fast-release structural pins for attaching the top cabinet’s front and rear links.

Key Features

Flying frame supports flown and ground-stacked configurations
Fly bar enables secure overhead array suspension
Speaker stand provides stable ground-based deployment
Precision-engineered for D&B T-Series loudspeakers
Rugged construction withstands touring demands
Versatile rigging adapts to diverse venue requirements
