The dbx AFS224 is a sophisticated dual-channel digital signal processor dedicated to the critical task of identifying and eliminating acoustic feedback in live sound and installed audio systems. Utilizing dbx's proprietary Adaptive Feedback Suppression algorithm, this unit continuously analyzes the incoming audio signal in real-time to detect the narrow-band frequencies that begin to ring and oscillate, which are the precursors to full-blown feedback howl. Upon detection, the processor automatically and precisely inserts a very narrow notch filter at each problematic frequency, attenuating it just enough to eliminate the feedback while minimizing the impact on the overall sound quality. This intelligent, automated approach allows sound engineers to achieve significantly more gain before feedback, resulting in a louder, clearer, and more stable sound reinforcement system.

Each of the two independent channels provides 12 filter banks, allowing the AFS224 to address up to 24 separate feedback points simultaneously in a stereo setup. The filters can operate in two primary modes: "Live" mode for active, adaptive suppression during a performance, and "Setup" mode for a one-time initialization where the system is tuned by gradually increasing gain until feedback occurs, at which point fixed filters are set. This flexibility makes it suitable for both dynamic live events where conditions change and for fixed installations where the acoustic environment is stable. The unit is designed for transparency, with a fast response time to catch feedback as it starts to build, and a conservative filtering approach that avoids over-processing the audio signal.

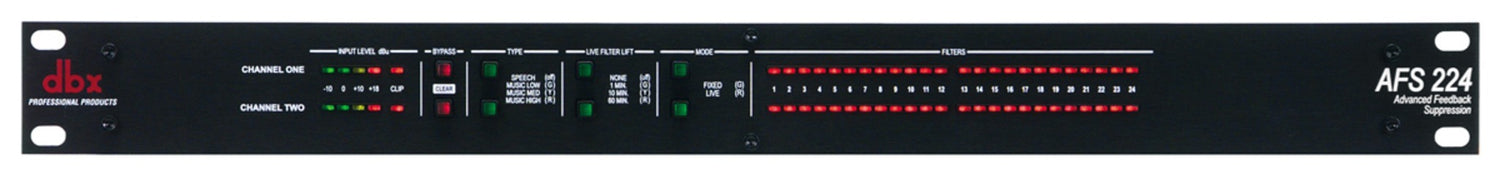

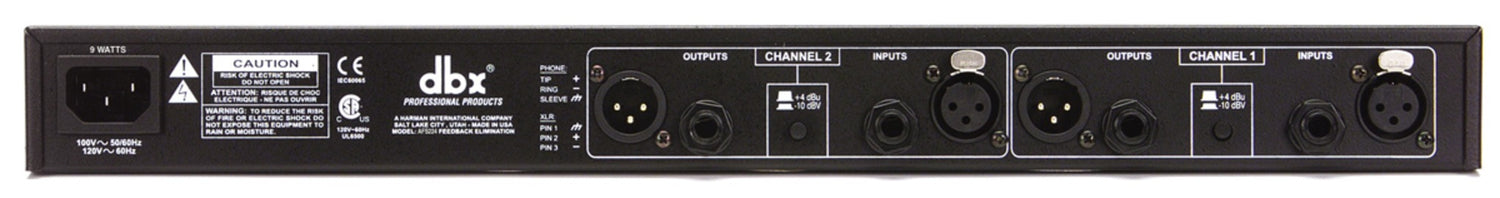

Housed in a single rack-space unit, the AFS224 features balanced XLR and 1/4" TRS inputs and outputs for easy integration into any professional signal chain. Intuitive front-panel controls and a clear LCD screen provide access to all parameters and real-time filter activity display. For installed sound applications, it can be configured and then left to operate autonomously, providing a permanent solution to room resonance issues. For live sound engineers, it acts as a powerful safety net, preventing embarrassing feedback incidents and allowing them to focus on mix aesthetics rather than system stability. The dbx AFS224 represents a specialized tool that combines advanced DSP with practical usability to solve one of the most persistent challenges in audio reinforcement.
