SKU: 2105-149

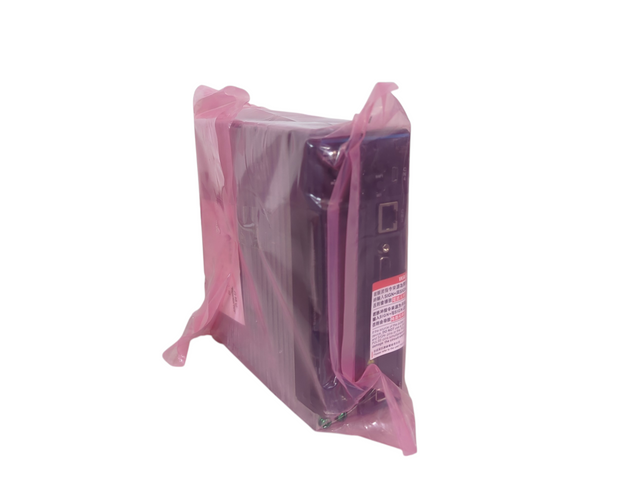

Delta ASD-B3-0421-L Servo Drive In Original Packaging

$495.00

Items Included

Delta ASD-B3-0421-L Servo Drive (Main Unit)
Power Connectors / Terminals
Mounting Brackets / Screws

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors. Read more

Features

Phase1/3 Phase (PH)
400 Watts
2.65 Arms Output Current
220 VAC
3.1 kHz Bandwith
24-bit encoder
6000 r/min motor support
Closed loop status control
Software supporting vibration suppression, auto-tuning, graphical configuration
DC Bus Sharing
Smaller drive and motors compared to B2

Business Financing Options Avaiable

View Available Financing

Features

Phase1/3 Phase (PH)
400 Watts
2.65 Arms Output Current
220 VAC
3.1 kHz Bandwith
24-bit encoder
6000 r/min motor support
Closed loop status control
Software supporting vibration suppression, auto-tuning, graphical configuration
DC Bus Sharing
Smaller drive and motors compared to B2

No products currently in stock

About the Delta ASD-B3-0421-L Servo Drive In Original Packaging

The Delta ASD-B3-0421-L is a 400 W AC servo drive from Delta Electronics’ ASDA-B3 series, designed for precise motion-control applications requiring position, speed, and torque control. The specific “-L” control version supports PT pulse-input mode, PR mode, RS-485 communication, and analog-voltage control.

The drive is rated for 220 V single- or three-phase input and provides a 2.65 Arms continuous output current, with a 10.6 Arms maximum instantaneous output current. Delta's B3 platform supports high-resolution 24-bit encoder feedback and motor speeds up to 6,000 rpm, providing precise closed-loop control for compatible servo motors.

The ASD-B3-0421-L has a compact enclosure measuring 60 x 162 x 156 mm (W x H x D) and weighs approximately 0.9 kg. The exact unit is supplied in its original packaging as indicated by your product title; packaging condition itself is not a technical specification of the servo drive.

Key Features

Phase1/3 Phase (PH)
400 Watts
2.65 Arms Output Current
220 VAC
3.1 kHz Bandwith
24-bit encoder
6000 r/min motor support
Closed loop status control
Software supporting vibration suppression, auto-tuning, graphical configuration
DC Bus Sharing
Smaller drive and motors compared to B2

Already own this item and want to sell it?

Click here to sell your item

Delta ASD-B3-0421-L Servo Drive In Original Packaging Specs

Drive Identification

Product Type

AC Servo Drive

Series

ASDA-B3

Rated Output Power

400 W

Model Variant

Electrical Rating

Input Voltage

220 VAC

Input Phase

1-Phase / 3-Phase

Continuous Output Current

2.65 Arms

Maximum Instantaneous Output Current

10.6 Arms

Control Functions

Control Modes

PT / PR

PT Mode

Pulse Input

Communication

RS-485

Analog Control

Analog Voltage Control

Feedback

Closed-Loop Encoder Feedback

Encoder & Motion Performance

Encoder Resolution

24-bit

Maximum Motor Speed

6,000 rpm

Servo Bandwidth

Up to 3.1 kHz

Compatible Motor Series

B3 / B2 / A3 / A2

Physical Construction

Width

60 mm

Height

162 mm

Depth

156 mm

Weight

0.9 kg (2.0 lb)

Protection Rating

IP20

Safety & Compliance

Safety Function

STO

Safety Standard

IEC/EN 61800-5-1

Certification

UL 508C

Environmental Compliance

RoHS

Compatible Motor

Compatible 400 W Motor

ECM-B3M-C20604

Rated Motor Power

400 W

Rated Motor Torque

1.27 N·m

Maximum Motor Torque

4.45 N·m

Key Features

Phase1/3 Phase (PH)
400 Watts
2.65 Arms Output Current
220 VAC
3.1 kHz Bandwith
24-bit encoder
6000 r/min motor support
Closed loop status control
Software supporting vibration suppression, auto-tuning, graphical configuration
DC Bus Sharing
Smaller drive and motors compared to B2
