OmniCal is a highly precise projector calibration network. It captures structured light patterns to perfectly map the relationship between its cameras, projectors, and the physical stage, ensuring accurate 3D projection mapping and significantly cutting down manual configuration time.

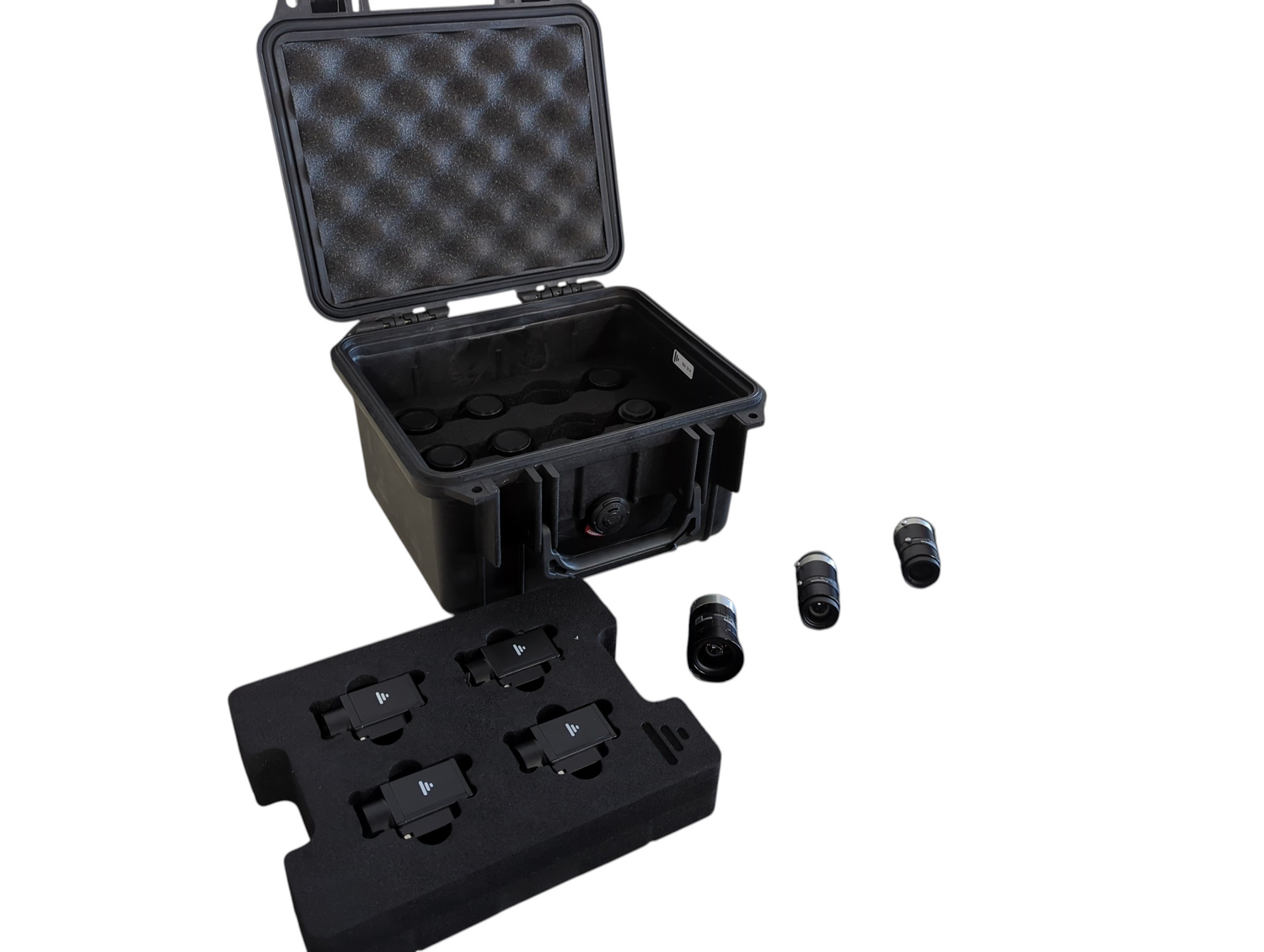

The Small Kit comes packed with up to four Disguise machine vision cameras and up to twelve pre-calibrated lenses, all safely organized in a hard transport case.

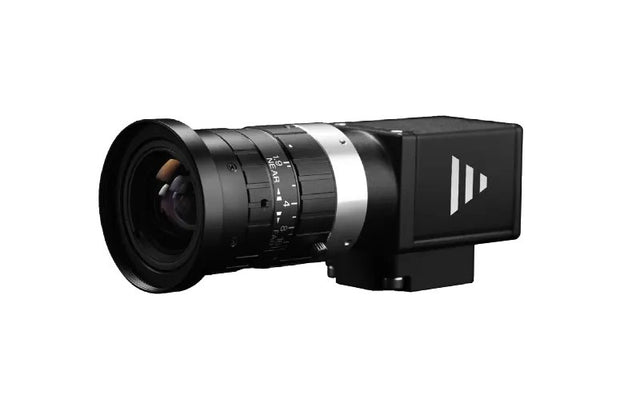

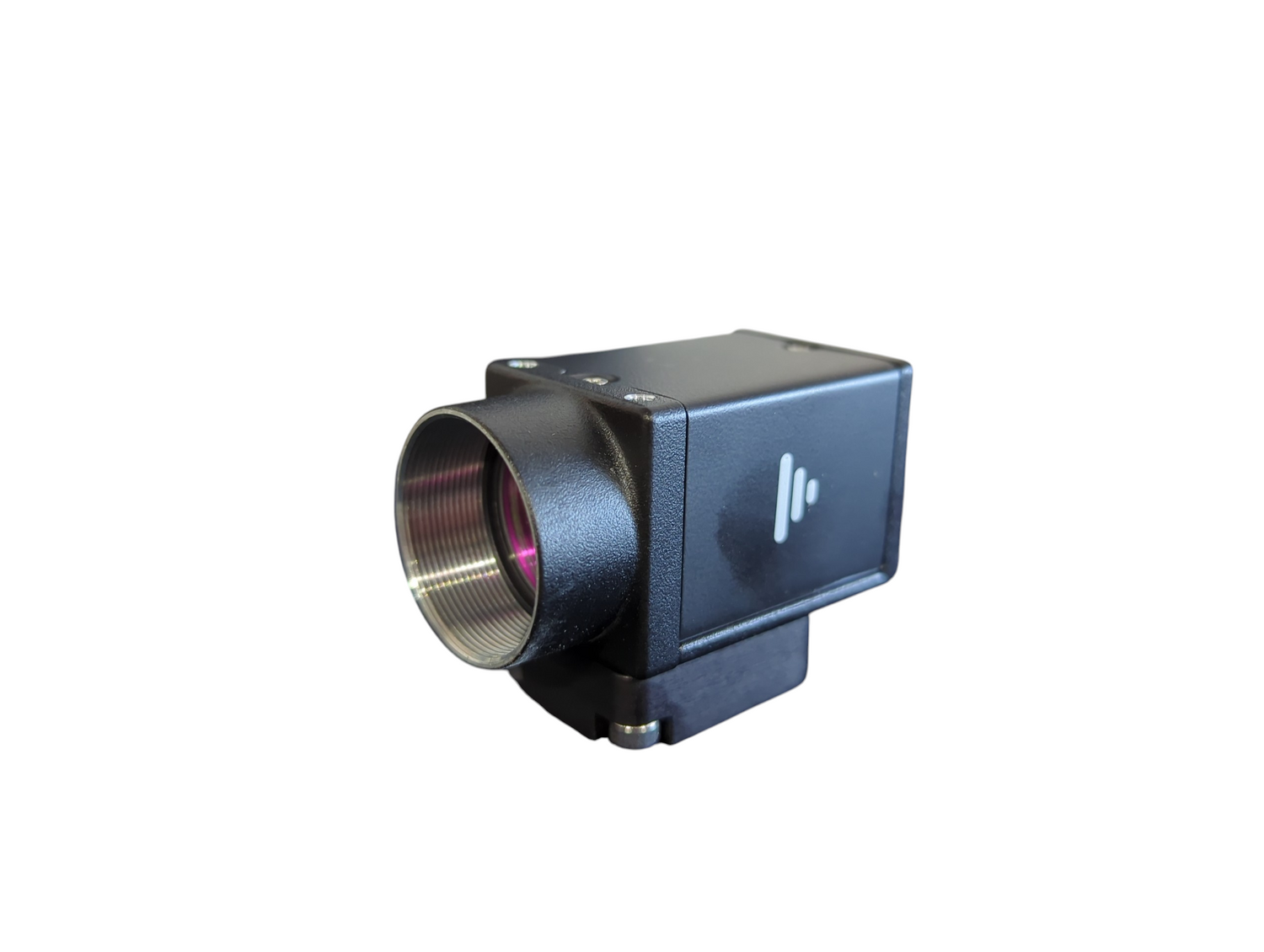

The kit relies on durable, PoE-capable GigEVision cameras. They feature a 5.1 Megapixel Sony global shutter sensor with a native monochrome resolution of 2464 x 2056, capable of shooting at 23 FPS.

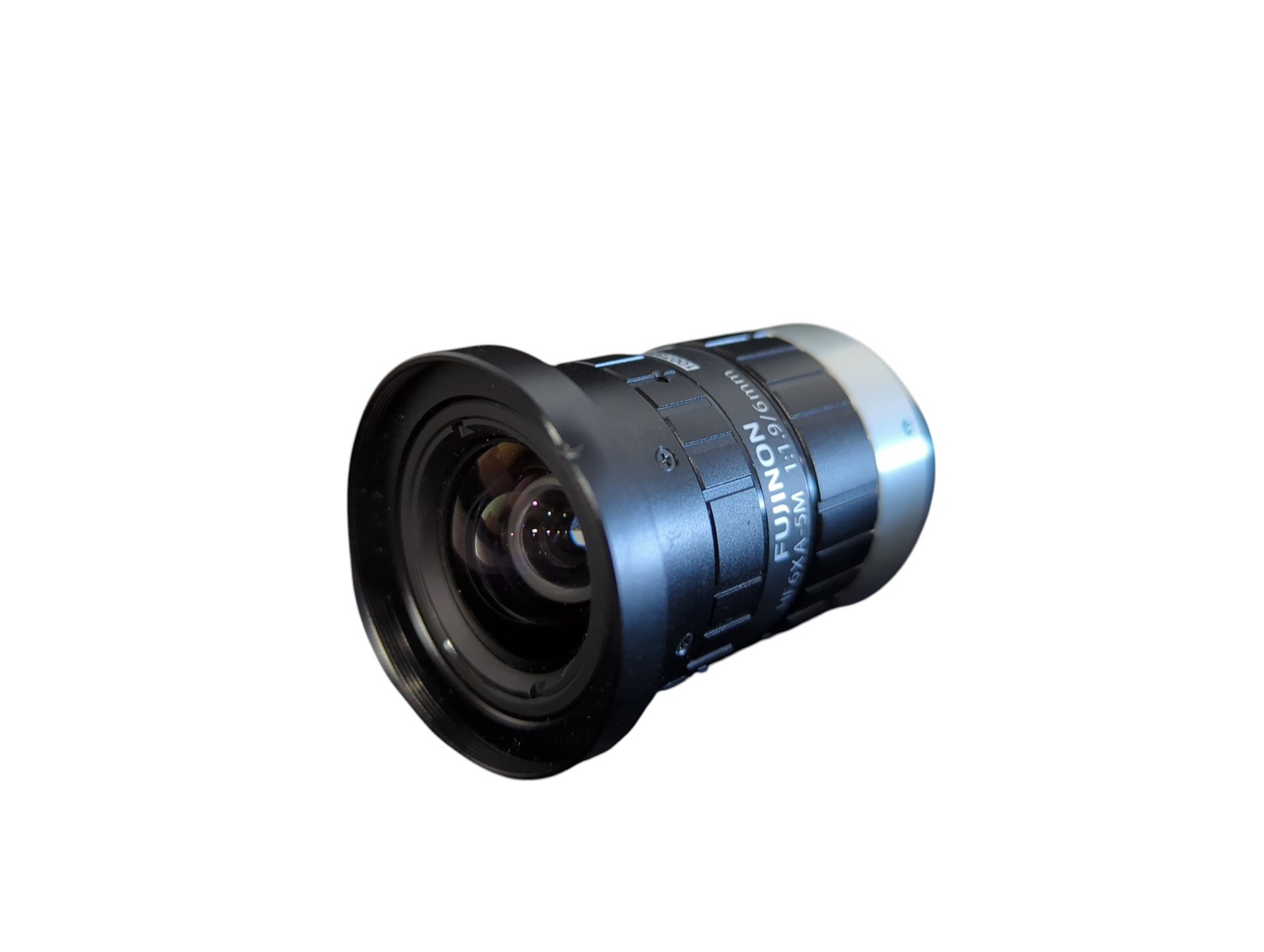

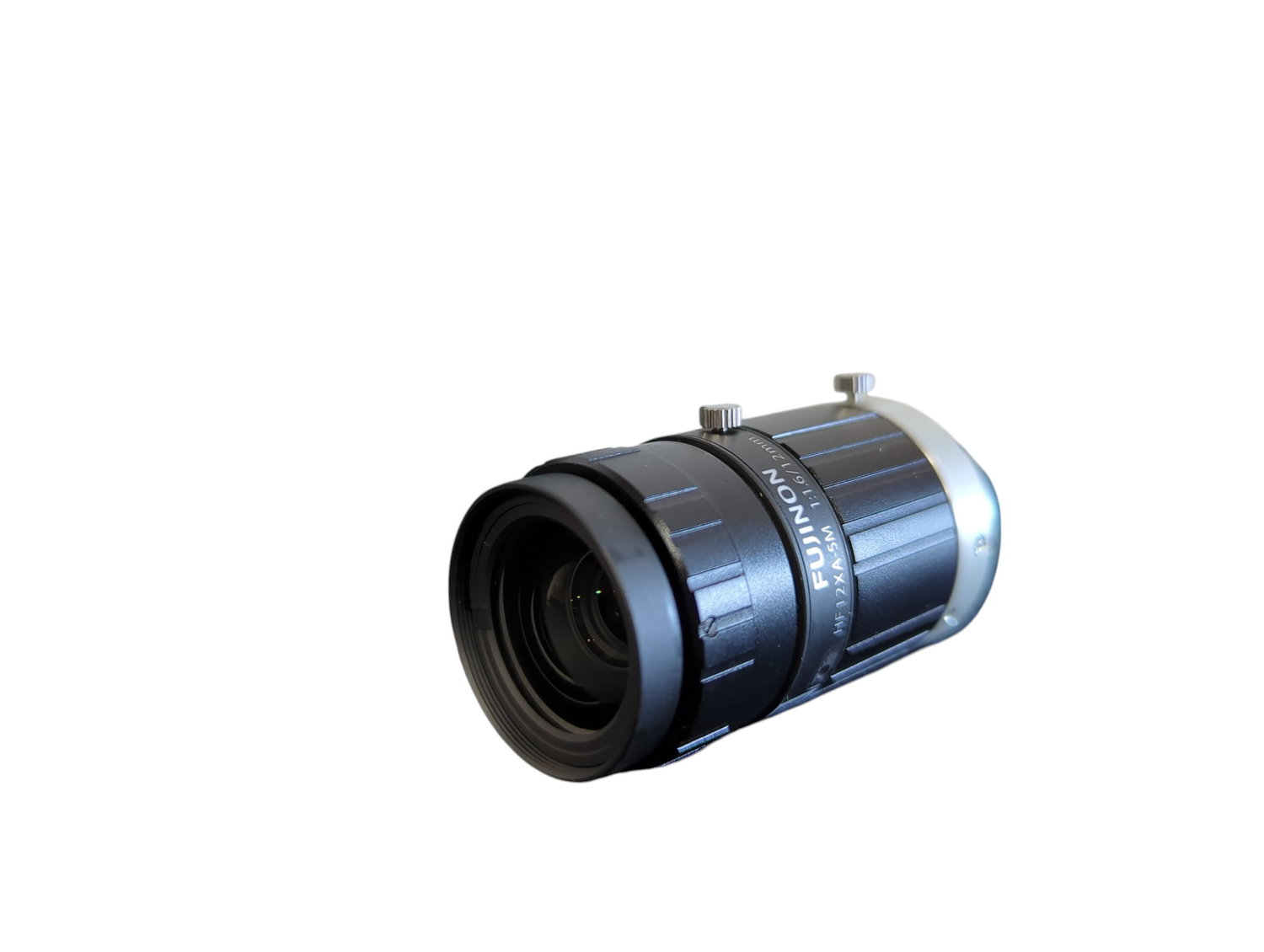

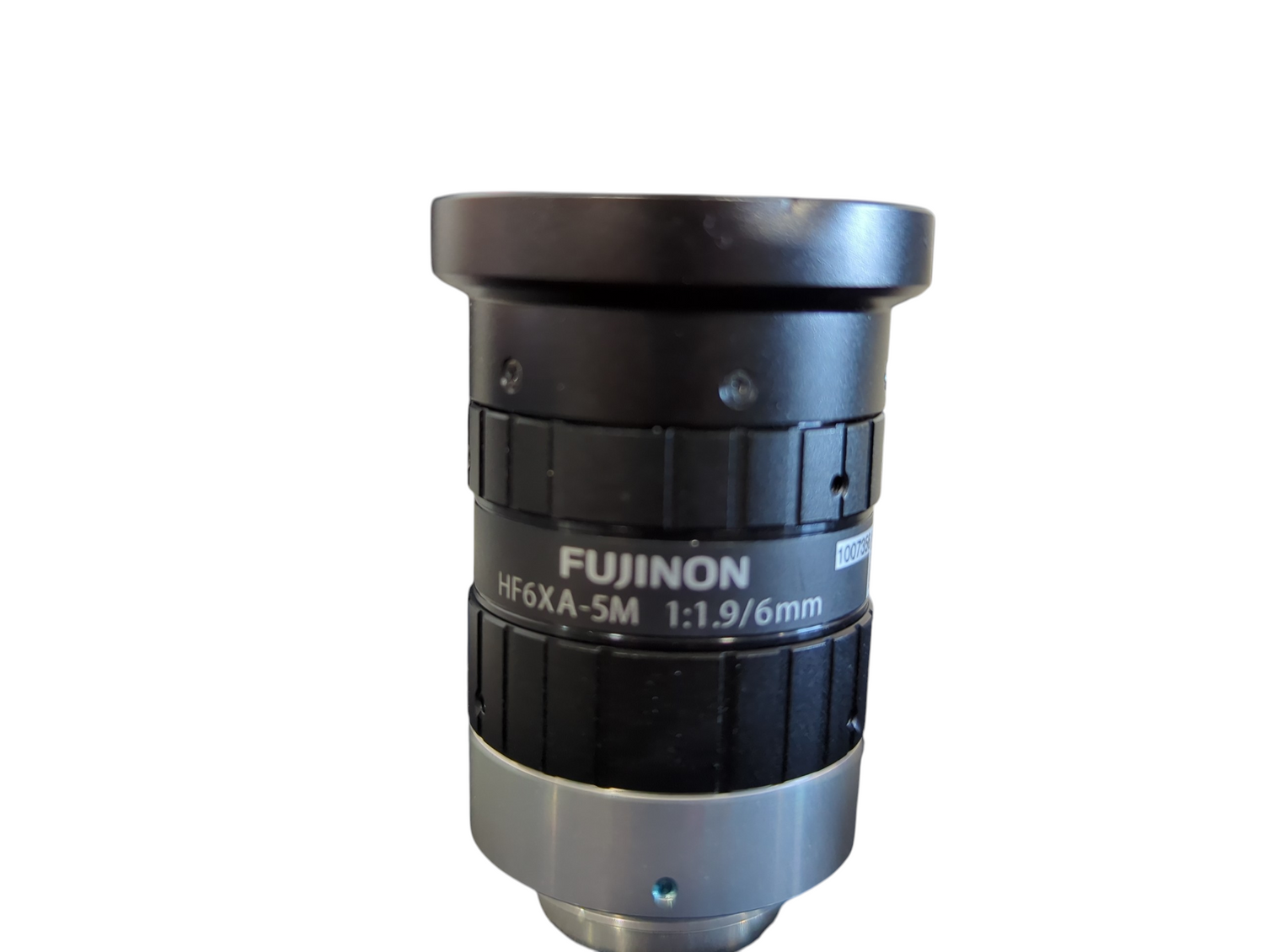

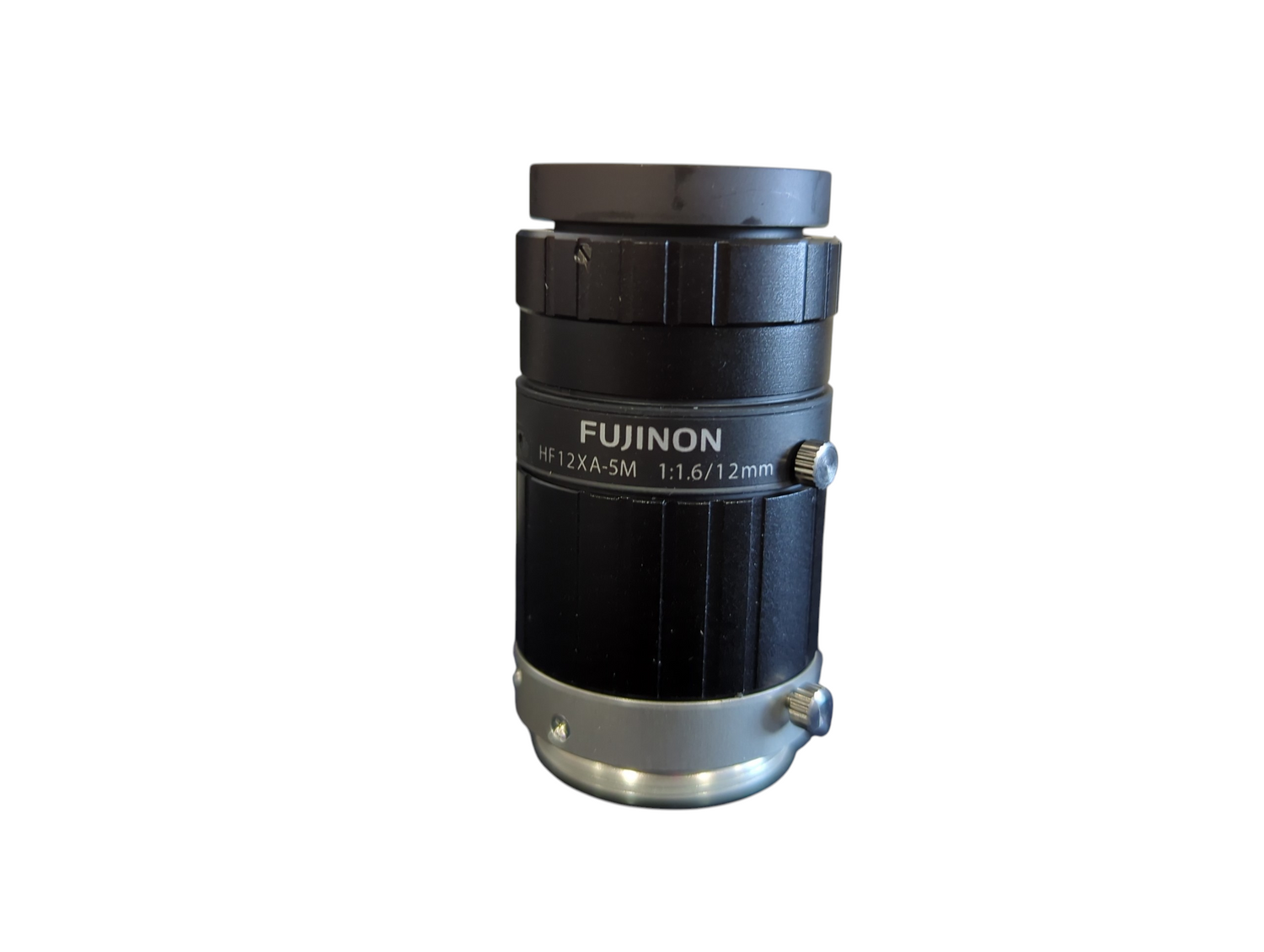

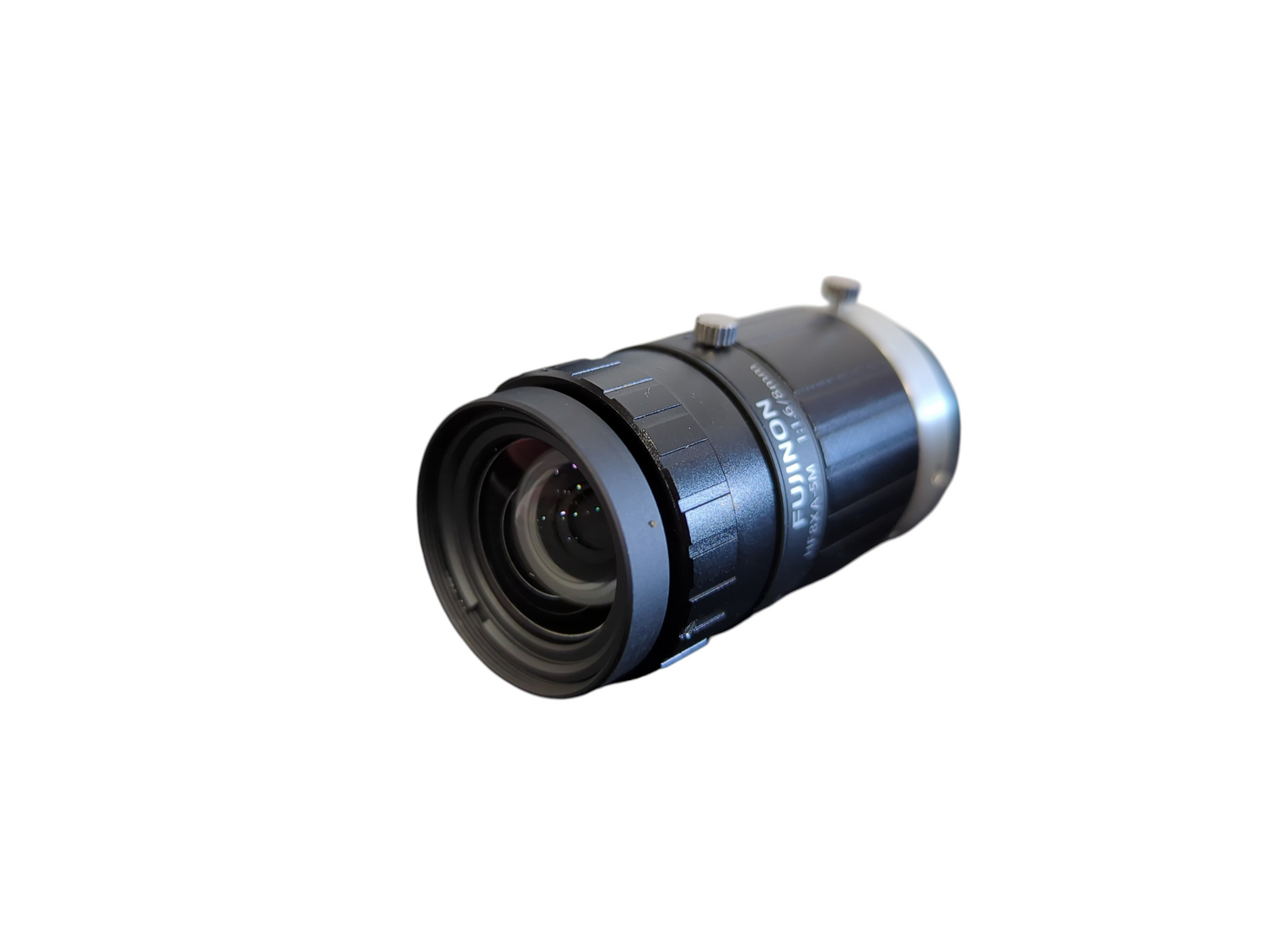

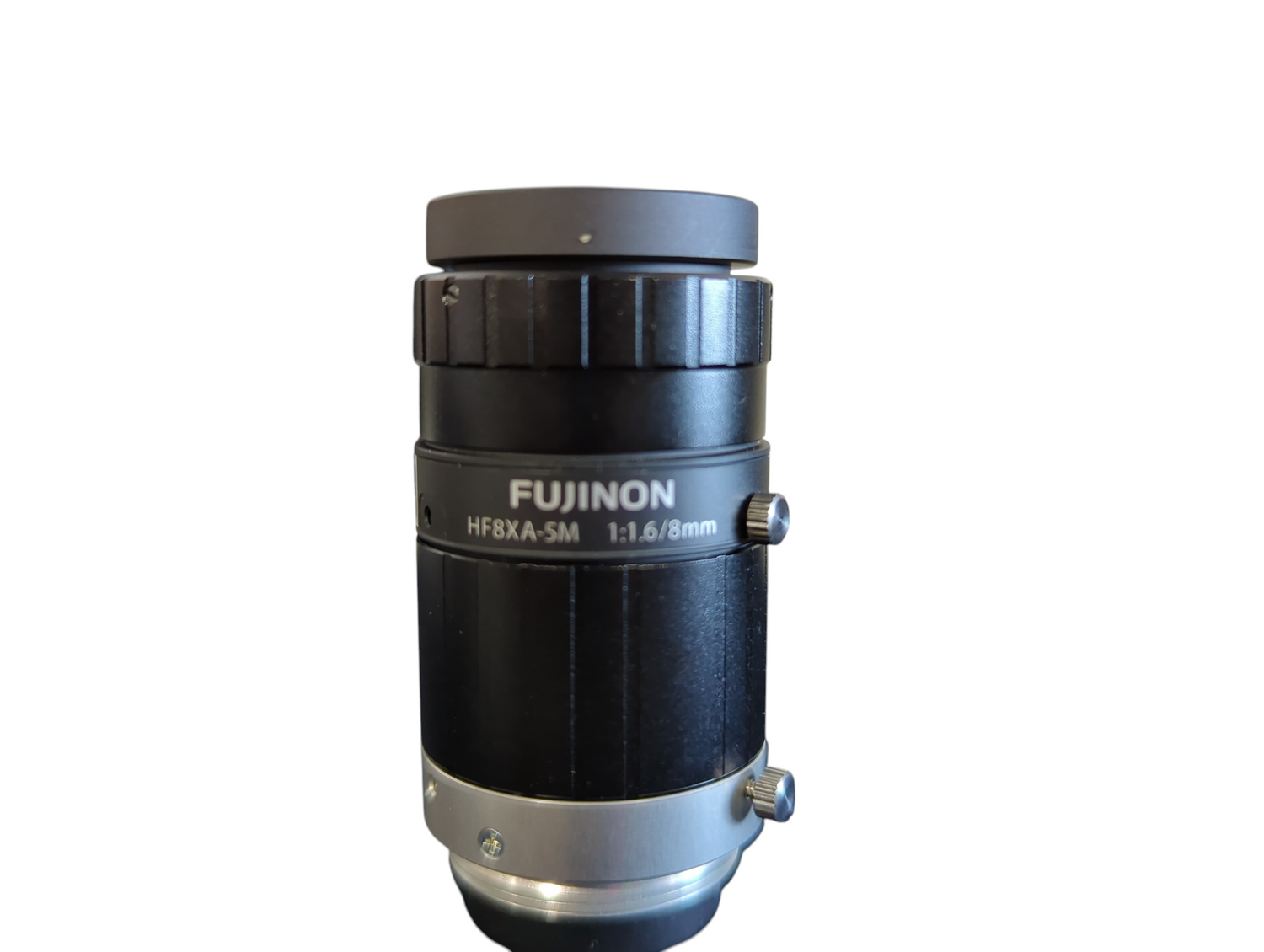

Users will find a mix of 6 mm, 8 mm, 12 mm, and 25 mm high-resolution lenses, which allows for flexible placement across various indoor or outdoor venue sizes and throw distances.

No. You must supply your own PoE-compatible Gigabit network switches and standard CAT6 or CAT6A networking cables.

No. The software only recognizes official, Disguise-branded cameras running proprietary firmware. Generic third-party cameras will not function properly with the system.

No additional software licenses are required. The cameras are designed to work natively out-of-the-box with the Disguise designer software platform.

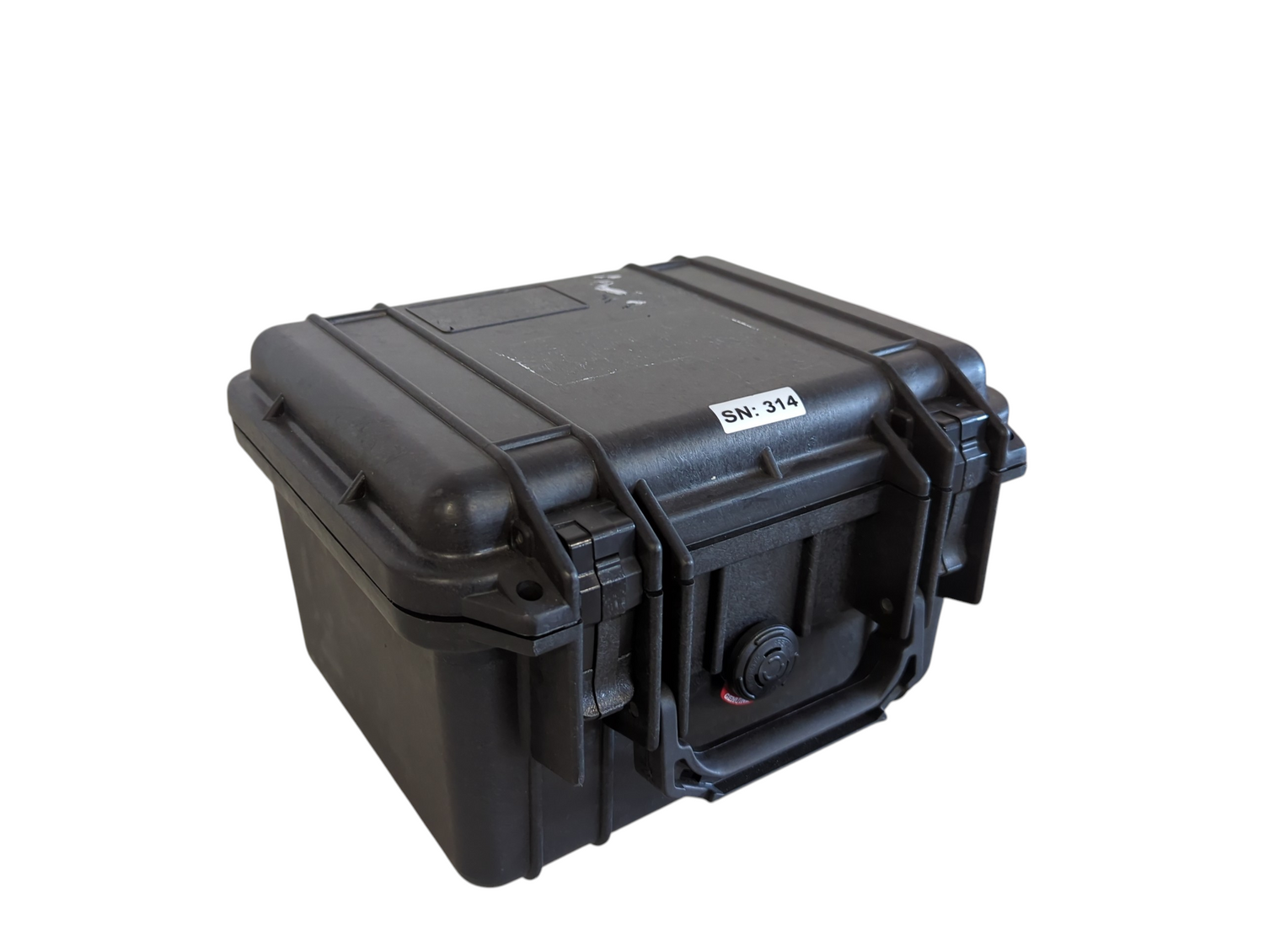

The compact case measures 270 mm long, 246 mm wide, and 174 mm high, weighing approximately 3.2 kg (7.1 lbs).

OmniCal compares a digital wireframe of your 3D set against the real-world physical object. If the real surface has imperfections, the system allows you to add re-shape points to deform the digital mesh to match reality perfectly.
