SKU: C1907-27

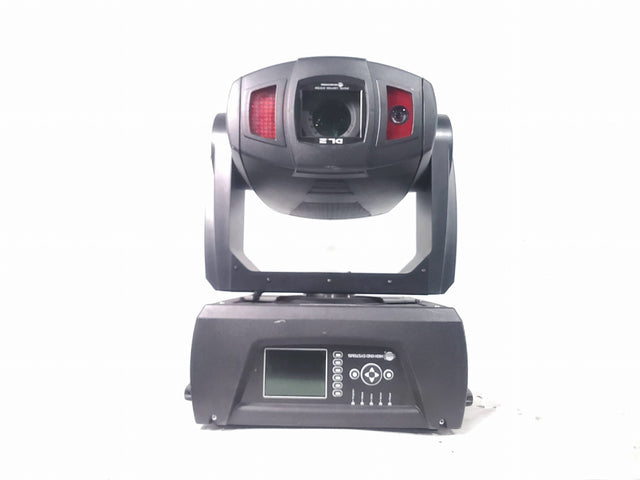

DL.2 Digital Light Moving Head Light w/ Mounting Brackets (DISPLAY ISSUES) in Wheeled Road Case

$300.00

Items Included

1 x High End Systems DL.2 Digital Light Moving Head Fixture
2 x Mounting Brackets
1 x Wheeled Road Case

Item Notes

Display does not turn on and did not want to turn on through menu settings through DMX. Pan and tilt works

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The High End Systems DL.2 Digital Light is a professional moving-head digital lighting fixture that combines a high-brightness video projector, integrated media server, and automated moving yoke into a single unit. Designed for concerts, theaters, television studios, themed attractions, and live productions, it enables projection mapping, animated textures, video playback, and dynamic lighting effects from one fixture. The onboard media server runs Windows XP Embedded with Collage™ software and is controlled via DMX512 or Art-Net. Featuring continuous pan and tilt movement, an integrated camera system, and high-output projection, the DL.2 delivers exceptional creative flexibility. Read more

Features

Integrated moving-head digital projector.
Built-in media server with Collage™ software.
DMX512 and Art-Net control support.
High-brightness 300W projection lamp.
Integrated camera with optical zoom.
Continuous pan and tilt movement.
Includes mounting brackets.

Business Financing Options Avaiable

View Available Financing

Features

Integrated moving-head digital projector.
Built-in media server with Collage™ software.
DMX512 and Art-Net control support.
High-brightness 300W projection lamp.
Integrated camera with optical zoom.
Continuous pan and tilt movement.
Includes mounting brackets.

No products currently in stock

About the DL.2 Digital Light Moving Head Light w/ Mounting Brackets (DISPLAY ISSUES) in Wheeled Road Case

The High End Systems DL.2 Digital Light is a groundbreaking hybrid fixture that merged automated moving head lighting with professional video projection and an onboard digital media server. Released in the mid-2000s, the DL.2 fundamentally changed live event production by allowing lighting designers to treat high-resolution video content as a highly controllable, movable beam of light. Housed within a motorized yoke, the fixture contains a 5,000-lumen projector engine, a high-performance Windows XP-based media server, and an integrated IR/color camera system.

Because the media server is housed directly inside the head, it eliminates the need for expensive external video routing and massive cable runs. Operators use standard lighting consoles to manipulate 3D graphical objects, apply visual effects, load custom movies, and pan/tilt the video image across a venue seamlessly.

Key Features

Integrated moving-head digital projector.
Built-in media server with Collage™ software.
DMX512 and Art-Net control support.
High-brightness 300W projection lamp.
Integrated camera with optical zoom.
Continuous pan and tilt movement.
Includes mounting brackets.

Already own this item and want to sell it?

Click here to sell your item

DL.2 Digital Light Moving Head Light w/ Mounting Brackets (DISPLAY ISSUES) in Wheeled Road Case Specs

Device Type

Automated Moving Head Projector / Media Server

Brightness

5,000 ANSI Lumens

Native Resolution

XGA (1024 x 768)

Media Engine OS

Windows XP Embedded (DirectX API)

Pan Range

400°

Tilt Range

240°

Integrated Camera

Color / Infrared video camera with IR illuminator

Control Protocol

DMX512, Art-Net

Network / Data Connections

5-Pin DMX In/Out, RJ-45 Ethernet

Live Video I/O

S-Video In/Out, VGA (RGBHV) In

Cooling

Two-stage air filtering system (requires strict maintenance in fog/haze environments)

Operating Voltage

100-240V AC, 50/60 Hz

Primary Application

Touring productions, large-scale theater, and immersive corporate events

Key Features

Integrated moving-head digital projector.
Built-in media server with Collage™ software.
DMX512 and Art-Net control support.
High-brightness 300W projection lamp.
Integrated camera with optical zoom.
Continuous pan and tilt movement.
Includes mounting brackets.
