SKU: 2105-691

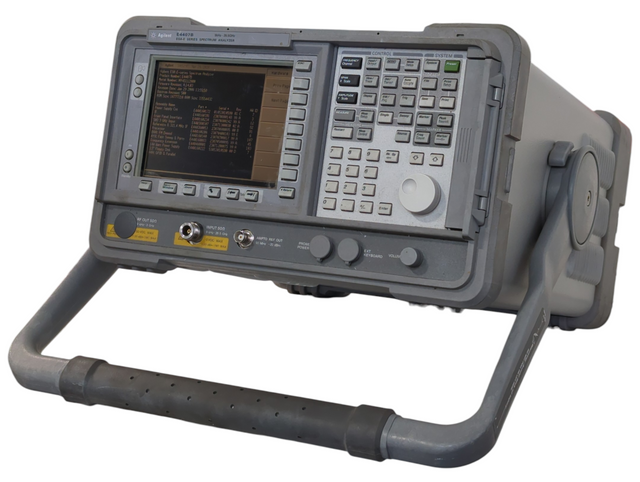

Agilent E4407B ESA-E Spectrum Analyzer, 9kHz to 26.5 Ghz

$1,300.00

Items Included

Agilent E4407B ESA-E Spectrum Analyzer Mainframe
N-Type to SMA Hardware Interconnect Adapter
Heavy-Duty AC Power Cable
Product Reference Documentation & Manuals CD-ROM

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Agilent E4407B ESA-E Spectrum Analyzer, 9kHz to 26.5 GHz (subsequently manufactured under the Keysight brand) is a high-performance, general-purpose microwave spectrum analyzer. It provides lab-grade performance in a portable and rugged form factor, making it ideal for everything from manufacturing lines and aerospace/defense applications to field teleports. Read more

Features

9 kHz to 26.5 GHz Wide Frequency Range
±0.4 dB Overall Amplitude Accuracy
Up to -167 dBm Displayed Average Noise Level (DANL)
Fast 1 ms RF Sweep Time (50 ns Zero Span)
Segmented Sweep for 32 Discontinuous Spans
10 MHz Analysis Bandwidth Capacity
PowerSuite One-Button Power Measurements Standard
Rapid 5-Minute Measurement Warm-Up Time
Broad Application Support (Phase Noise, Noise Figure)
Standard GPIB, RS-232, and Optional LAN Connectivity

Business Financing Options Avaiable

View Available Financing

Features

9 kHz to 26.5 GHz Wide Frequency Range
±0.4 dB Overall Amplitude Accuracy
Up to -167 dBm Displayed Average Noise Level (DANL)
Fast 1 ms RF Sweep Time (50 ns Zero Span)
Segmented Sweep for 32 Discontinuous Spans
10 MHz Analysis Bandwidth Capacity
PowerSuite One-Button Power Measurements Standard
Rapid 5-Minute Measurement Warm-Up Time
Broad Application Support (Phase Noise, Noise Figure)
Standard GPIB, RS-232, and Optional LAN Connectivity

No products currently in stock

About the Agilent E4407B ESA-E Spectrum Analyzer, 9kHz to 26.5 Ghz

The E4407B ESA-E Spectrum Analyzer is a professional RF and microwave spectrum analyzer from the Agilent/Keysight ESA-E Series, covering an internal frequency range of 9 kHz to 26.5 GHz. It is designed for laboratory, manufacturing, field-service, aerospace, defense, and general RF measurement applications. The E4407B is now an obsolete/discontinued model in Keysight's product portfolio.

The analyzer provides 10 MHz analysis bandwidth, 0.4 dB overall amplitude accuracy, and, with the appropriate internal preamplifier configuration, a displayed average noise level (DANL) as low as −167 dBm. It also supports segmented sweeps with up to 32 discontinuous spans in one sweep.

The E4407B uses internal harmonic mixing across several frequency bands to reach 26.5 GHz. With Option AYZ external mixing, its measurement architecture can support external-mixer applications above the internal frequency range; this option should not be confused with the standard internal 9 kHz–26.5 GHz configuration.

Key Features

9 kHz to 26.5 GHz Wide Frequency Range
±0.4 dB Overall Amplitude Accuracy
Up to -167 dBm Displayed Average Noise Level (DANL)
Fast 1 ms RF Sweep Time (50 ns Zero Span)
Segmented Sweep for 32 Discontinuous Spans
10 MHz Analysis Bandwidth Capacity
PowerSuite One-Button Power Measurements Standard
Rapid 5-Minute Measurement Warm-Up Time
Broad Application Support (Phase Noise, Noise Figure)
Standard GPIB, RS-232, and Optional LAN Connectivity

Already own this item and want to sell it?

Click here to sell your item

Agilent E4407B ESA-E Spectrum Analyzer, 9kHz to 26.5 Ghz Specs

RF Measurement Range

Frequency Range

9 kHz – 26.5 GHz

Internal Mixing

Yes

External Mixing

18 GHz – 325 GHz with Option AYZ

Frequency Bands

0–4

Band 0

9 kHz – 3.0 GHz

Band 1

2.85 – 6.7 GHz

Band 2

6.2 – 13.2 GHz

Band 3

12.8 – 19.2 GHz

Band 4

18.7 – 26.5 GHz

Signal Analysis

Analysis Bandwidth

10 MHz

Overall Amplitude Accuracy

0.4 dB

Displayed Average Noise Level

−167 dBm with internal preamplifier

Segmented Sweep

Up to 32 discontinuous spans

RF Sweep Time

Up to 1 ms

Resolution & Detection

Resolution Bandwidth

1 Hz–5 MHz, option dependent

Resolution

2 Hz x N4

Detectors

RMS, Peak, Negative Peak, Quasi-Peak

Input Attenuation

0–65 dB in 5 dB steps

RF Input Protection

Maximum Continuous Input Power

+30 dBm / 1 W with ≥5 dB attenuation

Maximum Peak Pulse Input Power

+50 dBm / 100 W with ≥30 dB attenuation

Maximum DC Input

0 VDC

Input Impedance

50 Ω

Measurement Functions

Standard Measurement

PowerSuite One-Button Power Measurements

Measurement Applications

Phase Noise, Noise Figure, GSM/EDGE, cdmaOne and others

Application Options

Configuration Dependent

Preamp

Option Dependent

Remote Interfaces

GPIB

Supported

RS-232

Supported

Remote Control

Supported

Programming Compatibility

8590-Series / 8566/8568B Code Compatibility

Key Features

9 kHz to 26.5 GHz Wide Frequency Range
±0.4 dB Overall Amplitude Accuracy
Up to -167 dBm Displayed Average Noise Level (DANL)
Fast 1 ms RF Sweep Time (50 ns Zero Span)
Segmented Sweep for 32 Discontinuous Spans
10 MHz Analysis Bandwidth Capacity
PowerSuite One-Button Power Measurements Standard
Rapid 5-Minute Measurement Warm-Up Time
Broad Application Support (Phase Noise, Noise Figure)
Standard GPIB, RS-232, and Optional LAN Connectivity
