SKU: 2105-692

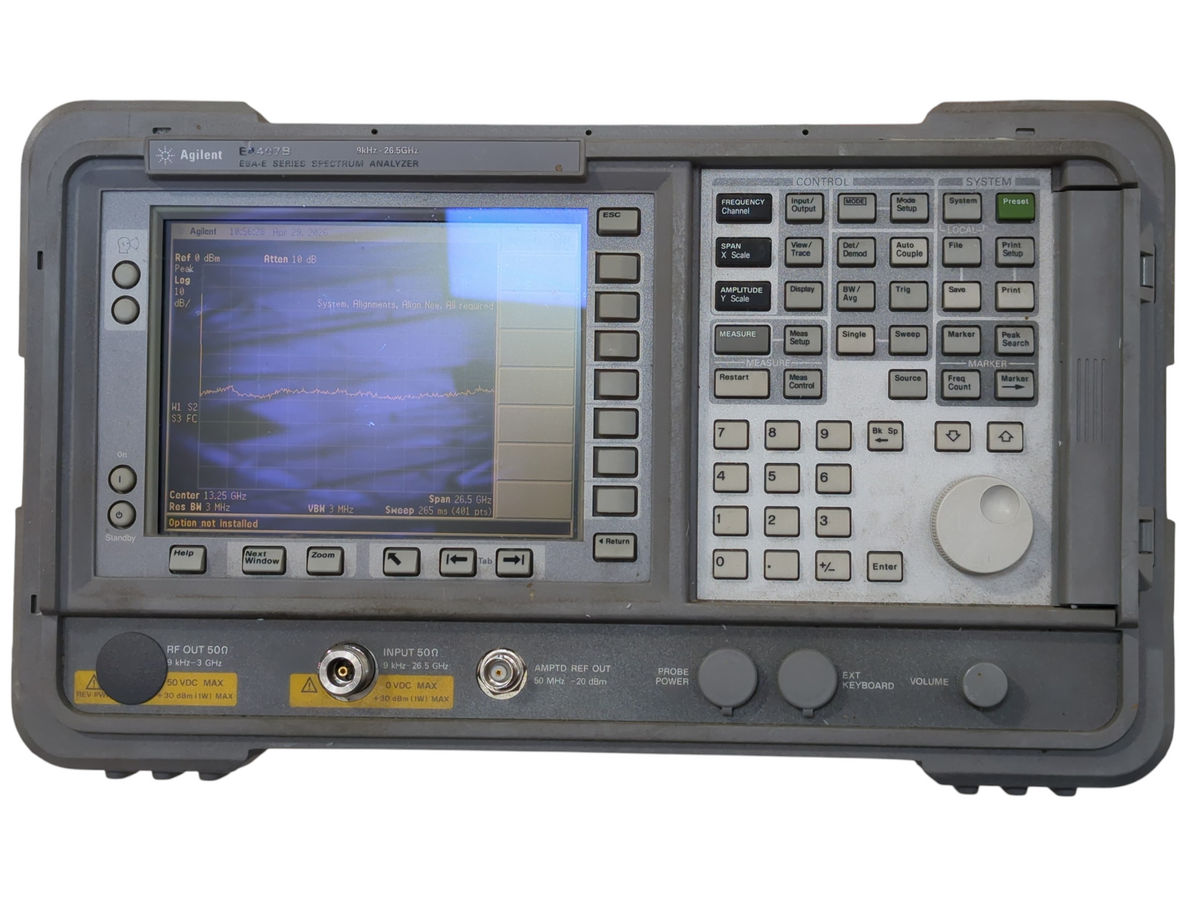

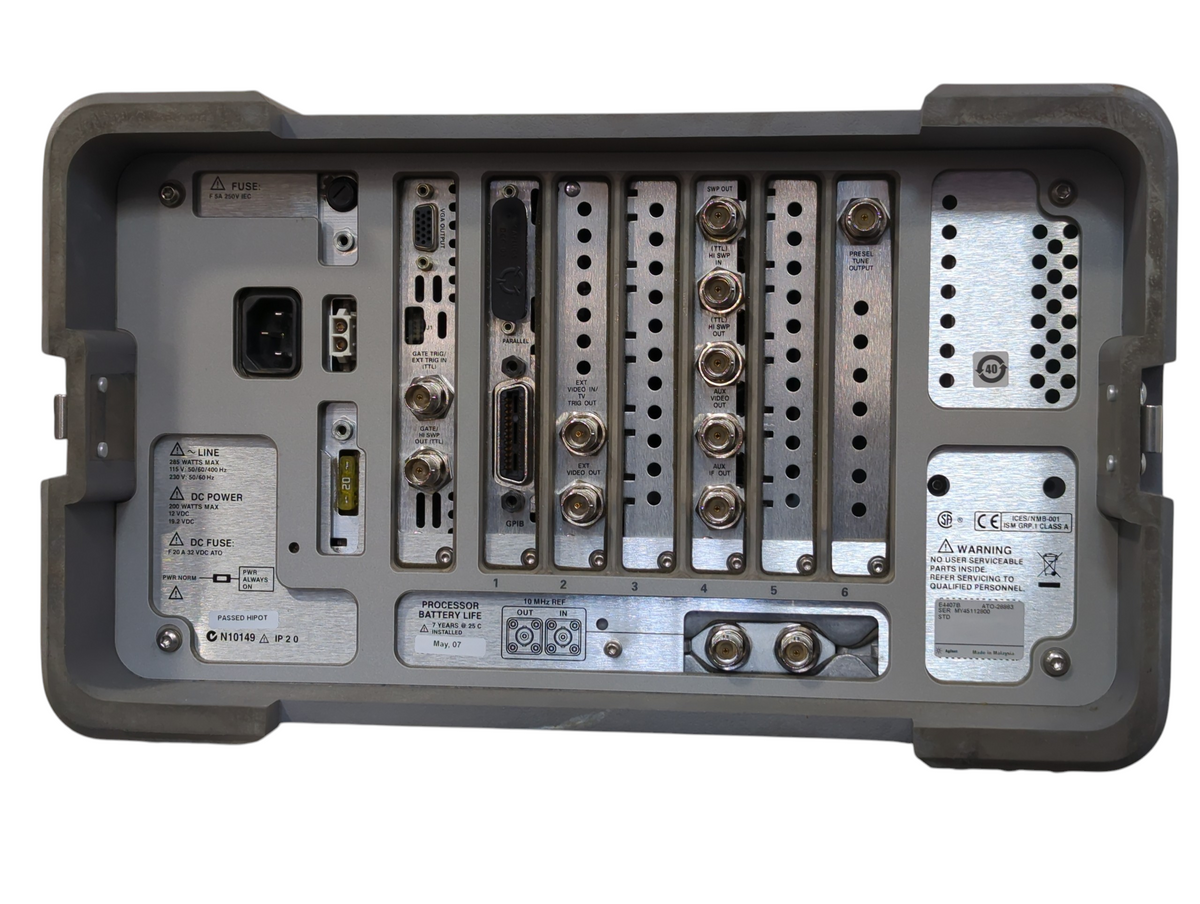

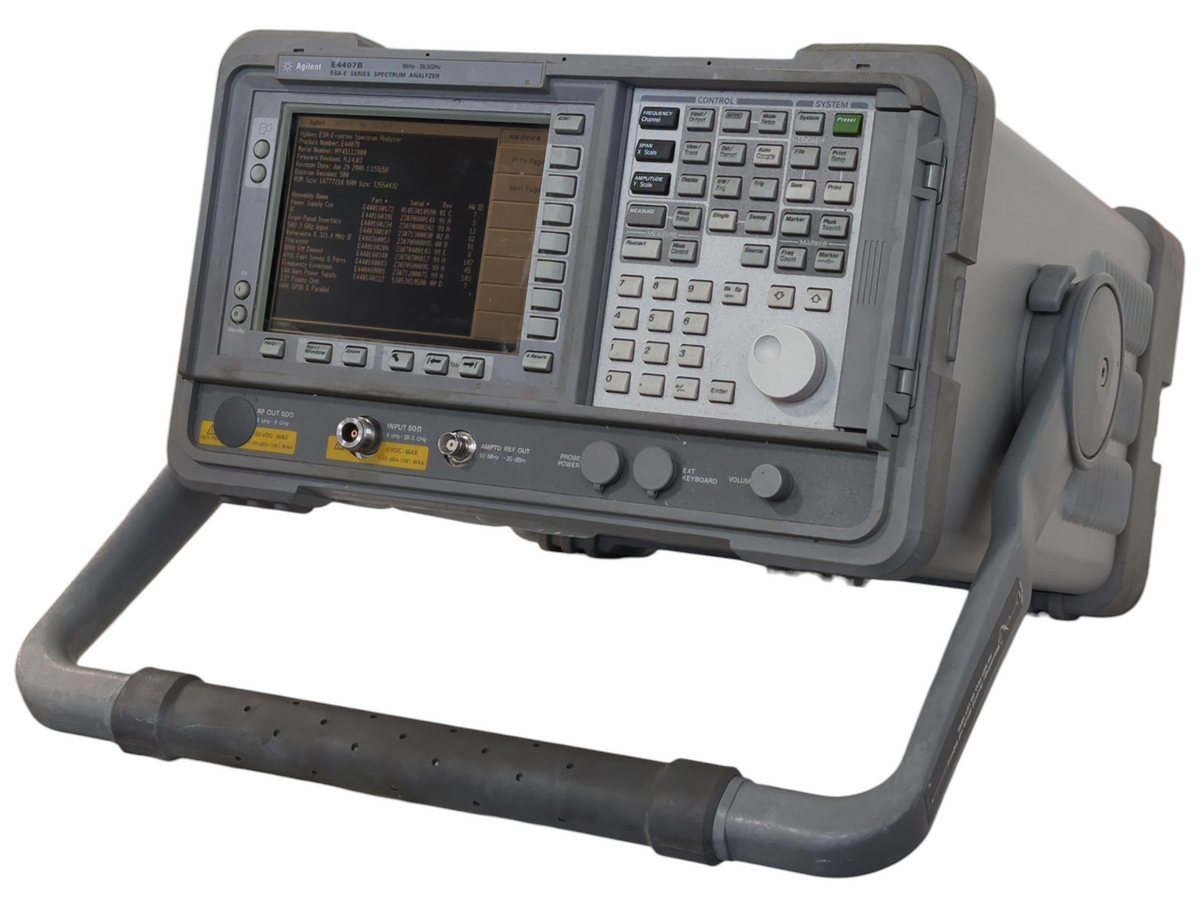

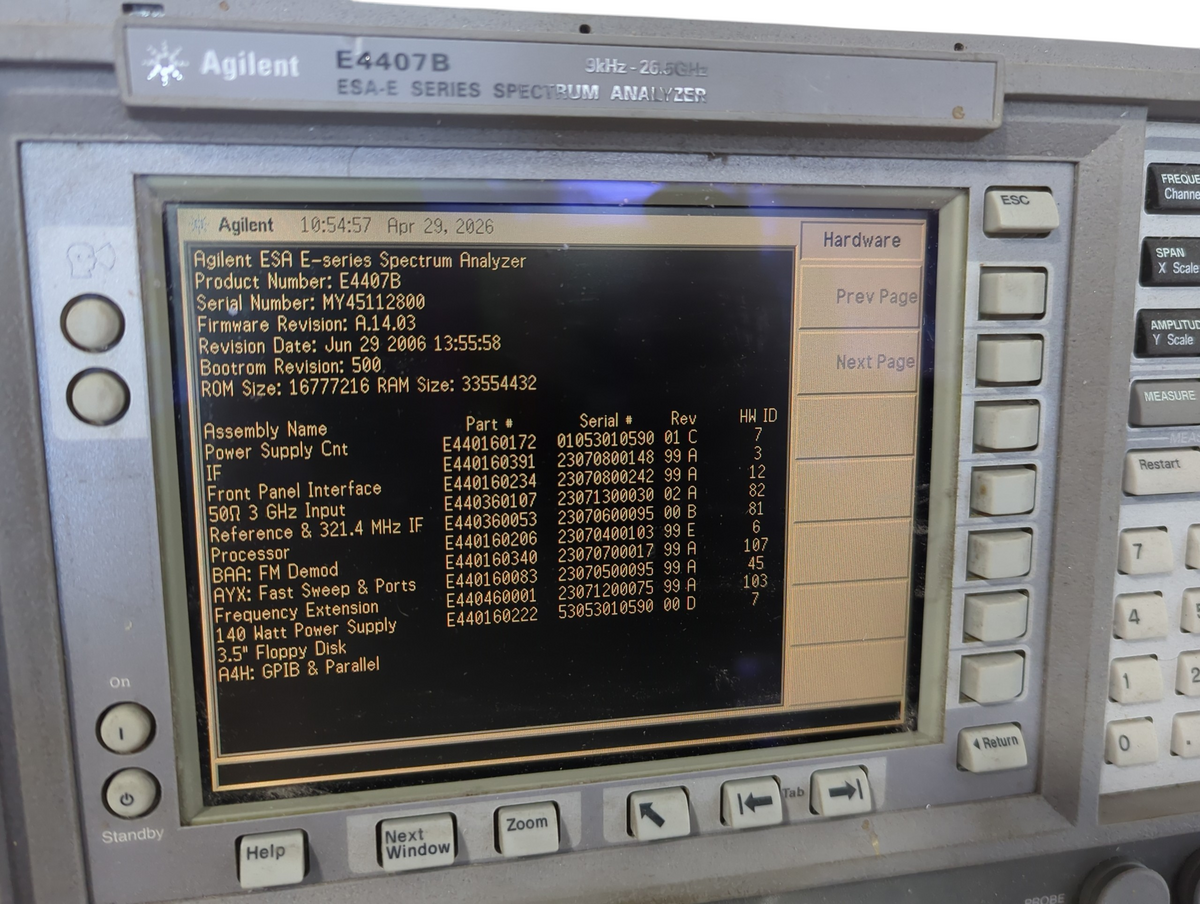

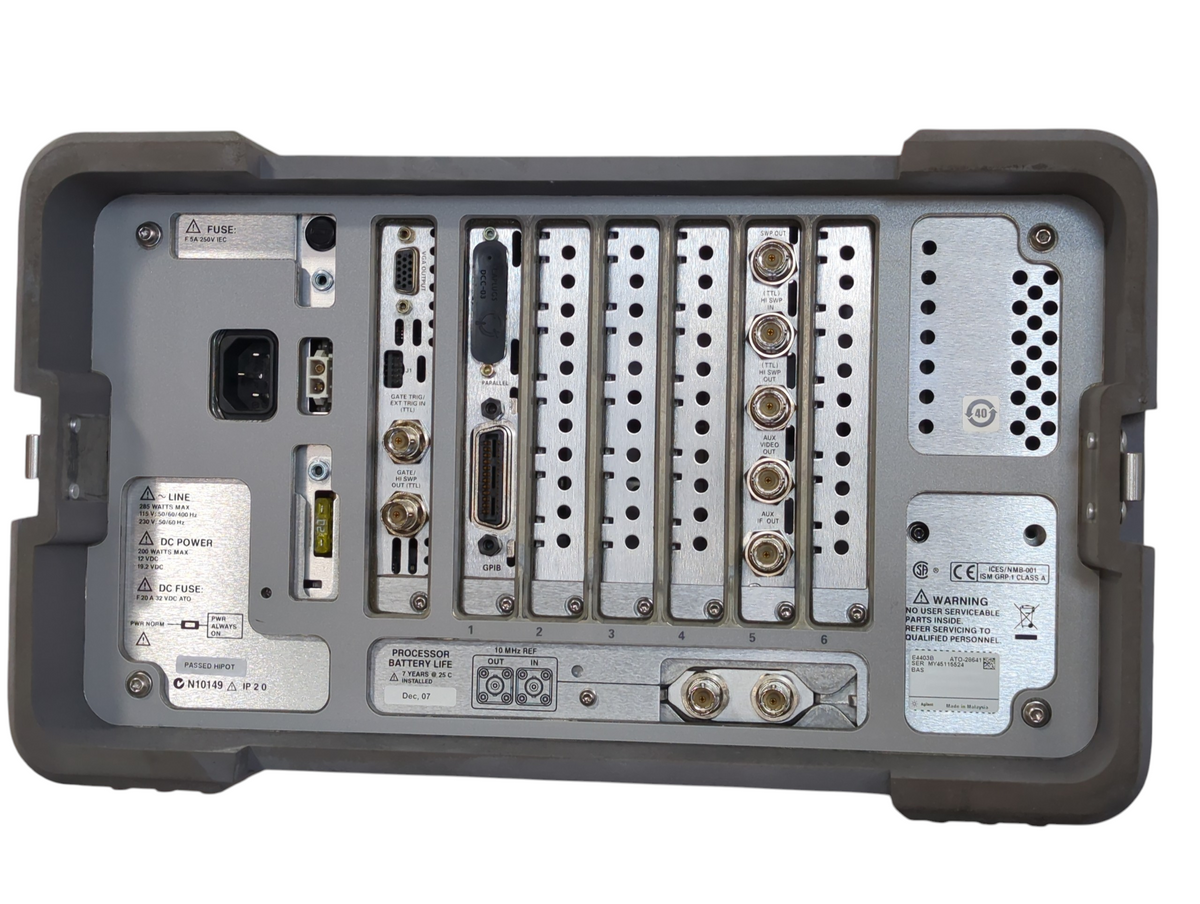

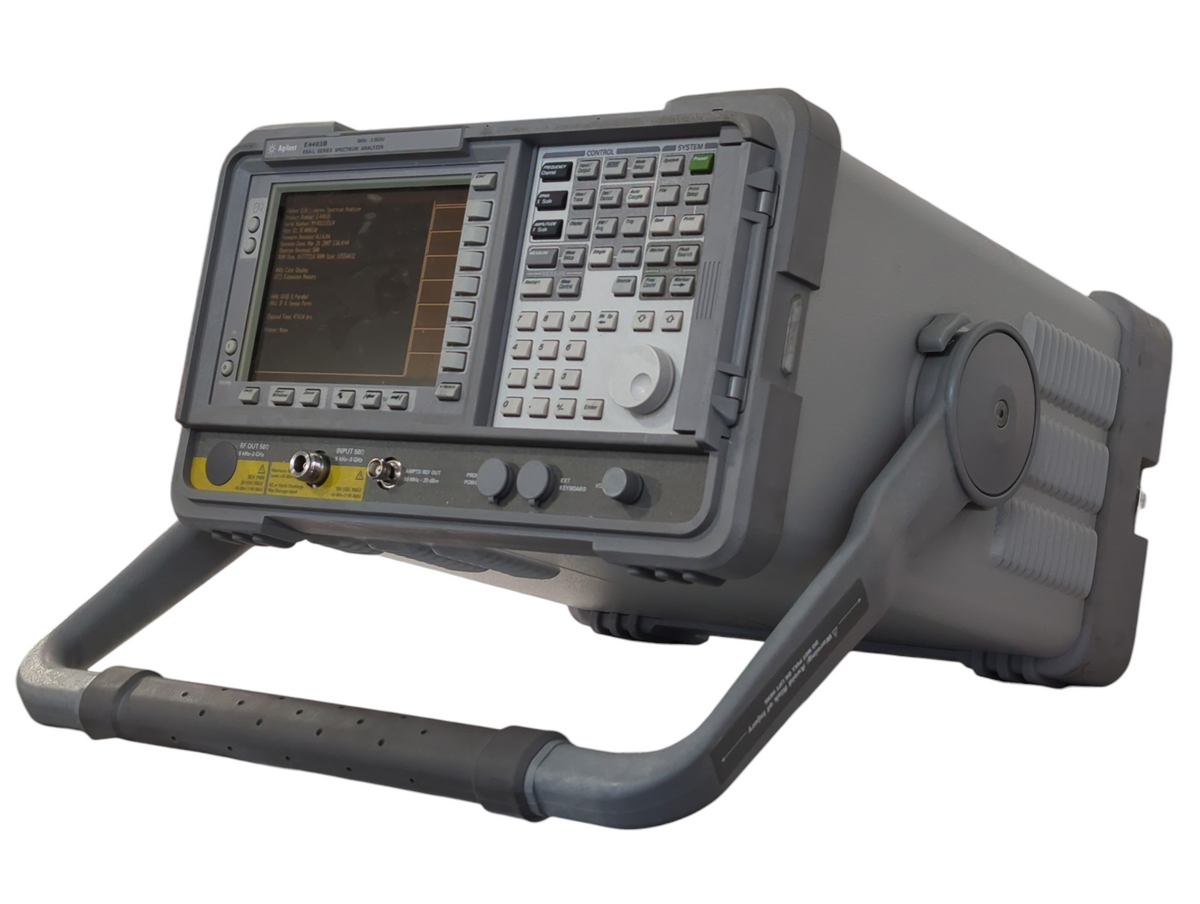

Agilent E44O7B ESA-E Spectrum Analyzer

$1,300.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Keysight Agilent E4407B ESA-E Spectrum Analyzer is a highly flexible, general-purpose benchtop instrument designed for laboratory grade RF and microwave signal analysis. Engineered to cover a vast frequency spectrum from 9 kHz up to 26.5 GHz, this high-performance analyzer serves defense, aerospace, and high-frequency electronics manufacturing lines. It features a rugged, portable architecture equipped with a crisp color display, user-friendly PowerSuite one-button measurement routines, and robust phase noise metrics. Boasting a rapid 5-minute warm-up time to reach guaranteed measurement accuracy, it delivers a reliable infrastructure choice for complex automated testing environments requiring superior amplitude precision and dynamic range. Read more

Features

  • Covers a sweeping high frequency measurement range from 9kHz up to 265GHz.
  • Achieves guaranteed field testing accuracy after a rapid 5-minute warm up time.
  • Delivers an impressive 10 MHz analysis bandwidth for seamless signal capture.
  • Provides exceptional amplitude accuracy down to zero point 4-decibels.
  • Includes segmented sweep capabilities supporting up to 32-separate spans.
  • Features a ruggedized portable chassis layout engineered for demanding environments.

Business Financing Options Avaiable

View Available Financing

The Keysight Agilent E4407B ESA-E Spectrum Analyzer is a highly flexible, general-purpose benchtop instrument designed for laboratory grade RF and microwave signal analysis. Engineered to cover a vast frequency spectrum from 9 kHz up to 26.5 GHz, this high-performance analyzer serves defense, aerospace, and high-frequency electronics manufacturing lines. It features a rugged, portable architecture equipped with a crisp color display, user-friendly PowerSuite one-button measurement routines, and robust phase noise metrics. Boasting a rapid 5-minute warm-up time to reach guaranteed measurement accuracy, it delivers a reliable infrastructure choice for complex automated testing environments requiring superior amplitude precision and dynamic range. Read more

Features

  • Covers a sweeping high frequency measurement range from 9kHz up to 265GHz.
  • Achieves guaranteed field testing accuracy after a rapid 5-minute warm up time.
  • Delivers an impressive 10 MHz analysis bandwidth for seamless signal capture.
  • Provides exceptional amplitude accuracy down to zero point 4-decibels.
  • Includes segmented sweep capabilities supporting up to 32-separate spans.
  • Features a ruggedized portable chassis layout engineered for demanding environments.

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Agilent E44O7B ESA-E Spectrum Analyzer

The E4407B ESA-E Spectrum Analyzer is a professional RF and microwave spectrum analyzer from the Agilent/Keysight ESA-E Series, covering an internal frequency range of 9 kHz to 26.5 GHz. It is designed for laboratory, manufacturing, field-service, aerospace, defense, and general RF measurement applications. The E4407B is now an obsolete/discontinued model in Keysight's product portfolio.

The analyzer provides 10 MHz analysis bandwidth, 0.4 dB overall amplitude accuracy, and, with the appropriate internal preamplifier configuration, a displayed average noise level (DANL) as low as −167 dBm. It also supports segmented sweeps with up to 32 discontinuous spans in one sweep.

The E4407B uses internal harmonic mixing across several frequency bands to reach 26.5 GHz. With Option AYZ external mixing, its measurement architecture can support external-mixer applications above the internal frequency range; this option should not be confused with the standard internal 9 kHz–26.5 GHz configuration.

Key Features

  • Covers a sweeping high frequency measurement range from 9kHz up to 265GHz.
  • Achieves guaranteed field testing accuracy after a rapid 5-minute warm up time.
  • Delivers an impressive 10 MHz analysis bandwidth for seamless signal capture.
  • Provides exceptional amplitude accuracy down to zero point 4-decibels.
  • Includes segmented sweep capabilities supporting up to 32-separate spans.
  • Features a ruggedized portable chassis layout engineered for demanding environments.

Already own this item and want to sell it?

Click here to sell your item

Agilent E44O7B ESA-E Spectrum Analyzer Specs

RF Measurement Range
Frequency Range
9 kHz – 26.5 GHz
Internal Mixing
Yes
External Mixing
18 GHz – 325 GHz with Option AYZ
Frequency Bands
0–4
Band 0
9 kHz – 3.0 GHz
Band 1
2.85 – 6.7 GHz
Band 2
6.2 – 13.2 GHz
Band 3
12.8 – 19.2 GHz
Band 4
18.7 – 26.5 GHz
Signal Analysis
Analysis Bandwidth
10 MHz
Overall Amplitude Accuracy
0.4 dB
Displayed Average Noise Level
−167 dBm with internal preamplifier
Segmented Sweep
Up to 32 discontinuous spans
RF Sweep Time
Up to 1 ms
Resolution & Detection
Resolution Bandwidth
1 Hz–5 MHz, option dependent
Resolution
2 Hz x N4
Detectors
RMS, Peak, Negative Peak, Quasi-Peak
Input Attenuation
0–65 dB in 5 dB steps
RF Input Protection
Maximum Continuous Input Power
+30 dBm / 1 W with ≥5 dB attenuation
Maximum Peak Pulse Input Power
+50 dBm / 100 W with ≥30 dB attenuation
Maximum DC Input
0 VDC
Input Impedance
50 Ω
Measurement Functions
Standard Measurement
PowerSuite One-Button Power Measurements
Measurement Applications
Phase Noise, Noise Figure, GSM/EDGE, cdmaOne and others
Application Options
Configuration Dependent
Preamp
Option Dependent
Remote Interfaces
GPIB
Supported
RS-232
Supported
Remote Control
Supported
Programming Compatibility
8590-Series / 8566/8568B Code Compatibility

Key Features

  • Covers a sweeping high frequency measurement range from 9kHz up to 265GHz.
  • Achieves guaranteed field testing accuracy after a rapid 5-minute warm up time.
  • Delivers an impressive 10 MHz analysis bandwidth for seamless signal capture.
  • Provides exceptional amplitude accuracy down to zero point 4-decibels.
  • Includes segmented sweep capabilities supporting up to 32-separate spans.
  • Features a ruggedized portable chassis layout engineered for demanding environments.
