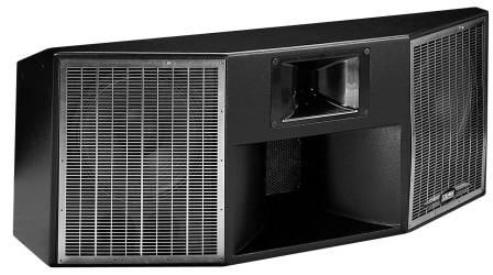

The DC2 is engineered for use in permanent installations. The system includes dual 15-inch woofers in an optimally vented enclosure, a horn-loaded 10-inch midrange, and a 1.4-inch exit/3-inch voice coil high frequency compression driver on a 90° horizontal by 40° vertical dispersion constant directivity horn.

A complex asymmetrical internal passive crossover/filter network provides MF/HF subsystem integration. An MX Series Close Coupled Processor™ should be used to integrate the LF and MF/HF subsystems.
