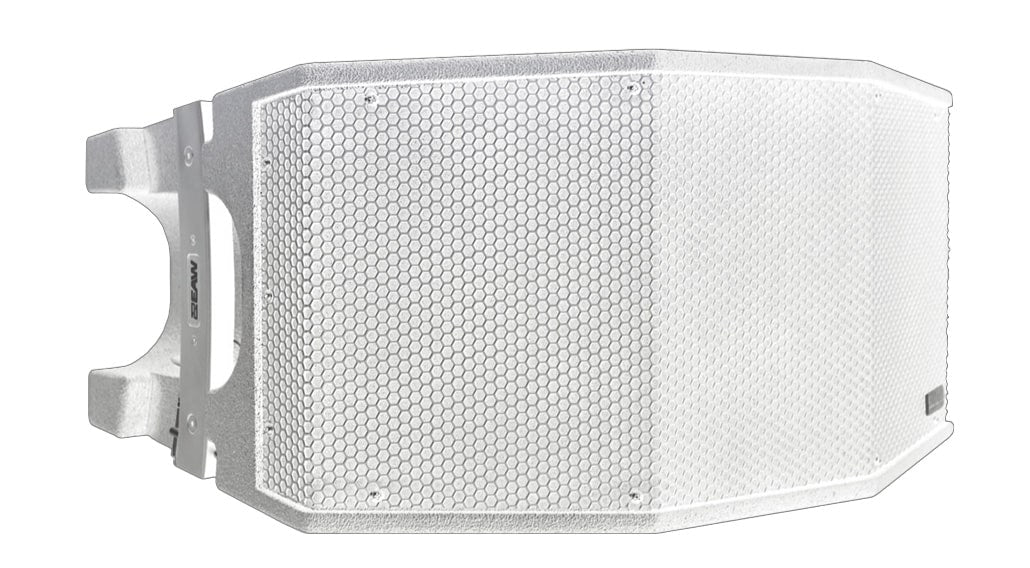

The JFL213 compact, two-way line array module features a range of EAW’s most innovative line array technologies within a mobile, lightweight package appropriate in a wide range of small- to medium-sized venues. With its companion subwoofer, the JFL118, this easy-to-use system solves problems in both portable and permanently installed applications.

The JFL213’s two-way design mounts dual 10-inch cone transducers in an optimally vented enclosure and spaced to extend pattern control into the low frequency range. Three horn-loaded, 0.75-inch exit / 1.75-inch voice coil compression drivers deliver even dispersion of high frequency information over the entire 110° horizontal coverage area.

EAW engineers optimized the JFL213’s size, shape, and weight for easy transport and setup by a single person, with side handles designed as part of the rigging system and aligned with the enclosure’s center of balance. Users can mount up to two JFL213s on a loudspeaker stand with a 35mm/1.38-inch diameter pole. The cleverly-designed, dual-angle pole mount cup allows the bottom enclosure to be aimed 0° or -15°. (A two-module array with the lower modules aimed at -15° aims the upper module at 0°.) The JFL118 features an integrated pole mount cup, letting it serve as a large, stable base for pole mounting.

The JFL213’s ultra-strong rigging system allows users to hang up to five modules with a 10:1 safety factor, which meets or exceeds all standards enforced throughout the world. A single person can easily connect the modules to the accessory FB221 Fly Bar as well as to each other. The FB221 also doubles as a ground stack base for up to four JFL213s. For permanent installation, each JFL213 provides a pair of M10 threaded mounting points.

The JFL213 allows users to switch between single- or bi-amp powering modes. The JFL213 delivers optimal performance when operated in bi-amp mode with an EAW UX Series digital processor. In addition to the HF shading filters, UX Series digital processors deliver EAW Focusing™ setting, which corrects for anomalies that occur in the time domain of any loudspeaker or transducer.

Enclosures are protected by our tough, scratch-resistant RoadCoat™ finish and durable, foam-backed steel grilles protect the transducers. Six year warranty.
