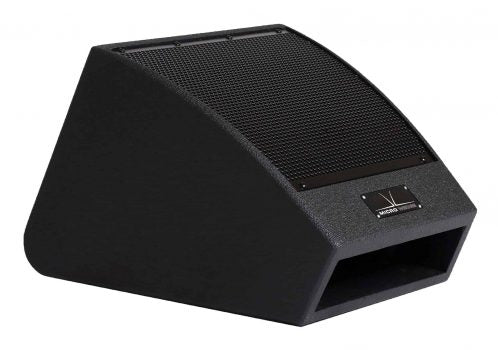

EAW MW10-BK 2-Way Full Range Passive Stage Monitor (Black)

$0.00

The EAW MicroWedge MW10 is collaboration between original MicroWedge Series inventor Dave “Rat” Levine (owner of Rat Sound Systems, Inc.) and the EAW Engineering Department, resulting in dramatically upgraded performance and ergonomics. The coaxial design pairs a 10-inch woofer with a 1.75-inch voice-coil compression driver to provide full yet controlled 90-degree conical dispersion.

All frequencies emanate from the exact same point, eliminating crossover region problems and time/phase irregularities, as well as optimizing coherency. The coaxial approach also contributes to a very compact, low-profile footprint.

The port on the front of the cabinet enhances LF response in coupling with the floor, the opening also houses a convenient carrying handle and dual NL4 connectors.

The MW10 enjoys the advantage of working equally well as a stage monitor or as a console bridge monitor. It was designed with a sturdy balance so that when set upright (on its backside) it rests easily on either side of a console bridge. A conveniently located pair of NL4 connectors further simplifies console setup. An optional pole mount is also available.

The MW10 monitor is protected with EAW’s RoadCoatTM which provides tremendous scratch resistance, and the rugged steel grille keeps its distinctive shape even if stood upon. Points for Omni-mount plates are located the bottom of the MW10 to aid in hanging the monitors.

For applications that require enhanced performance the MW10 can be optimized using the EAW UX8800 digital signal processor.

View Product Features

Highly coherent coaxial design (10-inch woofer,vented)
Enhanced fidelity and power handling
Upgraded transducers and crossover design
Convenient input connector location
Sturdy balance for console bridge monitor use

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the EAW MW10-BK 2-Way Full Range Passive Stage Monitor (Black)

The EAW MW10-BK is a compact, two-way passive stage monitor designed to deliver clear, articulate sound for performers in a wide range of live sound applications. As a member of EAW's MicroWedge series, this 10-inch model is engineered to provide a balance of powerful projection and precise mid-range clarity, making it suitable for vocalists, instrumentalists, and bands in small to medium-sized venues. Its trapezoidal enclosure is optimized for use as a floor monitor, coupling effectively with the stage to enhance low-end presence and deliver sound directly to the artist. The passive design requires connection to an external power amplifier and system processor, granting monitor engineers full control over the final EQ, limiting, and crossover points to perfectly tailor the wedge's response to the performer's specific needs.

The monitor features a 10-inch low-frequency driver paired with a 1-inch high-frequency compression driver on a wide-dispersion horn. This driver combination is built to handle substantial power input while maintaining low distortion, ensuring the monitor can deliver high sound pressure levels with reliability. The crossover network is designed for smooth integration between the drivers, preserving phase coherence and tonal balance. The cabinet is constructed from durable plywood with a rugged, textured black paint finish, built to withstand the physical demands of touring and frequent handling. Integrated handles and a low-profile design facilitate easy placement and transport, while multiple rigging points offer additional flexibility for flown or stacked configurations in fixed installations.

For performers and monitor engineers seeking a dependable and rider-friendly wedge, the EAW MW10-BK offers professional-grade performance in a versatile package. Its focused dispersion pattern ensures the artist receives consistent audio with minimal stage spill, while its robust construction promises longevity. This monitor is a practical choice for clubs, houses of worship, touring acts, and rental companies that require a high-quality, passive stage monitor capable of reproducing detailed mixes at significant volume levels.

Key Features

Highly coherent coaxial design (10-inch woofer,vented)
Enhanced fidelity and power handling
Upgraded transducers and crossover design
Convenient input connector location
Sturdy balance for console bridge monitor use
