Electro-Voice

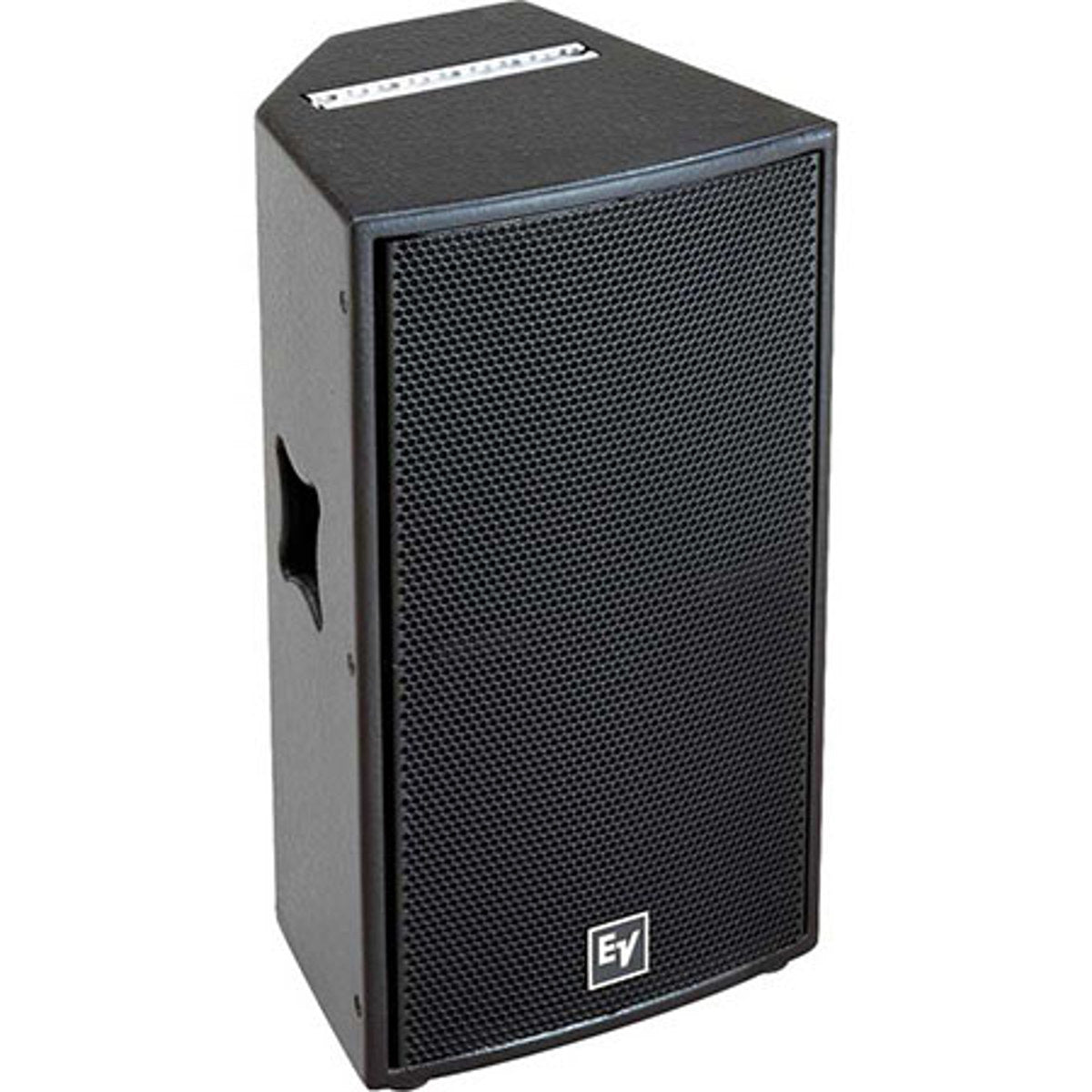

Electro-Voice QRx 112/75 12" Passive Loudspeaker

$0.00

The Electro-Voice QRX 112/75 12" 2-Way Full-Range Black Loudspeaker (Single) incorporates a 12" woofer and a 3-inch voice coil compression driver on an asymmetrical 75-degree x 50-degree fully rotatable constant-directivity horn. In factory-delivered position the horn provides a 15-degree up/35-degree down vertical coverage pattern. The five-sided cabinet design allows this main PA system cabinet to easily conform to duties as a floor monitor or to be tucked tightly against a ceiling for low-profile applications. The fully rotatable horn means that regardless of cabinet position, pattern control is fully user-determined.

The QRX-112/75 is a good solution for small-to-medium size rooms as a main PA, providing optimized midrange reproduction for speech intelligibility and vocal clarity at moderate levels. As a floor monitor, the tight and clear midrange coupled to a large format HF diaphragm helps cut through stage rumble while delivering smooth reproduction. The asymmetrical horn can allow a single box to more adequately direct the high frequencies as needed, as well as streamline multi cabinet arrays by extending horizontal coverage while minimizing overlapping and allowing tighter packs between the cabinets.

View Product Features

  • 15" woofer, 1" titanium high-frequency compression driver
  • Handles up to 1200W peak (300W continuous)
  • 52 Hz to 19 kHz frequency range (-10 dB), 77 Hz to 16 kHz frequency response (-3 dB)
  • Durable polypropylene enclosure
  • 90 Degree horizontal coverage, 60 Degree vertical coverage
  • Integrated handles and three M10 suspension points
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Electro-Voice QRx 112/75 12" Passive Loudspeaker

The Electro-Voice QRx 112/75 is a high-performance, 12-inch two-way passive loudspeaker engineered for demanding sound reinforcement in touring, portable, and installed applications. This enclosure integrates a long-excursion 12-inch woofer with a 1.5-inch titanium diaphragm compression driver, coupled to a wide-dispersion constant directivity horn, and managed by a precision passive crossover network. This configuration is designed to deliver powerful low-end punch, articulate midrange, and clear high-frequency reproduction, making it suitable as a versatile main speaker for live music, a high-output stage monitor, or a reliable component in fixed installations for clubs and houses of worship.

Constructed for durability in rigorous professional environments, the cabinet is built from void-free birch plywood and finished with a rugged, textured coating that withstands frequent handling and transport. Its trapezoidal shape facilitates flexible arraying, allowing it to be used as a standalone cabinet or combined with others to form larger systems for extended coverage. The design incorporates integrated handles, robust steel corners, and multiple heavy-duty fly points with internal bracing, providing safe and practical options for ground-stacking, pole-mounting, or flying the system. These features prioritize both acoustic performance and the logistical needs of touring crews.

Sonic performance is characterized by high sensitivity, substantial power handling, and a broad, even dispersion pattern that ensures consistent coverage across wide audience areas. The loudspeaker's ability to achieve high sound pressure levels with low distortion and clear intelligibility makes it a reliable choice for sound engineers who require a balance of power and precision. As a cornerstone of a professional audio arsenal, the QRx 112/75 offers a versatile and dependable solution for a wide range of high-output sound reinforcement challenges.

Key Features

  • 15" woofer, 1" titanium high-frequency compression driver
  • Handles up to 1200W peak (300W continuous)
  • 52 Hz to 19 kHz frequency range (-10 dB), 77 Hz to 16 kHz frequency response (-3 dB)
  • Durable polypropylene enclosure
  • 90 Degree horizontal coverage, 60 Degree vertical coverage
  • Integrated handles and three M10 suspension points

Electro-Voice QRx 112/75 12" Passive Loudspeaker Specs

Driver & Crossover Configuration
Woofer Size
12-inch
Compression Driver
1.5-inch Titanium Diaphragm
Crossover Type
Passive Network
Acoustic Performance
Frequency Response
55 Hz - 18 kHz (±3 dB)
Sensitivity (1W/1m)
98 dB
Maximum SPL
132 dB Peak
Power & Impedance
Power Handling (RMS)
400 Watts
Power Handling (Program)
800 Watts
Nominal Impedance
8 Ohms
Dispersion & Coverage
Horn Design
Wide-Dispersion Constant Directivity
Horizontal Dispersion
75 Degrees
Vertical Dispersion
40 Degrees
Physical & Touring Specs
Enclosure Material
Void-Free Birch Plywood
Mounting Options
Fly Points, Pole Socket, Stackable
Finish
Textured Black Touring Coating
Application & Use
Primary Application
Live Sound Main, Monitor, Installation
System Role
High-Output Full-Range Loudspeaker
Deployment
Ground-Stack, Flown, or Pole-Mounted

Key Features

  • 15" woofer, 1" titanium high-frequency compression driver
  • Handles up to 1200W peak (300W continuous)
  • 52 Hz to 19 kHz frequency range (-10 dB), 77 Hz to 16 kHz frequency response (-3 dB)
  • Durable polypropylene enclosure
  • 90 Degree horizontal coverage, 60 Degree vertical coverage
  • Integrated handles and three M10 suspension points
