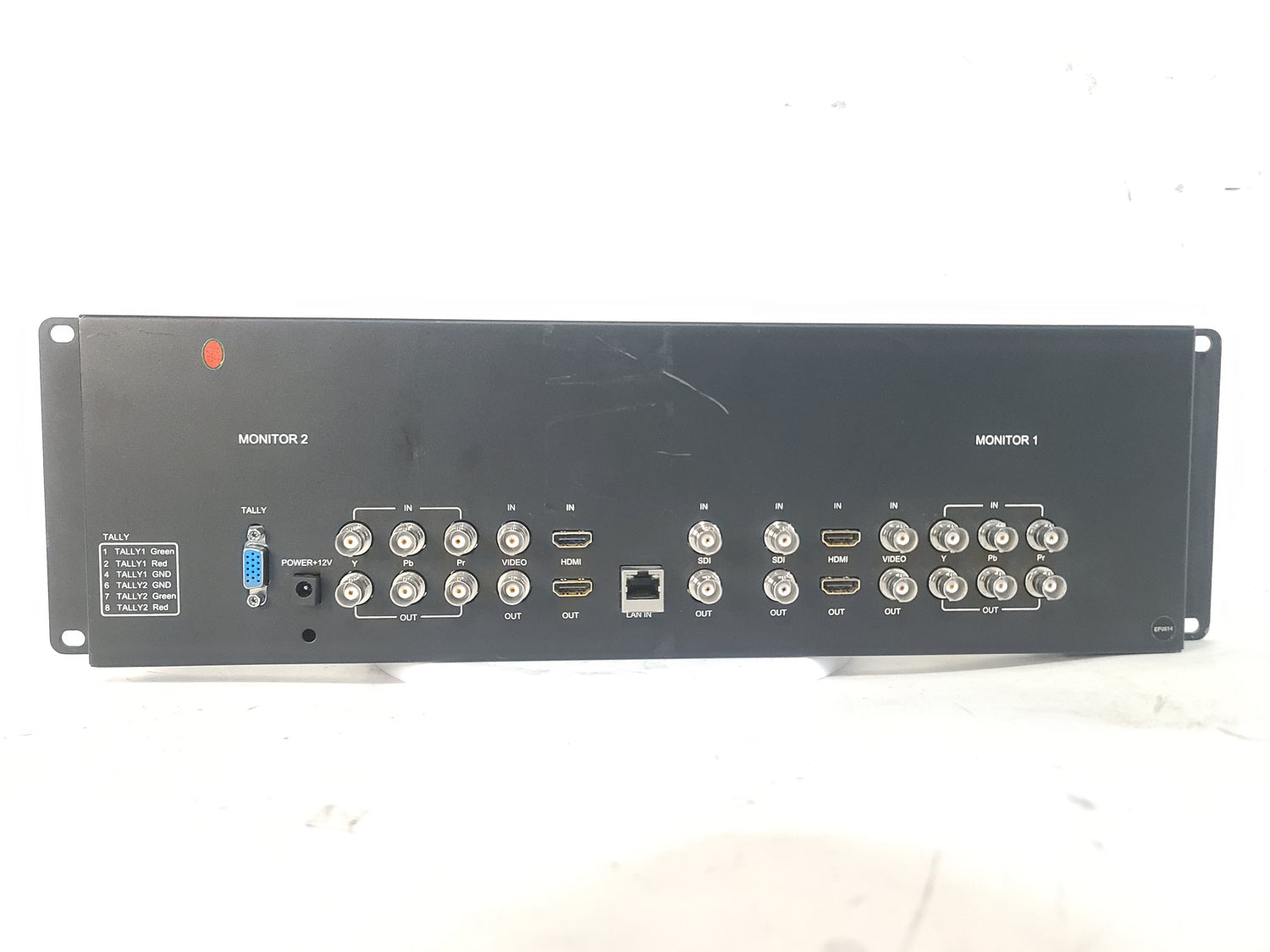

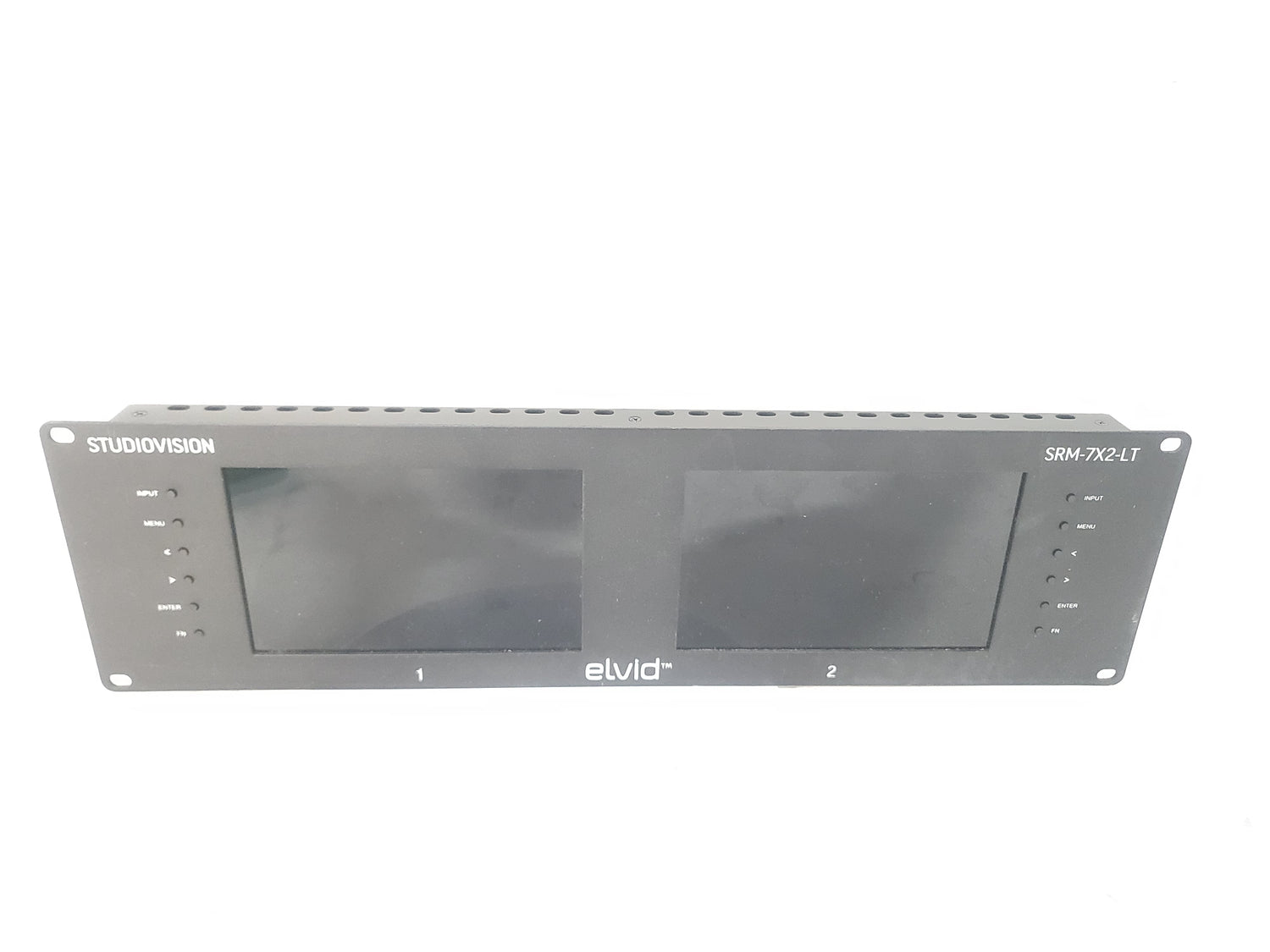

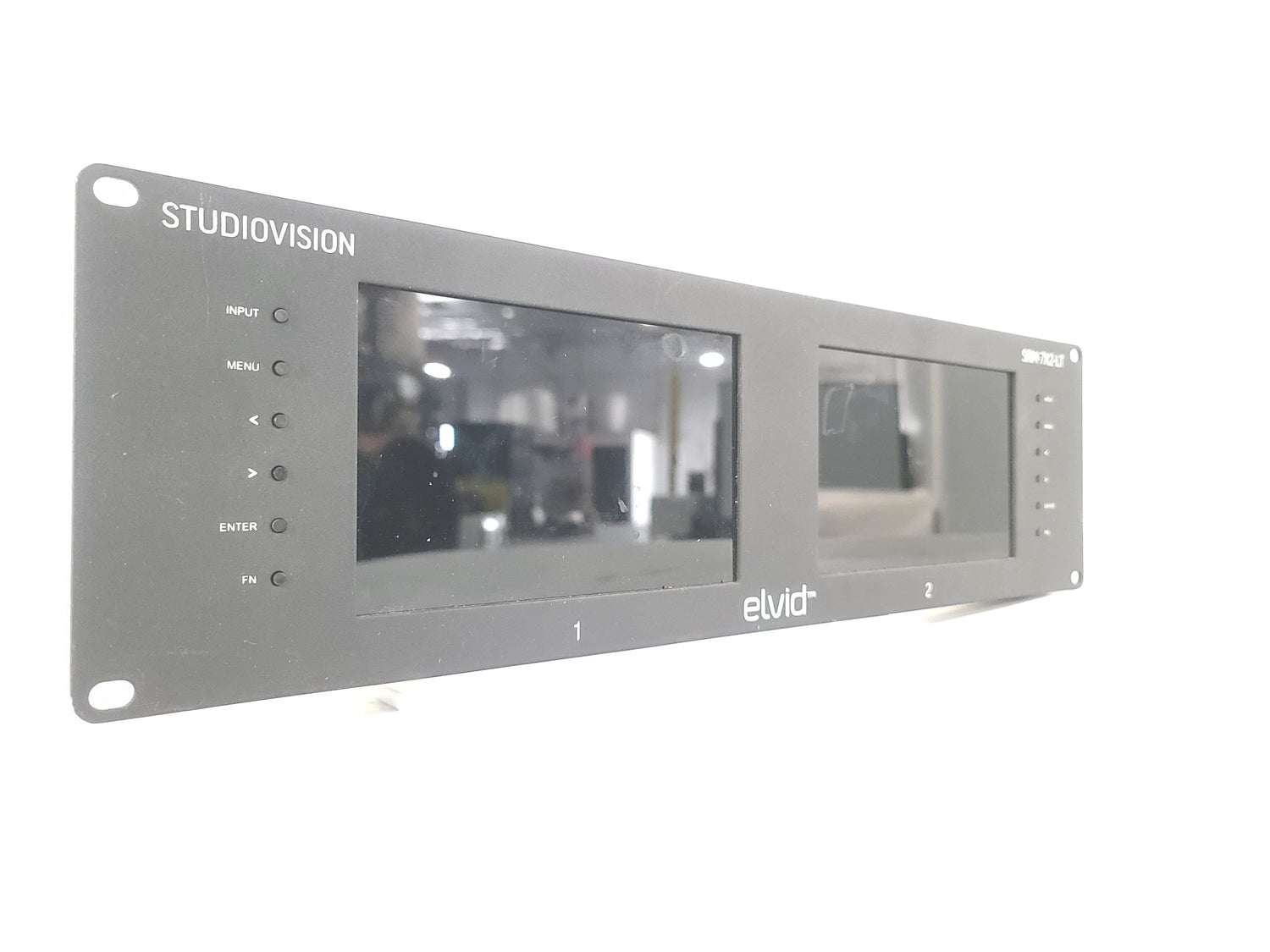

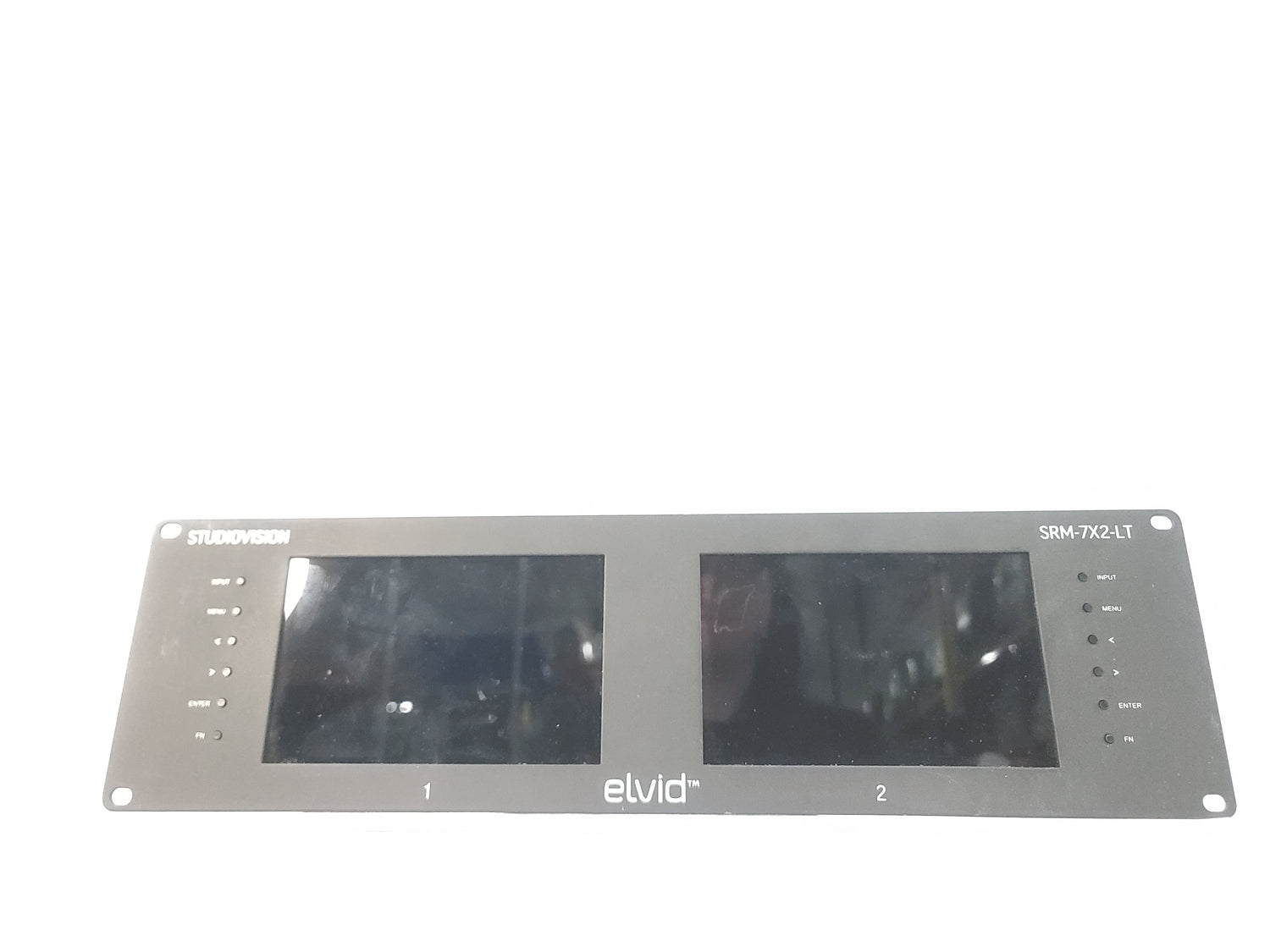

The Elvid SRM-7X2-LT StudioVision is a professional dual 7-inch monitor rackmount unit designed for broadcast, production, and studio environments requiring reliable multi-signal monitoring in a compact 19-inch rack space. Featuring two LED-backlit IPS LCD panels with 1280 x 800 resolution, 800:1 contrast ratio, and 178° wide viewing angles, this unit delivers accurate image representation with consistent color and clarity from virtually any position. Each monitor operates independently, accepting simultaneous 3G-SDI, HDMI, Composite, and Component inputs with corresponding loop outputs, enabling seamless integration into complex signal chains without additional distribution amplifiers. The StudioVision provides extensive monitoring tools including Pixel-to-Pixel zoom up to 8x, H/V Delay, Underscan, multiple safety markers, and Picture-in-Picture with Picture-by-Picture and Picture-over-Picture modes for flexible image arrangement. An assignable function button per monitor allows operators to customize frequently used features for rapid access during critical productions. The DB-15 tally connector with included bare-end adapter integrates with production intercom systems, while Ethernet connectivity enables full remote control via included software for centralized management of multiple units. With support for multiple aspect ratios including 16:9, 4:3, 1.85:1, and 2.35:1, plus HDCP compliance and adjustable color temperature, the Elvid StudioVision delivers professional-grade monitoring versatility in a space-efficient rackmount form factor. Read more

Features
