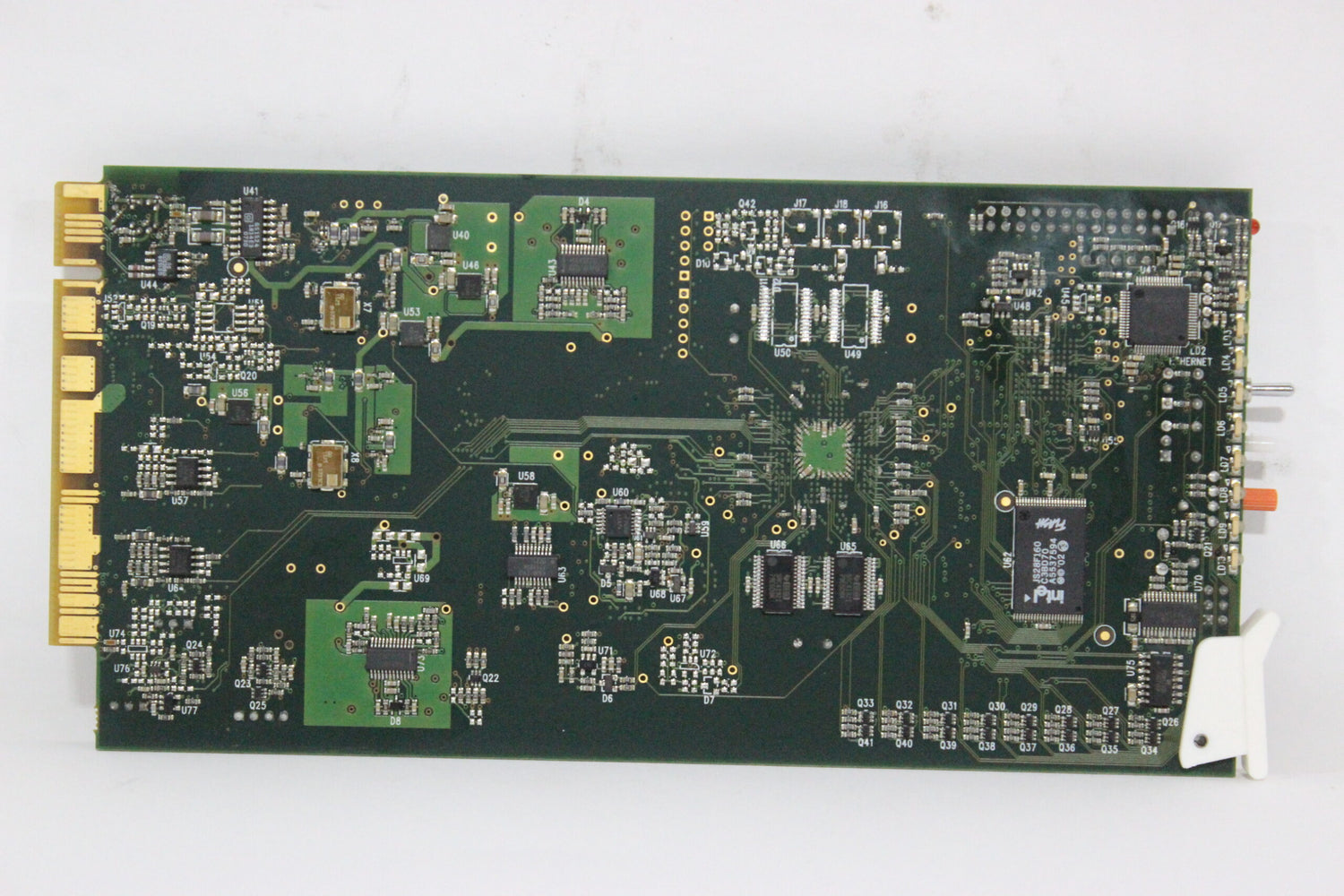

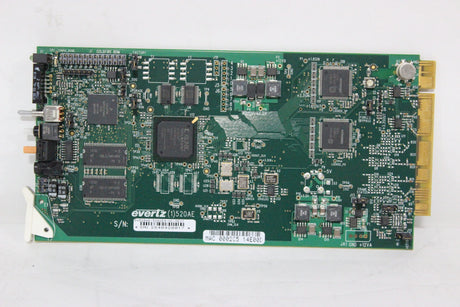

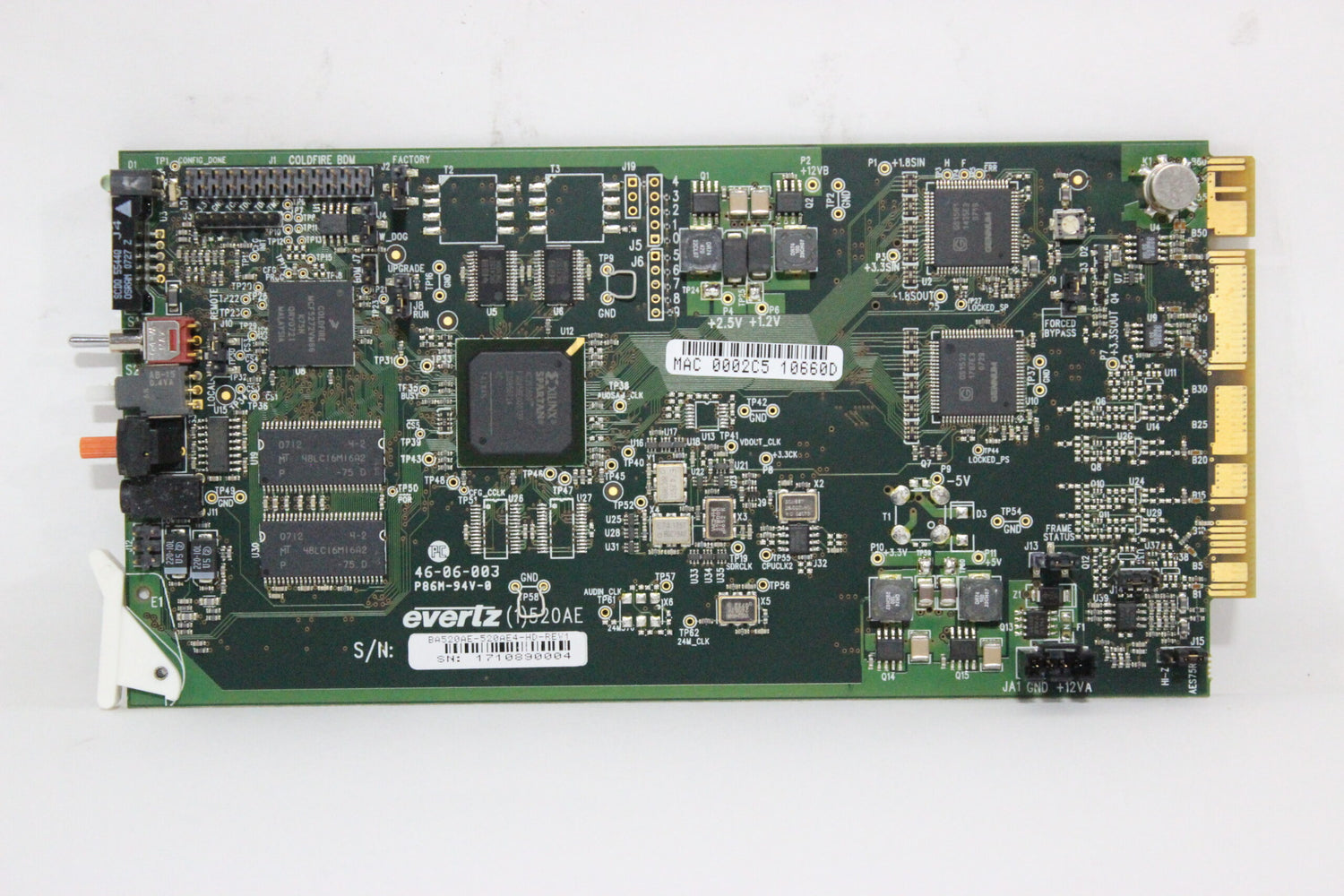

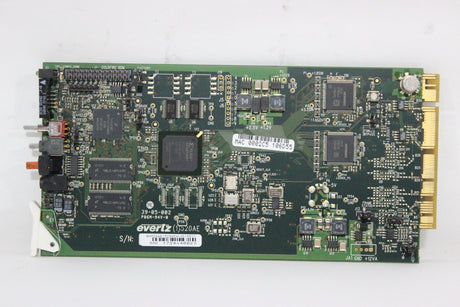

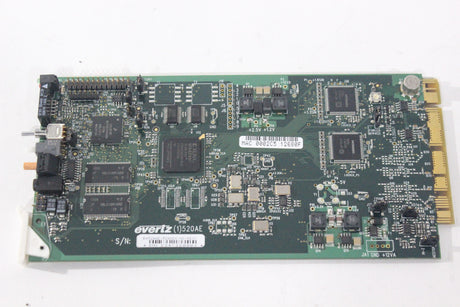

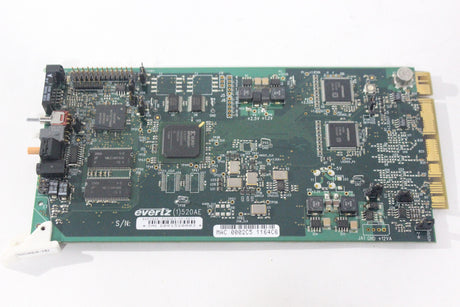

The Evertz 520AE4-HD is a professional audio embedder module designed to insert external digital audio into high-definition or standard definition serial digital video (HD/SD-SDI) streams. Its primary function is to accept up to four channels of external AES/EBU digital audio and multiplex them into the ancillary data space of an incoming SDI video signal. This process is fundamental in broadcast production, master control, and distribution workflows where audio from external mixers, audio servers, or satellite receivers must be combined with a video feed to create a unified program stream for transmission, recording, or further routing. The module ensures precise synchronization (lip-sync) between the embedded audio and the video, maintaining broadcast quality throughout the signal chain.

Engineered for reliability in a stand-alone or rack-mounted format (as part of a larger Evertz frame system), the 520AE4-HD features high-quality digital audio processing. It accepts an SDI video input, extracts its timing reference, and uses this clock to synchronize the incoming AES audio channels before embedding them. The module supports a variety of audio formats and sampling rates, ensuring compatibility with different source equipment. It typically includes status indicators and control interfaces for easy integration into broadcast systems, allowing for remote configuration and monitoring in larger installations. This enables operators to add commentary, multiple language tracks, or corrected audio mixes to video feeds with confidence.

As a critical component in modern broadcast infrastructure, the Evertz 520AE4-HD provides a flexible and high-fidelity solution for audio-video integration. It is commonly used in playout centers, production studios, and mobile trucks to enhance program feeds before they go to air. By performing reliable audio embedding, it simplifies signal paths, reduces the need for separate audio follow workflows, and ensures that the final program complies with broadcast standards for embedded audio.
