Evertz

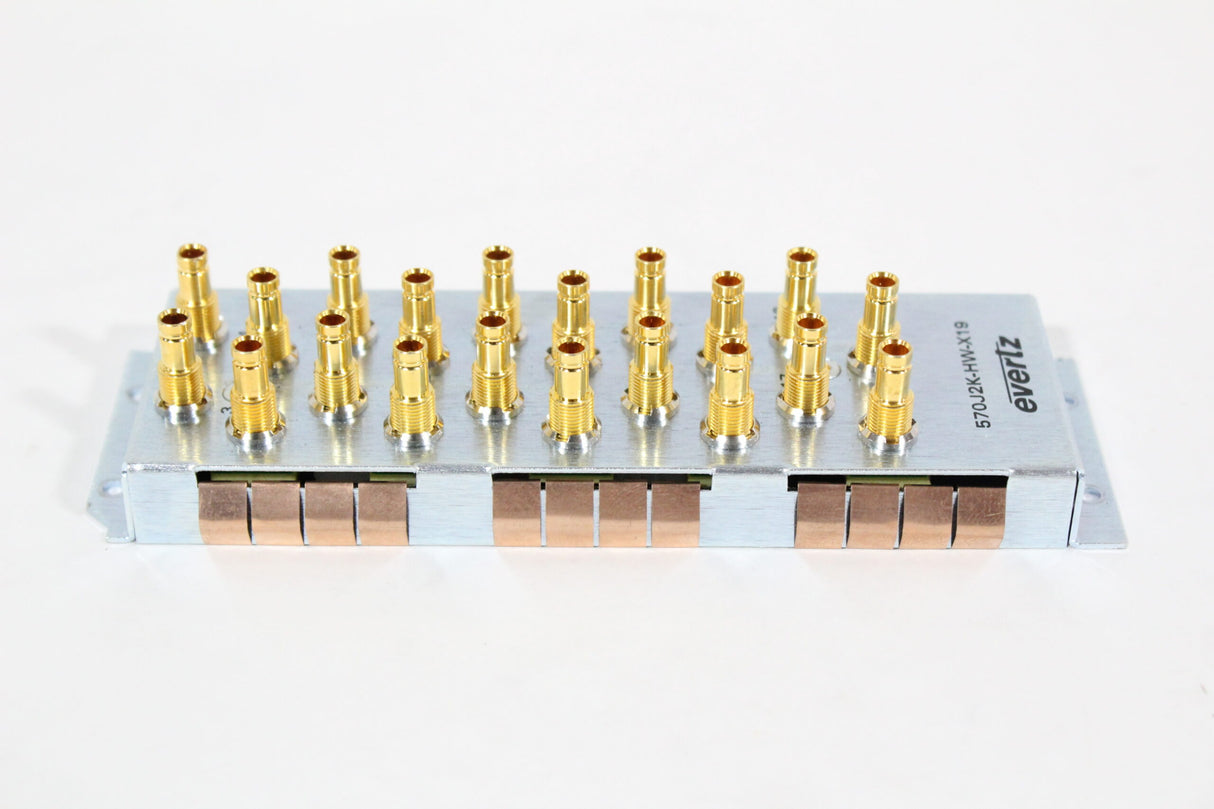

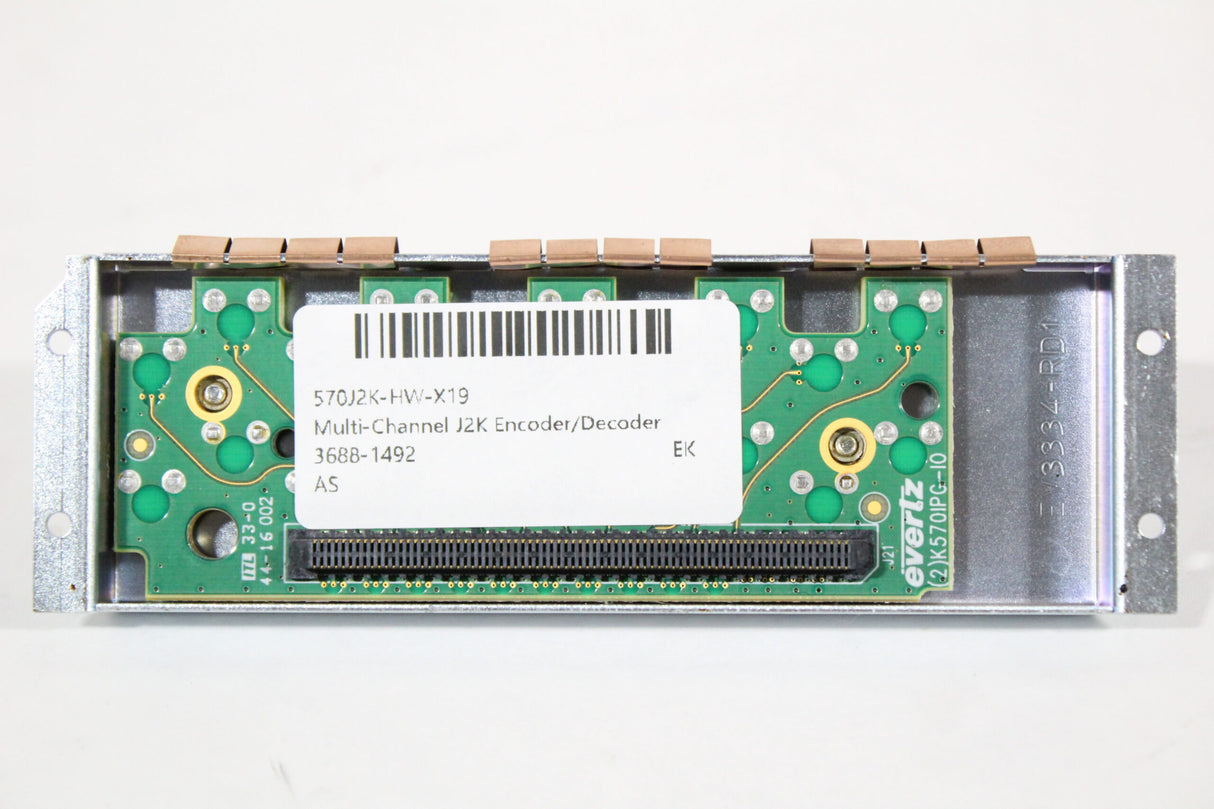

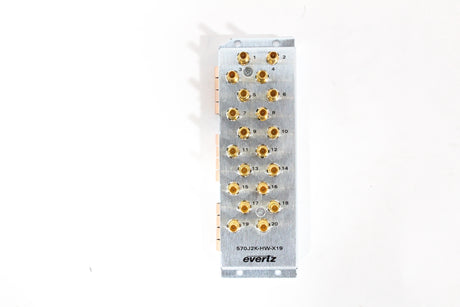

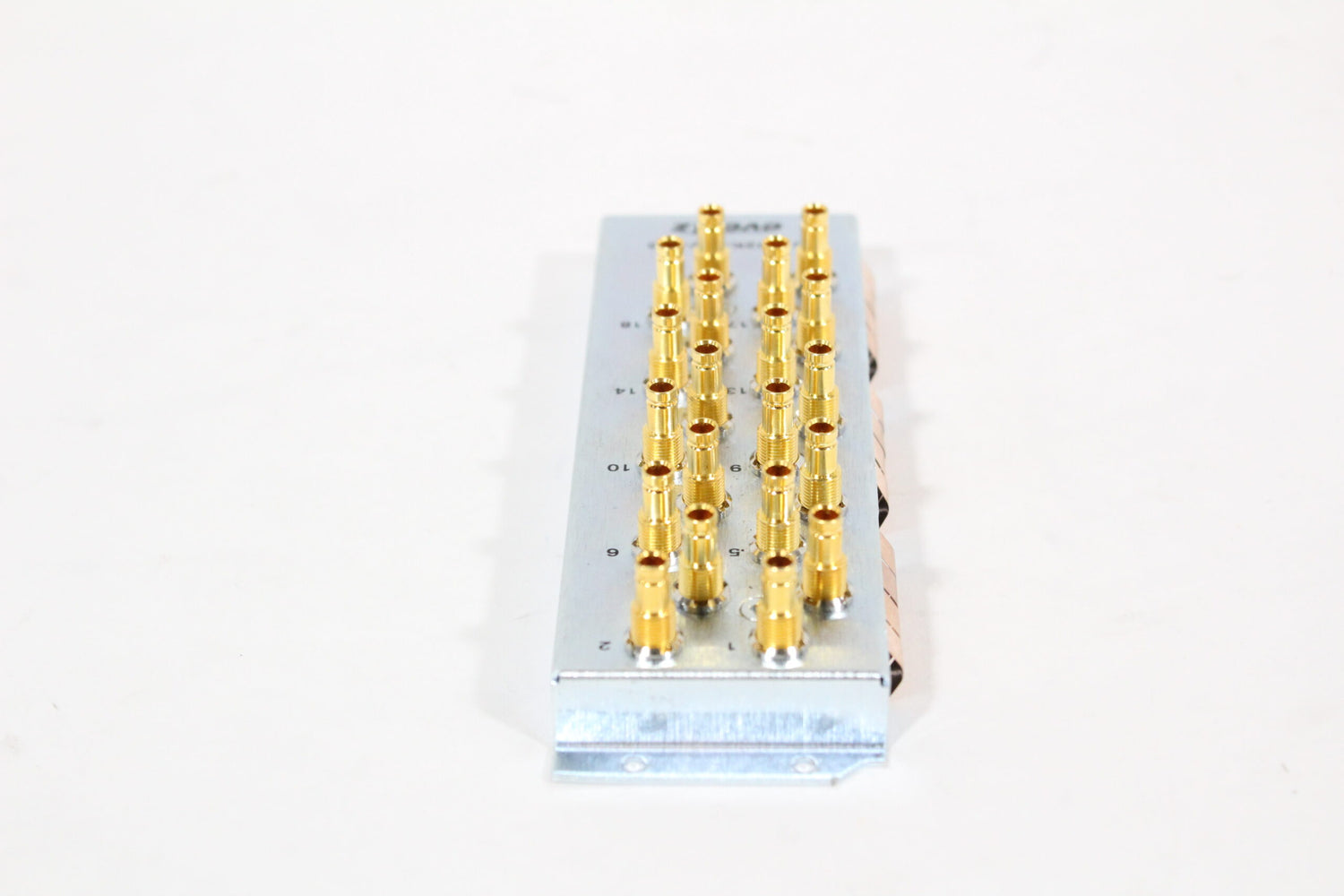

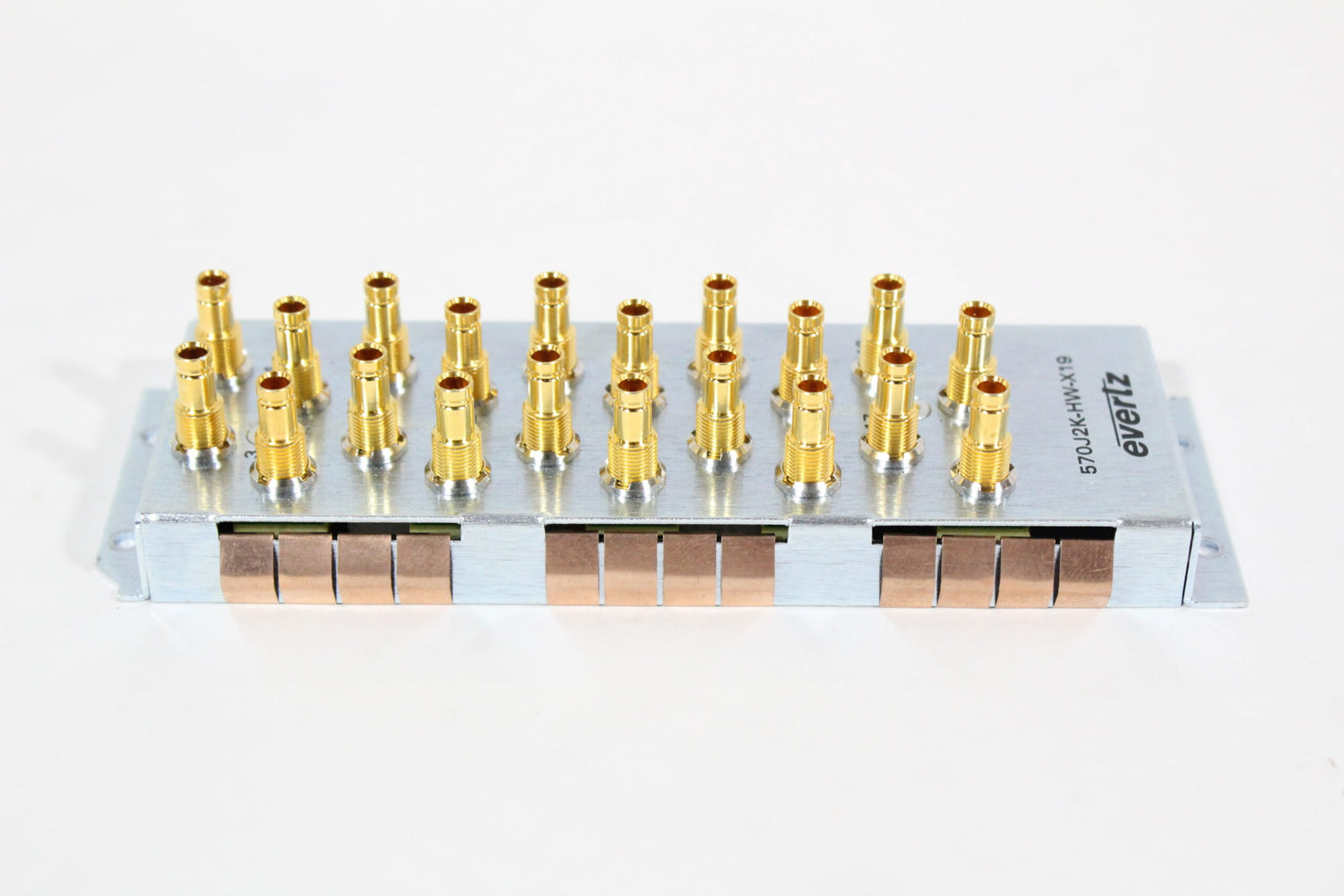

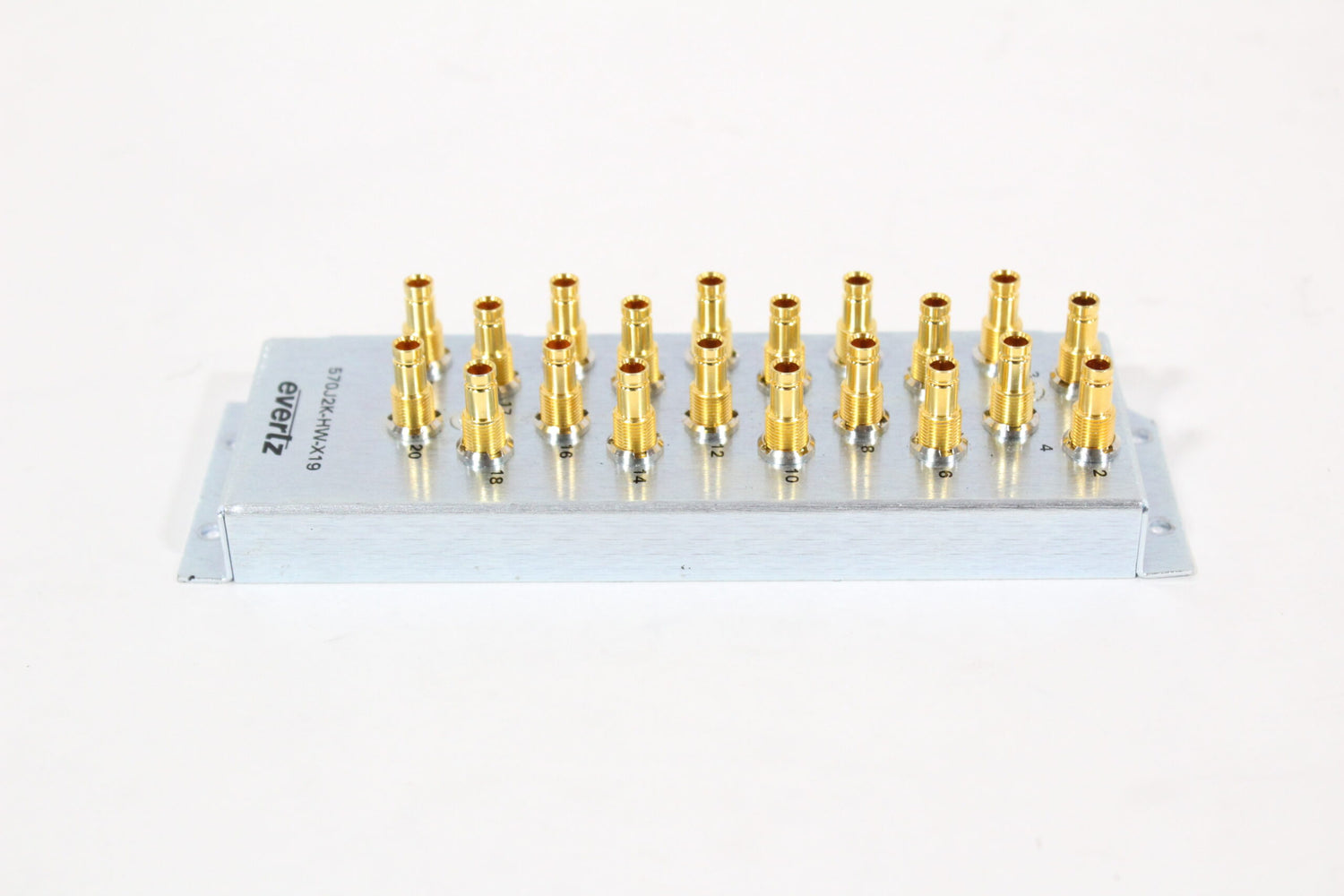

Evertz 570J2K-HW-X19 Multi-Channel J2K Encoder/Decoder

$100.00

The 570J2K-HW-X19 is the optimal multi-channel J2K encoding and decoding platform. With direct conversion of up to 12x signals utilizing JPEG2000 mezzanine compression, the 570J2K-HW-X19 series delivers unparalleled processing density. Equipped with Advanced Encryption Standard (AES128), the 570J2K-HW-X19 provides industry-leading encryption. The exceptional density of the 570J2K-HW-X19 supports up to 12x channels of 3G, HD/SDI, SD/SDI, or up to 3x channels of UHD JPEG2000 encoding. The 570J2K-HW-X19 will support up to 9x channels of 3G, HD/SDI, SD/SDI JPEG2000, or 2x channels of UHD JPEG200 decoding. With a truly unique and flexible design, the 570J2K-HW-X19 supports a variety of operating modes. Supported modes include: 12x JPEG2000 encodes, or 9x JPEG2000 decodes or 6x JPEG2000 encodes/6x decodes and 4x JPEG2000 encodes/4x decodes on a single 570J2K-HW-X19 module.

As infrastructures continue to migrate to an all-IP workflow, we provide further flexibility with more supported modes, including 9x uncompressed IP inputs SMPTE ST 2022-6 or ST 2110 and provide 9x JPEG2000 encodes; or 9x JPEG2000 decodes providing 9x uncompressed IP outputs SMPTE ST 2022-6 or ST 2110, or 4x uncompressed IP inputs SMPTE ST 2022-6 or ST 2110 with 4x JPEG2000 encodes and with 4x JPEG2000 decodes and 4x uncompressed IP outputs SMPTE ST 2022-6 or ST 2110. The 570J2K-HW-X19 features Evertz’ fourth-generation ultra-low latency, high-density JPEG2000 codec technology over multiple dedicated 10GbE links and 2x dedicated 1GbE links.

The 570J2K-HW-X19 will provide auto-timing time-stamped Ethernet outputs, and multi-resolution JPEG2000 streaming outputs and incorporates patent-pending multi-path, multi-flow packet merge base network bit error resilience for 100% QoS. Adding to the unique one-of-a-kind platform, the 570J2K-HW-X19 also supports modes that include TICO compression encoding and decoding. The exceptional density of the 570J2K-HW-X19 supports up to 4x channels of UHD TICO encoding or decoding. 570J2K-HW-X19 also supports the latest XS encode/decode compression. The flexible APP architecture supports APPs for 12x XS encodes up to 3G-SDI, 9x XS decodes up to 3G-SDI, 4x XS encodes for 4x channels of UHD QSD SDI to XS and lastly, 4x XS decodes for up to 4x channels of UHD XS to SDI QSD.

View Product Features
  • 4x groups of audio encapsulated
  • Full VANC encapsulation and pass-through
  • Video JPEG2000 decoded from native resolution
  • 4x groups of audio de-capsulated
  • Full VANC de-encapsulation and embedding on SDI outputs
  • Modules support control over frame controller or direct Ethernet interface
  • SNMP control from VistaLINK or MAGNUM unified control
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

    No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Evertz 570J2K-HW-X19 Multi-Channel J2K Encoder/Decoder

The Evertz 570J2K-HW-X19 is a high-density, multi-channel hardware-based JPEG 2000 (J2K) encoder and decoder module designed for the Evertz 5700 series modular platform. Its primary function is to perform real-time, mezzanine-level compression and decompression of multiple channels of high-definition (HD) or ultra-high-definition (UHD) video for contribution and distribution applications. JPEG 2000 compression is favored in the broadcast industry for its high visual quality at low latencies, making it ideal for live sports, news gathering, and primary distribution where picture integrity is paramount. This module can encode multiple incoming baseband SDI video streams into compressed J2K streams for transport over IP networks, and conversely, decode incoming J2K IP streams back to baseband SDI.

Engineered for mission-critical broadcast operations, this hardware-based module delivers consistent performance and low, predictable latency that software-based encoding often cannot guarantee. The "multi-channel" and "X19" designation indicates a high channel density, allowing many video feeds to be processed in a single module within a 1RU or 2RU chassis slot, optimizing rack space and power efficiency in central facilities. It supports professional video workflows with features like redundant power inputs, SNMP monitoring, and integration into Evertz's comprehensive software-defined networking (SDN) and control systems for easy management and integration into larger media-over-IP fabrics.

As a core component of modern IP-based broadcast infrastructure, the 570J2K-HW-X19 enables efficient and high-quality transport of video over managed IP networks. It is used by broadcasters and content distributors for long-haul contribution links, cloud production, and as a core codec within media-over-IP switching systems like SMPTE ST 2110. By providing reliable, high-density J2K processing in a hardware form factor, it supports the industry's transition to all-IP facilities while maintaining the quality standards required for professional broadcast television.

Key Features

  • 4x groups of audio encapsulated
  • Full VANC encapsulation and pass-through
  • Video JPEG2000 decoded from native resolution
  • 4x groups of audio de-capsulated
  • Full VANC de-encapsulation and embedding on SDI outputs
  • Modules support control over frame controller or direct Ethernet interface
  • SNMP control from VistaLINK or MAGNUM unified control

Evertz 570J2K-HW-X19 Multi-Channel J2K Encoder/Decoder Specs

General
Device Type
Multi-Channel JPEG 2000 Hardware Encoder/Decoder
Compatible Series
Evertz 5700 Series Modular Platform
Codec
JPEG 2000 (J2K)
Channel Capacity
Channels
Multiple HD or UHD channels per module (specific count denoted by "X19")
Interfaces
Input/Output
SDI for baseband video, 10/25/40/100 Gigabit Ethernet for IP transport
Compression Direction
Encode (SDI to J2K over IP) and Decode (J2K over IP to SDI)
Performance
Latency
Ultra-low, consistent latency (typical of hardware J2K)
Video Support
HD, 3G, and UHD/4K SDI standards
Integration
Chassis Compatibility
Evertz 5700 Series Frame
Control & Management
SNMP, Evertz software control platforms
Physical
Form Factor
Plug-in module for 5700 series chassis

Key Features

  • 4x groups of audio encapsulated
  • Full VANC encapsulation and pass-through
  • Video JPEG2000 decoded from native resolution
  • 4x groups of audio de-capsulated
  • Full VANC de-encapsulation and embedding on SDI outputs
  • Modules support control over frame controller or direct Ethernet interface
  • SNMP control from VistaLINK or MAGNUM unified control
