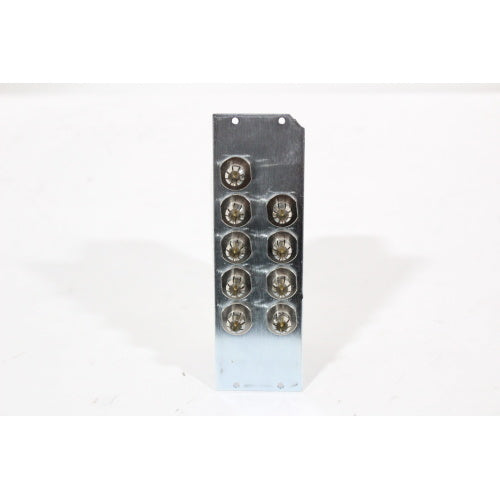

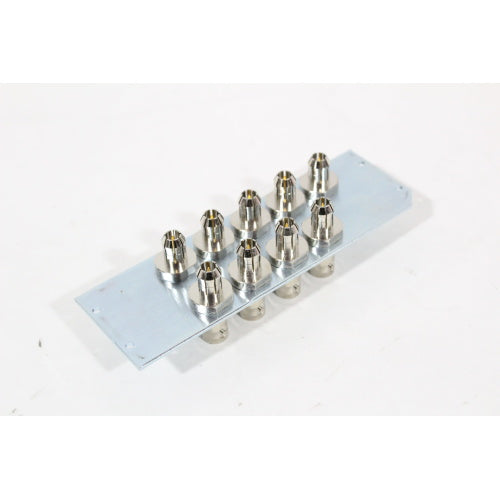

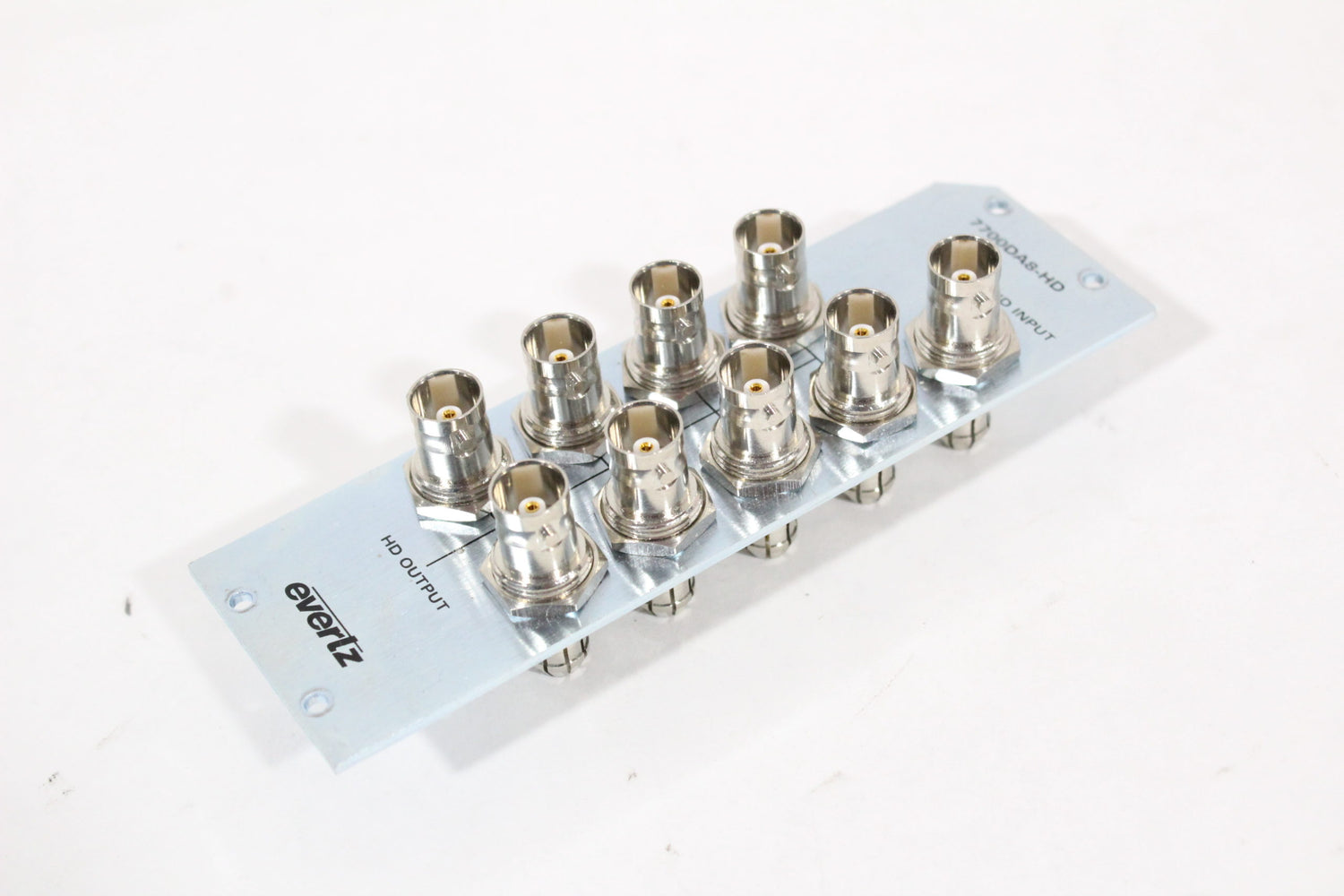

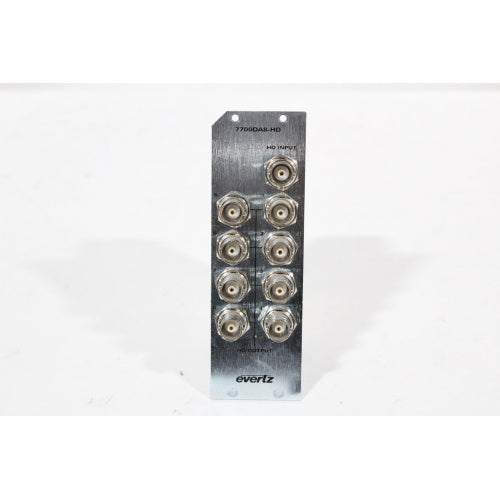

The Evertz 7700DA8-HD is a high-performance modular distribution amplifier card designed for the 7700-series backplane system, specifically engineered for the splitting and regeneration of high-definition serial digital video (HD-SDI) signals. In the dense, cable-rich environment of a broadcast facility, this card performs the critical task of taking a single HD-SDI source—such as the output from a camera, server, or router—and creating multiple, electrically isolated, and identical copies for distribution to various destinations like monitors, recording devices, encoders, and production switchers. Its core function extends beyond simple splitting; it actively re-clocks the incoming signal, stripping away accumulated jitter and retiming it to a clean, stable clock reference. This process is essential for maintaining signal integrity over long cable runs and through complex signal paths, preventing data errors that can manifest as picture break-up or complete loss.

The card is designed to be transparent and robust within the HD-SDI specification (SMPTE 292M). It accepts a 1.485 Gbps or 1.485/1.001 Gbps signal and provides eight fully independent, transformer-isolated outputs. Each output is a regenerated copy of the input, ensuring that any impedance mismatch or fault on one output leg does not affect the signal quality on the others. The reclocking circuitry is key to its performance, as it reduces timing uncertainties (jitter) to levels well within broadcast standards, ensuring downstream equipment can reliably lock to the signal. The card typically includes comprehensive status monitoring, with LEDs indicating the presence of a valid input signal and the operational status of the card itself.

As an integral part of the modular 7700 ecosystem, the DA8-HD card leverages the backplane's centralized power, cooling, and system control. It can be easily installed, configured, and monitored alongside other processing, conversion, and distribution cards within the same chassis. This modularity allows for the creation of a highly customized and dense signal distribution hub in a single rack unit. The Evertz 7700DA8-HD provides broadcast engineers with a fundamental, reliable building block for managing HD video infrastructure, ensuring that high-quality video signals can be distributed flawlessly throughout the facility from a centralized, manageable location.
