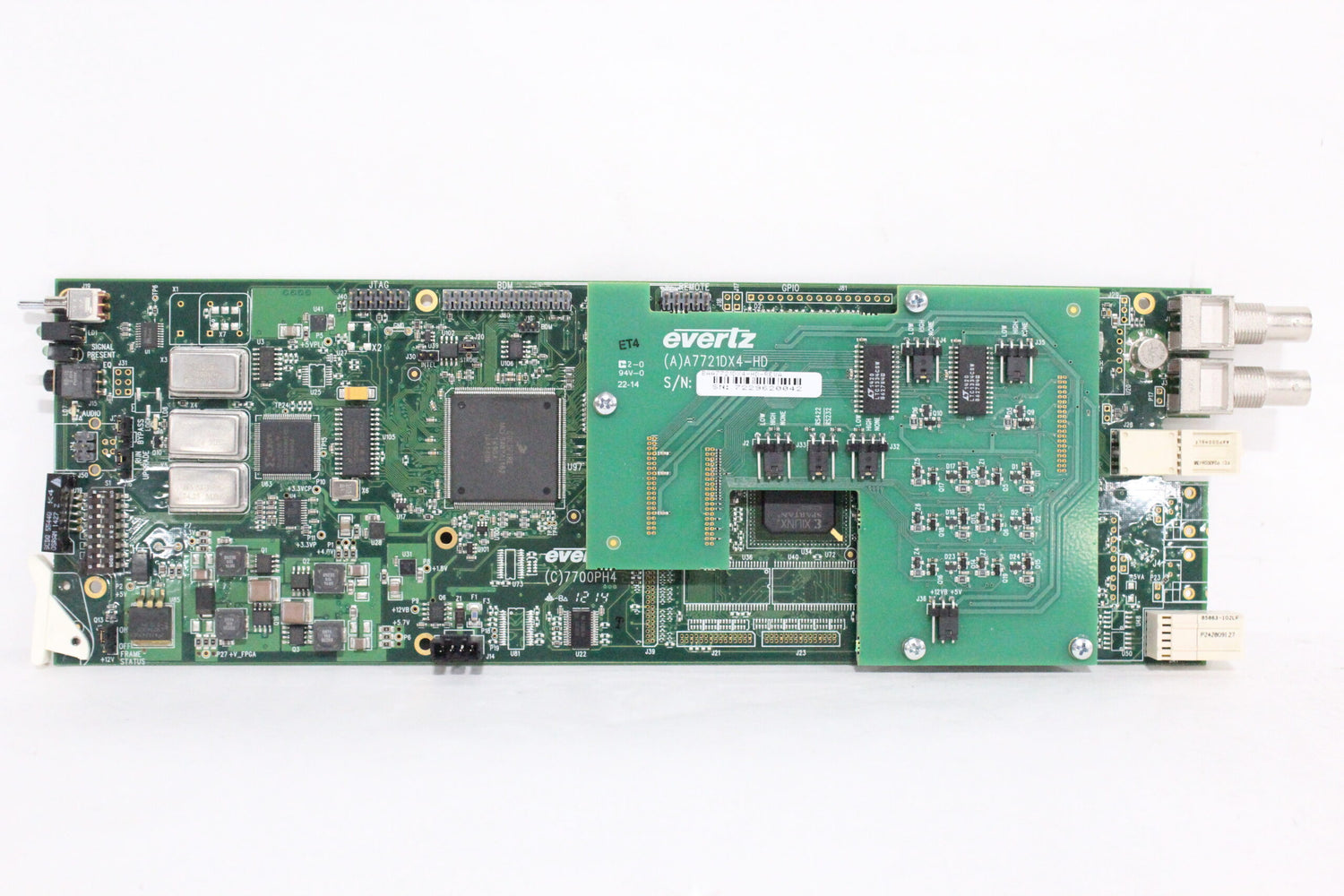

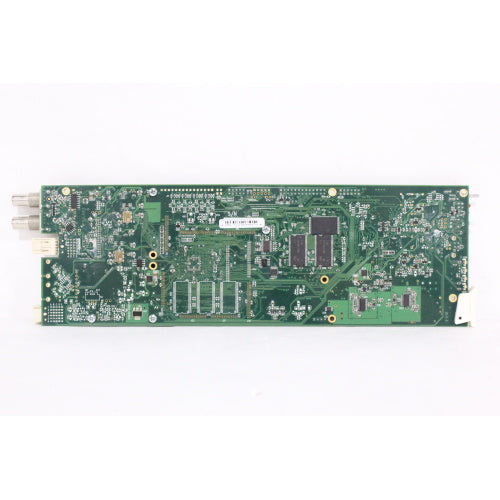

Evertz 7721 DE4-HD Audio De-Embedder

The Evertz 7721DE4-HD is a professional audio de-embedder module designed for integration within a modular frame system, specifically tasked with the precise extraction of multiple channels of digital audio from a high-definition serial digital video stream. This function is fundamental in broadcast and production facilities where embedded audio within an HD-SDI signal must be separated for independent processing, routing, monitoring, or distribution. The module accepts an HD-SDI input carrying embedded audio, cleanly demultiplexes up to four discrete AES audio pairs (eight total channels) from the ancillary data space, and outputs them as independent AES/EBU digital audio streams while simultaneously passing through a re-clocked version of the original video. This allows for flexible signal management, enabling audio to be sent to a dedicated audio router, console, or processor while the video continues on its own path.

The de-embedding process is performed with high precision to maintain the original audio's sample rate, phase coherence, and timing relationship with the video. This is critical to prevent lip-sync errors when the audio and video are eventually recombined or processed separately. The module typically provides comprehensive control over which audio groups or channels are extracted, allowing operators to select specific pairs from the embedded stream. Advanced units often include monitoring capabilities such as audio presence detection and level indication accessible via the system's control software. The design ensures signal integrity is preserved, with no degradation to the audio quality, making it suitable for critical path applications in master control, post-production, and live production environments.

Housed as a single card within a centralized frame, the 7721DE4-HD exemplifies the efficiency and scalability of modular broadcast systems. It consolidates the function of multiple standalone de-embedders into a single rack unit slot, sharing system power, control, and synchronization. This integration simplifies system design, reduces cabling, and enhances overall reliability. By providing a reliable and configurable method to separate audio from video, the module serves as an essential interface point, enabling sophisticated audio-for-video workflows and ensuring that high-quality audio can be independently managed within a comprehensive signal processing infrastructure.
