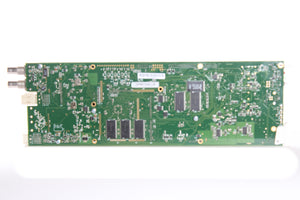

The Evertz 7746FS-EAES4-HD is a high-density, multi-format frame synchronizer card designed for installation within Evertz's 7700 series frames, a staple platform for broadcast and professional video infrastructure. This specific model, the "+3RU" version, comes pre-installed in a compact 3-rack-unit chassis, providing a self-contained, ready-to-deploy solution for synchronizing and processing multiple channels of HD or SD SDI video. Its core function is to accept asynchronous video inputs, align them to a common house reference signal (black burst or tri-level sync), and output perfectly timed, genlocked video streams. This is critical in broadcast plants where signals from various sources—such as satellite feeds, remote trucks, and servers—must be synchronized before switching, recording, or further processing to prevent glitches, rolls, or disruptions.

The card offers advanced processing capabilities beyond simple synchronization. It typically includes features such as audio embedding/de-embedding, aspect ratio conversion, closed caption and ancillary data processing, and sophisticated audio delay adjustment to maintain lip-sync. The inclusion of "EAES" in the model number often denotes enhanced audio embedding and de-embedding functionality, allowing for flexible routing and processing of up to 16 channels of audio per video channel. The frame provides redundant, hot-swappable power supplies and cooling fans, ensuring maximum uptime for mission-critical broadcast operations. Configuration and monitoring are managed via Evertz's intuitive software, allowing for remote control and status overview of every channel.

This system represents a modular and scalable approach to video synchronization. The 7746FS card can also be installed alongside other cards in larger frames, but the +3RU chassis offers a convenient, space-efficient solution for smaller channel counts or dedicated applications. Its reliability, comprehensive feature set, and integration into the broader Evertz ecosystem make it an industry-standard choice for ensuring signal integrity and timing coherence in television master control rooms, playout centers, and live production environments where flawless on-air presentation is non-negotiable.
