SKU: 1890-30

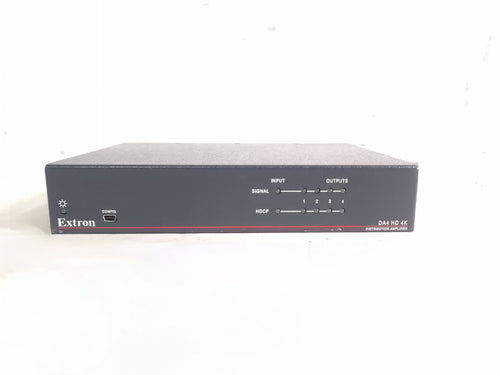

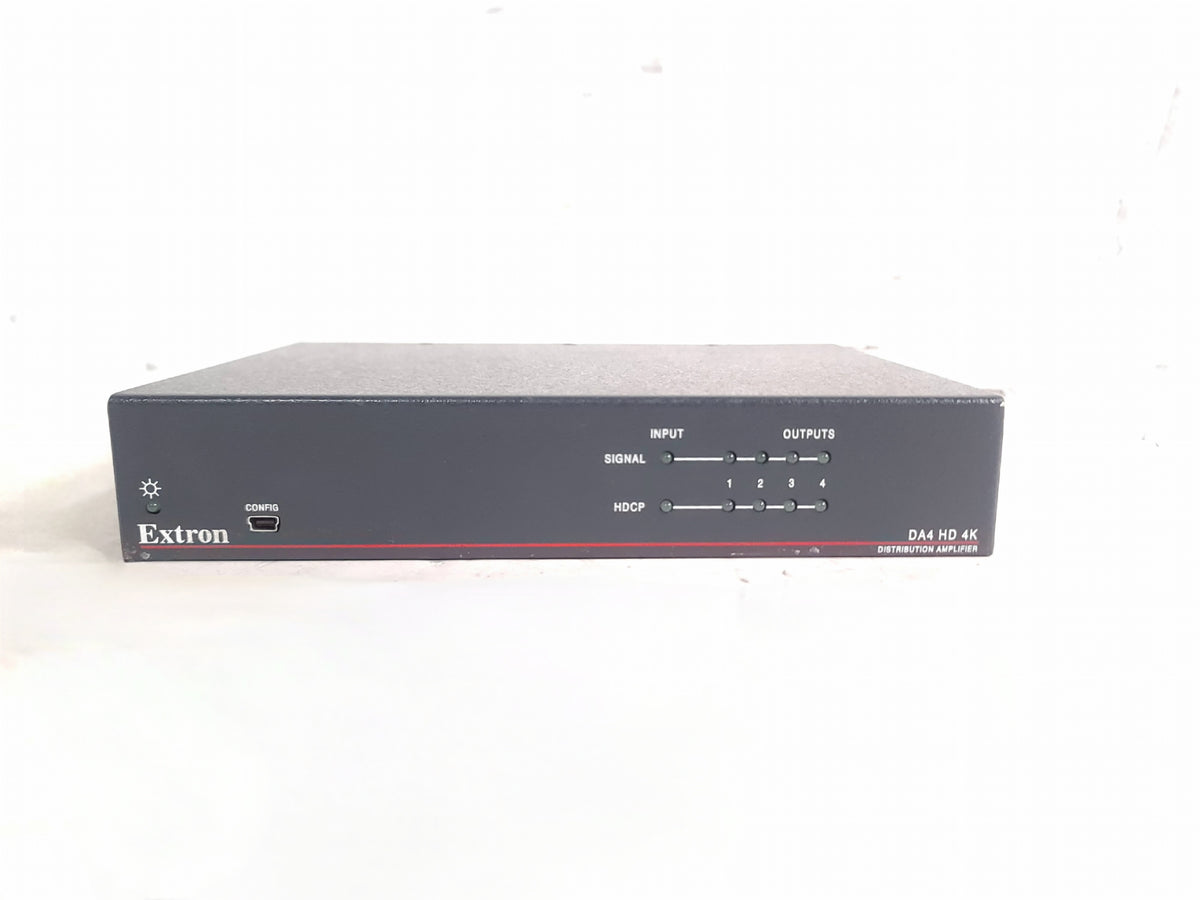

Extron DA4 HD 4K 4-Output HDMI Distribution Amplifier

$60.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Extron DA4 HD 4K is a professional 1-input, 4-output HDMI distribution amplifier designed to distribute a single HDMI source to four displays simultaneously while maintaining exceptional signal integrity. Supporting HDMI 1.4 features, it handles computer and video resolutions up to 4K (4096x2160 at 30 Hz) with data rates up to 10.2 Gbps, including Deep Color, 3D, HD lossless audio, and CEC pass-through. Extron's EDID Minder® technology automatically manages EDID communication between the source and connected displays, while Key Minder® ensures continuous HDCP authentication. Automatic input cable equalization and selectable output muting simplify installation, making the DA4 HD 4K ideal for classrooms, conference rooms, digital signage, and professional AV systems. Read more

Features

One HDMI input, four simultaneous outputs.
Supports resolutions up to 4K.
HDMI 1.4, 10.2 Gbps bandwidth.
EDID Minder® automatic EDID management.
Key Minder® HDCP authentication.
Automatic input cable equalization.
RS-232 control and output muting.

Business Financing Options Avaiable

View Available Financing

Features

One HDMI input, four simultaneous outputs.
Supports resolutions up to 4K.
HDMI 1.4, 10.2 Gbps bandwidth.
EDID Minder® automatic EDID management.
Key Minder® HDCP authentication.
Automatic input cable equalization.
RS-232 control and output muting.

No products currently in stock

About the Extron DA4 HD 4K 4-Output HDMI Distribution Amplifier

The Extron DA4 HD 4K is a professional-grade, 1-input to 4-output HDMI distribution amplifier engineered to reliably split a single HDMI video source to four separate displays simultaneously. Designed for commercial AV integration, digital signage, and high-end home theaters, it supports high-resolution computer and video signals up to 4K (4096x2160 and 3840x2160) at 30Hz with 4:4:4 color, or at 60Hz with 4:2:0 chroma subsampling. It accommodates a maximum data rate of 10.2 Gbps, ensuring that high-quality, uncompressed video and lossless audio formats (such as Dolby TrueHD and DTS-HD Master Audio) pass through to the destination screens without degradation.

To ensure absolute reliability in a live routing environment, the DA4 HD 4K is packed with Extron’s proprietary integration technologies. It features EDID Minder, which automatically manages the EDID (Extended Display Identification Data) communication between the connected displays and the source device, ensuring the source always boots up and outputs the correct resolution. Furthermore, it utilizes Key Minder to continuously authenticate HDCP (High-bandwidth Digital Content Protection) encryption, preventing the dreaded "black screen" or handshaking dropouts that frequently plague consumer-grade splitters. All of this is housed in a compact, 1U quarter-rack width metal enclosure that can be easily mounted in an AV rack, under a table, or directly behind a display.

Key Features

One HDMI input, four simultaneous outputs.
Supports resolutions up to 4K.
HDMI 1.4, 10.2 Gbps bandwidth.
EDID Minder® automatic EDID management.
Key Minder® HDCP authentication.
Automatic input cable equalization.
RS-232 control and output muting.
