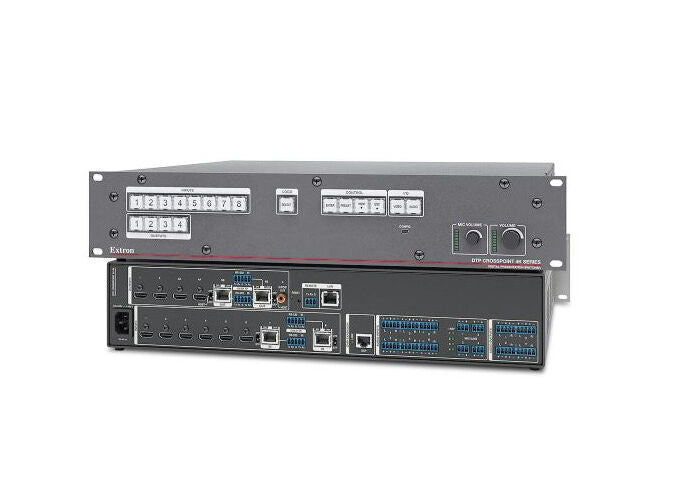

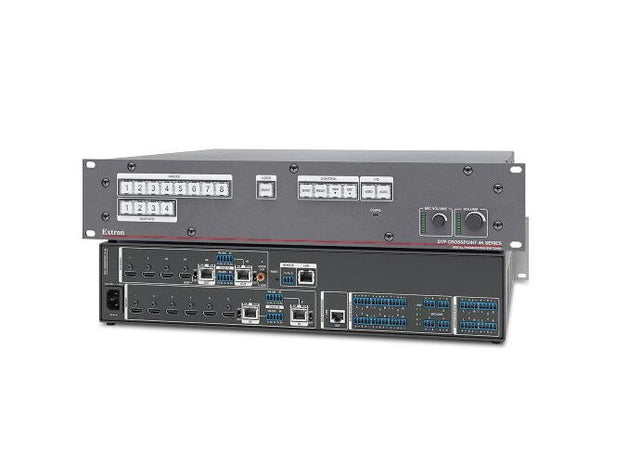

Extron DTP CrossPoint 84 4K Matrix Switch

The Extron DTP CrossPoint 84 4K represents the pinnacle of integrated matrix switching and signal extension, engineered for the most demanding professional audiovisual environments. This scalable platform combines a high-performance matrix switcher with Extron's proprietary Digital Twisted Pair (DTP) technology, creating a unified solution for routing, distributing, and extending ultra-high-definition 4K audiovisual signals over significant distances. At its core is a robust 8x4 matrix (expandable through linking), capable of routing any input to any output simultaneously, supporting resolutions up to 4K at 60Hz with 4:4:4 color sampling. It accepts a comprehensive range of inputs, including HDMI, DisplayPort, and legacy computer video, while its outputs can drive both local displays directly and send signals over a single CATx cable to remote DTP receivers placed hundreds of feet away. This dual capability eliminates the need for separate extenders, streamlining system design and reducing points of failure in complex installations found in corporate headquarters, higher education lecture capture systems, and military command centers.

A defining strength of this system is its deep integration of signal management, extension, and control. Each input and output board is modular, allowing for customization and future expansion. The built-in DTP extension technology embeds bi-directional control, RS-232 serial data, and analog audio over the same CATx cable used for video, enabling centralized management of remote displays, media players, and other peripherals. The matrix features Extron's advanced video processing, including scaling, frame rate conversion, and color space matching on every output, ensuring perfect compatibility with connected displays regardless of the source's native format. This level of processing guarantees a stable, flicker-free image on every screen, which is critical when distributing content across a multi-display video wall or to various room types from a single headend.

Control and monitoring are facilitated through a suite of intuitive interfaces, including a web-based configuration tool, the Extron Global Configurator Plus software, and seamless integration with third-party control systems like Crestron and AMX. The unit provides detailed EDID management, system-wide input equalization, and output cable compensation to maintain signal integrity over long cable runs. Housed in a high-quality, rack-mountable chassis with a redundant, hot-swappable power supply, the DTP CrossPoint 84 4K is built for absolute reliability in 24/7 operation. By converging matrix switching, long-distance signal transmission, and advanced image processing into a single, manageable chassis, it delivers an unparalleled combination of performance, flexibility, and scalability for the most mission-critical AV distribution networks.
