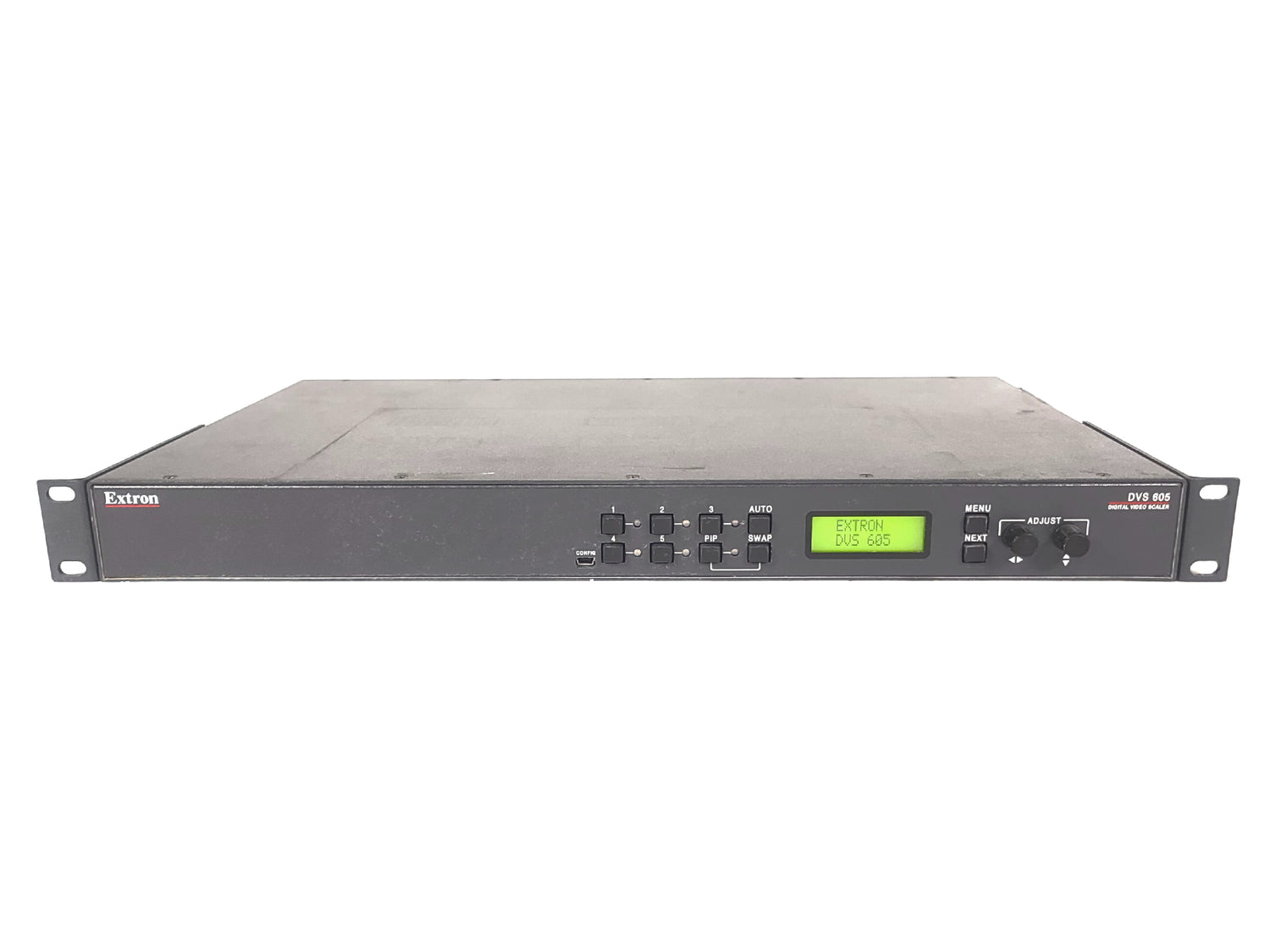

The Extron DVS 605 is a high-performance, HDCP-compliant video scaler designed to serve as the integration centerpiece for professional AV presentation systems that incorporate both digital and analog sources. Featuring three HDMI inputs and two universal auto-detecting analog video inputs, this versatile unit accepts a wide range of formats including RGB computer video, HDTV, component video, S-video, and composite video. The DVS 605 provides simultaneous scaled outputs via HDMI and analog RGB or component video, with selectable output rates from 640x480 up to 1920x1200, including 1080p/60 and 2K. At the heart of the DVS 605 is an advanced 30-bit scaling engine with motion-adaptive deinterlacing for signals up to 1080i and Deep Color processing, delivering optimized image quality for any source. The unit incorporates Extron-exclusive EDID Minder and Key Minder technologies, which manage EDID communication between devices and maintain continuous HDCP authentication for quick, reliable switching of protected content. True seamless switching with selectable cut or dissolve transitions is available between inputs, while a flexible picture-in-picture mode allows unrestricted two-window display of any combination of analog or digital sources. For enhanced system integration, the DVS 605 offers comprehensive control options including front-panel controls with LCD display, Ethernet, RS-232, USB, and contact closure ports. Audio-capable models feature five-input audio switching with HDMI audio embedding and de-embedding, plus gain and attenuation adjustments for analog inputs. Housed in a 1U, full rack width metal enclosure with an internal universal power supply, the DVS 605 delivers professional-grade reliability for boardrooms, classrooms, and other presentation environments requiring superior video scaling and switching performance. Read more

Features
